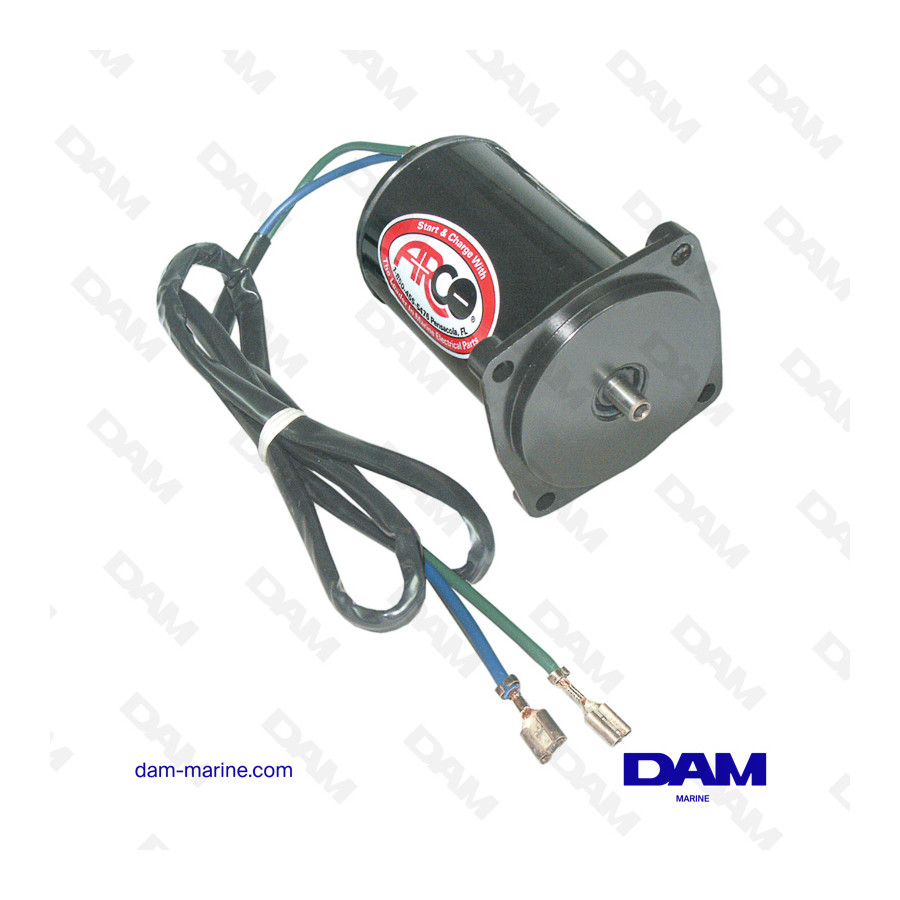

BRP HONDA 25-50HP TRIM MOTOR
2-wire trim motor for Johnson - Evinrude outboards 25 to 50HP after 1992.
As well as the following Honda engines from 1992 to 2002:
- BF35
- BF40
- BF45
- BF50
Mounting with 4 fixing screws.
Female drive axle.
Compatibilité inconnue ou non renseignée, Contact us
Voir les produits compatibles
Produit compatible
2-wire trim motor for Johnson - Evinrude outboards 25 to 50HP after 1992.
As well as the following Honda engines from 1992 to 2002:
- BF35
- BF40
- BF45
- BF50
Mounting with 4 fixing screws.
Female drive axle.

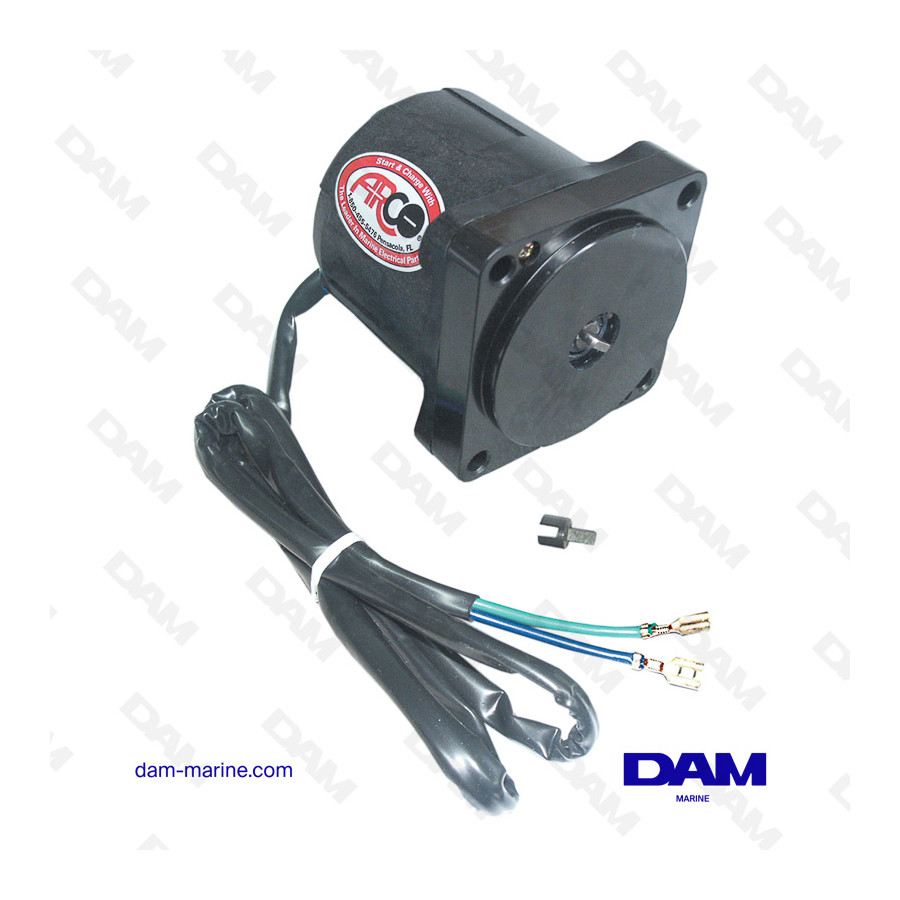

2-wire trim motor for the following Johnson - Evinrude outboards:
- 200 and 225HP after 1991
- 120 and 140HP from 1991 to 1994
- 50HP 3 cylinders after 1995
- 60HP after 1995
- 130HP V4 after 1995
- 115 to 200HP after 1997
- 225HP 2 wires from 1998 to 1999
4 fixing screws.
Relay reference R473.

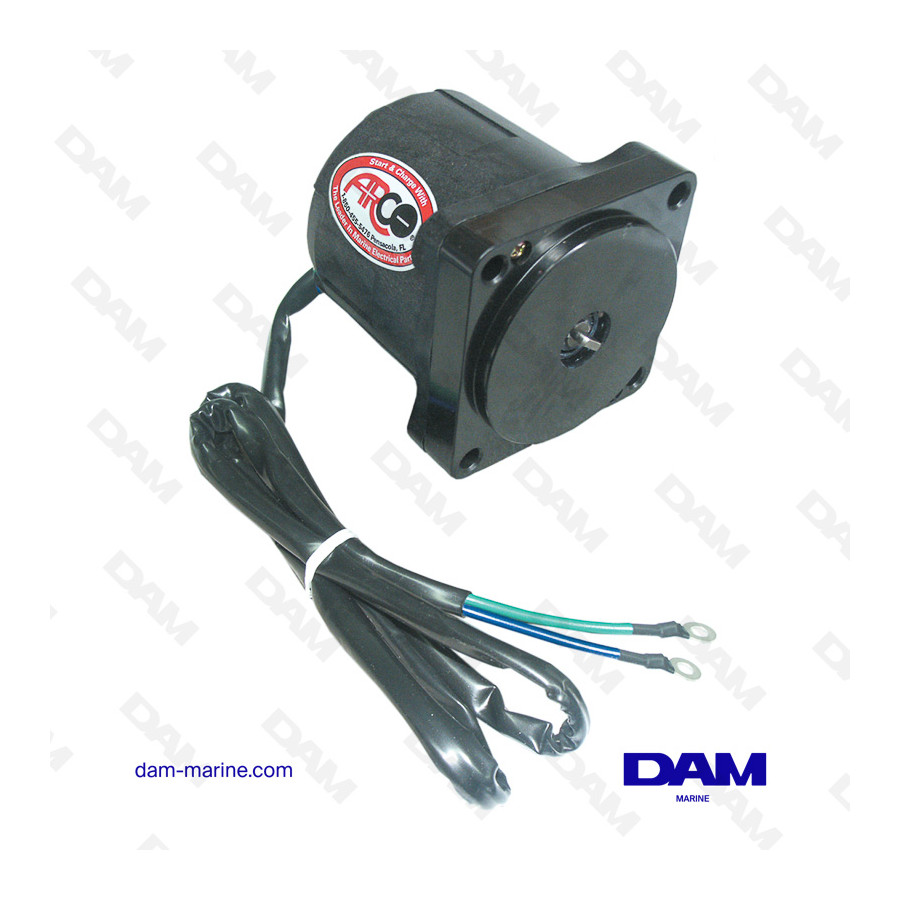

Trim motor for the following Yamaha outboard motors:
- 115HP 2-stroke after 1997
- 115HP 4-stroke after 2000
- 130HP from 1997 to 2000
- 150HP and 200HP after 1997
- 225HP after 1998
2-wire connection.
Fixing with 4 screws.
Reassembly gaskets included.
Johnson - Evinrude outboard trim motor types Fitch Ram FFI from 75 to 300HP.
Fixing with 4 screws.
Reassembly gaskets included.
2-wire trim motor for Volvo Penta outdrive with a center distance of 58.42mm.
Standard nets: 10x24
Assembly for replacement of Volvo Penta OEM trim motors reference 3861575 but also 18-6804 motors on TELEFLEX - SIERRA 18-6806 pumps.
2-wire trim motor for Volvo Penta outdrive with a center distance of 63.5mm.
Fine threads: 10X32
Motor for complete pump reference ARC6227
Johnson - Evinrude outboard trim motor 2 wires, 3 mounting screws.
Application 2 - 4 - 6 and 8 cylinder engines from 1982 to 1992.
Mounting gasket included.
R473 type relay
