Battery accessory

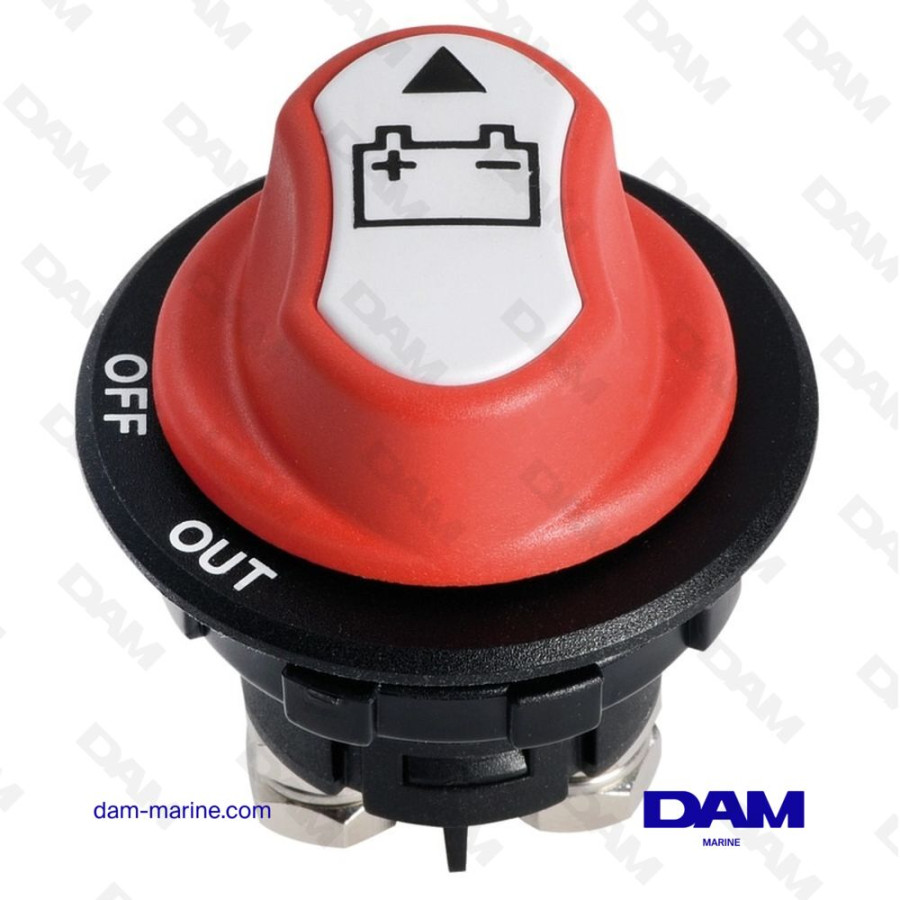

Super-compact model for installation on dashboard or wall.

Positions: OFF-ON-OUT to remove the key

Capacity 100 amp continuous

Capacity 150 amp intermittence

Exterior block diameter 45mm

Internal diameter 26 mm

Battery coupler 12 Volt for 2-battery fleet with 310A on-going and 500A on-going.

4-position, 3/8-dimensional plots: diameter 127 mm and height 67 mm.

A coupler allows to use the first battery, the second battery or both simultaneously.This provides an emergency start-up feed.One or the other or both batteries can be selected for switching on.

These couplers combine the battery selector functions and circuit cut to provide four following power options:

Switching Power, Battery 2.Voltage, Battery 1.Power up, both batteries.

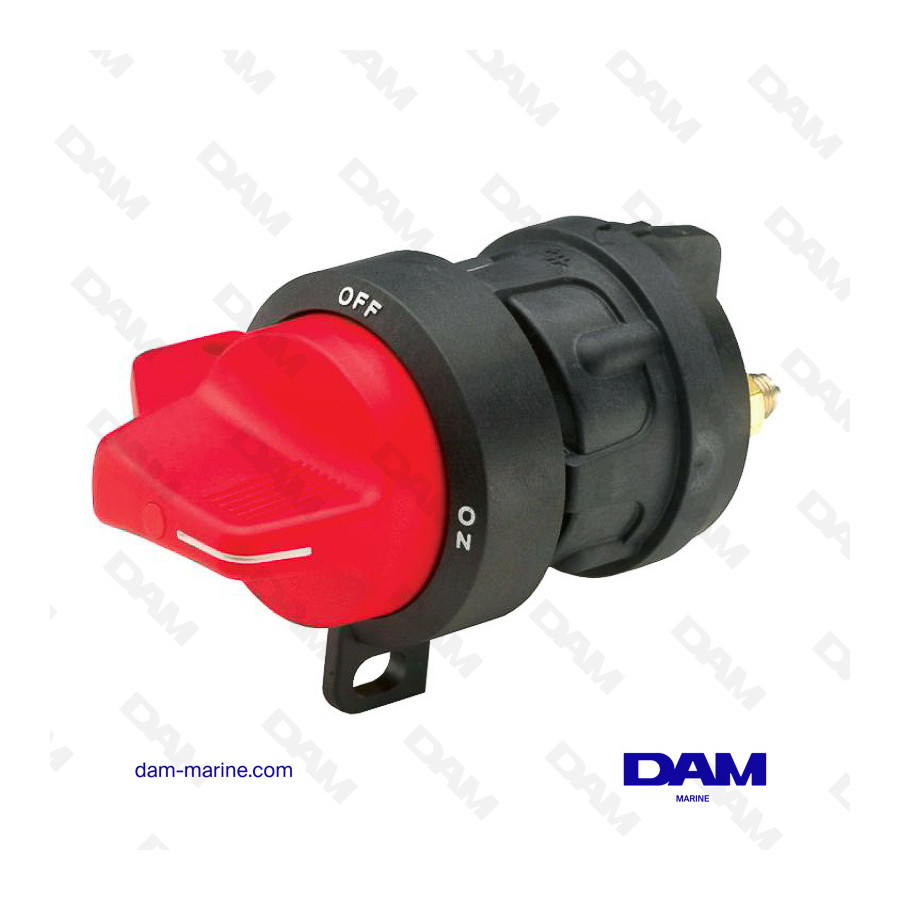

High capacity IP67 waterproof battery cut for use of 300AMP in 12v.

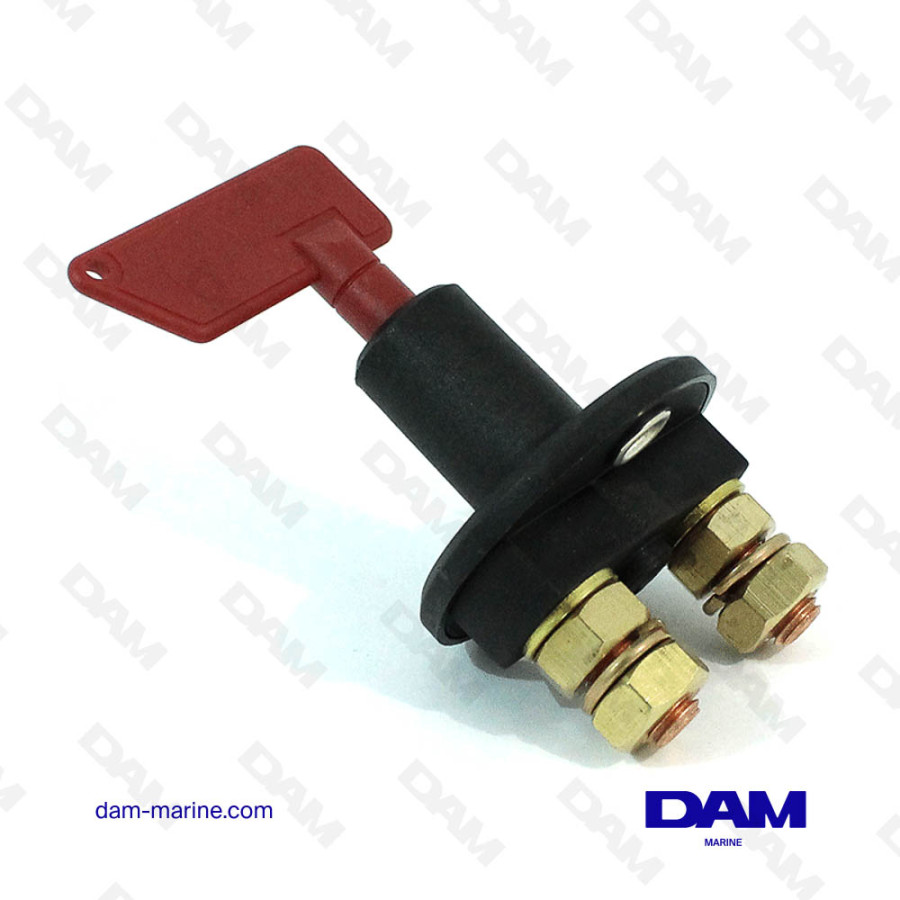

Universal battery cut 12V stamping 100-150 Amp continuously.

Connection M10 cables.

Fastening trawl 40mm

Diameter 58mm

- Voltage: 12V to 36V

- Continuous capacity: 300 A at 12 V

- Momentary capacity: 500 A (5 sec) at 12 V

- Rotary dial: 4 positions

- Contacts: copper bolts Ø 9 mm

CONNECTION: To connect the cable to the contacts, use M10 solder terminals.

ASSEMBLY :

- Dimensions: ø 160 mm x th. 70mm

- Drilling distance: 104 mm

- Diameter of the fixing holes: 5 mm
