Starters for marine engines

Reduction starter (11 teeth) for mounting on engine block by 2 offset / non-aligned screws.

Fixing:

- 2 long screws reference PG601R

Screw kit not included.

Standard rotation.

Specific starter screw length 11 cm - 3/8-16.

Mounting on reduction starter types DR30460 - DR51150.

For metric screws present on new engine blocks, refer to reference 10/861788.

HIGH PERFORMANCE reduction starter for mounting on the engine block, along the oil pan with fixing by 2 offset screws.

Starter replacing the old generation without reduction type ST70 or having 9 teeth.

Application for high comprehension rate engines, Big block, HP ...

Fixing for 2 long screws reference PG601R included with the starter.

ARCO brand starters are quality products that surpass original starters and cannot be compared with low-end adaptable equipment.

11 tooth 12 volt starter for Yanmar engines with multiple applications 2 - 3 - 4 cylinders.

9-tooth reduction starter designed for attachment to the engine block along the oil pan using 2 screws on the same axis.

Fixing:

- Short screw type PG600

- Long screw type PG601R

Screw kit included.

Starter replacing the older generation without reduction in reference DR9597.

Mounting for flywheel with a diameter of 32.4 cm.

ARCO brand starters are quality products that surpass original starters and cannot be compared with low-end adaptable equipment.

12 volt starter for Volvo Penta diesel engines.

Starter motor for new generation Suzuki engine for application:

DF90 after 2017

DF80 after 2017

DF70 after 2017

DF100 2021 - 2023

DF150 after 2018

DF175 after 2018

DF200 after 2018

DF225 after 2018

DF250 after 2018

DF300 after 2018

DF325 after 2018

DF350 after 2018

Large model 9-tooth starter with 2 fixing screws on the same axle.

- Short screw type PG600

- Long screw type PG601

Screws not included.

10-tooth reduction starter for Ford 5L and 5.8L engines in standard CW rotation with a firing order of 1-3-7-2-6-5-4-8.

Starter for PCM, INDMAR , CRUSADER base 6 liter engine with fixing along the oil pan by 2 aligned screws.

9-tooth reduction starter designed for attachment to the engine block along the oil pan using 2 aligned straight screws.

Fixing:

- Short screw PG600

- Long screw PG601R

Screws not included.

Starter replacing the older generation without DR9597 type reduction.

Mounting for flywheel with a diameter of 32.4 cm.

Starter for the following Yamaha engines:

300HP F - LF 2007 - 2009

350HP after 2007

425HP after 2007

9-tooth starter for Volvo Penta engines:

D1-30A

D1-30B

D2-40A,B,C

D2-55A,B,C

D2-75A

Starter for the following Suzuki - BRP engines:

70 - 90hp from 2009 to 2016

80hp from 2009 to 2017

150 - 175hp from 2006 to 2017

200hp from 2005 to 2017

225 - 250hp from 2004 to 2017

300hp from 2007 to 2017

14 tooth starter for Mercury outboard motor from 75 to 115HP EFI 4 stroke, with 4 fixing screws.

14 tooth starter for the following Mercury outboard motors:

- DFI - OPTIMAX: 115 to 200HP 2.5L SN OT178500 and after - 200 to 250HP 3L SN OT467442 and after

- VERADO: 135 to 350HP after 2005 with a solenoid on the starter.

Solenoid only: SW463

Starter for RH reverse rotation motor with a fixing on the top of the coupling bell by 2 screws.

Mounting opposite the engine block.

Arco brand premium quality 10-tooth reduction starter for Ford 5L and 5.8L engines in standard CW rotation with a firing order of 1-3-7-2-6-5-4-8.

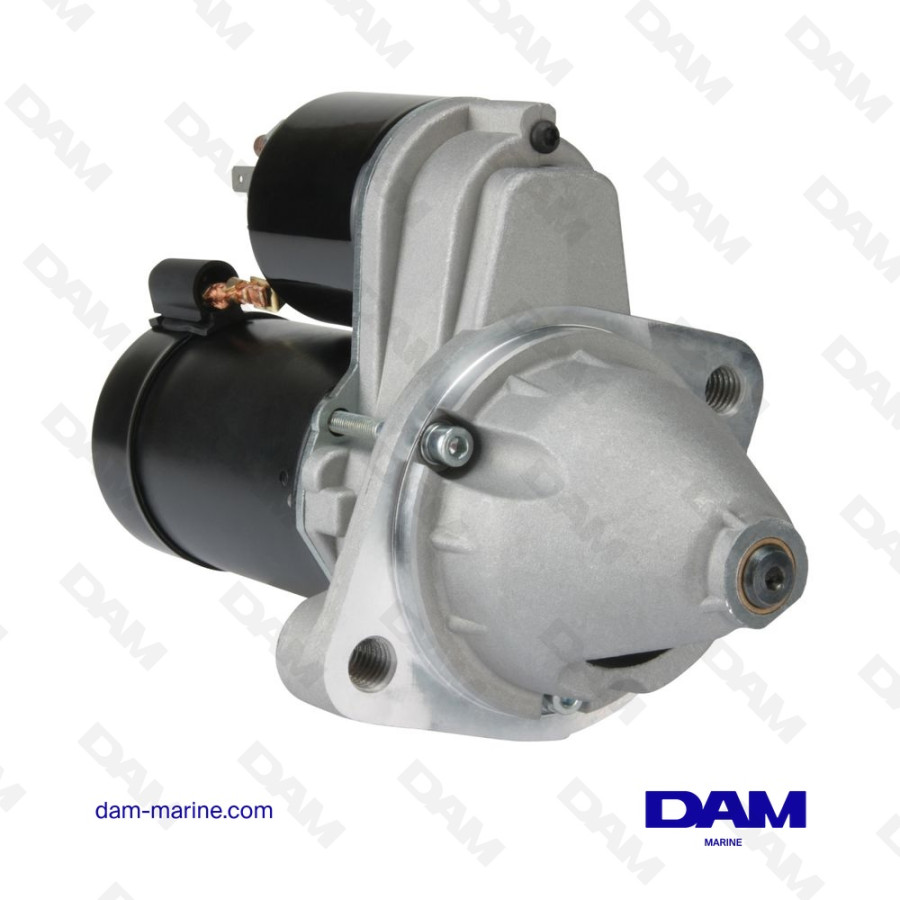

Starter motor for Volvo Penta engine series:

2001 - 2002 - 2002T - 2003 - 2003T - AQ125 - AQ131 - AQ145 - AQ151 - AQ171
