Waterlocks for marine engines

Silencieux - Waterlock type volvo du capacité de 4 litres disposant de 2 sorties droites 45mm.

Dimensions :

Longueur totale : 310mm

Longueur du corps : 200mm

Hauteur de la fixation au piquage eau : 155mm

Diamètre piquage eau : 45mm

Once your boat's engine has been stopped, with the correct volume capacity selected, the VETUS waterlock will ensure that water does not return to the engine. All VETUS water pots are equipped with a drain plug for winter storage.

Suitable for exhaust pipes with an inner diameter of Ø 40 mm.

Capacity: 4.3L

A: 372 x 110 mm

B: 211mm

D: 40mm

1 adjustable entrance

1 fixed output

Waterlock d'une capacité de 7 litres en polyéthylène haute densité disposant d'entrées et sorties fixes à diamètres multiples à savoir :

- 40.5mm

- 45.5mm

- 50.5mm

Dimensions : 48x14x26cm

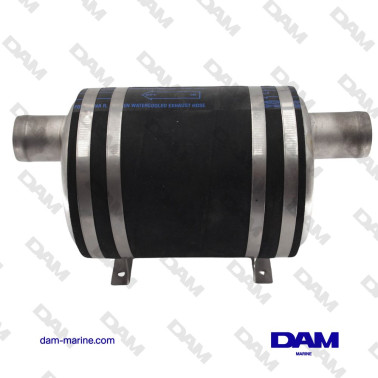

Silencer - Volvo type Waterlock with a capacity of 4 liters and two 40mm straight outlets.

Dimensions:

Total length: 310mm

Body length: 200mm

Height of the attachment to the water tap: 155mm

Water connection diameter: 40mm

Système d'échappement waterlock VETUS de grande longueur pour durite échappement standard.

• Convient aux tuyaux d'échappement d'un diamètre intérieur de Ø 45 mm

• Embouts d'entrée et de sortie rotatifs

• Livré avec 1 sangle de sécurité

Capacité : 5.7L

A : 430 x 152 mm

B : 310mm

D: 45mm

Silencieux - Waterlock type volvo du capacité de 4 litres disposant de une entré droite et une sortie à 45° vers le haut de diamètre 45mm.

Dimensions :

Longueur totale : 310mm

Longueur du corps : 200mm

Hauteur de la fixation au piquage eau : 155mm

Diamètre piquage eau entrée droit : 45mm

Diamètre piquage eau sortie 45° : 45mm

Once your boat's engine has been stopped, with the correct volume capacity selected, the VETUS waterlock will ensure that water does not return to the engine. All VETUS water pots are equipped with a drain plug for winter storage.

Suitable for exhaust pipes with an inner diameter of Ø 30 mm.

Capacity: 2.3L

A: 240 x 90 mm

B: 180mm

D: 30mm

Once your boat's engine has been stopped, with the correct volume capacity selected, the VETUS waterlock will ensure that water does not return to the engine. All VETUS water pots are equipped with a drain plug for winter storage.

Suitable for exhaust pipes with an inner diameter of Ø 50 mm.

Capacity: 10.5L

A: 530 x 138 mm

B: 290mm

D: 50mm

Une fois que le moteur de votre bateau a été arrêté, avec la bonne capacité de volume choisie, le waterlock VETUS s'assurera que l'eau ne retournera pas dans le moteur. Tous les pots à eau VETUS sont munis d'un bouchon de vidange pour l'hivernage.

Convient aux tuyaux d'échappement d'un diamètre intérieur de Ø 45 mm.

Capacité : 4.3L

A : 372 x 110 mm

B : 211mm

D: 45mm

1 entrée orientable

1 sortie fixe

Once your boat's engine has been stopped, with the correct volume capacity selected, the VETUS waterlock will ensure that water does not return to the engine. All VETUS water pots are equipped with a drain plug for winter storage.

Suitable for exhaust pipes with an inner diameter of Ø 50 mm.

Capacity: 4.3L

A: 372 x 110 mm

B: 211mm

D: 50mm

1 adjustable entrance

1 fixed output

Once your boat's engine has been stopped, with the correct volume capacity selected, the VETUS waterlock will ensure that water does not return to the engine. All VETUS water pots are equipped with a drain plug for winter storage.

Suitable for exhaust pipes with an inner diameter of Ø 75 mm.

Capacity: 10.5L

A: 530 x 138 mm

B: 290mm

D: 75mm

Once your boat's engine has been stopped, with the correct volume capacity selected, the VETUS waterlock will ensure that water does not return to the engine. All VETUS water pots are equipped with a drain plug for winter storage.

Suitable for exhaust pipes with an inner diameter of Ø 90 mm.

Capacity: 10.5L

A: 530 x 138 mm

B: 290mm

D: 90mm

Une fois que le moteur de votre bateau a été arrêté, avec la bonne capacité de volume choisie, le waterlock VETUS s'assurera que l'eau ne retournera pas dans le moteur. Tous les pots à eau VETUS sont munis d'un bouchon de vidange pour l'hivernage.

Convient aux tuyaux d'échappement d'un diamètre intérieur de Ø 60 mm.

Capacité : 10.5L

A : 530 x 138 mm

B : 290mm

D: 60mm

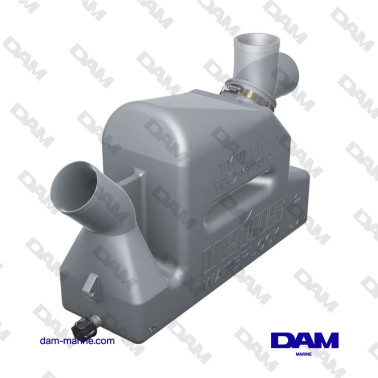

VETUS long length waterlock exhaust system for standard exhaust hose.

• Suitable for exhaust pipes with an inner diameter of Ø 50mm

• Rotating inlet and outlet tips

• Comes with 1 safety strap

Capacity: 5.7L

A: 430 x 152 mm

B: 310mm

D: 50mm

VETUS long waterlock exhaust system for standard exhaust hose.

• Suitable for exhaust pipes with an inner diameter of Ø 40 mm

• Rotating inlet and outlet tips

• Comes with 1 safety strap

Capacity: 5.7L

A: 430 x 152 mm

B: 310mm

D: 40mm

Exhaust system, VETUS waterlock straight long.

• Suitable for exhaust pipes with an inner diameter of Ø 75mm

• Non-rotatable input and output connections

• Comes with 2 fixing straps

Capacity: 16L

A: 596 x 170 mm

B: 310mm

D: 75mm

Exhaust system, VETUS waterlock straight long.

• Suitable for exhaust pipes with an inner diameter of Ø 90mm

• Non-rotatable input and output connections

• Comes with 2 fixing straps

Capacity: 16L

A: 596 x 170 mm

B: 310mm

D: 90mm

Exhaust system, VETUS waterlock straight long.

• Suitable for exhaust pipes with an inner diameter of Ø 60mm

• Non-rotatable input and output connections

• Comes with 2 fixing straps

Capacity: 16L

A: 596 x 170 mm

B: 310mm

D: 60mm

Exhaust system, long VETUS waterlock with built-in check valve for added safety.

• Suitable for exhaust pipes with an inner diameter of Ø 90 mm

• Rotating inlet and outlet tips

• Comes with 2 fixing straps

• Optional temperature sensor

Capacity: 17L

A: 578 x 170 mm

B: 368mm

D: 90mm

Exhaust system, long VETUS waterlock with built-in check valve for added safety.

• Suitable for exhaust pipes with an inner diameter of Ø 75 mm

• Rotating inlet and outlet tips

• Comes with 2 fixing straps

• Optional temperature sensor

Capacity: 17L

A: 578 x 170 mm

B: 368mm

D: 75mm

Exhaust system, long VETUS waterlock with built-in check valve for added safety.

• Suitable for exhaust pipes with an inner diameter of Ø 60 mm

• Rotating inlet and outlet tips

• Comes with 2 fixing straps

• Optional temperature sensor

Capacity: 17L

A: 578 x 170 mm

B: 368mm

D: 60mm

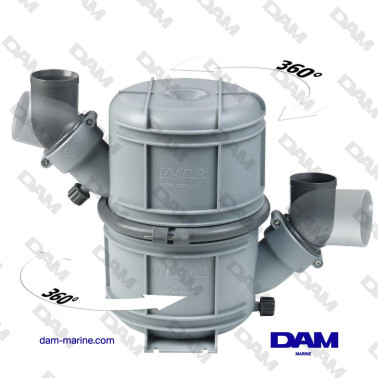

Made from specially blended NAVIDURIN® composite, which is heat resistant up to 260°C.

While the NLP airlock design is already well known for its soundproofing characteristics, versatile installation options and extremely low back pressure, it now adds mechanical properties capable of meeting any challenge and placing it in a unique position on the market.

The thermal resistance to deformation under pressure is 250°C, almost double that of standard GRP materials, while the tensile and flexural strength are the same. What's more, all these advantages are available at a weight almost half that of the competition.

Features a 360° rotating body and endless connection options. Comes with floor and bulkhead mounting brackets and drain plugs for winter storage.

Suitable for 75mm exhaust system.

Features :

Capacity (liters): 10.

Length (mm): 515.

Width (mm): 210.

Height (mm): 362.

Airlock position: Vertical.

% Noise Reduction: 35.

Made from specially blended NAVIDURIN® composite, which is heat resistant up to 260°C.

While the NLP airlock design is already well known for its soundproofing characteristics, versatile installation options and extremely low back pressure, it now adds mechanical properties capable of meeting any challenge and placing it in a unique position on the market.

The thermal resistance to deformation under pressure is 250°C, almost double that of standard GRP materials, while the tensile and flexural strength are the same. What's more, all these advantages are available at a weight almost half that of the competition.

Features a 360° rotating body and endless connection options. Comes with floor and bulkhead mounting brackets and drain plugs for winter storage.

Suitable for 60mm exhaust system.

Features :

Capacity (liters): 10.

Length (mm): 515.

Width (mm): 210.

Height (mm): 362.

Airlock position: Vertical.

% Noise Reduction: 35.
