Engine mounts for marine engines

Kit including 4 engine mounts for Yanmar single cylinder Y series.

Dimensions:

- Height: 35 and 65mm

- Diameter: 58mm

- Center distance: 95mm

- Axle: 12mm

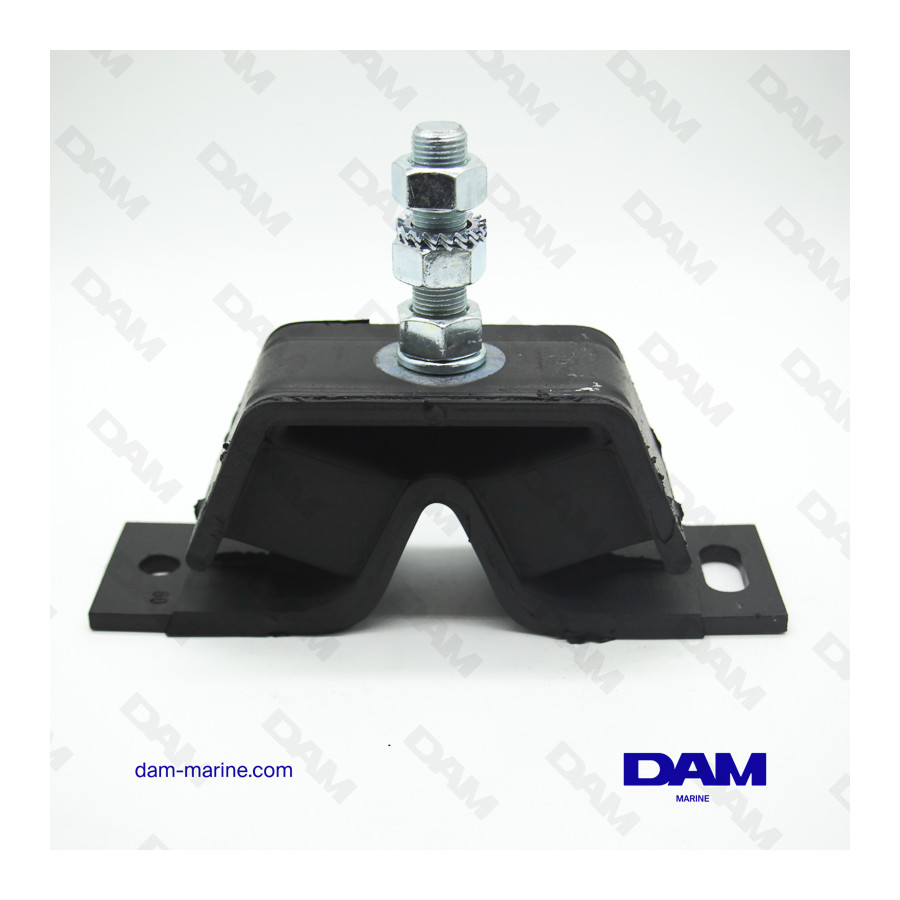

Engine mount for Yanmar with the following features:

- Length: 205mm

- Width: 60mm

- Total height: 147mm

- Body height: 75mm

- Threaded rod: M16 X 1.5

- Center distance: 173mm

- Note on rubber 150

- Maximum load 100 kg

- Shore 60

Rubber ring for Mercruiser trim cylinder.

Complete fixing kit including washers, nut and threaded rod for SP17 series engine mount.

Thread types M16-1.5 X M16-1.5, length 110mm.

Kit to be used in combination with SP171609 series engine mounts with a diameter of M16-1.5 on the lower side (shim) and M16-1.5 on the upper side (top engine).

Existing material in M20-1.5 higher and not M16-1.5 under reference SP181609-20.

Axle kit not suitable for type 22323 supports (fine pitch).

Engine mount for universal application but especially Volvo Penta with the following characteristics:

Center distance: 140mm

Width: 75mm

Total height: 50mm

Hardness: 55

Thread: M16

Support to be used in addition to the SP181609 fixing kit.

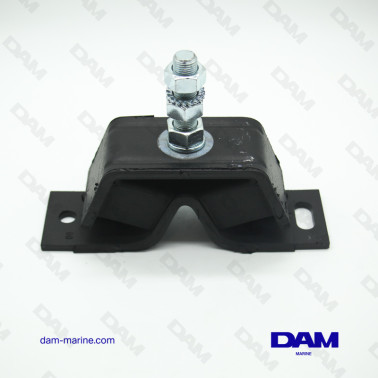

Engine mount for Yanmar with the following features:

- Length: 205mm

- Width: 60mm

- Total height: 147mm

- Body height: 75mm

- Threaded rod: M16 X 1.5

- Center distance: 173mm

- Note on rubber: 75

- Maximum load: 40 kg

- Shore 40

Single motor mount with a 25.5mm diameter axle.

22.2mm mounts being discontinued.

Engine mount for Yanmar with the following features:

- Length: 205mm

- Width: 60mm

- Total height: 147mm

- Body height: 75mm

- Threaded rod: M16 X 1.5

- Center distance: 173mm

- Note on rubber 200

- Maximum load 150 kg

- Shore 70

For a complete set use the following references:

1 pcs: SKR60950

2 pcs: N806

1 pcs: W900-1

2 pcs: W901

2 pcs: BR2795

M12 x M12 adjusting rod with nut and washer assembly for SP136003 type bracket.

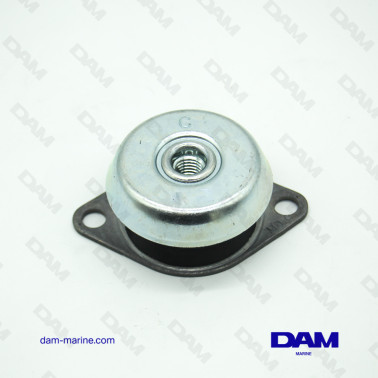

Motor support center distance 76mm height 34mm to be used in addition to the SP8001 axle.

Load: 70 kg

Motor support center distance 76mm height 34mm to be used in addition to the SP8001 axle.

Load: 105 KG

Engine mount for universal application with the following features:

Center distance: 120mm

Width: 60mm

Total height: 40mm

Hardness: 55

Thread: M12

Support to be used in addition to the SP8001 fixing kit.

Engine mount with the following characteristics:

Center distance 100mm with

16mm threaded rod.

Support height 47mm

height of threaded rod included 70mm.

For a 19mm threaded rod see reference 66284A2.

Engine mount with a 16mm diameter axle.

M16 nut and washers not included.

Rear engine mount for Yanmar 2GM and 2YM15 series engines with an SD20 - SD25 saildrive base.

Note on rubber/engraved: 150

Maximum load: 150kg

Complete fixing kit including washers, nut and threaded rod for SP171609 series engine mount

Thread types M16-1.5 X M20-1.5, length 150mm.

Kit to be used in combination with SP171609 series engine mounts with a diameter of M16-1.5 on the lower side (shim) and M20-1.5 on the upper side (top engine).

Axle kit not suitable for type 22323 supports (fine pitch).

Engine mount with the following dimensions:

Body diameter: 64 and 54mm

Body height: 40mm

Total height: 97mm

Threaded rod diameter: 12.8mm

Rear engine mount for Yanmar 1GM - 1GM10 series.

Upper diameter: 64mm

Lower diameter: 53mm

Height: 39mm

male thread: 12.52mm

female thread: 8.28mm

Engine mount for universal application but especially Volvo Penta with the following characteristics:

Center distance: 140mm

Width: 75mm

Total height: 50mm

Hardness: 65

Thread: M16

Support to be used in addition to the SP181609 fixing kit.

Support for Volvo Penta Shore 50 engines with a green marking:

D4-150A-G, D4-175I-G, D4-180I-B, D4-180I-C

D4-180I-D, D4-180I-E, D4-180I-F, D4-210A-A

D4-210A-B, D4-210I-A, D4-210I-B, D4-225A-C

D4-225A-D, D4-225A-E, D4-225A-F, D4-225I-B

D4-225I-C, D4-225I-D, D4-225I-E, D4-225I-F

D4-230A-G, D4-230I-G, D4-260A-A, D4-260A-B

D4-260A-C, D4-260A-D, D4-260A-E, D4-260A-F

D4-260D-B, D4-260D-C, D4-260D-D, D4-260D-E

D4-260D-F, D4-260I-A, D4-260I-B, D4-260I-C

D4-260I-D, D4-260I-E, D4-260I-F, D4-270A-G

D4-270I-G, D4-300A-A, D4-300A-C, D4-300A-D

D4-300A-E, D4-300A-F, D4-300A-G, D4-300D-A

D4-300D-C, D4-300D-D, D4-300D-E, D4-300D-F

D4-300I-A, D4-300I-C, D4-300I-D, D4-300I-E

D4-300I-F, D4-300I-G, D4-320A-G, D4-320I-G

D6-300A-G, D6-300D-G, D6-300I-G, D6-340A-G

D6-340D-G, D6-340I-G, D6-380A-G, D6-380D-G

D6-380I-G, D6-400A-G, D6-440A-G, D6-440D-G

D6-440I-G, D6-440I-WJ-G, D6-480D-G, D6-480I-G

D6-480I-WJ-G
