Ref. DAM : SP8003

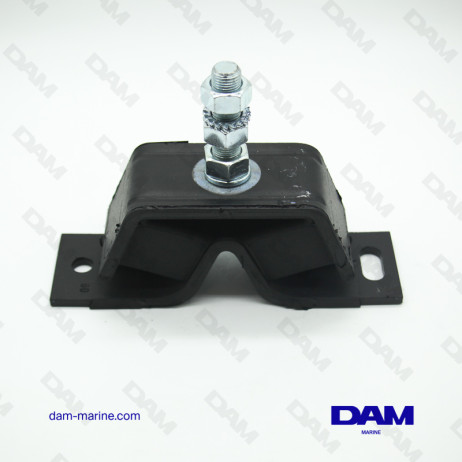

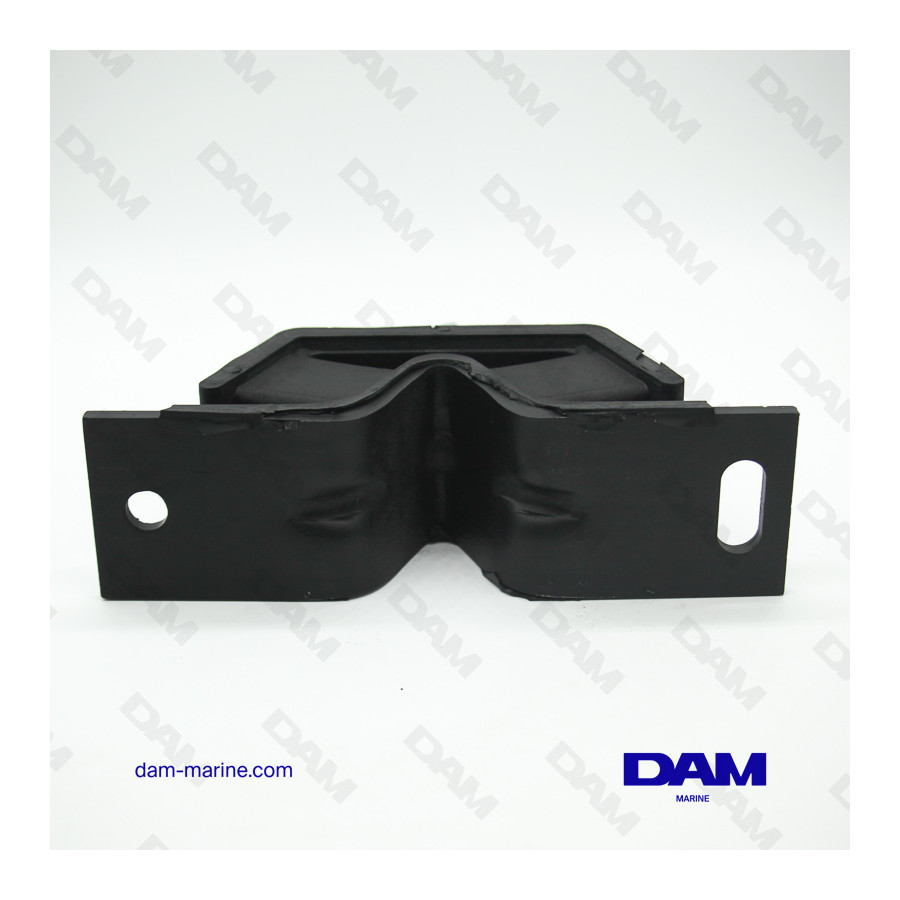

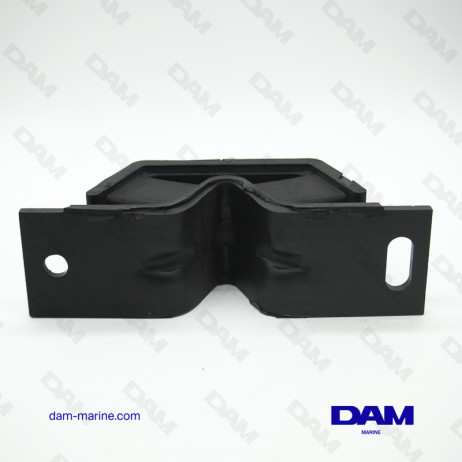

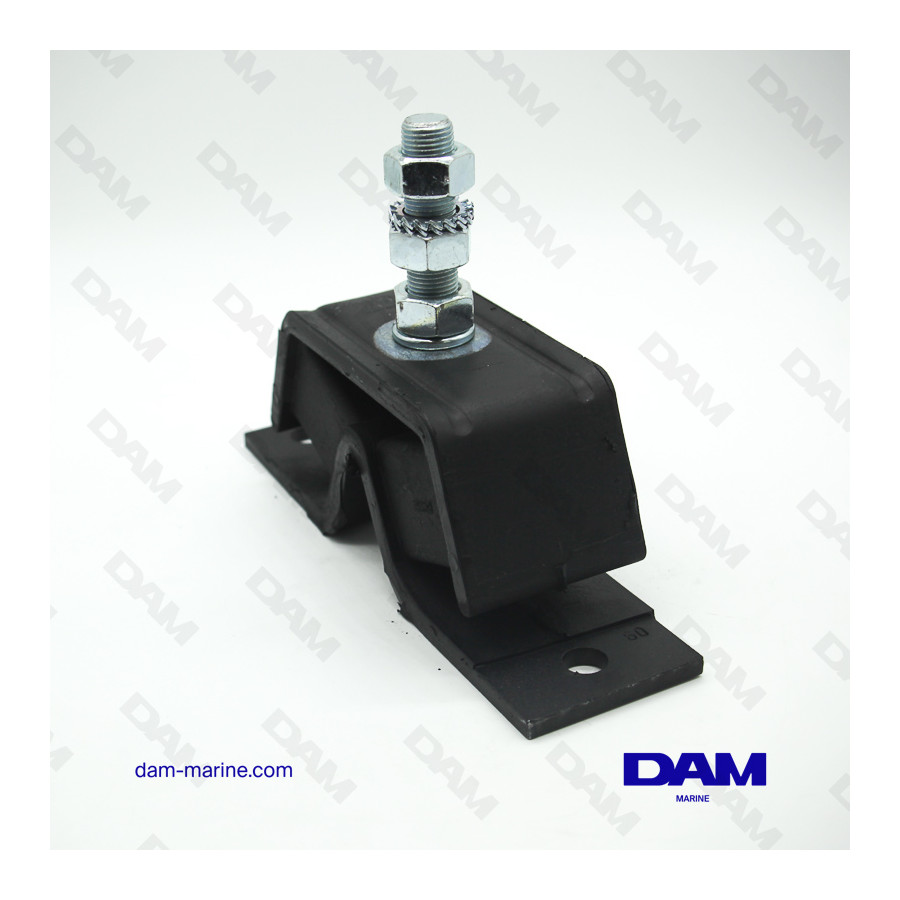

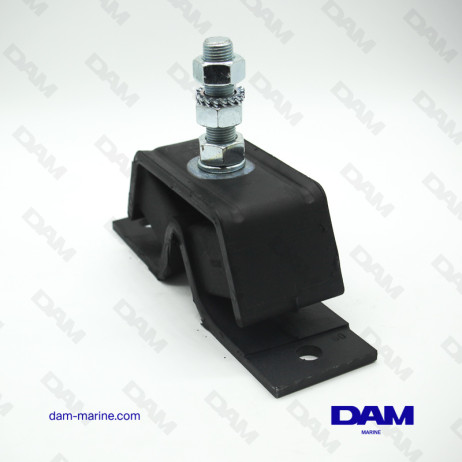

MOTOR SUPPORT 75 - SHORE 40

€91.08 VAT included

€75.90 VAT excluded

Disponible

MOTOR SUPPORT 75 - SHORE 40

MOTOR SUPPORT 75 - SHORE 40

MOTOR SUPPORT 75 - SHORE 40

MOTOR SUPPORT 75 - SHORE 40

keyboard_arrow_left

keyboard_arrow_right

MOTOR SUPPORT 75 - SHORE 40

MOTOR SUPPORT 75 - SHORE 40

MOTOR SUPPORT 75 - SHORE 40

MOTOR SUPPORT 75 - SHORE 40

Livraison express → Tuesday 15 September

|

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€91.08 VAT included

€75.90 VAT excluded

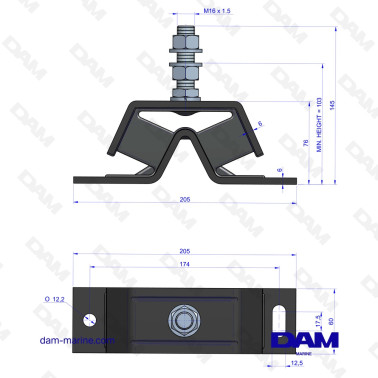

Engine support for Yanmar with the following characteristics:

- Length: 205mm

- Width: 60mm

- Total height : 147mm

- Body height : 75mm

- Threaded upper: M16 X 1.5

- Interconnection : 173mm

- Note on rubber: 75

- Maximum load: 40 Kg

- Shore 40

Read the detailed description

Quantity

Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit

Engine support for Yanmar with the following characteristics:

- Length: 205mm

- Width: 60mm

- Total height : 147mm

- Body height : 75mm

- Threaded upper: M16 X 1.5

- Interconnection : 173mm

- Note on rubber: 75

- Maximum load: 40 Kg

- Shore 40

YANMAR : 128270-08340
YANMAR : 128270-08341
AMC : 148001
ELLEBOGEN : ELLEBOGEN 75

FIG 1. Yanmar 2gmz

FIG 14. FLEXIBLE POST

FIG 14. FLEXIBLE POST Yanmar 3gm30f

FIG 14. FLEXIBLE POST

FIG 14. FLEXIBLE POST Yanmar 3gm30b

FIG 14. FLEXIBLE POST

FIG 14. FLEXIBLE POST Yanmar 3gm30

FIG 14. FLEXIBLE POST

FIG 14. FLEXIBLE POST Yanmar 3gm30c

FIG 15. FLEXIBLE POST

FIG 15. FLEXIBLE POST Yanmar 2gm20

FIG 15. FLEXIBLE POST

FIG 15. FLEXIBLE POST Yanmar 2gm20c

FIG 15. FLEXIBLE POST

FIG 15. FLEXIBLE POST Yanmar 2gm20b

FIG 15. FLEXIBLE POST

FIG 15. FLEXIBLE POST Yanmar 2gm20f

FIG 56. FLEXIBLE POST (OPTIONAL)

FIG 56. FLEXIBLE POST (OPTIONAL) Yanmar 3gmd

Un doute ? > contact us

MOTOR SUPPORT 100 - SHORE 50

MOTOR SUPPORT 100 - SHORE 50

RÉF. SP8004

Engine support for Yanmar with the following characteristics:

- Length: 205mm

- Width: 60mm

- Total height : 147mm

- Body height : 75mm

- Threaded upper: M16 X 1.5

- Interconnection : 173mm

- Note on rubber 100

- Maximum load 75 Kg

- Shore 50

Livraison express → Tuesday 15 September

|

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€91.08 VAT included

€75.90 VAT excluded

MOTOR SUPPORT 150 - SHORE 60

MOTOR SUPPORT 150 - SHORE 60

RÉF. SP8005

Engine support for Yanmar with the following characteristics:

- Length: 205mm

- Width: 60mm

- Total height : 147mm

- Body height : 75mm

- Threaded upper: M16 X 1.5

- Interconnection : 173mm

- Note on rubber 150

- Maximum load 100 Kg

- Shore 60

Livraison express → Tuesday 15 September

|

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€91.08 VAT included

€75.90 VAT excluded

MOTOR SUPPORT 200 - SHORE 70

MOTOR SUPPORT 200 - SHORE 70

RÉF. SP8006

Engine support for Yanmar with the following characteristics:

- Length: 205mm

- Width: 60mm

- Total height : 147mm

- Body height : 75mm

- Threaded upper: M16 X 1.5

- Interconnection : 173mm

- Note on rubber 200

- Maximum load 150 Kg

- Shore 70

Livraison express → Tuesday 15 September

|

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€91.08 VAT included

€75.90 VAT excluded

YANMAR SP8000 SERIES ENGINE...

YANMAR SP8000 SERIES ENGINE SUPPORT SHIM

RÉF. SP8000-C

6mm thick shim to raise engine alignment in combination with SP8000 series supports.

DNV standards state that the only way to properly level engine mounts is to use shims above 4mm.

Livraison express → Tuesday 15 September

|

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€28.80 VAT included

€24.00 VAT excluded
