Ref. DAM : SP171609-65

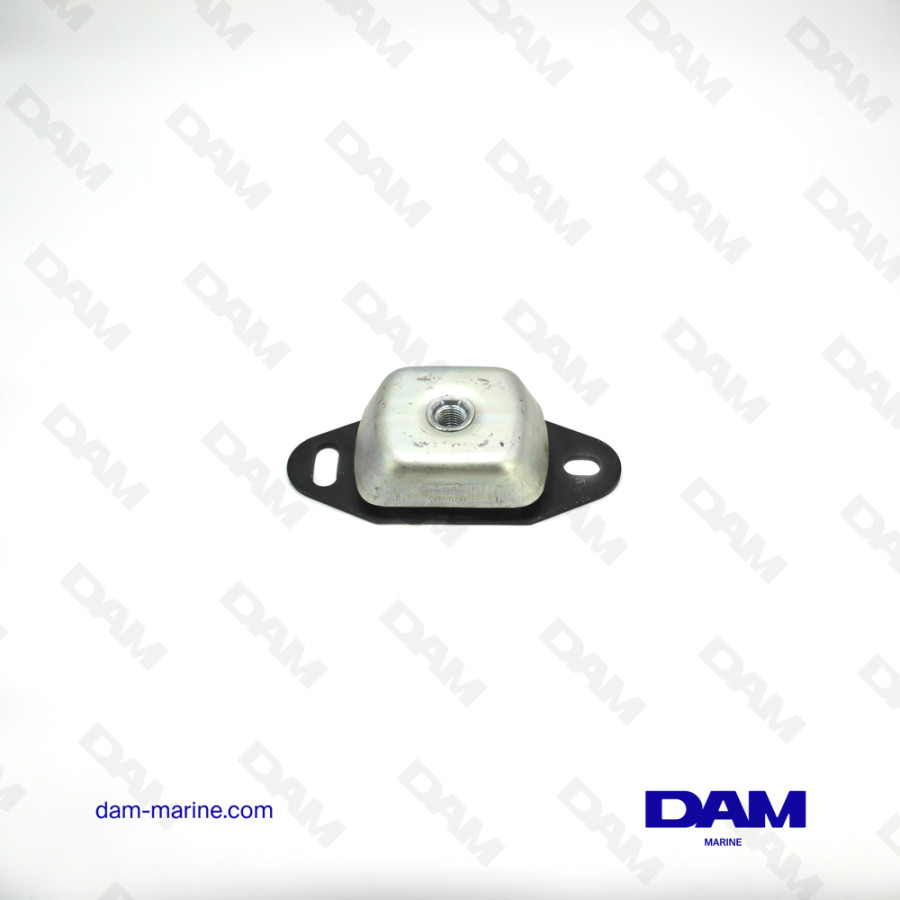

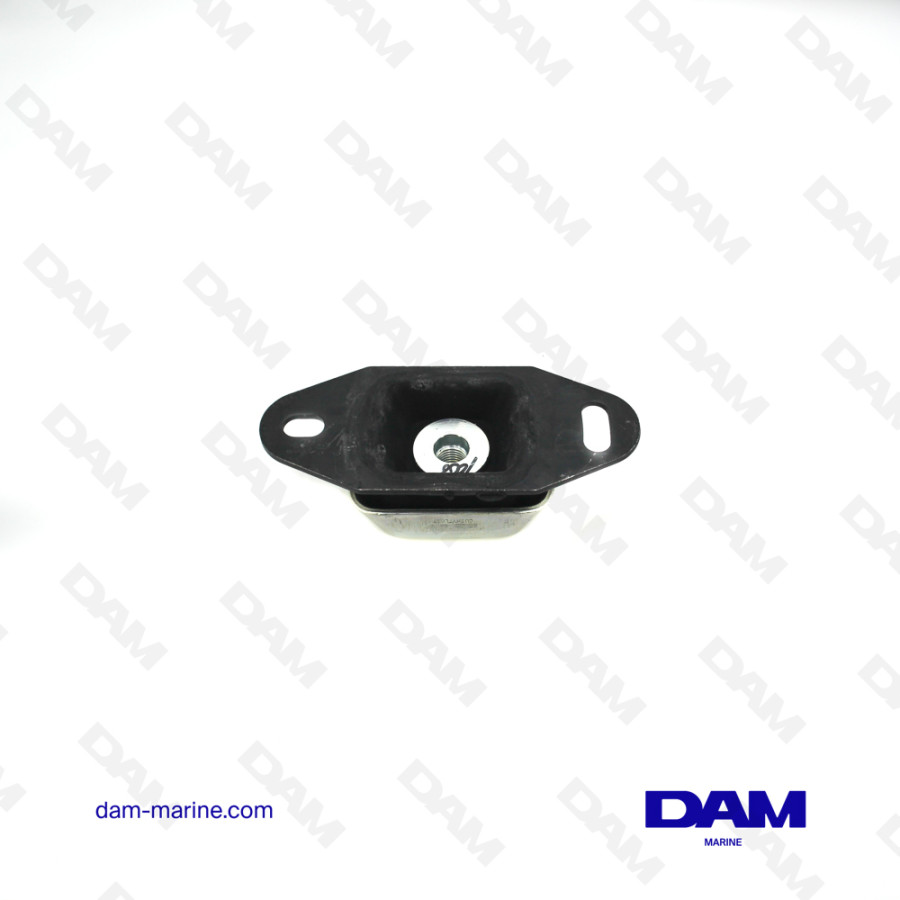

UNIVERSAL MOTOR SUPPORT 65 - 210KG M16

Name: UNIVERSAL MOTOR SUPPORT 65 - 210KG M16
Brand: AMC
SKU: SP171609-65
Price: 79.08 EUR
Availability: InStock

€79.08 VAT included

€65.90 VAT excluded

Disponible

keyboard_arrow_left

keyboard_arrow_right

zoom_in

Livraison express → Tuesday 15 September

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€79.08 VAT included

€65.90 VAT excluded

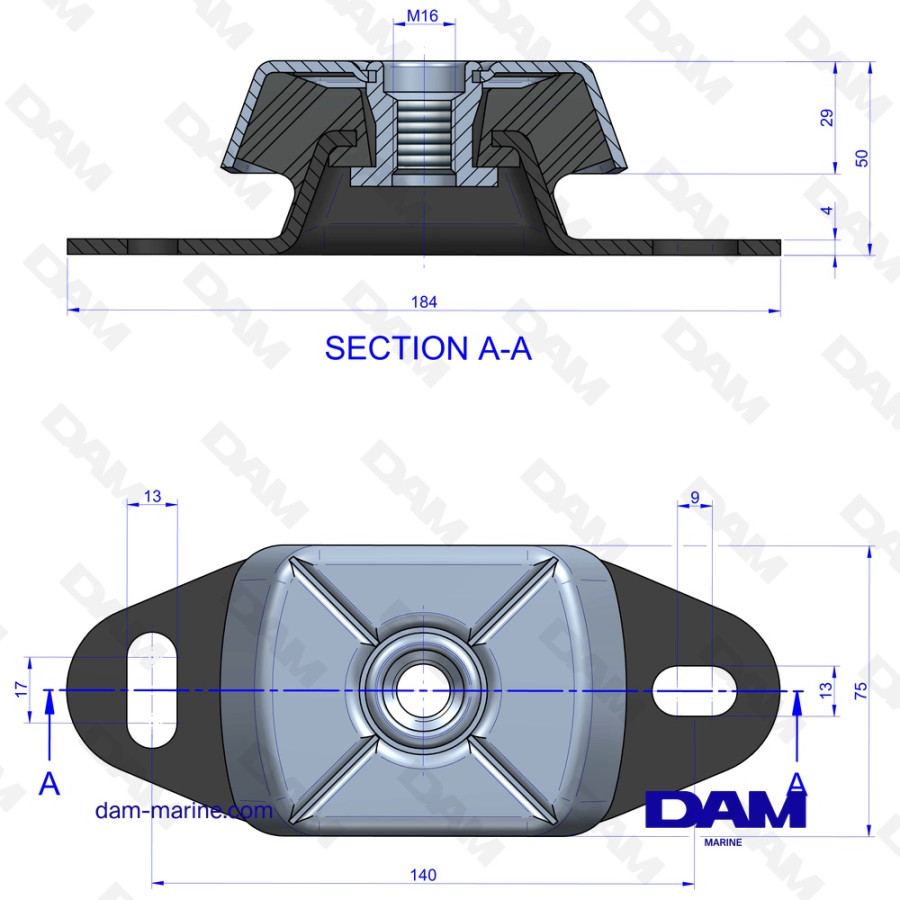

Engine holder for universal application but in particular Volvo Penta having the following characteristics:

Entrax : 140mm

Larger : 75mm

Total height : 50mm

Hardness : 65

Thread : M16

Support to be used in addition to the mounting kit SP181609.

Read the detailed description

Quantity

Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit

Engine holder for universal application but in particular Volvo Penta having the following characteristics:

Entrax : 140mm

Larger : 75mm

Total height : 50mm

Hardness : 65

Thread : M16

Support to be used in addition to the mounting kit SP181609.

MERCRUISER : 855381
MERCRUISER : 879194475
MERCRUISER : 879277286
MERCRUISER : 8M0179512
MERCRUISER : 8M0165927
VOLVO PENTA : 858161
VOLVO PENTA : 858160
VETUS : HY230
ORBITRADE : 22325
SLP : RC-161
SLP : RC161
VM : 35612033F
CROM : 924056
TRELLBORG : 17-1609-16X65
TRELLBORG : 17/1609/02-16X65
AMC : 136024
ELLEBOGEN : 120650-08700
ELLEBOGEN : GT-M65

Belt transmission Volvo penta aq145b

Belt transmission Volvo penta aq125b

Connection components, previous production, reverse PRM301, 302, 401,402 Volvo penta tamd31a

Connection Components, Prod. recent Reverse gear PRM301, 302, 401, 402 Volvo penta tamd31a

Connection parts, PRM401, 402 inverter Volvo penta tamd41a

Conversion kit, SOLAS Volvo penta tamd31a

Conversion kit, SOLAS Volvo penta tamd41a

Cooling system, Intake and exhaust manifold Volvo penta b230f

Cooling system, Intake and exhaust manifold Volvo penta b230fb

Cooling system, Intake and exhaust manifold Volvo penta b230e

Cooling system, Intake and exhaust manifold Volvo penta b230

Cooling system, Intake and exhaust manifold Volvo penta b230fx

Cooling system, intake and exhaust manifold Volvo penta aq171a

Cooling system, intake and exhaust manifold Volvo penta aq171c

Cooling system, Intake and exhaust manifold Volvo penta aq151a

Cooling system, Intake and exhaust manifold Volvo penta aq145b

Cooling system, Intake and exhaust manifold Volvo penta aq151c

Cooling system, Intake and exhaust manifold Volvo penta aq151b

Cooling system, Intake and exhaust manifold Volvo penta aq131d

Cooling system, Intake and exhaust manifold Volvo penta aq131a

Cooling system, Intake and exhaust manifold Volvo penta aq125b

Cooling system, Intake and exhaust manifold Volvo penta aq131b

Cooling system, Intake and exhaust manifold Volvo penta aq131c

Cooling system, Intake and exhaust manifold Volvo penta 250b

Cooling system, Intake and exhaust manifold Volvo penta 230a

Cooling system, Intake and exhaust manifold Volvo penta 230b

Cooling system, intake and exhaust manifold Volvo penta 251a

Cooling system, Intake and exhaust manifold Volvo penta 250a

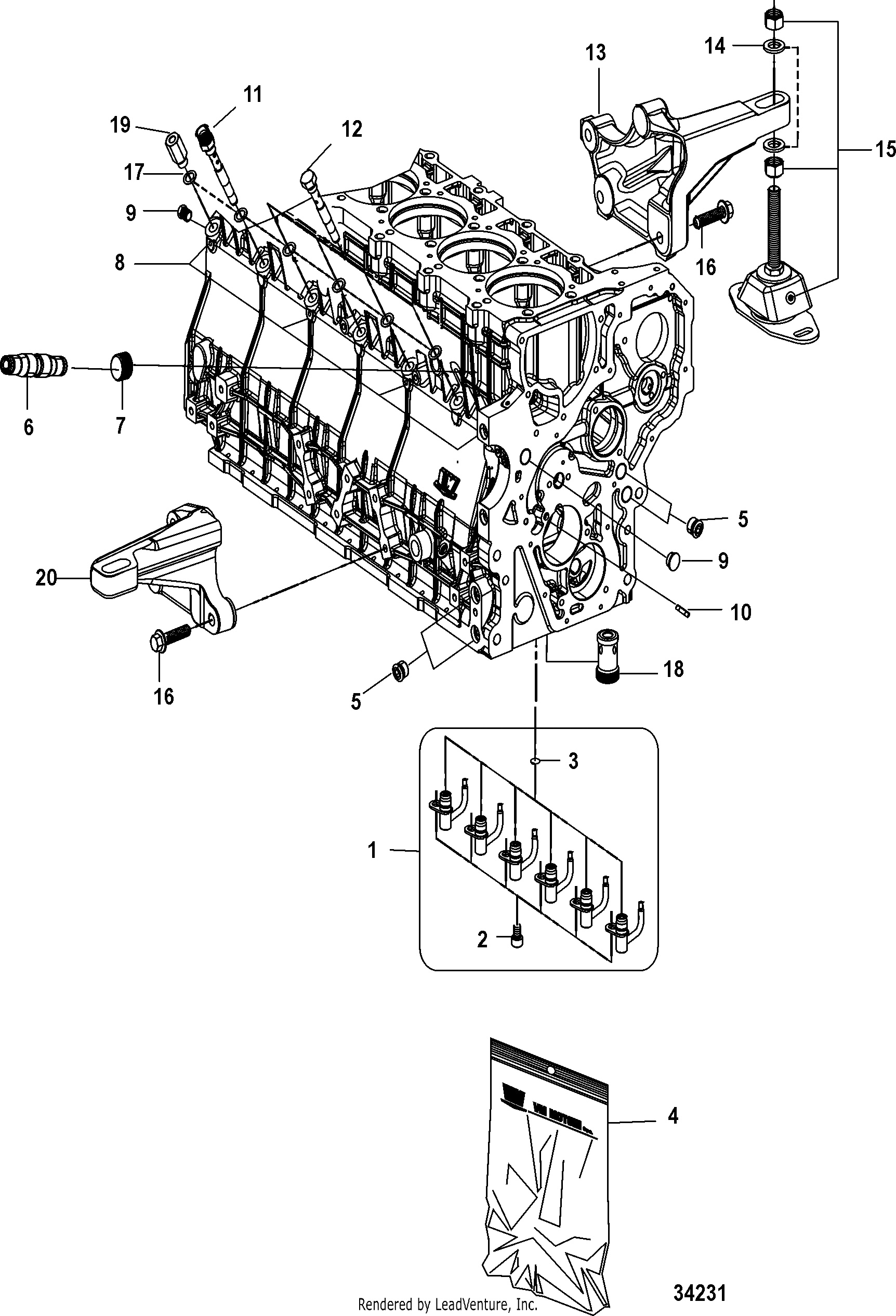

Cylinder Block Moteur mercruiser cmd qsd 4.2 es 270 88401000 thru 88404999

Cylinder Block Moteur mercruiser cmd qsd 4.2 ei 270 88400000 thru 88400999

Cylinder Block Moteur mercruiser cmd qsd 4.2 es 350 88417000 thru 88419999

Cylinder Block Moteur mercruiser cmd qsd 4.2 ei 350 88416000 thru 88416999

Cylinder Block Moteur mercruiser cmd qsd 4.2 es 320 88406000 thru 88415999

Cylinder Block Moteur mercruiser cmd qsd 4.2 ei 320 88405000 thru 88416999

Cylinder unit Volvo penta aq145b

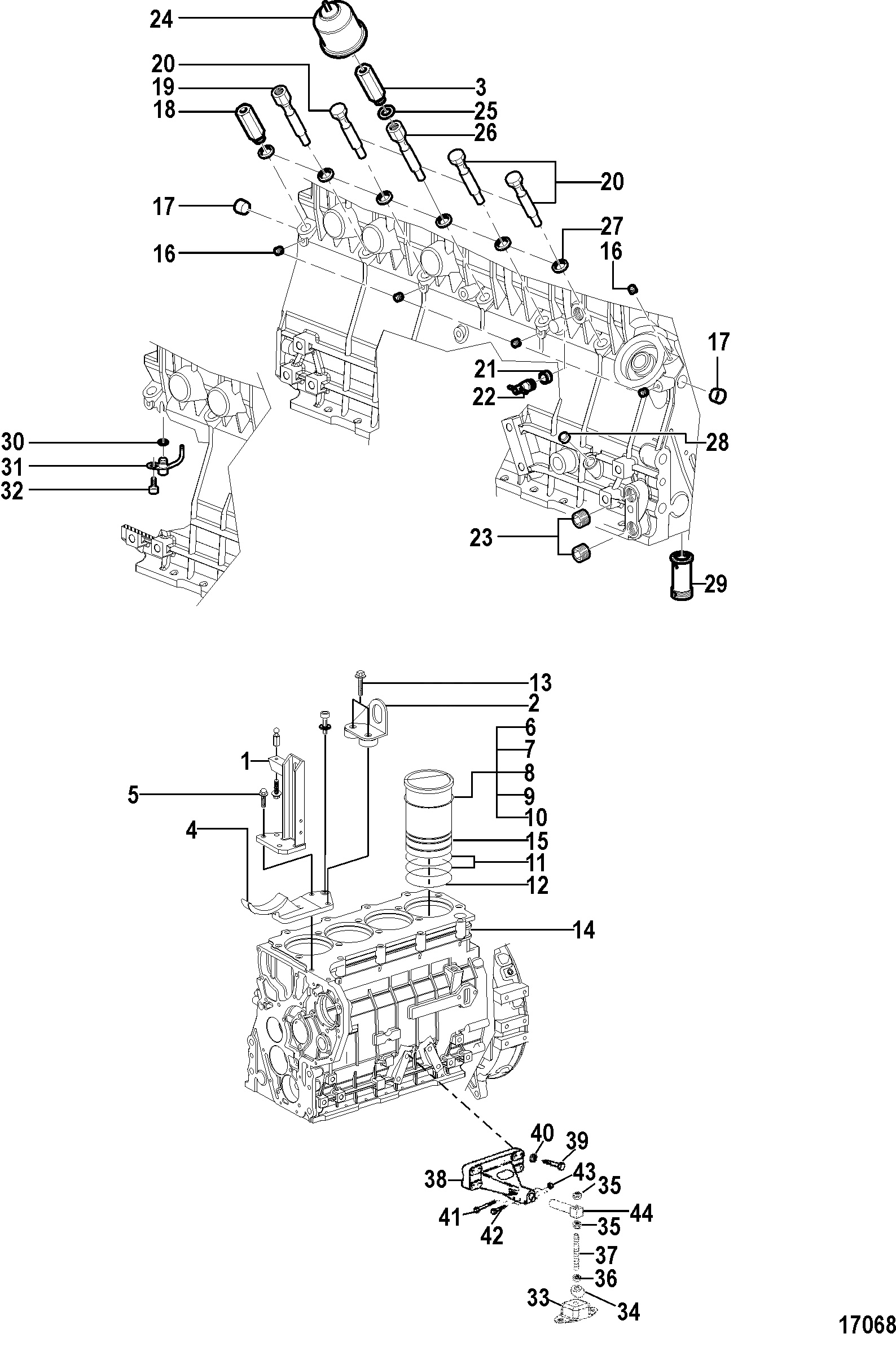

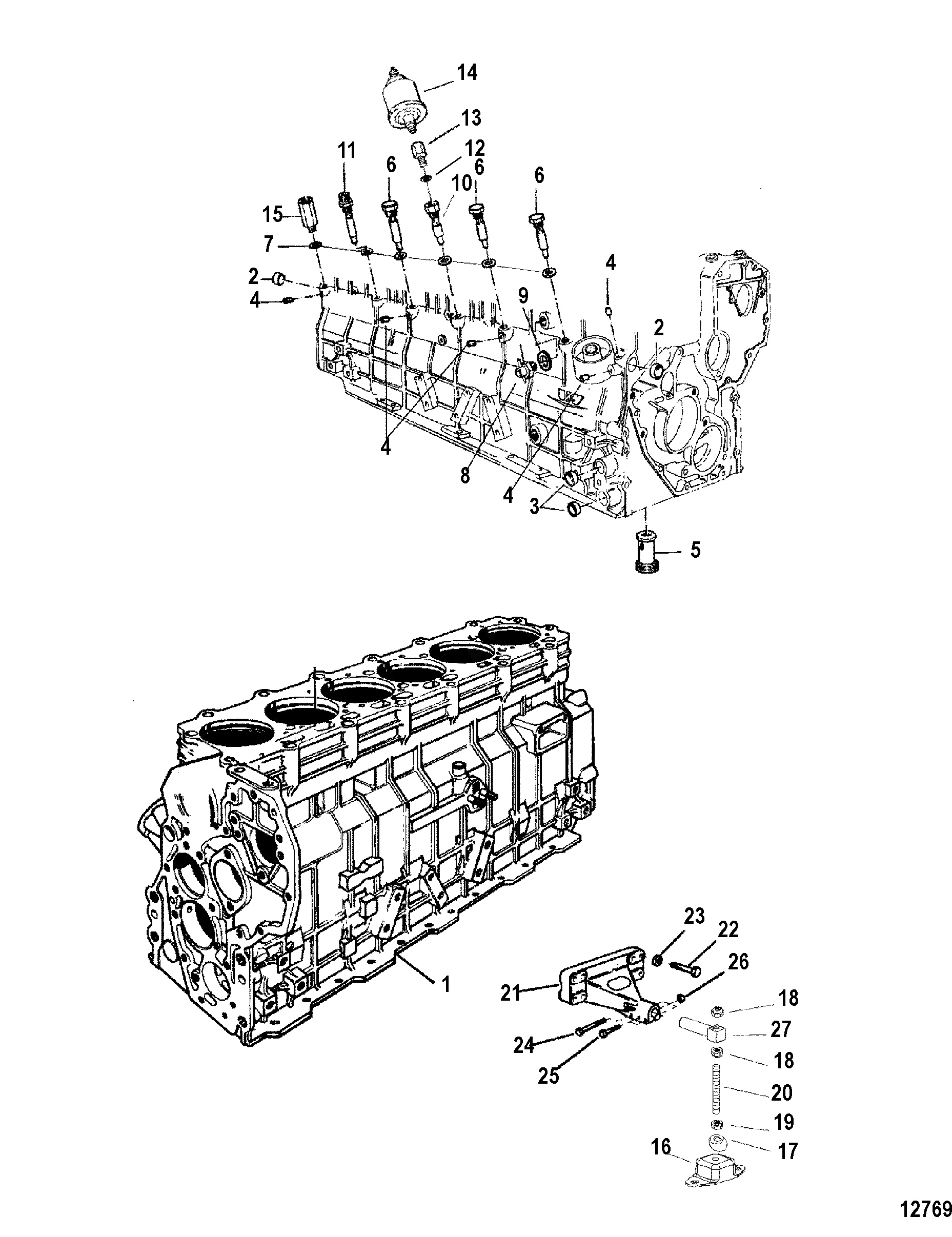

Engine And Cylinder Block Moteur mercruiser cmd 4.2 ei 250 88040001 thru 88040508

Engine and Cylinder Block Moteur mercruiser cmd 4.2 ei 270 88060001 thru 88070000

Engine And Cylinder Block Moteur mercruiser cmd 4.2 ms 230 88030001 thru 88030344

Engine and Cylinder Block Moteur mercruiser cmd 4.2 ei 320 88070001 thru 88080000

Engine and Cylinder Block Moteur mercruiser cmd 4.2 es 250 88040600 thru 88050000

Engine and Cylinder Block Moteur mercruiser cmd 4.2 ei 300 vm 254 i_l6 88050001 thru 88050643

Engine and Cylinder Block Moteur mercruiser cmd 4.2 es 300 vm 254 i_l6 88050001 thru 88050643

Engine and Cylinder Block Moteur mercruiser cmd 4.2 es 270 88060001 thru 88070000

Engine and Cylinder Block Moteur mercruiser cmd 4.2 mi 230 88030400 thru 88040000

Engine and Cylinder Block Moteur mercruiser cmd 4.2 es 320 88070001 thru 88080000

Engine And Cylinder Block Moteur mercruiser cmd 4.2 mi 230 88030001 thru 88030344

Engine and Cylinder Block Moteur mercruiser cmd 4.2 ms 230 88030400 thru 88040000

Engine and Cylinder Block Moteur mercruiser cmd 4.2 es 300 88050800 thru 88060000

Engine And Cylinder Block Moteur mercruiser cmd 4.2 es 250 88040001 thru 88040508

Engine and Cylinder Block Moteur mercruiser cmd 4.2 ei 250 88040600 thru 88050000

Engine and Cylinder Block Moteur mercruiser cmd 4.2 ei 300 88050800 thru 88060000

Engine And Cylinder Block Moteur mercruiser cmd 2.8 es 165 88005001 thru 88005167

Engine and Cylinder Block Moteur mercruiser cmd 4.2 ms 200 88020200 thru 88030000

Engine And Cylinder Block Moteur mercruiser cmd 4.2 mi 200 88020001 thru 88020166

Engine and Cylinder Block Moteur mercruiser cmd 4.2 mi 200 88020200 thru 88030000

Engine And Cylinder Block Moteur mercruiser cmd 4.2 ms 200 88020001 thru 88020166

Engine And Cylinder Block Moteur mercruiser cmd 2.8 ei 165 88005001 thru 88005167

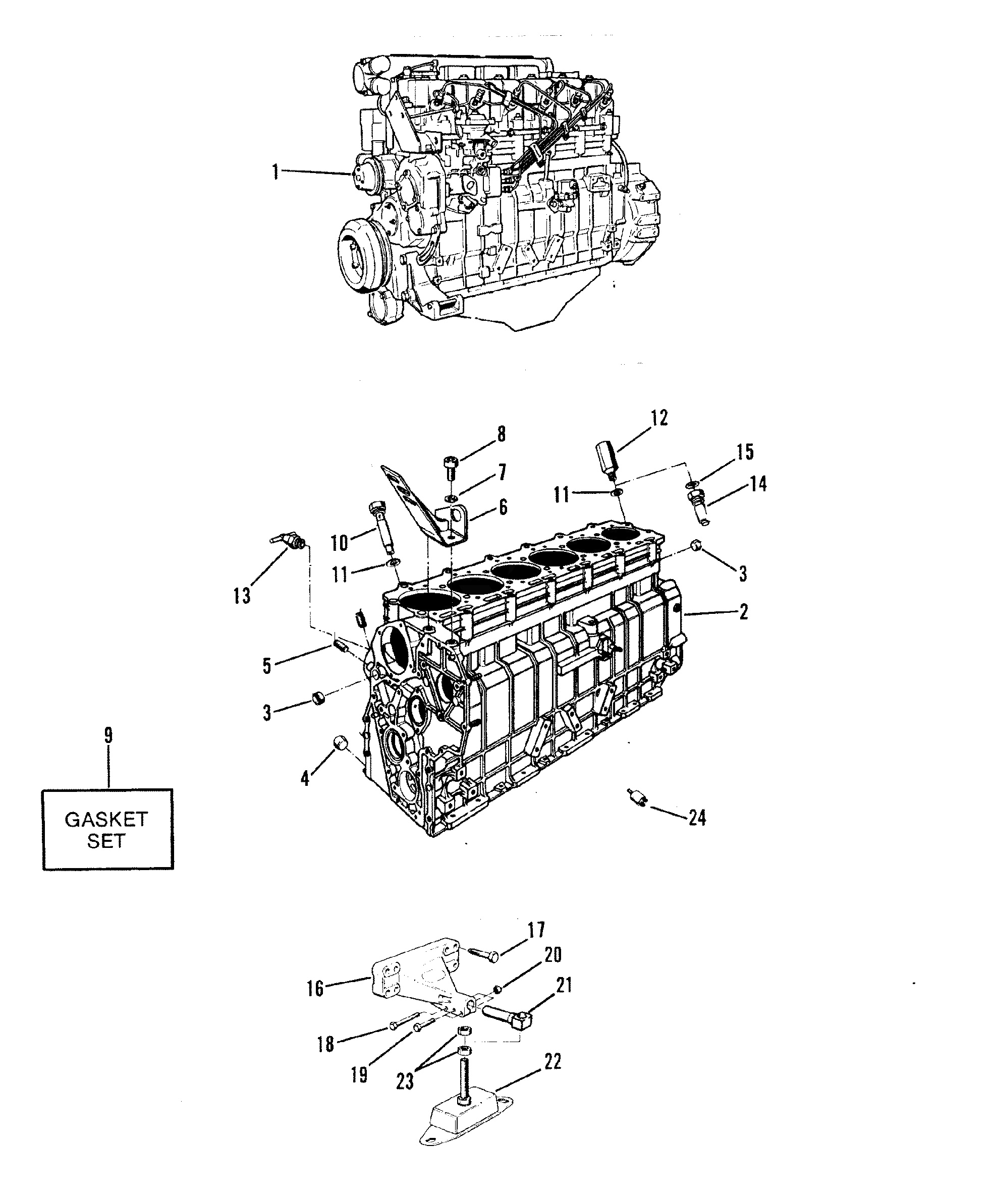

Engine Cylinder Block Moteur mercruiser d3.0l vm 183 i_l5 1994-1995 0d725152 and up thru none

Engine Cylinder Block Moteur mercruiser d219 turbo ac (mcm & mie) vm 219 i_l6 1990-1993 0b993002 thru 0d850127

Engine Cylinder Block Moteur mercruiser d183 turbo ac (mcm & mie) vm 183 i_l5 1990-1993 0b993002 thru 0d725151

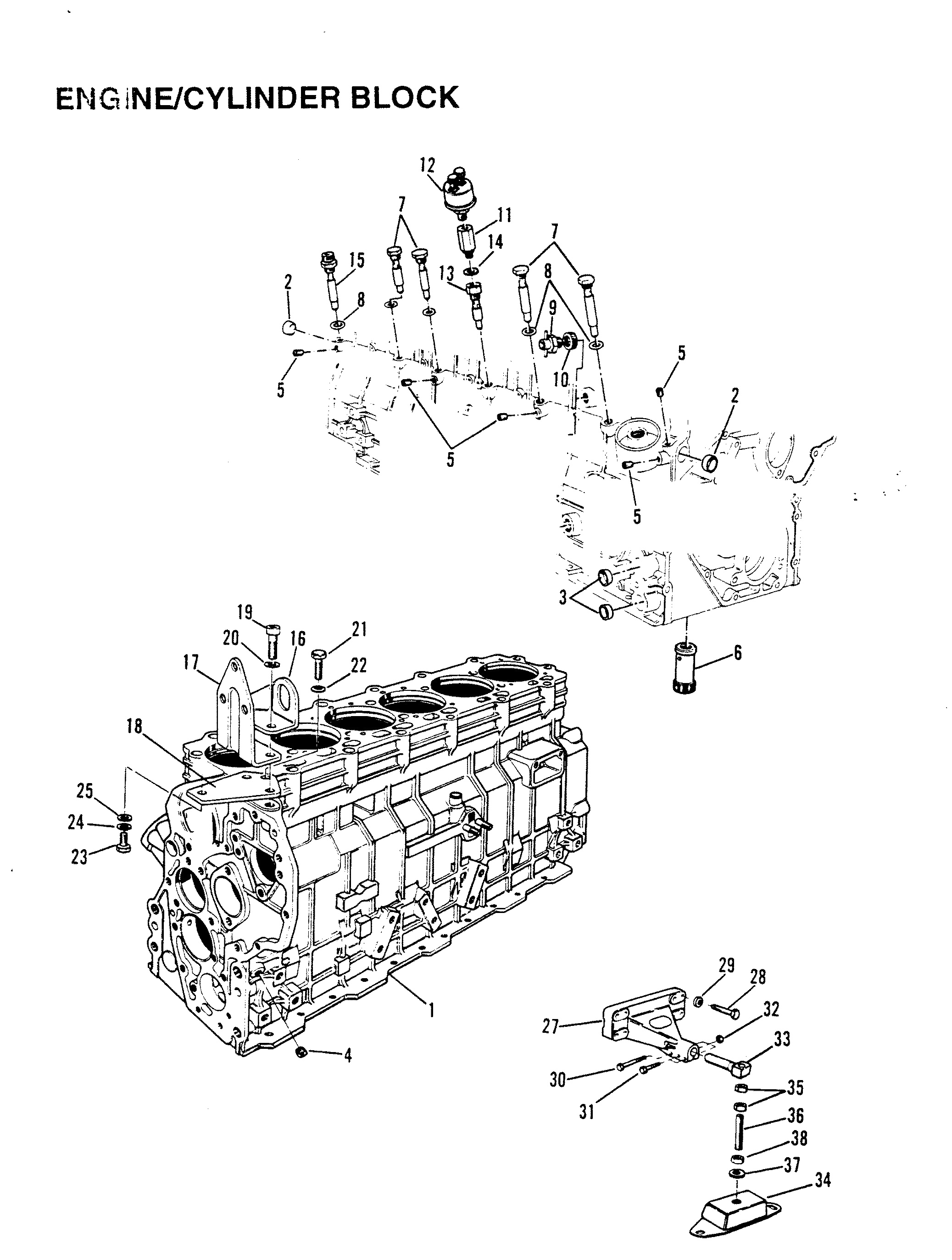

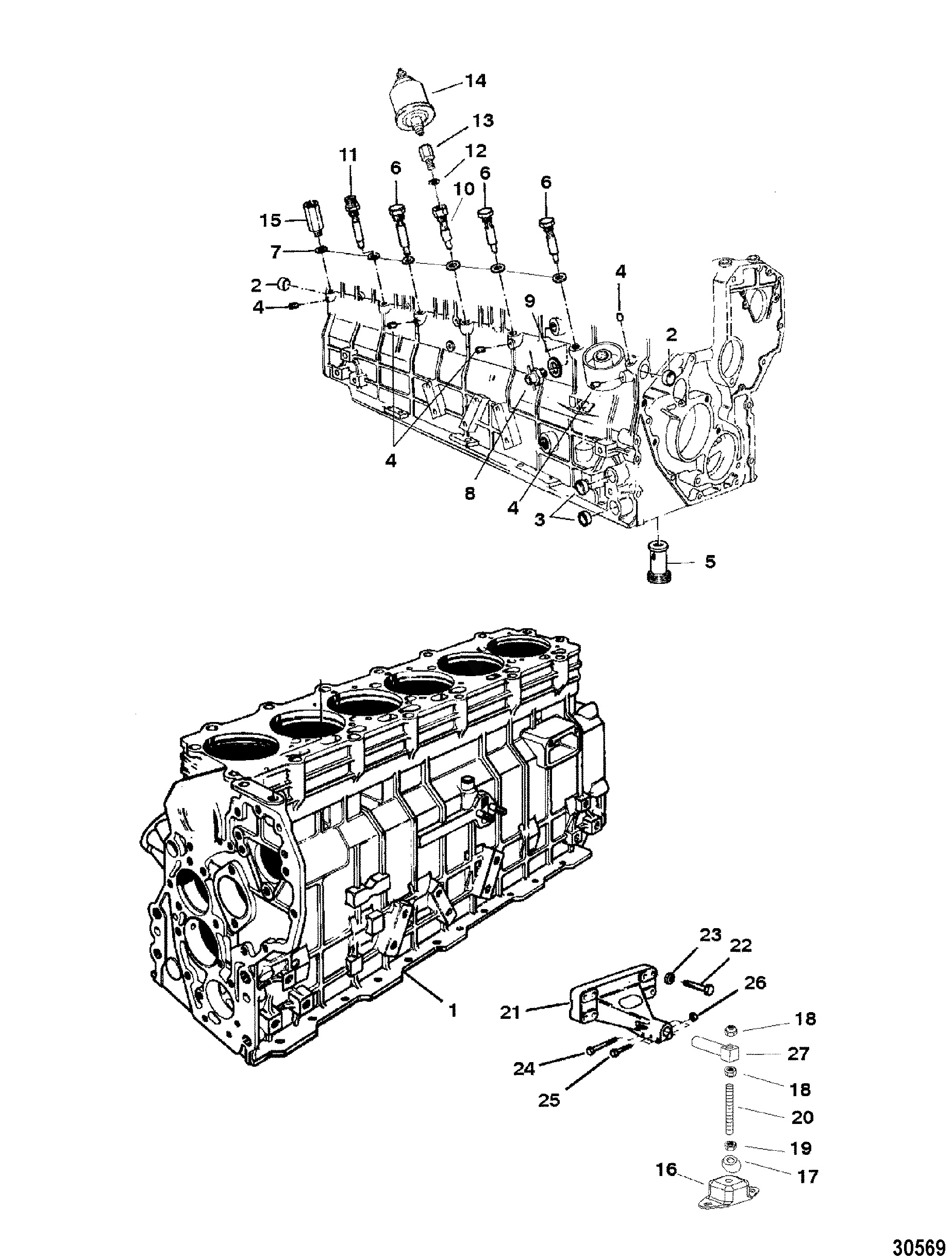

ENGINE CYLINDER BLOCK Moteur mercruiser d254 turbo ac vm 254 i_l6 1990-1993 0c849461 thru 0d554731

ENGINE CYLINDER BLOCK Embase mercruiser d254 turbo ac (bravo) vm 254 i_l6 1990-1993 0c849461 thru 0d554731

ENGINE CYLINDER BLOCK Moteur mercruiser d4.2l_200 ld vm 254 i_l6 0l344381 thru 0m999999

ENGINE CYLINDER BLOCK Moteur mercruiser d2.8l_165 d-tronic vm 169 i_l4 0k144109 thru 0m999999

ENGINE CYLINDER BLOCK Moteur mercruiser d4.2l_300 d-tronic vm 254 i_l6 0l667439 thru 0m999999

ENGINE CYLINDER BLOCK Moteur mercruiser d4.2l_250 d-tronic vm 254 i_l6 0k144114 thru 0m999999

Engine Cylinder Block Moteur mercruiser d4.2l_220 idi vm 254 i_l6 0d554732 thru 0m999999

Engine Cylinder Block Embase mercruiser 636 d-ta (bravo & mie) vm 219 i_l6 1989 0b993002 thru 0d850127

Engine Cylinder Block Embase mercruiser 530 d-ta (bravo & mie) vm 183 i_l5 1989 0b993002 thru 0d725151

Engine Cylinder Block Embase mercruiser d3.6l (bravo) vm 219 i_l6 0d850128 and up thru none

Engine mount for S-Drive Volvo penta md22p

Engine mount for S-Drive Volvo penta md22a

Engine mount for S-Drive Volvo penta md22l

Engine suspension Volvo penta ad31b

Engine suspension Volvo penta ad41a

Engine suspension Volvo penta ad31

Engine suspension Volvo penta tamd31b

Engine suspension Volvo penta tamd31a

Engine suspension Volvo penta tamd41a

Engine suspension Volvo penta md31a

Engine suspension for DP-Drive Volvo penta kad44p-b

Engine suspension for DP-Drive Volvo penta kad300-a

Engine suspension for DP-Drive Volvo penta kad43p-a

Engine suspension for DP-Drive Volvo penta kad44p-c

Engine suspension for DP-Drive Volvo penta kad44p

Engine suspension for PRM reverse gear Volvo penta tamd31b

Engine suspension for the SOLAS version Volvo penta tamd31b

Engine suspension for the SOLAS version Volvo penta tamd31l-a

Engine suspension for the SOLAS version Volvo penta tamd41p-a

Engine suspension for the SOLAS version Volvo penta tamd31m-a

Engine suspension for universal driveshaft installations Volvo penta ad41b

Engine suspension for universal driveshaft installations Volvo penta ad41bj

Engine suspension, for PRM inverter Volvo penta tamd41b

Motor mount Volvo penta tamd41h-a

Motor mount Volvo penta tamd41p

Motor mount Volvo penta tamd41p-a

Motor mount Volvo penta tamd41h-b

Motor mount Volvo penta md2030c

Motor mount Volvo penta md2030

Motor mount Volvo penta md2040b

Motor mount Volvo penta md2040d

Motor mount Volvo penta md2040c

Motor mount Volvo penta md2030d

Motor mount Volvo penta md2040

Motor mount Volvo penta md2030b

Motor mount Volvo penta kamd43p-a

Motor mount Volvo penta kamd43p-b

Motor mount Volvo penta kamd42p-a

Motor mount Volvo penta kamd44p-c

Motor mount Volvo penta kamd44p-a

Motor mount Volvo penta kamd44p-b

Motor mount Volvo penta kamd43p

Motor mount Inverseur volvo penta hs1e-a

Motor mount Inverseur volvo penta hs63a

Motor mount Inverseur volvo penta hs1e

Motor mount Inverseur volvo penta hs63v

Motor mount Inverseur volvo penta hs1a

Motor mounting for countershaft installations Volvo penta tamd42wj-a

Motor mounting for countershaft installations Volvo penta kamd43p-a

Motor mounting for countershaft installations Volvo penta kad44p-b

Motor mounting for countershaft installations Volvo penta kamd43p-b

Motor mounting for countershaft installations Volvo penta kamd44p-c

Motor mounting for countershaft installations Volvo penta kad300-a

Motor mounting for countershaft installations Volvo penta kamd44p-a

Motor mounting for countershaft installations Volvo penta kamd300-a

Motor mounting for countershaft installations Volvo penta kamd44p-b

Motor mounting for countershaft installations Volvo penta kad43p-a

Motor mounting for countershaft installations Volvo penta kad44p-c

Motor mounting for countershaft installations Volvo penta kad32p

Motor mounting for countershaft installations Volvo penta kamd43p

Motor mounting for countershaft installations Volvo penta kad44p

Rescue boat engine kit Volvo penta aqad30a

Rescue boat engine kit Volvo penta ad30a

Rescue boat engine kit Volvo penta tamd40a

Rescue boat engine kit Volvo penta tamd30a

Rescue boat engine kit Volvo penta tamd40b

Rescue boat engine kit Volvo penta md30a

Shortblock Volvo penta aq145b

Shortblock Volvo penta aq125b

Upper gear Saildrive volvo penta 120s-e

Upper gear Inverseur volvo penta ms2b-a

Upper gear Volvo penta md22a

Upper gear Volvo penta md22

Un doute ? > contact us

ENGINE SUPPORT ADJUSTING ROD M16XM16

RÉF. SP181609

Complete fixing kit including washers, nut and threaded rod for SP17 series engine mount.

Thread types M16-1.5 X M16-1.5, length 110mm.

Kit to be used in combination with SP171609 series engine mounts with a diameter of M16-1.5 on the lower side (shim) and M16-1.5 on the upper side (top engine).

Existing material in M20-1.5 higher and not M16-1.5 under reference SP181609-20.

Axle kit not suitable for type 22323 supports (fine pitch).

Livraison express → Tuesday 15 September

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€28.80 VAT included

€24.00 VAT excluded

ENGINE SUPPORT ADJUSTING ROD M16XM20

RÉF. SP181609-20

Complete fixing kit including washers, nut and threaded rod for SP171609 series engine mount

Thread types M16-1.5 X M20-1.5, length 150mm.

Kit to be used in combination with SP171609 series engine mounts with a diameter of M16-1.5 on the lower side (shim) and M20-1.5 on the upper side (top engine).

Axle kit not suitable for type 22323 supports (fine pitch).

Livraison express → Tuesday 15 September

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€42.00 VAT included

€35.00 VAT excluded
