Ref. DAM : SP181609

ENGINE SUPPORT ADJUSTING ROD M16XM16

Name: ENGINE SUPPORT ADJUSTING ROD M16XM16
Brand: AMC
SKU: SP181609
Price: 28.8 EUR
Availability: InStock

€28.80 VAT included

€24.00 VAT excluded

Disponible

keyboard_arrow_left

keyboard_arrow_right

zoom_in

Livraison express → Tuesday 15 September

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€28.80 VAT included

€24.00 VAT excluded

Complete fixing kit including washers, nut and threaded rod for SP17 series engine mount.

Thread types M16-1.5 X M16-1.5, length 110mm.

Kit to be used in combination with SP171609 series engine mounts with a diameter of M16-1.5 on the lower side (shim) and M16-1.5 on the upper side (top engine).

Existing material in M20-1.5 higher and not M16-1.5 under reference SP181609-20.

Axle kit not suitable for type 22323 supports (fine pitch).

Read the detailed description

Quantity

Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit

Complete fixing kit including washers, nut and threaded rod for SP17 series engine mount.

Thread types M16-1.5 X M16-1.5, length 110mm.

Kit to be used in combination with SP171609 series engine mounts with a diameter of M16-1.5 on the lower side (shim) and M16-1.5 on the upper side (top engine).

Existing material in M20-1.5 higher and not M16-1.5 under reference SP181609-20.

Axle kit not suitable for type 22323 supports (fine pitch).

VOLVO PENTA : 861431
VOLVO PENTA : 829567
VOLVO PENTA : 16-801763908
PROXAM : 40-04705-01
ORBITRADE : 22323-1
SLP : SKR-431
SLP : SKR431
CROM : 924027
TRELLBORG : 18-1609-16
TRELLBORG : 18/1609/M16
AMC : 708003

Component-engine connection Commercial use, Std Volvo penta aqad40b

Connection parts, engine - universal shaft joint Volvo penta aqad40b

Engine suspension Volvo penta d41b

Engine suspension Volvo penta aqad40b

Engine suspension Volvo penta aqd40a

Engine suspension Volvo penta aqad40a

Engine suspension Volvo penta ad41b

Engine suspension Volvo penta ad41bj

Engine suspension Volvo penta ad41a

Engine suspension Volvo penta tamd40a

Engine suspension Volvo penta tamd40b

Engine suspension Volvo penta tamd41a

Engine suspension Volvo penta tamd41b

Engine suspension Volvo penta md40a

Engine suspension Volvo penta kad42a

Engine suspension Volvo penta kamd42a

Engine suspension for inverter Volvo penta d1-13f

Engine suspension for inverter Volvo penta d1-30

Engine suspension for inverter Volvo penta d2-40f

Engine suspension for inverter Volvo penta d2-40b

Engine suspension for inverter Volvo penta d2-40

Engine suspension for inverter Volvo penta d1-13b

Engine suspension for inverter Volvo penta d1-20b

Engine suspension for inverter Volvo penta d1-20

Engine suspension for inverter Volvo penta d1-30b

Engine suspension for inverter Volvo penta d1-20f

Engine suspension for inverter Volvo penta d1-13

Engine suspension for universal driveshaft installations Volvo penta kad42a

Engine suspension, for PRM inverter Volvo penta tamd41b

Motor mount Volvo penta md2010

Motor mount Volvo penta md2010d

Motor mount Volvo penta md2030c

Motor mount Volvo penta md2030

Motor mount Volvo penta md2040b

Motor mount Volvo penta md2040d

Motor mount Volvo penta md2040c

Motor mount Volvo penta md2020c

Motor mount Volvo penta md2020b

Motor mount Volvo penta md2010c

Motor mount Volvo penta md2040

Motor mount Volvo penta md2030b

Motor mount Volvo penta md2020d

Motor mount Volvo penta md2020

Three-point engine silent block Volvo penta d1-30f

Three-point engine silent block Volvo penta d1-30

Three-point engine silent block Volvo penta d1-30b

Un doute ? > contact us

UNIVERSAL MOTOR SUPPORT 45 - 95KG M16

RÉF. SP171609-45

Engine holder for universal application but in particular Volvo Penta having the following characteristics:

Entrax : 140mm

Larger : 75mm

Total height : 50mm

Hardness : 45

Thread : M16

Support to be used in addition to the mounting kit SP181609.

Livraison express → Tuesday 15 September

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€79.08 VAT included

€65.90 VAT excluded

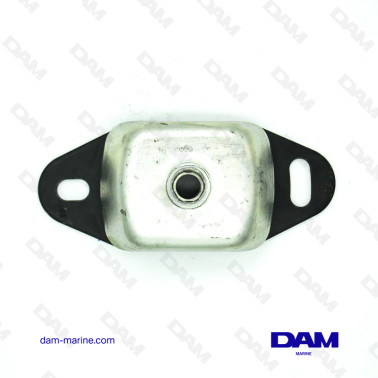

UNIVERSAL MOTOR SUPPORT 55 - 140KG M16

RÉF. SP171609-55

Engine holder for universal application but in particular Volvo Penta having the following characteristics:

Entrax : 140mm

Larger : 75mm

Total height : 50mm

Hardness : 55

Thread : M16

Support to be used in addition to the mounting kit SP181609.

Livraison express → Tuesday 15 September

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€79.08 VAT included

€65.90 VAT excluded

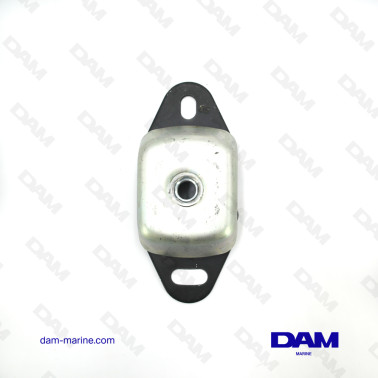

UNIVERSAL MOTOR SUPPORT 65 - 210KG M16

RÉF. SP171609-65

Engine holder for universal application but in particular Volvo Penta having the following characteristics:

Entrax : 140mm

Larger : 75mm

Total height : 50mm

Hardness : 65

Thread : M16

Support to be used in addition to the mounting kit SP181609.

Livraison express → Tuesday 15 September

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€79.08 VAT included

€65.90 VAT excluded

ENGINE SUPPORT ADJUSTING ROD M16XM20

RÉF. SP181609-20

Complete fixing kit including washers, nut and threaded rod for SP171609 series engine mount

Thread types M16-1.5 X M20-1.5, length 150mm.

Kit to be used in combination with SP171609 series engine mounts with a diameter of M16-1.5 on the lower side (shim) and M20-1.5 on the upper side (top engine).

Axle kit not suitable for type 22323 supports (fine pitch).

Livraison express → Tuesday 15 September

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€42.00 VAT included

€35.00 VAT excluded

SP171 SERIES 4MM ENGINE SUPPORT SHIM

RÉF. SP18M4

Thickness shim for SP171609 series engine mount allowing the alignment to be raised by 4mm in a lasting manner.

DNV standards state that the only way to properly level engine mounts is to use shims above 4mm.

Center distances: 145mm

Width: 75mm

Livraison express → Tuesday 15 September

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€18.00 VAT included

€15.00 VAT excluded

ENGINE SUPPORT ADJUSTING ROD M16XM18

RÉF. SKR60950 | SLP

Adjusting rod support only dimensions M16-1.5 X M18-1.5.

For a complete set use the following references:

1 pcs: SKR60950

2 pcs: N806

1 pcs: W900-1

2 pcs: W901

2 pcs: BR2795

Livraison express → Tuesday 15 September

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€14.22 VAT included

€11.85 VAT excluded
