Parts and exploded diagrams for Volvo penta md2010d engine
This page allows you to view the exploded diagrams for the Volvo penta md2010d Inboard engine, belonging to the 2-cylinder category, and easily identify compatible parts for your engine.
Volvo Penta is a brand specialising in marine propulsion solutions. These exploded diagrams help identify the components and references required for the maintenance and repair of Inboard engines.
Select an exploded diagram for your Volvo penta md2010d inboard engine

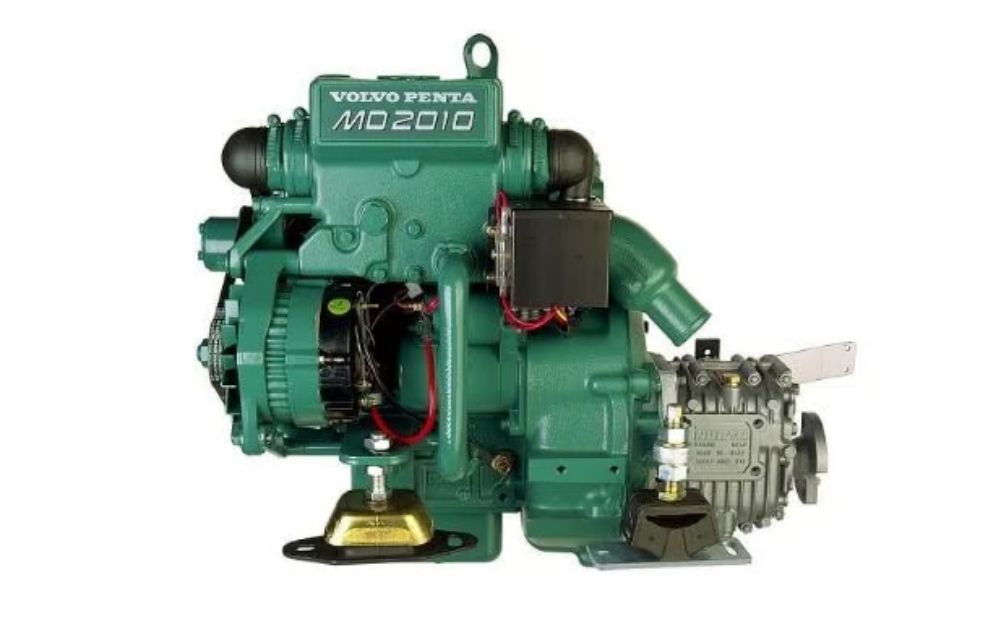

Volvo penta md2010d
Designed for marine propulsion, the Volvo penta md2010d is a 4-stroke diesel Inboard engine in the 2-cylinder category. Its total displacement is 0.45 litre, with a 67 mm bore and a 64 mm stroke. The supplied technical information specifies a power output of 10 HP (7 kW), while MD2010 documentation describes an inline cylinder design with overhead valves.
The D generation of the MD2010 notably introduced the MS10, MS15 and MS25S transmissions as well as an oscillation damper, together with an increased idle speed on the MD2010. Its marine operation relies on thermostat-controlled freshwater cooling combined with a seawater circuit and heat exchanger, along with a pressurised lubrication system using a full-flow oil filter.
When working on the Volvo penta md2010d, exploded diagrams make it possible to view mechanical assemblies and their individual components before carrying out maintenance or repairs. They simplify the search for compatible parts and help identify the correct references when used alongside the information shown on the engine identification plate.
Volvo penta md2010d engine features- Category: 2-cylinder for the MD2010 engine configuration
- Power: 10 HP (7 kW) according to the supplied technical information
- Displacement: 0.45 litre corresponding to the total capacity specified for the MD2010
- Bore and stroke: 67 mm x 64 mm according to the documented internal engine dimensions
- Engine type: 4-stroke diesel with inline cylinders and overhead valves according to the technical documentation
View exploded diagrams Volvo penta md2010d
