ALUMINUM INTAKE MANIFOLD GM BB RIVA
Ref. R002012Aluminum intake pipe with bronze passages for RIVA mounting requiring a competitive state.
Retrouvez facilement votre pièce détachée de bateau
DAM Marine offers a selection of intake pipes for your Crusader, Chris-Craft, WTO, Volvo Penta, Mercruiser boats.To easily find the intake pipes you need, do not hesitate to use the various filters available.By indicating the brand and model of your engine, you can easily find the different intake pipes compatible with your boat motor.
If you have any questions about any of the references or a reference you are looking for is not indicated, do not hesitate to contact us directly.
Aluminum intake pipe with bronze passages for RIVA mounting requiring a competitive state.
Cast iron intake pipe for GM 7.4 liters with round intake and a Rochester 4 body carburettor base.
Aluminum Intake Pipe for GM big block motor GM454 and GM502 with rectangular intake passages.Carburettor base for mounting with Holley carburettors equivalent to: 132x144 mm
FP17340 mounting joints and caps not included.
Consider the following positions:
- Intake joint types : FP17341 - FP17342
- Carburettor seal: FP17840 - FP17841
- Thermostat joint: AP0479
- Plug 1/2 : 90050 X2
- 3/8 cap: 90375 X1

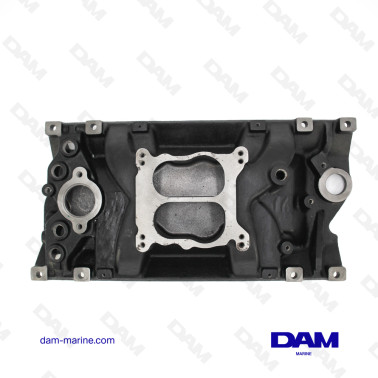

Intake plate for GM V8 5 or 5.7 liters of Vortec types with a 4-body carburettor and 8 attachment screws.Intake pipe including water passages with bronze insert.
FP17321 to be added.
Inlet pipe for GM V8 5 or 5.7 liters with a 4-body carburettor as well as 12 attachment screws with the same angle.Intake pipe with water passages with bronze insert.
FP17320 to be added.

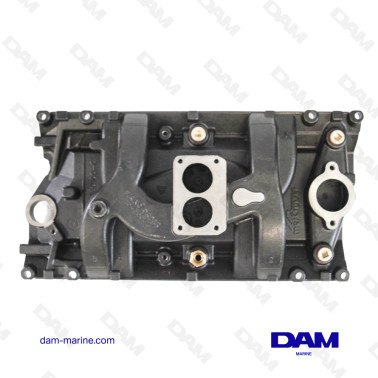

Intake pipe with 8 mounting screws for V8 5 liters or 5.7 liters of Vortec type with 2 body carburettor.
Inlet pipe for Ford 5 liters 302 engine with a 4-body carburettor.
FP17360 admission kit to be added.
Complete screwdriver kit with 16 screws in 12 pans to maintain the Big Block GM454 and GM502 engine intake pipe.
Characteristics :
- 12 pans
- Rollers included
- Head length 36mm
- Diameter 3/8

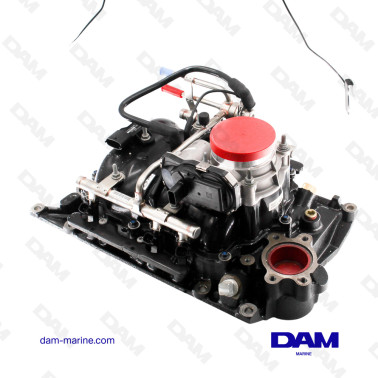

Engine inlet pipe 4.3L V6 MPI with an intake box with 4 screw attachment.
Engine from 2008 to 2016.
Inlet pipe for Ford 5.8 liters 351 with a 4-body carburettor.
FP17360 admission kit to be added.
Intake plate for GM V8 5 or 5.7 liters between 1988 and 1995 with a 4-body carburettor and 12 attachment screws.The central fastening screws have a different angle than the extremes.
Intake pipe including water passages with bronze insert.
FP17320 to be added.
Engine inlet pipe 4.3L V6 MPI with an intake box with 3 screw attachment.
Engine before 2008.

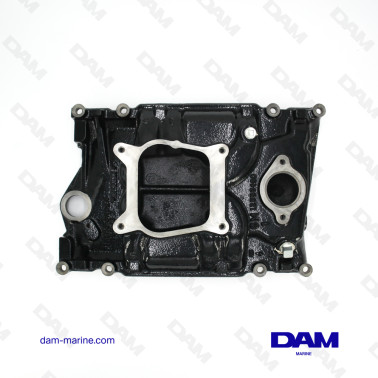

GM V6 4.3 liters of Vortec types with a 4-body carburettor and 8 attachment screws for the intake pipe.Intake pipe including water passages with a bronze ring.
FP17317 to be added.
