Coupling tower

We offer several coupling turtles for the maintenance of your boat.The mating turret is a connecting element between the propeller shaft of the vessel and the reverser.

It is an indispensable mechanical piece of boat that must perfectly adjust to your inboard motor for good operation.

It is necessary to avoid any advanced wear of the propeller shaft with a used turret.For indeed, it can damage the propeller tree but also the press sank and generate strong waterways in the boat.

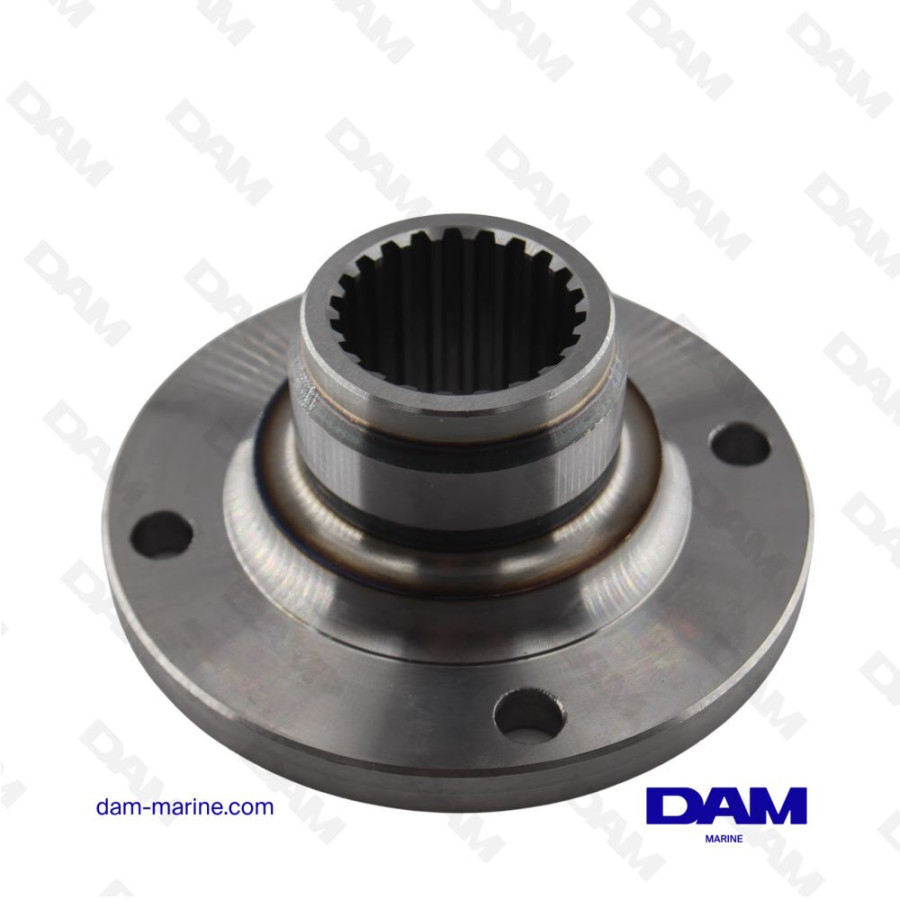

30MM CLAMP COUPLING CLUSTER

30MM CLAMP COUPLING CLUSTER

Ref. SAELATY10030

TOURTEAU ACCOUPLEMENT 30MM

Tourteau d'accouplement à pince en acier électro-cadmié, avec vis pointeau et clavetage. 4 trous.

Diamètre arbre: 30mm

Diamètre centrage : 50mm male

Nombres de trou : 4 x10.5mm

Entraxe : 78mm

Diamètre extérieur : 100mm

Montage inverseur Yanmar 1.2.3GM - KM2P

Price
€175.00 €175.00
TTC HT
On demand
Qty add remove

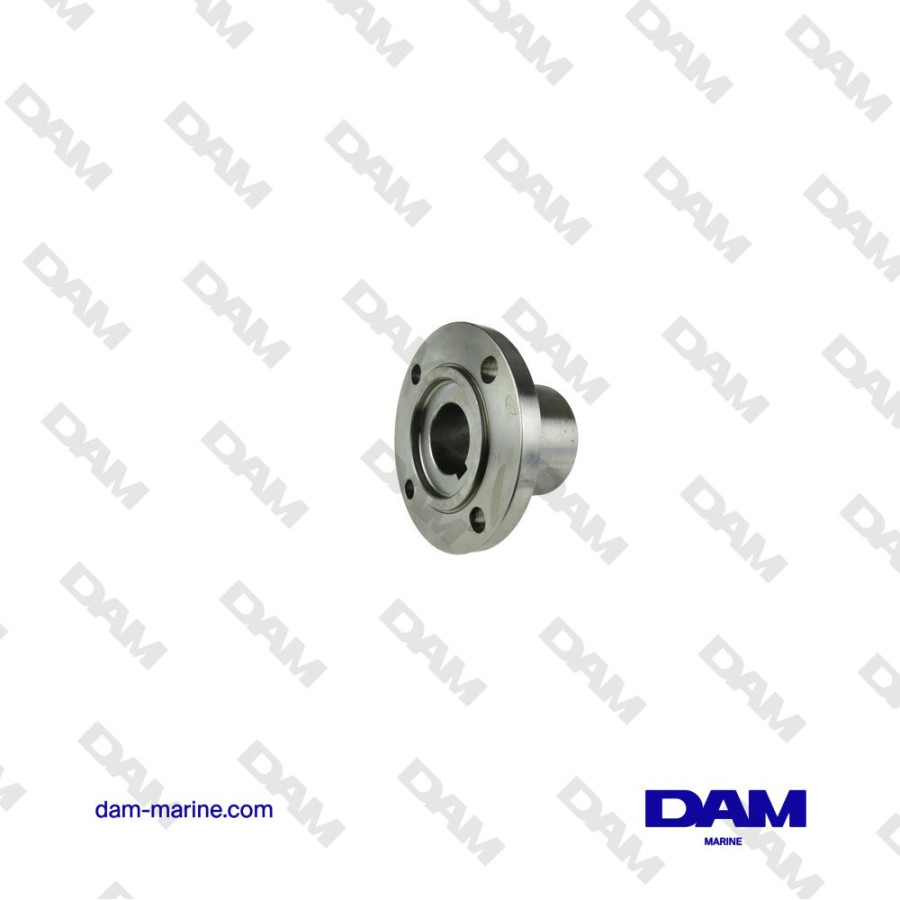

COUPLING COIL 4 X 1.25

COUPLING COIL 4 X 1.25

Ref. ALT23543-125

4" diameter mating tower - 101.59mm for helice tree diameter 1-1/4 - 31.74mm.

Price
€145.00 €145.00
TTC HT
On demand
Qty add remove
COUPLING 25MM

COUPLING 25MM

Ref. DM_V _SAELATY11025

WARNING ROUND 25MM

Electro-coated steel clamping rod with pointed screw and clamping.four holes.

Tree Diameter: 25mm

Exterior: 110mm

Diameter centrage : 63.5 female

Number of holes : 4 x11mm

Intrax: 82mm

Tree length: 88mm

Reverse Borg Warner - Hurth

Price
On demand
Qty add remove
COUPLING 22MM

COUPLING 22MM

Ref. DM_V _SAELATY10022

TOURTEAU ACCOUPLEMENT 22MM

Electro-coated steel clamping rod with pointed screw and clamping.four holes.

Tree Diameter: 22mm

Exterior: 100mm

Diameter centrage : 50 female

Number of holes : 4 x10.5mm

Entraxe: 78mm

Tree length: 88-96mm

Reverse Yanmar 1GM - 2GM - 3GM - YS8 - YS12 - KM2P

Price
On demand
Qty add remove
30MM CLAMP COUPLING CLUSTER

30MM CLAMP COUPLING CLUSTER

Ref. DM_V _SAE-LATY9030

TOURTEAU ACCOUPLEMENT 30MM

Electro-coated steel clamping rod with pointed screw and clamping.four holes.

Tree Diameter: 30mm

Exterior: 100-110mm

Diameter centering : 60.1 female

Number of holes : 4 x11mm

Entraxe : 80mm

Tree length: 86-96mm

Volvo Penta MS1 - MS2 - MS10 - MS25

Price
On demand
Qty add remove
COUPLING 25MM

COUPLING 25MM

Ref. DM_V _SAE-LATY8025

WARNING ROUND 25MM

Electro-coated steel clamping rod with pointed screw and clamping.four holes.

Tree Diameter: 25mm

Exterior: 101mm

Diameter centrage : 63.5 female

Number of holes : 4 x10.5mm

Intrax: 82mm

Tree length: 82-98mm

Reverse Lombardini Technodrive Vetus ZF

Price
On demand
Qty add remove
35MM CLAMP COUPLING

35MM CLAMP COUPLING

Ref. DM_V _SAELATY12735

TOURTEAU ACCOUPLEMENT 35MM

Electro-coated steel clamping rod with pointed screw and clamping.four holes.

Tree Diameter: 35mm

Exterior: 127mm

Diameter centrage : 63.5 female

Number of holes : 4 x11.5mm

Intrax: 108mm

Tree length: 98mm

Borg Warner Hurth Reverse Mounting - Volvo MS4 - MS4

Price
On demand
Qty add remove
COUPLING 25MM

COUPLING 25MM

Ref. DM_V _SAELATY10025

WARNING ROUND 25MM

Electro-coated steel clamping rod with pointed screw and clamping.four holes.

Tree Diameter: 25mm

Exterior: 100mm

Diameter centrage : 50 female

Number of holes : 4 x10.5mm

Entraxe: 78mm

Tree length: 88-96mm

Reverse Yanmar 1GM 2GM 3GM YS8 YS12 KM2P

Price
On demand
Qty add remove
