FORD 302 0.30 CONNECTING ROD BEARINGS
Set of bearings for a connecting rod in dimension 0.30.

DAM Marine possède plusieurs produits en stocks qui pourraient vous être utiles.
Set of bearings for a connecting rod in dimension 0.30.
Set of bearings for a connecting rod in dimension 0.20.
Rocker arm for GM 454 and 502 generation V and VI engines.
Jeu de segments en cote 0.30 de dimensions suivantes 1.98 x 1.98 x 4.76MM.
Profondeur du segments racleur : 3.20mm
Valve spring for GM454 generation 4 - 5 engine with internal reinforcement with the following characteristics:
- External diameter: 38.2mm
- Inner diameter: 25mm
- Height: 54mm
Set of rings for a standard size piston with dimensions 2 x 2 x 4.76mm.
GM SB V8 valve spring shim with the following dimensions:
Inner diameter: 20.8mm
Outer diameter: 31.8mm
Thickness: 0.04mm
Set of gaskets for GM350 5.7 litre V8 engines before 1988, fitted with rocker covers with external fixings and 12 fixing screws for the intake manifold.
Package including the following items:
- FP17030 cylinder head gaskets
- FP17320 intake gaskets
- Exhaust gaskets FP17420
- Valve stem seals MV1903 - MV1906
- FP70194 distributor gasket
- Rocker cover gaskets FP17930
Set of rings for a standard size piston on GM or Ford base engines with a bore of 101.60mm.
Segment height: 2 - 2 - 4.8mm
Set of bearings for a standard 57.14mm connecting rod.
Set of bearings for a connecting rod in dimension 0.20.
Jeu de segments pour un piston en cote 0.30 aux dimensions 2 x 1.5 x 4mm.
Set of rings for a piston measuring 0.30 with dimensions 2 x 2 x 4mm.
Exhaust valve for GM454 -502 HO engines:
- Tail diameter: 9.45mm
- Head diameter: 47.68mm
Set of bearings for a standard size connecting rod with a diameter of 53.34mm and a width of 21.3mm.
Please note that for recent 4-cylinder 3-litre GM181 engines ONLY which have bearings with a width of 19mm, please refer to reference 23-804982.
Bolt for Vortec engine intake pipe length under head 44mm.
Intake rocker arm rod for GM454 - 502 engine with roller tappets.
Length: 192 mm
Diameter: 7.93 mm - 5/16
Ressort de soupape double disposant des dimensions suivantes :
- Ressort extérieur :
- Diamètre extérieur : 36.4mm
- Diamètre intérieur : 27mm
- Hauteur : 51mm
- Ressort intérieur :
- Diamètre extérieur : 27mm
- Diamètre intérieur : 20mm
- Hauteur : 44.5mm

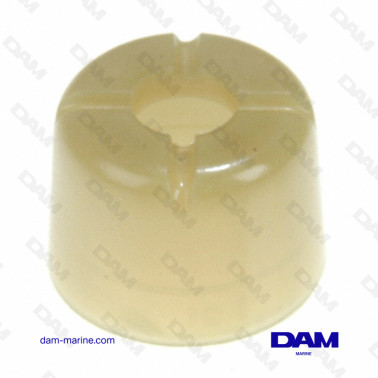

Rigid valve stem seal with the following dimensions:
Height: 12.5mm
Outer diameter: 17mm
Inner diameter: 14mm
Valve diameter: 7.8mm

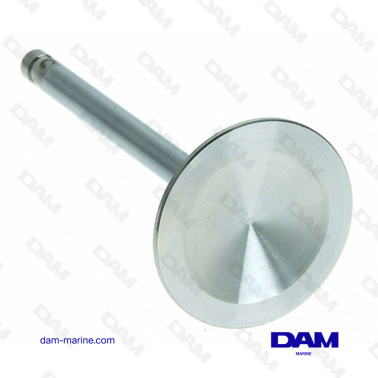

Intake valve for GM454 -502 HO engines:
- Tail diameter: 9.45mm
- Head diameter: 55.62mm
Exhaust valve seat for GM BB engine with the following dimensions:
Exterior: 46mm
Interior: 39.45mm
Thickness: 5.85mm
Jeu de segments pour un piston en cote 0.30 aux dimensions 1.5 x 1.5 x 3mm.
Set of rings for a standard piston with dimensions 1.5 x 1.5 x 3mm.
Piston in standard size 101.60mm with thin rings of type 1.5x1.5x3mm.
