VETUS Fresh Water Systems – Comfort and hygiene onboard - Page 3

Base tank with easy-to-screw inspection cover, made of very high-quality synthetic materials and

identical to those of rigid tanks. The wall thickness is 7mm.

Supplied with all necessary fittings, saving considerable installation time. Fixed hose connector Ø 38 mm for filling and fixed hose connector Ø 16 mm for venting. Rotating hose connector Ø 13 mm with pick-up hose for water suction.

A center point for an SAE flange pressure gauge transmitter is integrated into the casting, along with five blind bolt holes.

Features :

Tank volume (liter): 60.

Ø Filling (mm): 38.

Ø Suction (mm): 16.

Ø Vent (mm): 13.

Base tank with easy-to-screw inspection cover, made of very high-quality synthetic materials and

identical to those of rigid tanks. The wall thickness is 7mm.

Supplied with all necessary fittings, saving considerable installation time. Fixed hose connector Ø 38 mm for filling and fixed hose connector Ø 16 mm for venting. Rotating hose connector Ø 13 mm with pick-up hose for water suction.

A center point for an SAE flange pressure gauge transmitter is integrated into the casting, along with five blind bolt holes.

Features :

Tank volume (liter): 40.

Ø Filling (mm): 38.

Ø Suction (mm): 16.

Ø Vent (mm): 13.

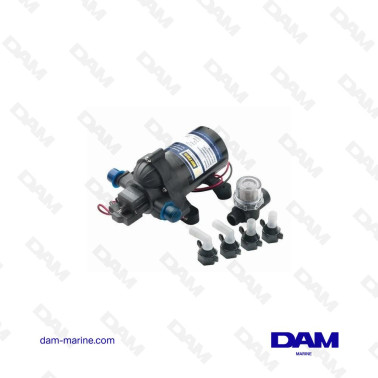

These pumps are designed for pressurized water systems, washing, liquid transfer, etc.

The WP type is quiet, low power consumption and can run dry without damage.

They are fully equipped with thermal protection, a non-return valve and a pressure switch.

These pumps are supplied with two 13mm elbow and two straight hose connectors and an inlet filter.

Features :

Voltage (V): 24.

Capacity (Ipm): 20.

Pressure (bar): 4.2.

Amperage (A): 10.

L x W x H (mm): 229 x 147 x 132.

These pumps are designed for pressurized water systems, washing, liquid transfer, etc.

The WP type is quiet, low power consumption and can run dry without damage.

They are fully equipped with thermal protection, a non-return valve and a pressure switch.

These pumps are supplied with two 13mm elbow and two straight hose connectors and an inlet filter.

Features :

Voltage (V): 24.

Capacity (Ipm): 13.2.

Pressure (bar): 3.1.

Amperage (A): 4.

L x W x H (mm): 212 x 130 x 123.

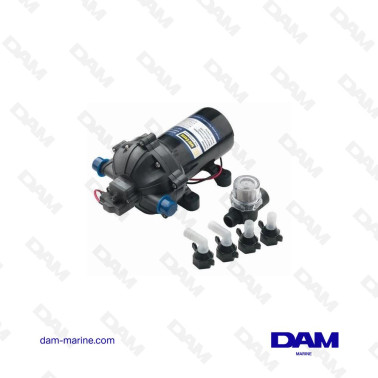

These pumps are designed for pressurized water systems, washing, liquid transfer, etc.

The WP type is quiet, low power consumption and can run dry without damage.

They are fully equipped with thermal protection, a non-return valve and a pressure switch.

These pumps are supplied with two 13mm elbow and two straight hose connectors and an inlet filter.

Features :

Voltage (V): 24.

Capacity (Ipm): 7.6.

Pressure (bar): 2.1.

Amperage (A): 3.

L x W x H (mm): 212 x 130 x 123.

These pumps are designed for pressurized water systems, washing, liquid transfer, etc.

The WP type is quiet, low power consumption and can run dry without damage.

They are fully equipped with thermal protection, a non-return valve and a pressure switch.

These pumps are supplied with two 13mm elbow and two straight hose connectors and an inlet filter.

Features :

Voltage (V): 12.

Capacity (Ipm): 20.

Pressure (bar): 4.2.

Amperage (A): 17.

L x W x H (mm): 229 x 147 x 132.

These pumps are designed for pressurized water systems, washing, liquid transfer, etc.

The WP type is quiet, low power consumption and can run dry without damage.

They are fully equipped with thermal protection, a non-return valve and a pressure switch.

These pumps are supplied with two 13mm elbow and two straight hose connectors and an inlet filter.

Features :

Voltage (V): 12.

Capacity (Ipm): 13.2.

Pressure (bar): 3.1.

Amperage (A): 7.

L x W x H (mm): 212 x 130 x 123.

These pumps are designed for pressurized water systems, washing, liquid transfer, etc.

The WP type is quiet, low power consumption and can run dry without damage.

They are fully equipped with thermal protection, a non-return valve and a pressure switch.

These pumps are supplied with two 13mm elbow and two straight hose connectors and an inlet filter.

Features :

Voltage (V): 12.

Capacity (Ipm): 7.6.

Pressure (bar): 2.1.

Amperage (A): 5.

L x W x H (mm): 212 x 130 x 123.

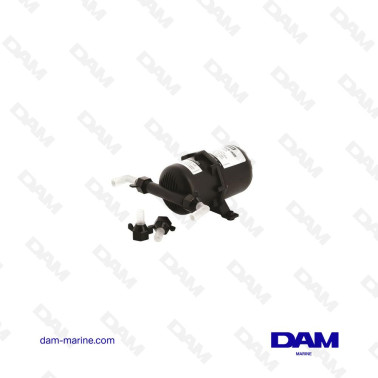

Made of high-quality polyamide, this compact, small-capacity accumulator with a rubber diaphragm ensures a constant flow rate in the container's water circuit. The pressure in the accumulator prevents the water pump motor from starting every time a water supply is required, and the butyl rubber diaphragm is suitable for drinking water. Connection is easy as there is no preferred IN or OUT connection on this accumulator.

It ensures a constant water flow, saves energy and minimizes noise. The accumulator is set to a precharge pressure of 0.7 bar, but can be adjusted to optimal settings for your freshwater system (up to a maximum of 8.5 bar).

The overall dimensions are 223mm x 194mm x 114mm and the accumulator is supplied with two angled and two straight 13mm pipe stands.

Features :

Temperature range: 0 to 50 degrees Celsius.

Width (mm): 194.

Height (mm): 114.

Length (mm): 223.

Capacity (liters): 0.75.

Weight (kg): 0.36.

Pipe connection diameter (mm): 13.

Max. pressure (bar): 8.5.

The PFWS system is meticulously designed to ensure a clean and stable water supply every time your boat is out.

Equipped with an adjustable pressure switch, the PFWS allows you to customize the water pressure to suit your specific needs. Ensuring a constant water flow for any onboard activity requiring water. The self-priming pump eliminates the hassle of manually priming the pump, saving you time and effort.

Additionally, the check valve prevents backflow, ensuring the integrity of your water supply and preventing contamination. With a built-in pressure gauge, you can easily monitor water pressure in real time, providing valuable information to optimize system performance. The inlet water filter filters out all impurities, ensuring your water supply remains clean and pure.

Features :

Voltage (V): 24.

Capacity (liters): 19.

Weight (kg): 9.5.

Pipe connection diameter (mm): 19.

Max. pressure (bar): 4.2.

Max. suction height (m): 1.8.

The PFWS system is meticulously designed to ensure a clean and stable water supply every time your boat is out.

Equipped with an adjustable pressure switch, the PFWS allows you to customize the water pressure to suit your specific needs. Ensuring a constant water flow for any onboard activity requiring water. The self-priming pump eliminates the hassle of manually priming the pump, saving you time and effort.

Additionally, the check valve prevents backflow, ensuring the integrity of your water supply and preventing contamination. With a built-in pressure gauge, you can easily monitor water pressure in real time, providing valuable information to optimize system performance. The inlet water filter filters out all impurities, ensuring your water supply remains clean and pure.

Features :

Voltage (V): 12.

Capacity (liters): 19.

Weight (kg): 9.5.

Pipe connection diameter (mm): 19.

Max. pressure (bar): 4.2.

Max. suction height (m): 1.8.

This pressurized water system ensures a constant flow in the boat's freshwater circuit. It is comparable to a domestic tap water system. The tank and its pressurized membrane relieve the pump motor by saving it from having to start each time water is drawn. This system ensures a constant water flow, saving energy and minimizing noise.

They have an adjustable pressure switch, a pressure gauge (manometer) and a non-return valve.

The pressurized water units of HF type systems meet EMC requirements.

Features :

Width (mm): 200.

Height (mm): 324.

Length (mm): 404.

Voltage (V): 24.

Capacity (liters/min): 12.5.

Tank capacity (liters): 8.

Weight (kg): 8.2.

Pipe connection diameter (mm): 13.

Max. pressure (bar): 2.5.

Max. suction height (m): 3.

This pressurized water system ensures a constant flow in the boat's freshwater circuit. It is comparable to a domestic tap water system. The tank and its pressurized membrane relieve the pump motor by saving it from having to start each time water is drawn. This system ensures a constant water flow, saving energy and minimizing noise.

They have an adjustable pressure switch, a pressure gauge (manometer) and a non-return valve.

The pressurized water units of HF type systems meet EMC requirements.

Features :

Width (mm): 200.

Height (mm): 324.

Length (mm): 404.

Voltage (V): 12.

Capacity (liters/min): 12.5.

Tank capacity (liters): 8.

Weight (kg): 8.2.

Pipe connection diameter (mm): 13.

Max. pressure (bar): 2.5.

Max. suction height (m): 3.

This pressurized water system ensures a constant flow in the boat's freshwater circuit. It is comparable to a domestic tap water system. The tank and its pressurized membrane relieve the pump motor by saving it from having to start each time water is drawn. This system ensures a constant water flow, saving energy and minimizing noise.

The pressurized water units of HF type systems meet EMC requirements.

Comes with:

• Self-priming pump

• Filter

• Pressure gauge

• Mounting bracket

Features :

Width (mm): 200.

Height (mm): 324.

Length (mm): 365.

Voltage (V): 24.

Capacity (liters/min): 12.5.

Tank capacity (liters): 8.

Weight (kg): 6.2.

Pipe connection diameter (mm): 13.

Max. pressure (bar): 2.5.

Max. suction height (m): 3.

This pressurized water system ensures a constant flow in the boat's freshwater circuit. It is comparable to a domestic tap water system. The tank and its pressurized membrane relieve the pump motor by saving it from having to start each time water is drawn. This system ensures a constant water flow, saving energy and minimizing noise.

The pressurized water units of HF type systems meet EMC requirements.

Comes with:

• Self-priming pump

• Filter

• Pressure gauge

• Mounting bracket

Features :

Width (mm): 200.

Height (mm): 324.

Length (mm): 365.

Voltage (V): 12.

Capacity (liters/min): 12.5.

Tank capacity (liters): 8.

Weight (kg): 6.2.

Pipe connection diameter (mm): 13.

Max. pressure (bar): 2.5.

Max. suction height (m): 3.

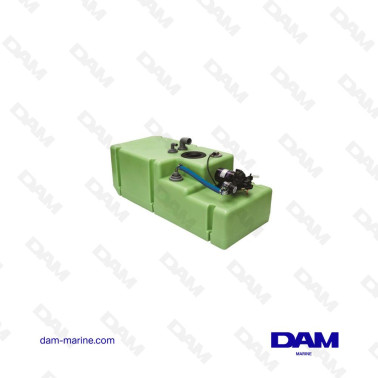

This high-quality synthetic tank for drinking water is supplied with an electric pump that automatically starts when the pressure in the system drops (for example, when a tap is opened).

Installing a DWS tank saves valuable time, as all that's required is connecting the pipes and power supply. This high-end drinking water system offers a high degree of ease of use.

An inspection cover for cleaning the inside of the tank is also fitted.

All fittings for the 38mm suction and 16mm vent diameter filler pipe are supplied pre-installed, along with a filter in the suction line and a float sensor for connecting a level gauge.

Features :

Tank volume (liter): 120.

Voltage: (v): 24.

Filling diameter (mm): 38.

Event Diameter (mm): 16.

Drain diameter (mm): 13.

Pump flow rate (l/min): 13.2

Pressure (Bar): 3.10.

Length (mm): 1050.

Depth (mm): 450.

Height (mm): 400.

This high-quality synthetic tank for drinking water is supplied with an electric pump that automatically starts when the pressure in the system drops (for example, when a tap is opened).

Installing a DWS tank saves valuable time, as all that's required is connecting the pipes and power supply. This high-end drinking water system offers a high degree of ease of use.

An inspection cover for cleaning the inside of the tank is also fitted.

All fittings for the 38mm suction and 16mm vent diameter filler pipe are supplied pre-installed, along with a filter in the suction line and a float sensor for connecting a level gauge.

Features :

Tank volume (liter): 120.

Voltage: (v): 12.

Filling diameter (mm): 38.

Event Diameter (mm): 16.

Drain diameter (mm): 13.

Pump flow rate (l/min): 13.2

Pressure (Bar): 3.10.

Length (mm): 1050.

Depth (mm): 450.

Height (mm): 400.

This high-quality synthetic tank for drinking water is supplied with an electric pump that automatically starts when the pressure in the system drops (for example, when a tap is opened).

Installing a DWS tank saves valuable time, as all that's required is connecting the pipes and power supply. This high-end drinking water system offers a high degree of ease of use.

An inspection cover for cleaning the inside of the tank is also fitted.

All fittings for the 38mm suction and 16mm vent diameter filler pipe are supplied pre-installed, along with a filter in the suction line and a float sensor for connecting a level gauge.

Features :

Tank volume (liter): 88.

Voltage: (v): 24.

Filling diameter (mm): 38.

Event Diameter (mm): 16.

Drain diameter (mm): 13.

Pump flow rate (l/min): 13.2

Pressure (Bar): 3.10.

Length (mm): 930.

Depth (mm): 400.

Height (mm): 400.

This high-quality synthetic tank for drinking water is supplied with an electric pump that automatically starts when the pressure in the system drops (for example, when a tap is opened).

Installing a DWS tank saves valuable time, as all that's required is connecting the pipes and power supply. This high-end drinking water system offers a high degree of ease of use.

An inspection cover for cleaning the inside of the tank is also fitted.

All fittings for the 38mm suction and 16mm vent diameter filler pipe are supplied pre-installed, along with a filter in the suction line and a float sensor for connecting a level gauge.

Features :

Tank volume (liter): 88.

Voltage: (v): 12.

Filling diameter (mm): 38.

Event Diameter (mm): 16.

Drain diameter (mm): 13.

Pump flow rate (l/min): 13.2

Pressure (Bar): 3.10.

Length (mm): 930.

Depth (mm): 400.

Height (mm): 400.

This high-quality synthetic tank for drinking water is supplied with an electric pump that automatically starts when the pressure in the system drops (for example, when a tap is opened).

Installing a DWS tank saves valuable time, as all that's required is connecting the pipes and power supply. This high-end drinking water system offers a high degree of ease of use.

An inspection cover for cleaning the inside of the tank is also fitted.

All fittings for the 38mm suction and 16mm vent diameter filler pipe are supplied pre-installed, along with a filter in the suction line and a float sensor for connecting a level gauge.

Features :

Tank volume (liter): 61.

Voltage: (v): 24.

Filling diameter (mm): 38.

Event Diam (mm): 16.

Drain diameter (mm): 13.

Pump flow rate (l/min): 13.2

Pressure (Bar): 3.10.

Length (mm): 780.

Depth (mm): 350.

Height (mm): 400.

This high-quality synthetic tank for drinking water is supplied with an electric pump that automatically starts when the pressure in the system drops (for example, when a tap is opened).

Installing a DWS tank saves valuable time, as all that's required is connecting the pipes and power supply. This high-end drinking water system offers a high degree of ease of use.

An inspection cover for cleaning the inside of the tank is also fitted.

All fittings for the 38mm suction and 16mm vent diameter filler pipe are supplied pre-installed, along with a filter in the suction line and a float sensor for connecting a level gauge.

Features :

Tank volume (liter): 61.

Voltage: (v): 12.

Filling diameter (mm): 38.

Event Diam (mm): 16.

Drain diameter (mm): 13.

Pump flow rate (l/min): 13.2

Pressure (Bar): 3.10.

Length (mm): 780.

Depth (mm): 350.

Height (mm): 400.

This high-quality synthetic tank for drinking water is supplied with an electric pump that automatically starts when the pressure in the system drops (for example, when a tap is opened).

Installing a DWS tank saves valuable time, as all that's required is connecting the pipes and power supply. This high-end drinking water system offers a high degree of ease of use.

An inspection cover for cleaning the inside of the tank is also fitted.

All fittings for the 38mm suction and 16mm vent diameter filler pipe are supplied pre-installed, along with a filter in the suction line and a float sensor for connecting a level gauge.

Features :

Tank volume (liter): 42.

Voltage: (v): 24.

Filling diameter (mm): 38.

Event Diameter (mm): 16.

Drain diameter (mm): 13.

Pump flow rate (l/min): 13.2

Pressure (Bar): 3.10.

Length (mm): 610.

Depth (mm): 350.

Height (mm): 400.

This high-quality synthetic tank for drinking water is supplied with an electric pump that automatically starts when the pressure in the system drops (for example, when a tap is opened).

Installing a DWS tank saves valuable time, as all that's required is connecting the pipes and power supply. This high-end drinking water system offers a high degree of ease of use.

An inspection cover for cleaning the inside of the tank is also fitted.

All fittings for the 38mm suction and 16mm vent diameter filler pipe are supplied pre-installed, along with a filter in the suction line and a float sensor for connecting a level gauge.

Features :

Tank volume (liter): 42.

Voltage: (v): 12.

Filling diameter (mm): 38.

Event Diameter (mm): 16.

Drain diameter (mm): 13.

Pump flow rate (l/min): 13.2

Pressure (Bar): 3.10.

Length (mm): 610.

Depth (mm): 350.

Height (mm): 400.

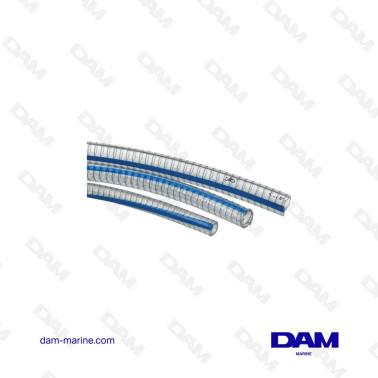

This hose is made of transparent PVC with a spiral inlay and is suitable for transport.

drinking water and grey water on board, suction or pressure

Inner Diam (mm): 50.

External Diam (mm): 60.

Weight (kg/m) 1.20.

Max pressure (bar): 3.

Curve (mm): 125.

Roll length (m): 10.

Suitable HCHD(S) collar: HCHD(S)0359.

Suitable HCS collars: HCS50.

This hose is made of transparent PVC with a spiral inlay and is suitable for transport.

drinking water and grey water on board, suction or pressure

Inner Diam (mm): 45.

External Diam (mm): 55.

Weight (kg/m) 1.10.

Max pressure (bar): 3.

Curve (mm): 105.

Roll length (m): 10.

HCHD(S) collar suitable: HCHD(S)051 - HCHD(S)055.

Suitable HCS collars: HCS40 - HCS50.
