Trim sensor to provide the position of the Volvo Penta and OMC base.

2-wire sensor:

- Black

- Black - brown

Mercruiser trim hose, 285mm long.

Generally for Mercruiser Bravo base.

For 335mm trim hoses, take reference 26190

Port trim cylinder for Volvo Penta drive types:

- DPS-A

- SX-A

Complete cylinder kit including the 2 cylinders, the hydraulic hoses and all the necessary mounting equipment for replacing the old generation 853439 cylinders as well as the 872612.

The following hoses are also included:

- 854696

- 854697

- 872596

- 872595

Mounting on DP - SP base.

Trim sensor to provide the position of the Volvo Penta or OMC SX drive.

Gray color sensor with 3 wires:

- Black

- Black - brown

- White

Starboard trim cylinder for Volvo Penta drive types:

- DPS-A

- SX-A

Complete trim cylinder kit for VOLVO - OMC base types: SX - SX-M - DP-SM.

Kit including:

2 pcs jacks

All trim hoses.

The necessary mounting materials, namely covers, nuts, washers.

Complete trim pump for Volvo Penta and OMC outdrives to replace older generations.

Single motor, center distance 58.42mm, 10x24 thread: ARC6233

Hydraulic hose kit for Volvo Penta outdrive including the following items:

1 pcs flexible 854710

1 pcs flexible 854711

2 pcs O-ring 925053

Upper port hydraulic hose (hull side) for Volvo base cylinder.

Complete port cylinder for Mercruiser Bravo base.

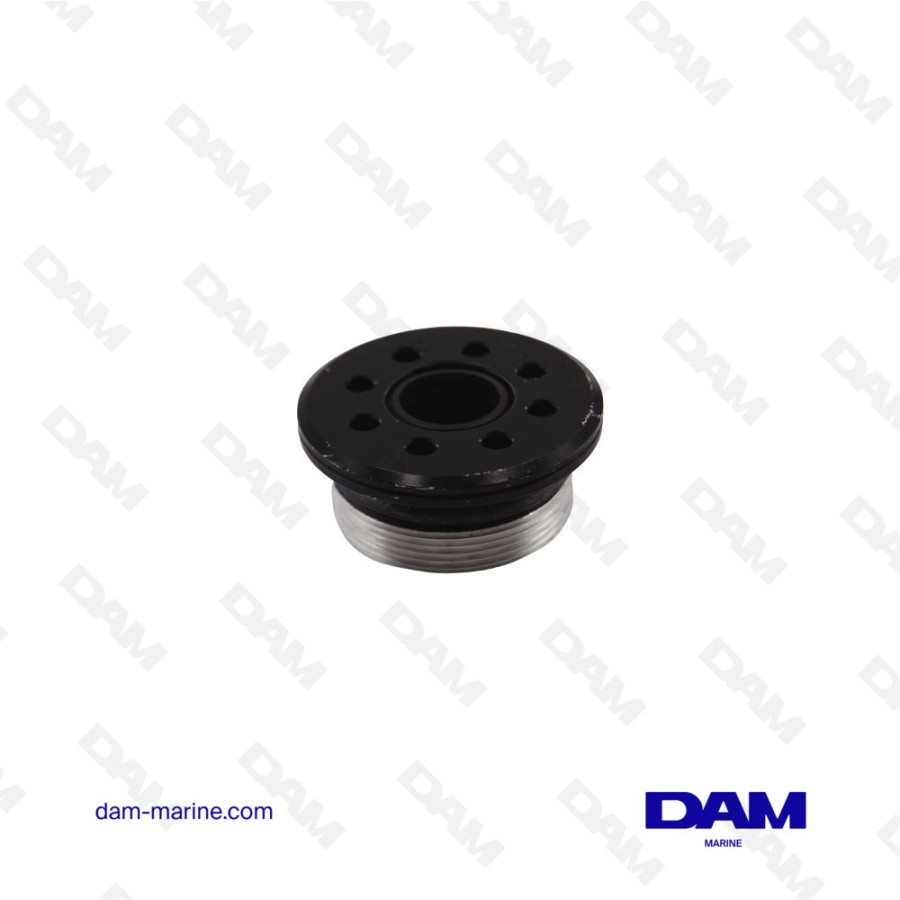

Cylinder cap for Volvo Penta outdrives of types:

DPH-A

DPH-B

DPH-C

DPH-D

DPH-E

DPR-A

DPR-B

DPR-C

2-wire trim motor for Yamaha 4-stroke 75 and 90HP outboards from 2005 and later.

Complete trim kit to replace Yamaha SHOWA 2-wire trims for F200 to F300 engines from 2002 to 2017.

Moteur de trim complet disposant d'un montage 2 fils en remplacement des anciennes générations Mercury de 1996 et après suivantes :

- 135 à 200CV 2.5L 2Temps

- 200 à 300CV 3.0L 2Temps

- 135, 150, 175, 200 Cv 4Temps VERADO L4

Cet ensemble peut également remplacer les générations 3 fils avec l'utilisation du kit conversion en référence WH476.

Kit permettant de convertir un ensemble 3 fils en 2 fils avec l'utilisation de cet adaptateur.

Les générations moteurs concernés sont les suivantes entre 1985 et 1995 135 à 225cv 2 temps.

L'anode de trim barreau 00052A est inclus dans le kit.

Trim hose for Volvo base connecting the hydraulic pump to the 4-outlet diffuser for Volvo SX base.

2-wire trim motor for Mercury outboards from 40 to 125 HP with a single lift cylinder.

Fixing by 4 screws, reassembly kit included.

2-wire trim motor for the following Yamaha 200 to 300HP outboards:

- 200 - 225 and 250HP 4-stroke from 2002 to 2009

- 200 and 300HP 2-stroke from 2002 to 2009

3 screw fixing, reassembly kit included.

2-wire trim motor for the following Johnson - Evinrude outboards:

- 200 and 225HP after 1991

- 120 and 140HP from 1991 to 1994

- 50HP 3 cylinders after 1995

- 60HP after 1995

- 130HP V4 after 1995

- 115 to 200HP after 1997

- 225HP 2 wires from 1998 to 1999

4 fixing screws.

Relay reference R473.

Reassembly required for the following trim motors:

- ARC6247

- ARC6247

Trim sensor kit for Mercruiser outboard including a Smartcraft 3-wire trim sensor and a 2-wire analog trim sensor for all Mercruiser engines equipped with Smartcraft instrumentation requiring an analog input.

- 3-wire DTS sensor: red - blue - white

- 2-wire analog sensor: black

Trim sensor for Mercruiser base types BRAVO XR - XZ or ITS in analog or digital mounting.

3-wire trim sensor in colors: blue - red and white.

Cylinder seal kit for Mercruiser TRS base with internal hydraulic hose assembly.

Short type hydraulic hoses on the rear of the cylinder.
