Trim pumps for marine engines and lower units

Moteur de trim 2 fils avec fixation par 4 vis pour moteur Suzuki Marine après 2001 types :

DF60

DF70

DF70A

DF80A

DF90

DF90A

DF115

DF140

DF150

DF175

DF200

DF225

DF250

DF250SS

DF300

Pour le montage disposant d'une connectique ronde vous reportez aux références : PT314 - ARC6234 - ARC6235.

2-wire motor for Yamaha outboards from 1987 to 1996 following:

- 115 and 200HP from 1987 to 1995

- 225HP from 1990 to 1993

3 screw fixing and reassembly kit included.

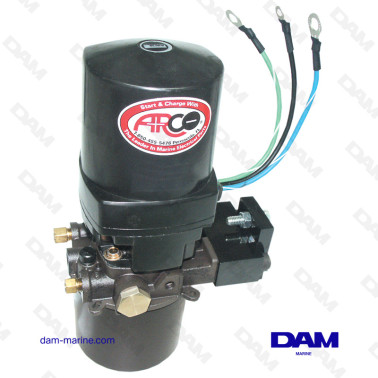

Complete trim pump for Volvo Penta and OMC outdrives to replace older generations.

Single motor, center distance 58.42mm, 10x24 thread: ARC6233

2-wire trim motor for Yamaha 4-stroke 75 and 90HP outboards from 2005 and later.

2-wire trim motor for Mercury outboards from 40 to 125 HP with a single lift cylinder.

Fixing by 4 screws, reassembly kit included.

2-wire trim motor for the following Yamaha 200 to 300HP outboards:

- 200 - 225 and 250HP 4-stroke from 2002 to 2009

- 200 and 300HP 2-stroke from 2002 to 2009

3 screw fixing, reassembly kit included.

2-wire trim motor for the following Johnson - Evinrude outboards:

- 200 and 225HP after 1991

- 120 and 140HP from 1991 to 1994

- 50HP 3 cylinders after 1995

- 60HP after 1995

- 130HP V4 after 1995

- 115 to 200HP after 1997

- 225HP 2 wires from 1998 to 1999

4 fixing screws.

Relay reference R473.

Reassembly required for the following trim motors:

- ARC6247

- ARC6247

2-wire trim motor for the following Yamaha 75 to 100HP 4-stroke outboards:

- 75 and 80HP 4-stroke from 1999 to 2004

- 90 and 100HP 4-stroke from 1999 to 2004

4 screw fixing, reassembly kit included.

Johnson - Evinrude outboard trim motor types Fitch Ram FFI from 75 to 300HP.

Fixing with 4 screws.

Reassembly gaskets included.

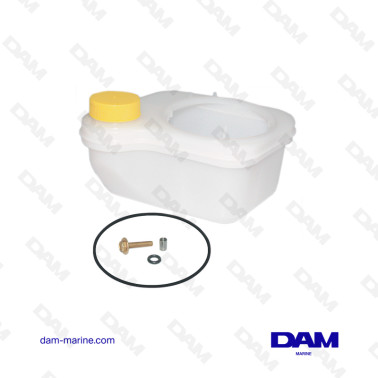

Mercruiser trim pump oil reservoir with mounting screw.

2-wire trim motor for Suzuki DT40 from 1994 to 1998.

Flat training.

2-wire trim motor for the following Yamaha 40 to 60HP outboards:

- 50HP 4-stroke from 2001 to 2004

- 60HP 4-stroke from 2002 to 2004

- 40HP 2-stroke from 2001 to 2006

- 50HP 2-stroke from 2003 to 2009

3 fixing screws, reassembly kit included.

2-wire trim motor for Johnson - Evinrude outboards 25 to 50HP after 1992.

As well as the following Honda engines from 1992 to 2002:

- BF35

- BF40

- BF45

- BF50

Mounting with 4 fixing screws.

Female drive axle.

OMC base lifting motor of mechanical types.

Connection for hydraulic tapping on ARC6227 trim pump.

Moteur de trim pour Suzuki - Honda disposant d'une connectique ronde.

Honda 2002 et plus : BF200 & BF225

Honda 2004 et plus : BF135 & BF150

Honda 2007 et plus : BF75 & BF90

Suzuki DF70 DF80 DF90 DF115 DF140 DF150 DF175 DF200 DF225 DF250 DF300

Trim motor for the following Yamaha 225 - 250hp 2-strokes:

225HP - 1994 - 2003

250HP - 1990 - 2003

2-wire trim motor with 4-screw mounting for the following motors:

- SUZUKI DF40 and DF50 (2001-2010)

- HONDA BF40 and BF50 (2002-2004)

- JOHNSON 40 and 50Cv 4-stroke (2002-2006)

- EVINRUDE 40 and 50Cv 4-Stroke (2001 and +)

2-wire trim motor for the following 2-stroke Suzuki outboards:

- DT90 from 1991 to 1997

- DT100 from 1991 to 2000

- DT150 from 1991 to 2003

- DT175 from 1991 to 1992

- DT200 from 1991 to 2000

- DT225 from 1991 to 2003

Fixing by 3 screws, reassembly kit included.

3-wire trim motor for the following Yamaha outboards:

- 70 - 90 and 115HP from 1987 to 1991

- 150 and 200HP from 1987 to 1991

3 screw fixing, reassembly kit included.

2-wire motor for Yamaha 40 and 50HP outboards from 1995 to 2001.

3 screw fixing, reassembly kit included.

2-wire trim motor for the following Mercury 25 to 50HP outboards:

- 30 to 50HP 2-stroke

- 25 to 45HP 4-stroke

2-wire trim motor for YAMAHA 4-stroke 50 and 60HP outboards from 2004 to 2015.

3 screw fixing, reassembly kit included.
