H31MM COOLING TURBINE
Width: 57 mm
Height: 31 mm
Shaft diameter:

Constructeurs d'équipements marins et de pièces détachées reconnu mondialement, Orbitrade propose une large gamme de produits que vous pouvez découvrir sur DAM Marine.
Width: 57 mm
Height: 31 mm
Shaft diameter:
Seawater pump impeller with the following dimensions:
Width: 39 mm
Height: 19 mm
Shaft diameter: 9.5 mm
Gasket included for Volvo application.
For Yanmar application add the cover gasket to the details.

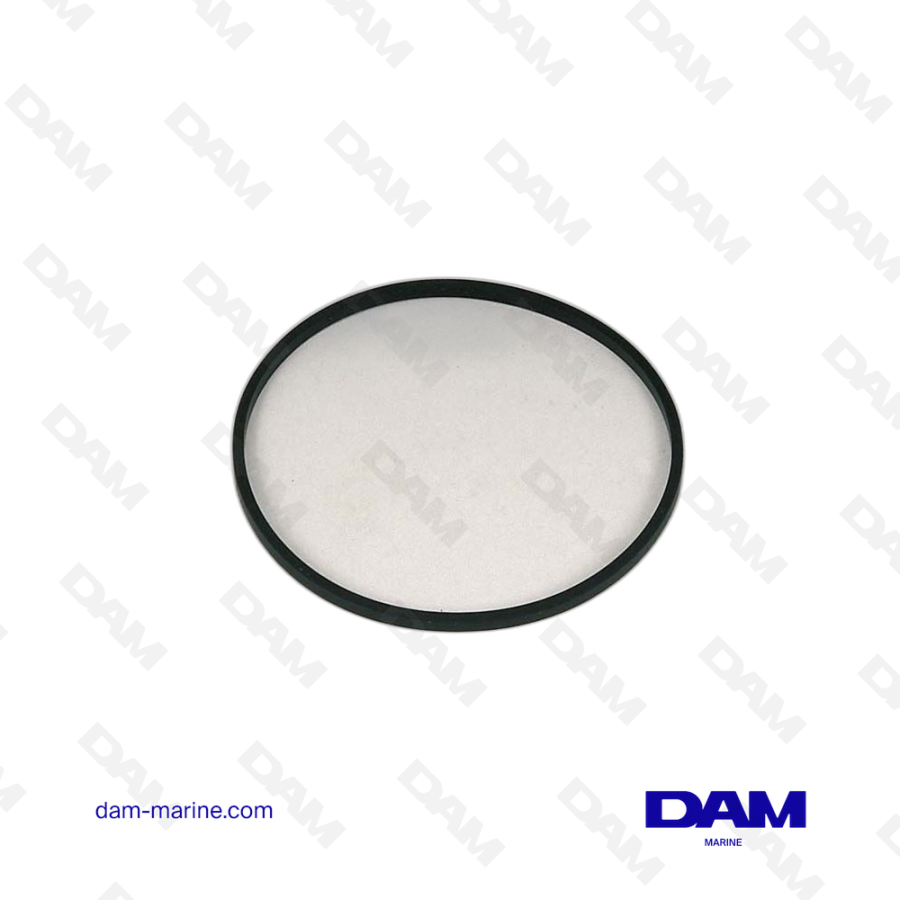

Water seal for Volvo Penta rigid pipe.
6-blade cooling turbine with the following dimensions:
Width: 50 mm
Height: 22 mm
Shaft diameter: 14 mm
8-blade cooling turbine including seals and reassembly gaskets.
For Volvo Penta D4 engines please refer to part number 15475T.
Width: 65 mm
Height: 50 mm
Shaft diameter: 15 mm
12 grooves
Heat exchanger gasket kit for the following Volvo Penta engines:
D1-13A, D1-13B, D1-13F
D1-20A, D1-20B, D1-20F
D1-30A, D1-30B, D1-30F
D2-40A, D2-40B, D2-40F
Kit including all the temperature exchanger gaskets, namely:
4 pcs: 3842016
1 pcs: 3583830
1 pcs: 3586514

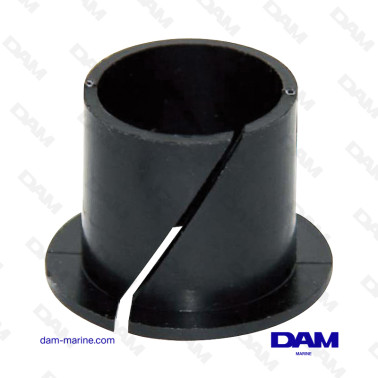

Volvo Penta cylinder shaft bearing to be used in addition to bearings 3853423.
15.5cm diameter air filter for plastic filter holder.
Width: 39 mm
Height: 19 mm
Shaft diameter: 12 mm
CV joint boot for Volvo Penta outdrive including clamps.
Premium quality.
Cylinder head nut for Volvo Penta engines of types:
MD1, MD1A, MD2, MD2A
MD1B, MD2B, MD3B
MD11C, MD11D, MD17C, MD17D
3 nuts required for a cylinder head.
Material including references: 994130 and 930872
CV joint boot for Volvo Penta SX - DPS and OMC Cobra drive including clamp.
Application :
OMC COBRA
DP-SM, DP-S, DP-S1, DPS-A
DPS-A OXi, DPS-B, DPS-B OX, DPS-B1
DPS-B1 OX, DP-SMTD, FWD, SX-A
SX-C, SX-C1, SX-C1AC, SX-C2
SX-CT, SX-CT1, SX-CT2, SX-M
SX-M1, SX-MTD, SX-MTD3, SX-R
SX-RT1, SX-RT2, SX-S, SX-SLT
TSK DP-S, TSK SX-C, TSK SX-C1, TSK SX-C1AC
TSK SX-C2AC, TSK SX-CLT M10, TSK SX-CLT1, TSK SX-M
TSK SX-MACLT, TSK SX-MBAC, TSK SX-MDA, TSK SX-MDB
TSK SX-MDC, TSK SX-MHP, TSK SX-MLT, TSK SX-R
TSK SX-R1, TSK SX-R2, TSK-A-32, TSK-A-32-NPT
TSK-A-42, TSK-A-42-NPT, TSK-A-52-NPT, TSK-A-AC-32
TSK-A-AC-32-NPT, TSK-A-AC-42, TSK-A-AC-42-NPT, TSK-A-AC-52
TSK-A-AC-52-NPT, TSK-A-OX-32, TSK-A-OX-42, TSK-A-OX-52
TSK-B-32, TSK-B-32-NPT, TSK-B-42, TSK-B-42-NPT
TSK-B-52, TSK-B-52-NPT, TSK-B-AC-32, TSK-B-AC-32-NPT
TSK-B-AC-42, TSK-B-AC-42-NPT, TSK-B-AC-52, TSK-B-AC-52-NPT
TSK-B-OX-32, TSK-B-OX-42, TSK-B-OX-52, TSK-C-32
TSK-C-42, TSK-C-52, TSK-C-52-NPT, TSK-C-AC-32
TSK-C-AC-32-NPT, TSK-C-AC-42, TSK-C-AC-42-NPT, TSK-C-AC-52
TSK-C-AC-52-NPT, TSK-C-OX-32, TSK-C-OX-42, TSK-C-OX-52
Exhaust bellows for Volvo Penta outdrives:
AQ200, AQ250, AQ270, AQ275
AQ280, AQ280DP, AQ290, AQ290DP
DP-A, DP-A1, DP-A2, DP-B
DP-B1, DP-C, DP-C1, DP-D
DP-D1, DPX, SP-A, SP-A/MT
SP-A1, SP-A2, SP-C, DP-E
8-blade cooling impeller for Volvo Penta D6 series engine.
Dimensions: diameter 65mm height 75mm. 12 grooves
Applications:
- D6-280A-A, D6-280A-B, D-280A-C, D6-280A-D, D6-280A-E, D6-280I-A, D6-280I-B, D6-280I-C, D6-280I-D, D6-280I-E
- D6-310I-A, D6-310A-A, D6-310A-B, D6-310A-C, D6-310A-D, D6-310D-B, D6-310D-C, D6-310D-D, D6-310I-B, D6-310I-C, D6-310I-D, D6-310A-E, D6-310D-E, D6-310I-E
-D6-330A-B, D6-330A-C, D6-330A-D, D6-330D-B, D6-330D-C, D6-330D-D
-D6-330I-B, D6-330I-C, D6-330I-D, D6-330A-E, D6-330D-E, D6-330I-E
- D6-350A-A, D6-350A-B
- D6-370A-B, D6-370A-C, D6-370A-D, D6-370D-B, D6-370D-C, D6-370D-D, D6-370I-A, D6-370I-B, D6-370I-C, D6-370I-D, D6-370A-E, D6-370D-E, D6-370I-E
- D6-400A-E
-D6-435D-A, D6-435D-D, D6-435D-C, D6-435D-E, D6-435I-A, D6-435I-C, D6-435I-D, D6-435I-E
Reassembly O-ring included.
8-blade cooling turbine with O-rings for assembly, mainly for Volvo Penta D4 engines.
Dimensions: diameter 65mm height 50mm 12 grooves
For a turbine with a paper cover gasket, refer to reference 15593.
Applications:
-D4-180I-B, D4-180I-C, D4-180I-D, D4-180I-E
- D4-210A-A, D4-210A-B, D4-210I-A, D4-210I-B
-D4-225A-B, D4-225A-C, D4-225A-D, D4-225I-B, D4-225I-C, D4-225I-D, D4-225A-E, D4-225I-E
- D4-260A-A, D4-260A-B, D4-260A-C, D4-260A-D, D4-260D-B, D4-260D-B, D4-260D-C, D4-260D-D, D4-260I-A, D4260I-B, D4-260I-C, D4-260I-D, D4-260A-E, D4-260D-E, D4-260I-E
- D4-300A-A, D4-300A-C, D4-300A-D, D4-300D-A, D4-300D-C, D4-300I-A, D4-300I-C, D4-300I-D, D4-300A-E, D4-300D-E, D4-300D-D, D4-300I-E
Cover gasket 3583611 included.
Impeller kit for the following Volvo Penta engines:
D3-110I-A, D3-110I-B, D3-110I-C, D3-110I-D, D3-110I-E, D3-110I-F
D3-110I-G
D3-130A-A, D3-130I-A, D3-130A-B
D3-130I-B, D3-130A-C, D3-130I-C
D3-140A-G, D3-140I-D, D3-140I-E, D3-140I-F, D3-140I-G
D3-150I-D, D3-150I-E, D3-150I-F, D3-150I-G
D3-160A-A, D3-160I-A, D3-160A-B
D3-160I-B, D3-160A-C, D3-160I-C
D3-170A-G, D3-170I-D, D3-170I-E, D3-170I-F, D3-170I-G
D3-190A-B, D3-190I-B, D3-190A-C, D3-190I-C
D3-200A-D, D3-200A-E, D3-200A-F, D3-200A-G, D3-200I-D, D3-200I-E
D3-200I-G
D3-220A-G, D3-220I-D, D3-220I-F, D3-220A-D, D3-220A-E, D3-220A-F
D3-220I-G
3.0 GLP
4.3 GL, GXI
5.0 GL, GXI
5.7 GI
8.1 GI
Turbine width 57 mm - height 48 mm - 13 grooves.
Turbine with thread for use with extraction tool 3843948.
Set of bearings for a connecting rod in dimension 0.20 of width 27mm.
AQ60F, AQ90, AQ95, AQ95A, AQ110, AQ120
BB30, BB100
MB18
AQ105A, AQ115A, AQ115B
AQ130A, AQ130B, AQ130C, AQ130D
BB115A, BB115B, BB115C
MB20A, MB20B, MB20C
For block with 6 fixing screws for the crankshaft oil seal holder.
60°C thermostat for Volvo Penta 2000 series engine with direct seawater cooling:
2001
2001AG
2001B
2001BG
2002
2002AG
2002B
2002BG
2003
2003AG
2003B
2003BG
For closed cooling installation, refer to reference 15909-1.
Exhaust bellows for Volvo Penta SX - DP-SM and OMC Cobra outdrives.
Hose clamp included.
