Mushroom aerator in stainless steel (AISI 316), brightly polished, with mosquito net and synthetic counter flange, both in synthetic material. ISO 12216, Area II a.

These mushroom vents can be opened from the outside or inside using a built-in button.

Free passage area 30 cm²

Mushroom aerator in stainless steel (AISI 316), brightly polished, with mosquito net and synthetic counter flange, both in synthetic material. ISO 12216, Area II a.

These mushroom vents can be opened from the outside or inside using a built-in button.

Free passage area 76 cm²

The aerator can be screwed directly onto the hull or superstructure horizontally/vertically. Plastic base plate, water seal, 76 mm hose connection included. The free flow area is 38.5 cm².

The outer cover of this aerator is made of polished AISI 316 stainless steel and all other parts are made of synthetic materials.

The ideal solution for engine room ventilation openings

These translucent stainless steel (AISI 316) models with a polished, high-gloss cover cannot be closed, ensuring permanent ventilation. They are splash-proof and can be used in combination with electric exhaust fans (ref: FAN 12-14). Reliable, easy to maintain, and attractive.

Comes with mosquito net and interior finishing ring. Free passage area 24cm².

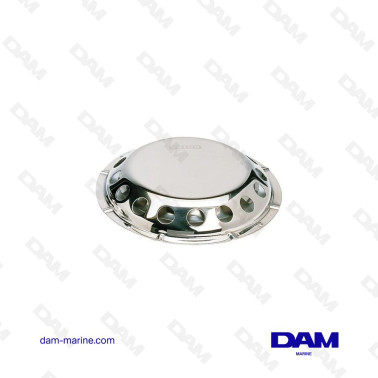

These stainless steel (AISI 316) models with a polished, high-gloss cover cannot be closed, ensuring permanent ventilation. They are splash-proof and can be used in combination with electric exhaust fans (ref: FAN 12-14). Reliable, easy to maintain, and attractive.

Comes with mosquito net and interior finishing ring. Free passage area 31.8cm².

Mushroom aerator in stainless steel (AISI 316), brightly polished, with mosquito net and synthetic counter flange, both in synthetic material. ISO 12216, Area II a.

These mushroom vents can be opened from the outside or inside using a built-in button.

Free passage area 45 cm²

The aerator can be screwed directly onto the hull or superstructure horizontally/vertically. Plastic base plate, water seal, 75 mm hose connection included. The free flow area is 30 cm².

The outer cover of this aerator is made of polished AISI 316 stainless steel and all other parts are made of synthetic materials. When installed, no screws are visible.

The ideal solution for engine room ventilation openings.

The aerator can be screwed directly onto the hull or superstructure horizontally/vertically. Plastic base plate, water seal, 100 mm hose connection included. The free flow area is 41 cm².

The outer cover of this aerator is made of polished AISI 316 stainless steel and all other parts are made of synthetic materials. When installed, no screws are visible.

The ideal solution for engine room ventilation openings.

These stainless steel models (AISI 316) with a polished, shiny cover can be closed and made absolutely watertight.

When open they provide constant ventilation and always remain protected from rain and splashes.

Reliable, easy to maintain and beautiful.

Comes with a full mosquito net and a synthetic finishing ring. Free passage area 20cm².

Specially designed for boats, this barely audible electric fan is designed for living rooms, cabins, hallways, and toilets and is also ideal for extracting heat near a refrigerator. It can be installed in ceilings and bulkheads. With its long-life motor, it can operate for at least 50,000 hours.

It is recommended that each zone have an air exchange rate of 3 to 4 times per hour.

It can be used in combination with VETUS UFO and UFOTRANS deck fans.

Specifications:

• Available in 12 or 24 Volt

• Capacity 72 m3 / hour

• Has a 2-speed switch

Technical characteristics:

Voltage (V): 24.

Capacity (m³/minute): 1.2.

Static pressure: 6 mm H2O.

Specially designed for boats, this barely audible electric fan is designed for living rooms, cabins, hallways, and toilets and is also ideal for extracting heat near a refrigerator. It can be installed in ceilings and bulkheads. With its long-life motor, it can operate for at least 50,000 hours.

It is recommended that each zone have an air exchange rate of 3 to 4 times per hour.

It can be used in combination with VETUS UFO and UFOTRANS deck fans.

Specifications:

• Available in 12 or 24 Volt

• Capacity 72 m3 / hour

• Has a 2-speed switch

Technical characteristics:

Voltage (V): 12.

Capacity (m³/minute): 1.2.

Static pressure: 6 mm H2O.

This set consists of a stainless steel ring (AISI 316), a male bridge ring and a fixing key for the DONALD or JERRY hood fan (ref: TRAMON / LIBEC).

A ring kit is available for each plastic fan size and can be retrofitted to existing models.

This set consists of a stainless steel ring (AISI 316), a male bridge ring and a fixing key for the DONALD or JERRY hood fan (ref: SAMOEN).

A ring kit is available for each plastic fan size and can be retrofitted to existing models.

This set consists of a stainless steel ring (AISI 316), a male bridge ring and a fixing key for the DONALD or JERRY hood fan (ref: CHINOOK).

A ring kit is available for each plastic fan size and can be retrofitted to existing models.

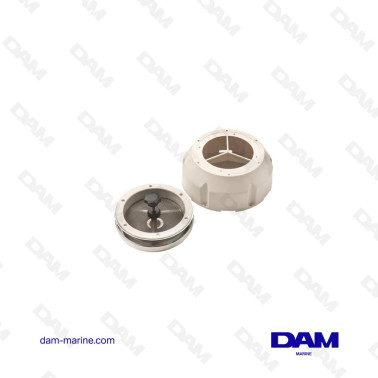

Dorade box for YOGI / SAMOEN, with mushroom fan.

Note: These boxes do not fit the S type fan.

This synthetic box drains any water entering the fan and can be closed completely using the built-in stainless steel mushroom fan.

The screw-on mounting ring supplied with the fan can be easily attached to the dorade box using the supplied bolts and nuts.

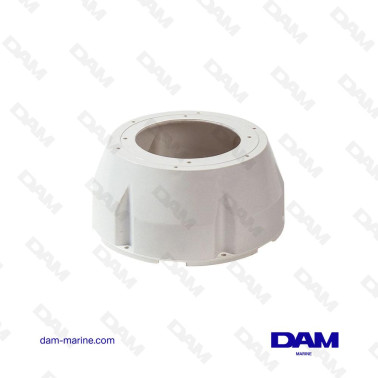

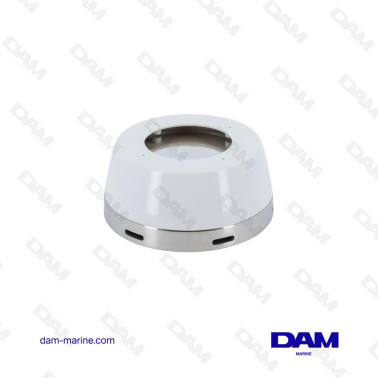

Dorade box for TOM / CHINOOK, with mushroom fan.

Note: These boxes do not fit the S type fan.

This synthetic box drains any water entering the fan and can be closed completely using the built-in stainless steel mushroom fan.

The screw-on mounting ring supplied with the fan can be easily attached to the dorade box using the supplied bolts and nuts.

Dorade box for DONALD / JERRY / TRAMON / LIBEC, with mushroom fan.

Note: These boxes do not fit the S type fan.

This synthetic box drains any water entering the fan and can be closed completely using the built-in stainless steel mushroom fan.

The screw-on mounting ring supplied with the fan can be easily attached to the dorade box using the supplied bolts and nuts.

This hood dorade box evacuates any water entering the interior of the boat through the air sleeve and can be closed completely by means of the incorporated mushroom vent in stainless steel (AISI 316).

Available in BOX75 synthetic material. Maximum deck thickness 25 mm.

Choose the same size BOX as the diameter (B) of the windsock.

CE marking: AII

Features :

Diameter (mm): 75.

Inner diameter of the tunnel (mm): 75.

This hood dorade box evacuates any water entering the interior of the boat through the air sleeve and can be closed completely by means of the incorporated mushroom vent in stainless steel (AISI 316).

Available in BOX100 synthetic material. Maximum deck thickness 25 mm.

Choose the same size BOX as the diameter (B) of the windsock.

CE marking: AII

Features :

Diameter (mm): 100.

Inner diameter of the tunnel (mm): 100.

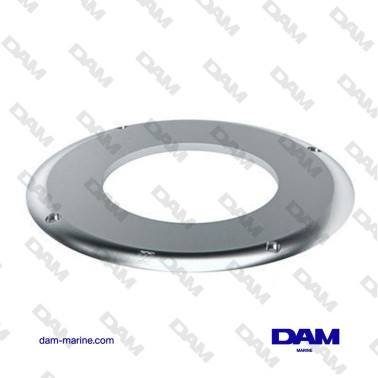

BOXAD adapter flange suitable for aprons over 25 mm thick.

This flange can be mounted on the Dorade box using the counter flange, after which the adapter can be screwed onto the apron. The adapter flanges are made of bright polished AISI 316 stainless steel to fit stainless steel hood fans and Dorade boxes. Suitable for BOX75 and BOXS75

BOXAD adapter flange suitable for aprons over 25 mm thick.

This flange can be mounted on the Dorade box using the counter flange, after which the adapter can be screwed onto the apron. The adapter flanges are made of bright polished AISI 316 stainless steel to fit stainless steel hood fans and Dorade boxes. Suitable for BOX75 and BOXS75

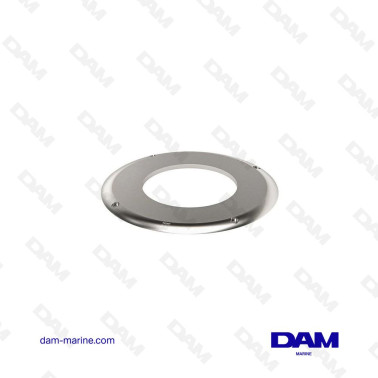

BOXAD adapter flange suitable for aprons over 25 mm thick.

This flange can be mounted on the Dorade box using the counter flange, after which the adapter can be screwed onto the apron. The adapter flanges are made of bright polished AISI 316 stainless steel to fit stainless steel hood fans and Dorade boxes. Suitable for BOX100 and BOXS100. Suitable for BOX100 and BOXS100.

This JERRY or DONALD sea bream box for hood evacuates any water entering the interior of the boat through the air sleeve and can be completely closed by means of the incorporated mushroom vent in stainless steel (AISI 316).

Available in synthetic material or AISI 316 stainless steel (Ref: BOXS75). Maximum bridge thickness 25 mm.

Choose the same size BOX as the diameter (B) of the windsock.

CE marking: AII

Features :

Diameter (mm): 75.

Inner diameter of the tunnel (mm): 75.

This hood dorade box evacuates any water entering the interior of the boat through the air sleeve and can be closed completely by means of the incorporated mushroom vent in stainless steel (AISI 316).

Available in synthetic material or AISI 316 stainless steel (Ref: BOXS125). Maximum deck thickness 25 mm.

Choose the same size BOX as the diameter (B) of the windsock.

CE marking: AII

Features :

Diameter (mm): 125.

Inner diameter of the tunnel (mm): 125.

This dorade box evacuates any water entering the interior of the boat through the air sleeve and can be closed completely by means of the incorporated mushroom aerator in stainless steel (AISI 316).

Available in synthetic material or AISI 316 stainless steel (Ref: BOXS100). Maximum bridge thickness 25 mm.

Choose the same size BOX as the diameter (B) of the windsock.

CE marking: AII

Features :

Diameter (mm): 100.

Inner diameter of the tunnel (mm): 100.
