Waterlocks for marine engines - Page 3

Exhaust plug for water-injected exhaust systems, with rotating top. Made of corrosion-resistant synthetic materials. Excellent noise reduction.

Features :

• Excellent sound reduction

• Minimal back pressure

• Drain plug for winter storage

• Suitable for internal pipe diameters Ø 90, 102, 127, 152, 209 or 250 mm

• Capacities of 23, 75 or 130 liters

• Supplied with AISI 316 stainless steel clamping bands

• M12 thread purge

• Optional temperature sensor

Technical characteristics:

Capacity (liters): 75.

Water inlet pipe connection diameter (mm): 127.

Outlet pipe connection diameter (mm): 152.

Length (mm): 707.

Width (mm): 400.

Height (mm): 700.

Airlock position: Vertical.

% Noise Reduction: 25.

Exhaust plug for water-injected exhaust systems, with rotating top. Made of corrosion-resistant synthetic materials. Excellent noise reduction.

Features :

• Excellent sound reduction

• Minimal back pressure

• Drain plug for winter storage

• Suitable for internal pipe diameters Ø 90, 102, 127, 152, 209 or 250 mm

• Capacities of 23, 75 or 130 liters

• Supplied with AISI 316 stainless steel clamping bands

• M12 thread purge

• Optional temperature sensor

Technical characteristics:

Capacity (liters): 23.

Water inlet pipe connection diameter (mm): 90.

Outlet pipe connection diameter (mm): 90.

Length (mm): 540.

Width (mm): 270.

Height (mm): 450.

Airlock position: Vertical.

% Noise Reduction: 25.

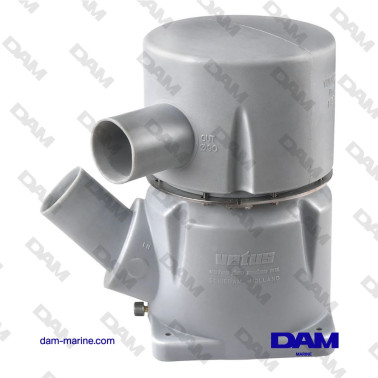

Special waterlocks for large boats type MG.

Excellent noise reduction, minimal back pressure.

This type of water lock is designed for modern, high-performance boats with one or two large engines that have little space to spare in the engine room. The outlet connection on top can rotate 360°, and the inlet connection is angled upwards by 45°. The MG type can only be installed in water-injected exhaust systems. Its body is made entirely of synthetic materials, therefore not susceptible to corrosion or galvanic action.

Features :

• Excellent sound reduction

• Minimal back pressure

• Drain plug for winter storage

• Suitable for internal pipe diameters Ø 102 mm

• Capacities of 23 liters

• Supplied with AISI 316 stainless steel clamping bands

• M12 thread purge

• Optional temperature sensor

Technical characteristics:

• Capacity: 23 L

• Diameter d: 127 mm

• Diameter D: 127 mm

• Diameter A: 270 mm

• Diameter B: 450 mm

Exhaust plug for water-injected exhaust systems, with rotating top. Made of corrosion-resistant synthetic materials. Excellent noise reduction.

Features :

• Excellent sound reduction

• Minimal back pressure

• Drain plug for winter storage

• Suitable for internal pipe diameters Ø 90, 102, 127, 152, 209 or 250 mm

• Capacities of 23, 75 or 130 liters

• Supplied with AISI 316 stainless steel clamping bands

• M12 thread purge

• Optional temperature sensor

Technical characteristics:

Capacity (liters): 25.

Water inlet pipe connection diameter (mm): 102.

Outlet pipe connection diameter (mm): 127.

Length (mm): 540.

Width (mm): 270.

Height (mm): 450.

Airlock position: Vertical.

% Noise Reduction: 25.

Waterlock designed for modern high performance boats with one or two large engines that have limited space in the engine room.

The outlet connection at the top can be rotated 360º and the inlet connection is at a 45º upward angle. The MG type can only be installed in water-injected exhaust systems. Its body is made entirely of synthetic materials, therefore insensitive to corrosion or galvanic action.

To optimize noise reduction, flexible supports for MG and HPW watercoks can be used.

Features :

• Excellent sound reduction

• Minimal back pressure

• Drain plug for winter storage

• Suitable for internal pipe diameters Ø 90, 102, 127, 152, 209 or 250 mm

• Capacities of 23, 75 or 130 liters

• Supplied with AISI 316 stainless steel clamping bands

• M12 thread purge

• Optional temperature sensor

Technical characteristics:

Capacity (liters): 130.

Water inlet pipe connection diameter (mm): 203.

Outlet pipe connection diameter (mm): 203.

Length (mm): 890.

Width (mm): 500.

Height (mm): 750.

Airlock position: Vertical.

% Noise Reduction: 25.

Exhaust plug for water-injected exhaust systems, with rotating top. Made of corrosion-resistant synthetic materials. Excellent noise reduction.

Features :

• Excellent sound reduction

• Minimal back pressure

• Drain plug for winter storage

• Suitable for internal pipe diameters Ø 90, 102, 127, 152, 209 or 250 mm

• Capacities of 23, 75 or 130 liters

• Supplied with AISI 316 stainless steel clamping bands

• M12 thread purge

• Optional temperature sensor

Technical characteristics:

Capacity (liters): 75.

Water inlet pipe connection diameter (mm): 127.

Outlet pipe connection diameter (mm): 127.

Length (mm): 707.

Width (mm): 400.

Height (mm): 700.

Airlock position: Vertical.

% Noise Reduction: 25.

Waterlock designed for modern high performance boats with one or two large engines that have limited space in the engine room.

The outlet connection at the top can be rotated 360º and the inlet connection is at a 45º upward angle. The MG type can only be installed in water-injected exhaust systems. Its body is made entirely of synthetic materials, therefore insensitive to corrosion or galvanic action.

To optimize noise reduction, flexible supports for MG and HPW watercoks can be used.

Features :

• Excellent sound reduction

• Minimal back pressure

• Drain plug for winter storage

• Suitable for internal pipe diameters Ø 90, 102, 127, 152, 209 or 250 mm

• Capacities of 23, 75 or 130 liters

• Supplied with AISI 316 stainless steel clamping bands

• M12 thread purge

• Optional temperature sensor

Technical characteristics:

Capacity (liters): 130.

Water inlet pipe connection diameter (mm): 203.

Outlet pipe connection diameter (mm): 250.

Length (mm): 890.

Width (mm): 500.

Height (mm): 750.

Airlock position: Vertical.

% Noise Reduction: 25.

Waterlock designed for modern high performance boats with one or two large engines that have limited space in the engine room.

The outlet connection at the top can be rotated 360º and the inlet connection is at a 45º upward angle. The MG type can only be installed in water-injected exhaust systems. Its body is made entirely of synthetic materials, therefore insensitive to corrosion or galvanic action.

To optimize noise reduction, flexible supports for MG and HPW watercoks can be used.

Features :

• Excellent sound reduction

• Minimal back pressure

• Drain plug for winter storage

• Suitable for internal pipe diameters Ø 90, 102, 127, 152, 209 or 250 mm

• Capacities of 23, 75 or 130 liters

• Supplied with AISI 316 stainless steel clamping bands

• M12 thread purge

• Optional temperature sensor

Technical characteristics:

Capacity (liters): 130.

Water inlet pipe connection diameter (mm): 152.

Outlet pipe connection diameter (mm): 203.

Length (mm): 890.

Width (mm): 500.

Height (mm): 750.

Airlock position: Vertical.

% Noise Reduction: 25.

Special waterlocks for large boats type MG.

Excellent noise reduction, minimal back pressure.

This type of water lock is designed for modern, high-performance boats with one or two large engines that have little space to spare in the engine room. The outlet connection on top can rotate 360°, and the inlet connection is angled upwards by 45°. The MG type can only be installed in water-injected exhaust systems. Its body is made entirely of synthetic materials, therefore not susceptible to corrosion or galvanic action.

Features :

• Excellent sound reduction

• Minimal back pressure

• Drain plug for winter storage

• Suitable for internal pipe diameters Ø 102 mm

• Capacities of 23 liters

• Supplied with AISI 316 stainless steel clamping bands

• M12 thread purge

• Optional temperature sensor

Technical characteristics:

• Capacity: 23 L

• Diameter d: 102 mm

• Diameter D: 102 mm

• Diameter A: 270 mm

• Diameter B: 450 mm

High silence, minimal back pressure

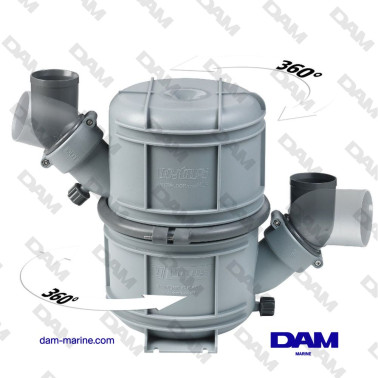

Our NLP waterlocks feature a two-stage design with upper and lower chambers featuring a horizontal separator plate and a rising tube through the center. Exhaust system installation, even in confined engine spaces, is greatly simplified thanks to the 360° rotating chamber and inlet and outlet connectors. For optimal exhaust noise silencing, you can also use a VETUS silencer and gooseneck after the waterlock.

Capacity: 10L

A: 515mm

B: 362mm

C: 210mm

D: 65mm

Comes with 2 fixing straps.

High silence, minimal back pressure

Our NLP waterlocks feature a two-stage design with upper and lower chambers featuring a horizontal separator plate and a rising tube through the center. Exhaust system installation, even in confined engine spaces, is greatly simplified thanks to the 360° rotating chamber and inlet and outlet connectors. For optimal exhaust noise silencing, you can also use a VETUS silencer and gooseneck after the waterlock.

Capacity: 10L

A: 515mm

B: 362mm

C: 210mm

D: 50mm

Comes with 2 fixing straps.

High silence, minimal back pressure

Our NLP waterlocks feature a two-stage design with upper and lower chambers featuring a horizontal separator plate and a rising tube through the center. Exhaust system installation, even in confined engine spaces, is greatly simplified thanks to the 360° rotating chamber and inlet and outlet connectors. For optimal exhaust noise silencing, you can also use a VETUS silencer and gooseneck after the waterlock.

Capacity: 4.5L

A: 385mm

B: 254mm

C: 165mm

D: 50mm

Comes with 2 fixing straps.

High silence, minimal back pressure

Our NLP waterlocks feature a two-stage design with upper and lower chambers featuring a horizontal separator plate and a rising tube through the center. Exhaust system installation, even in confined engine spaces, is greatly simplified thanks to the 360° rotating chamber and inlet and outlet connectors. For optimal exhaust noise silencing, you can also use a VETUS silencer and gooseneck after the waterlock.

Capacity: 10L

A: 515mm

B: 362mm

C: 210mm

D: 90mm

Comes with 2 fixing straps.

High silence, minimal back pressure

Our NLP waterlocks feature a two-stage design with upper and lower chambers featuring a horizontal separator plate and a rising tube through the center. Exhaust system installation, even in confined engine spaces, is greatly simplified thanks to the 360° rotating chamber and inlet and outlet connectors. For optimal exhaust noise silencing, you can also use a VETUS silencer and gooseneck after the waterlock.

Capacity: 4.5L

A: 385mm

B: 254mm

C: 165mm

D: 45mm

Comes with 2 fixing straps.

High silence, minimal back pressure

Our NLP waterlocks feature a two-stage design with upper and lower chambers featuring a horizontal separator plate and a rising tube through the center. Exhaust system installation, even in confined engine spaces, is greatly simplified thanks to the 360° rotating chamber and inlet and outlet connectors. For optimal exhaust noise silencing, you can also use a VETUS silencer and gooseneck after the waterlock.

Capacity: 10L

A: 515mm

B: 362mm

C: 210mm

D: 60mm

Comes with 2 fixing straps.

High silence, minimal back pressure

Our NLP waterlocks feature a two-stage design with upper and lower chambers featuring a horizontal separator plate and a rising tube through the center. Exhaust system installation, even in confined engine spaces, is greatly simplified thanks to the 360° rotating chamber and inlet and outlet connectors. For optimal exhaust noise silencing, you can also use a VETUS silencer and gooseneck after the waterlock.

Capacity: 4.5L

A: 385mm

B: 254mm

C: 165mm

D: 40mm

Comes with 2 fixing straps.
