Ref. DAM : DM_VE_HYDRF12

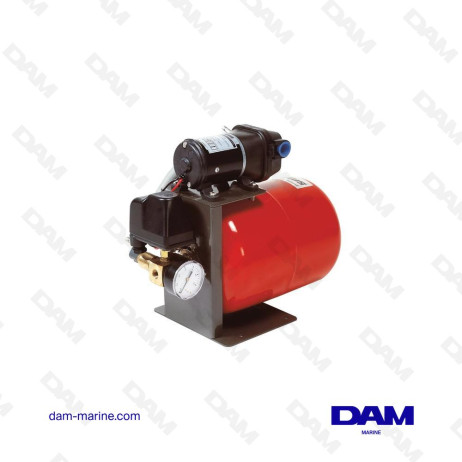

GROUP 12 VS, PRESSURE TANK CONTENTS 8 L, WITH PRESSURE REGULATOR

857.5 €857.50 VAT included
€714.58 VAT excluded
On demand
GROUP 12 VS, PRESSURE TANK CONTENTS 8 L, WITH PRESSURE REGULATOR
GROUP 12 VS, PRESSURE TANK CONTENTS 8 L, WITH PRESSURE REGULATOR
Previous keyboard_arrow_left
Next keyboard_arrow_right
zoom_in
GROUP 12 VS, PRESSURE TANK CONTENTS 8 L, WITH PRESSURE REGULATOR
GROUP 12 VS, PRESSURE TANK CONTENTS 8 L, WITH PRESSURE REGULATOR
Previous
Next

Pièce non en stock.

Demandez le délai de réapprovisionnement et le tarif en cliquant sur le bouton « Ask for a quote ».

Un conseiller traitera votre demande dans la journée.

On demand
857.5 €857.50 VAT included
€714.58 VAT excluded

This pressurized water system ensures a constant flow in the boat's freshwater circuit. It is comparable to a domestic tap water system. The tank and its pressurized membrane relieve the pump motor by saving it from having to start each time water is drawn. This system ensures a constant water flow, saving energy and minimizing noise.

They have an adjustable pressure switch, a pressure gauge (manometer) and a non-return valve.

The pressurized water units of HF type systems meet EMC requirements.

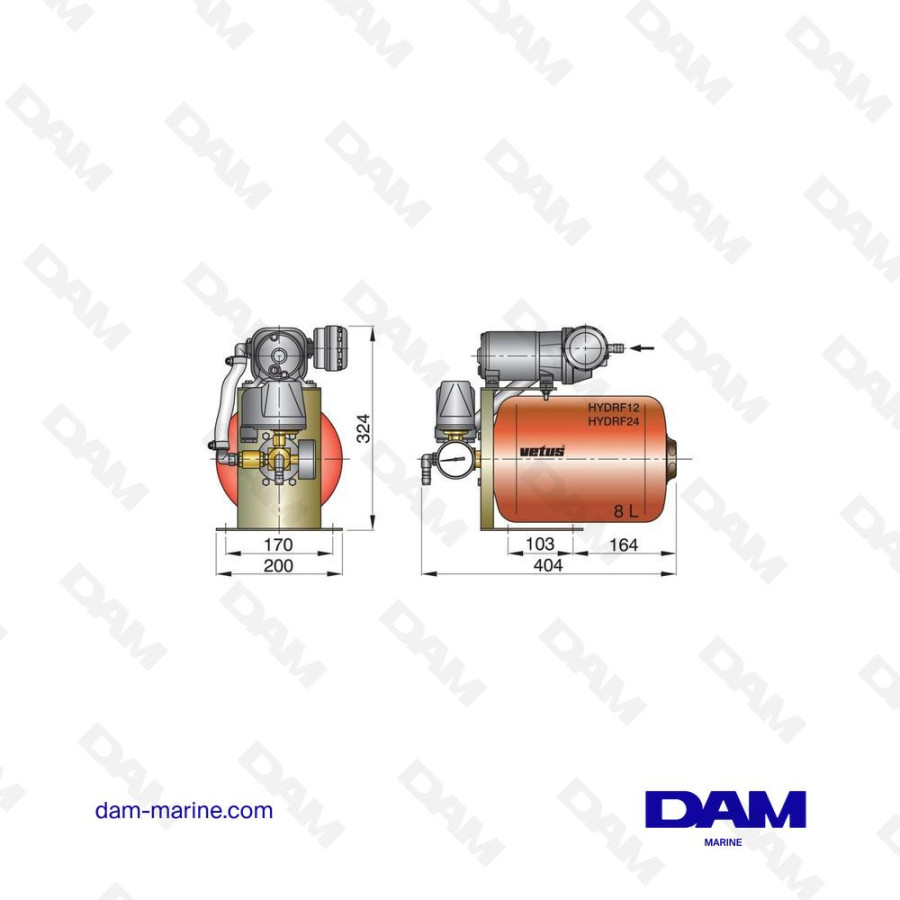

Features :

Width (mm): 200.

Height (mm): 324.

Length (mm): 404.

Voltage (V): 12.

Capacity (liters/min): 12.5.

Tank capacity (liters): 8.

Weight (kg): 8.2.

Pipe connection diameter (mm): 13.

Max. pressure (bar): 2.5.

Max. suction height (m): 3.

Read the detailed description
Quantity
Free quote with no obligation
Response within 24 business hours
Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit Vérifier la compatibilité

This pressurized water system ensures a constant flow in the boat's freshwater circuit. It is comparable to a domestic tap water system. The tank and its pressurized membrane relieve the pump motor by saving it from having to start each time water is drawn. This system ensures a constant water flow, saving energy and minimizing noise.

They have an adjustable pressure switch, a pressure gauge (manometer) and a non-return valve.

The pressurized water units of HF type systems meet EMC requirements.

Features :

Width (mm): 200.

Height (mm): 324.

Length (mm): 404.

Voltage (V): 12.

Capacity (liters/min): 12.5.

Tank capacity (liters): 8.

Weight (kg): 8.2.

Pipe connection diameter (mm): 13.

Max. pressure (bar): 2.5.

Max. suction height (m): 3.

  • VETUS : HYDRF12

  • VDM : VETHYDRF12
