Ref. DAM : AEC245

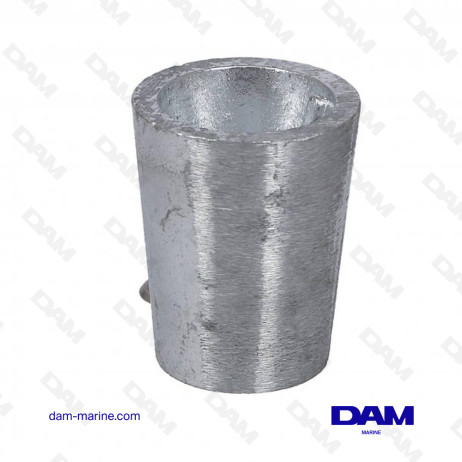

ANODE CONIQUE ARBRE PACKAGE 45MM

€24.60 VAT included

€20.50 VAT excluded

Disponible

ANODE CONIQUE ARBRE PACKAGE 45MM

Livraison express → Tuesday 15 September

|

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€24.60 VAT included

€20.50 VAT excluded

Anode conical clave tree tip

Diameter 45mm

-Length: 176 mm

-Width : 81 mm

-Height (Width): 40 mm

-Fixing axis: 102 mm

-Material: High purity zinc (designed for sea water)

-Net weight : Approximately 1,21 kgType of mounting : Plate under base

-Motor engine compatibility: Outboard and Sterrend engines OMC (Stringer), Johnson, Evinrude from a power range from 100 to 245 cv

-Manufacturer correspondence: Replaces original references (OEM) 982438 and 982277.

Read the detailed description

Quantity

Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit

Full description
Customer reviews

Anode conical clave tree tip

Diameter 45mm

-Length: 176 mm

-Width : 81 mm

-Height (Width): 40 mm

-Fixing axis: 102 mm

-Material: High purity zinc (designed for sea water)

-Net weight : Approximately 1,21 kgType of mounting : Plate under base

-Motor engine compatibility: Outboard and Sterrend engines OMC (Stringer), Johnson, Evinrude from a power range from 100 to 245 cv

-Manufacturer correspondence: Replaces original references (OEM) 982438 and 982277.

OSCULATI : 43.245.00
VDM : ANO245
VDM : ANOAH245

Un doute ? > contact us

ANODE CONIQUE ARBRE PACKAGE...

ANODE CONIQUE ARBRE PACKAGE 22-25MM

RÉF. AEC225 | DAM MARINE

Anode conical clave tree tip

Diameter 22-25mm

-Shaft diameter: 22 to 25 mm

-Height (H) : 39 mm

-Outdoor diameter: Approximately 32 to 33 mm

-Weight: Approximately 0,14 kg

-Material: Zinc alloy (protection against galvanic corrosion in the marine environment)

-Type: Conical or warhead anode for shaft tips (type Radice)

Livraison express → Tuesday 15 September

|

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€5.86 VAT included

€4.88 VAT excluded

ANODE CONIQUE ARBRE PACKAGE...

ANODE CONIQUE ARBRE PACKAGE 30MM

RÉF. AEC230 | TECNOSEAL

Anode conical clave tree tip

Diameter 30mm

-Length: 455 mm

-Width: 90 to 100 mm (depending on manufacturers)

-Height / Thickness: 40 to 53 mm

-Intrax: 230 mm

-Weight: Approximately 1,8 kg to 2 kg according to exact model and metal (zinc or magnesium)

Livraison express → Tuesday 15 September

|

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€7.99 VAT included

€6.66 VAT excluded

ANODE CONIQUE ARBRE PACKAGE...

ANODE CONIQUE ARBRE PACKAGE 35MM

RÉF. AEC235 | TECNOSEAL

Anode conical clave tree tip

Diameter 35mm

-External diameter (Ø): 46 mm

-Diameter of the shaft / axis (Ø1) : 38 mm (designed to fit on 35 mm shaft tips with thread)

-Height (h) : 61 mm

-Internal drilling diameter (Ø2): 8,5 mm

-Diameter of the print (Ø3) : 13,5 mm

-Material: Zinc (mainly used as a spare part for shaft warheads).

Livraison express → Tuesday 15 September

|

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€14.40 VAT included

€12.00 VAT excluded

ANODE CONIQUE ARBRE PACKAGE...

ANODE CONIQUE ARBRE PACKAGE 40MM

RÉF. AEC240 | TECNOSEAL

Anode conical clave tree tip

Diameter 40mm

-Shaft diameter: 40 mm.

-Fileting (helix nut): M24 (female).

-External diameter max ~67 mm

-Basic diameter ~52 mm

-Height/length of anode ~36 mm.

-Weight : About 0.460kg

Livraison express → Tuesday 15 September

|

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€18.00 VAT included

€15.00 VAT excluded

ANODE CONIQUE ARBRE PACKAGE...

ANODE CONIQUE ARBRE PACKAGE 50MM

RÉF. AEC250 | TECNOSEAL

Anode conical clave tree tip

Diameter 50mm

-Diameter of the propeller shaft : 50 mm

-Total height: 84 mm

-Maximum external diameter: 72 mm to 73 mm

-Inner diameter (Setting base): 57 mm

Part weight: 1,14 kg

Livraison express → Tuesday 15 September

|

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€29.89 VAT included

€24.91 VAT excluded

ANODE CONIQUE ARBRE PACKAGE...

ANODE CONIQUE ARBRE PACKAGE 55MM

RÉF. AEC255 | TECNOSEAL

Anode conical clave tree tip

Diameter 55mm

-Shaft diameter: 55 mm

-External diameter: 75 mm

-Inner diameter: 65 mm

-Height / Length: 86 mm

-Weight: Approximately 1,11 kg to 1,25 kg

Livraison express → Tuesday 15 September

|

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€54.00 VAT included

€45.00 VAT excluded

ANODE CONIQUE ARBRE PACKAGE...

ANODE CONIQUE ARBRE PACKAGE 60MM

RÉF. AEC260 | TECNOSEAL

60mm. conical tree tip anode

Diameter 60mm

-Shaft diameter: 60 mm

-Height: 96 to 98 mm

-Outdoor diameter: 81 to 83 mm

-Inner diameter / Emmanchment : 71 mm

-Weight: ~1,76 kg to 1,83 kg

-Material: Zinc (adapted for sea water)

-Model: Conical clave anode for shaft line tip

Livraison express → Tuesday 15 September

|

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€60.00 VAT included

€50.00 VAT excluded
