NEW QUICKSILVER 3L 4-CYLINDER BOBTAIL ENGINE PACK
Quicksilver Plus engine pack 3.0l TKS series
Compatible with Alpha One bases only
Main features:

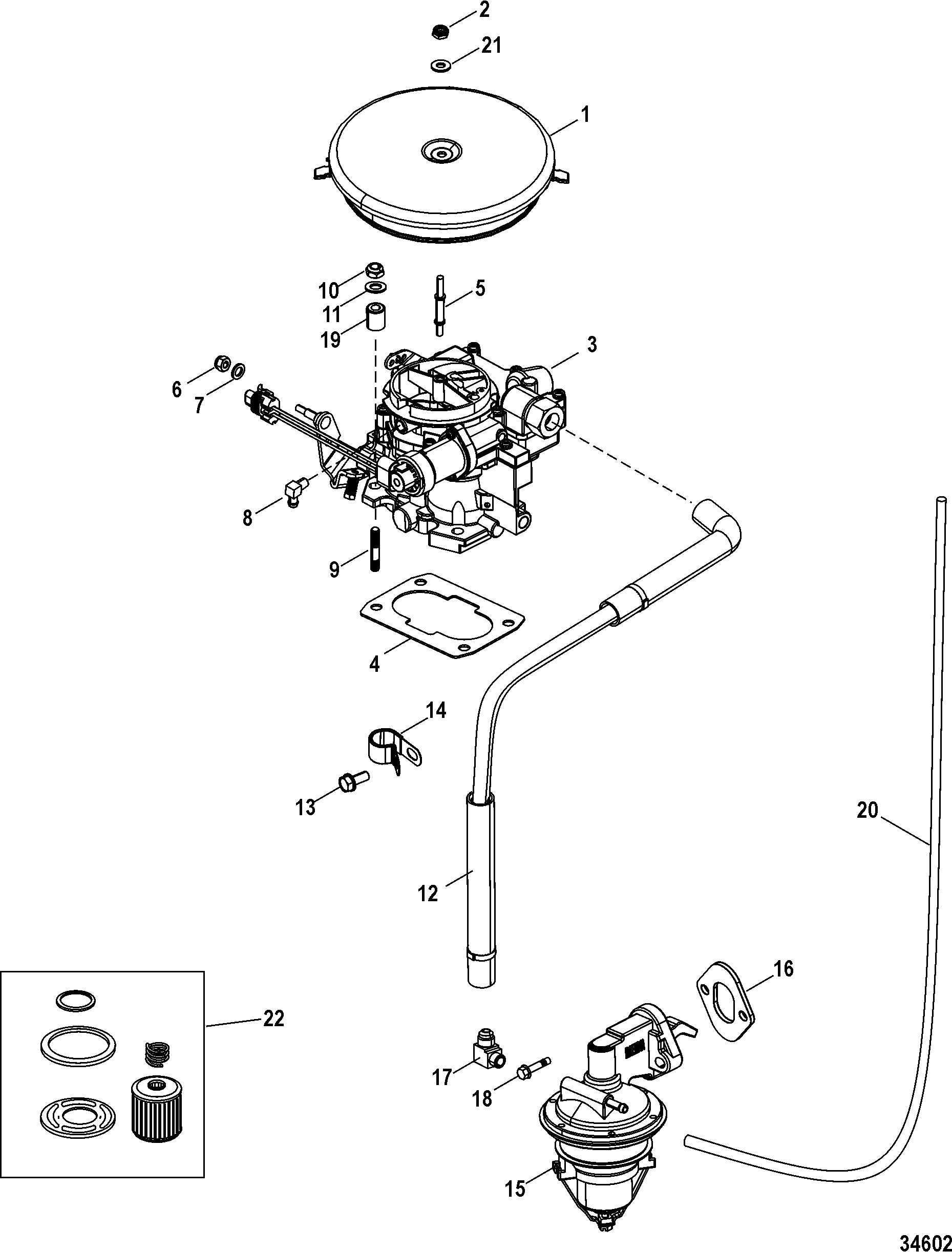

- TKS carburetor with mechanical fuel pump
- Multi-point draining
- Cast iron engine block,
- Dry joint cast iron exhaust manifold coated with electroplated paint,
- wet exhaust elbow,
- Raw water cooling
- Integrated rinsing system
- Accessory drive Trapezoidal belt
- Lubrication High Flow 60 psi oil pump
- Mechanical accelerator and reverse gear
- Harness with 10-pin connector
- Maximum speed 4800 / 135hp
- Cylinder capacity (CID/L) 181 / 3.0L
- Bore 101.60mm
- Compression ratio 9.3:1
- Alternator (amp/watt) 65 amp / 917 Watt
- Recommended Oil Mercury MerCruiser 25W-40 Synthetic Blend, NMMA Certified FC-W Synthetic Blend
- Hypereutectic alloy pistons
- Camshaft and roller tappet
- 1.5:1 stamped rocker arms
- Dimensions (L x W x H) 730 x 565 x 526 mm
- Weight (engine only) 257 kg
Mercury Marine and Quicksilver products carry a one-year factory warranty against defects. Items such as engines, drives, and plates must be installed by a dealer for the warranty to be valid.
