Ref. DAM : 16387

COLLECTOR EXCHANGE VOLVO B21 - B23 - B25

€946.80 VAT included

€789.00 VAT excluded

Disponible

COLLECTOR EXCHANGE VOLVO B21 - B23 - B25

COLLECTOR EXCHANGE VOLVO B21 - B23 - B25

COLLECTOR EXCHANGE VOLVO B21 - B23 - B25

COLLECTOR EXCHANGE VOLVO B21 - B23 - B25

keyboard_arrow_left

keyboard_arrow_right

COLLECTOR EXCHANGE VOLVO B21 - B23 - B25

COLLECTOR EXCHANGE VOLVO B21 - B23 - B25

COLLECTOR EXCHANGE VOLVO B21 - B23 - B25

COLLECTOR EXCHANGE VOLVO B21 - B23 - B25

Livraison express → Tuesday 15 September

|

Livraison classique → Thursday 17 September

Commandez dans les

00 h 00 m 00 s

Disponible

€946.80 VAT included

€789.00 VAT excluded

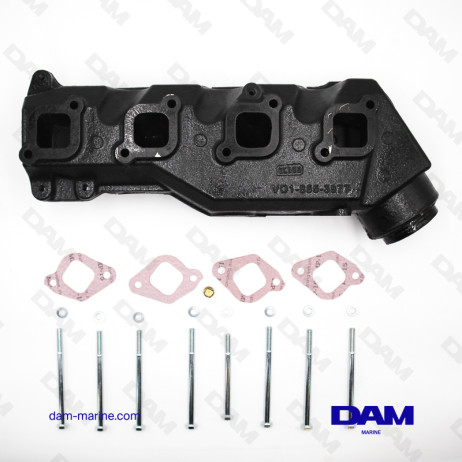

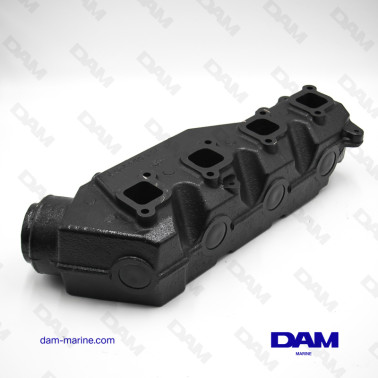

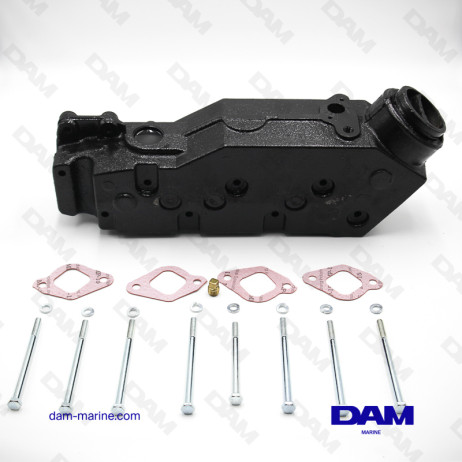

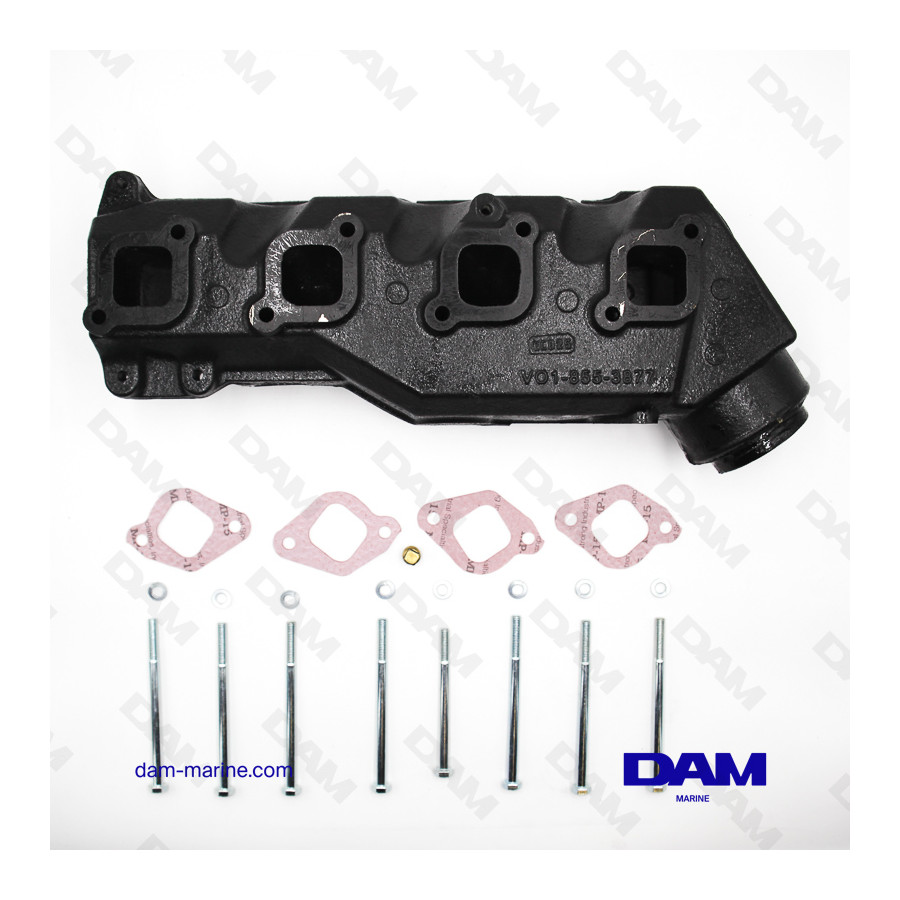

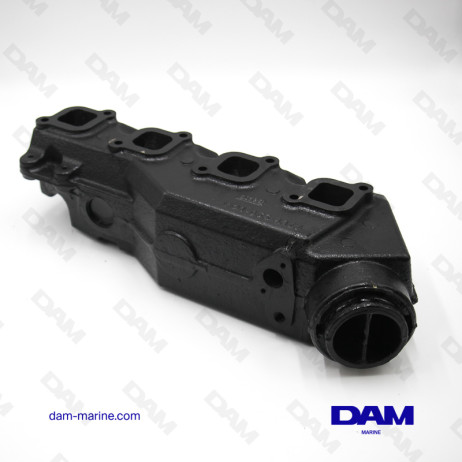

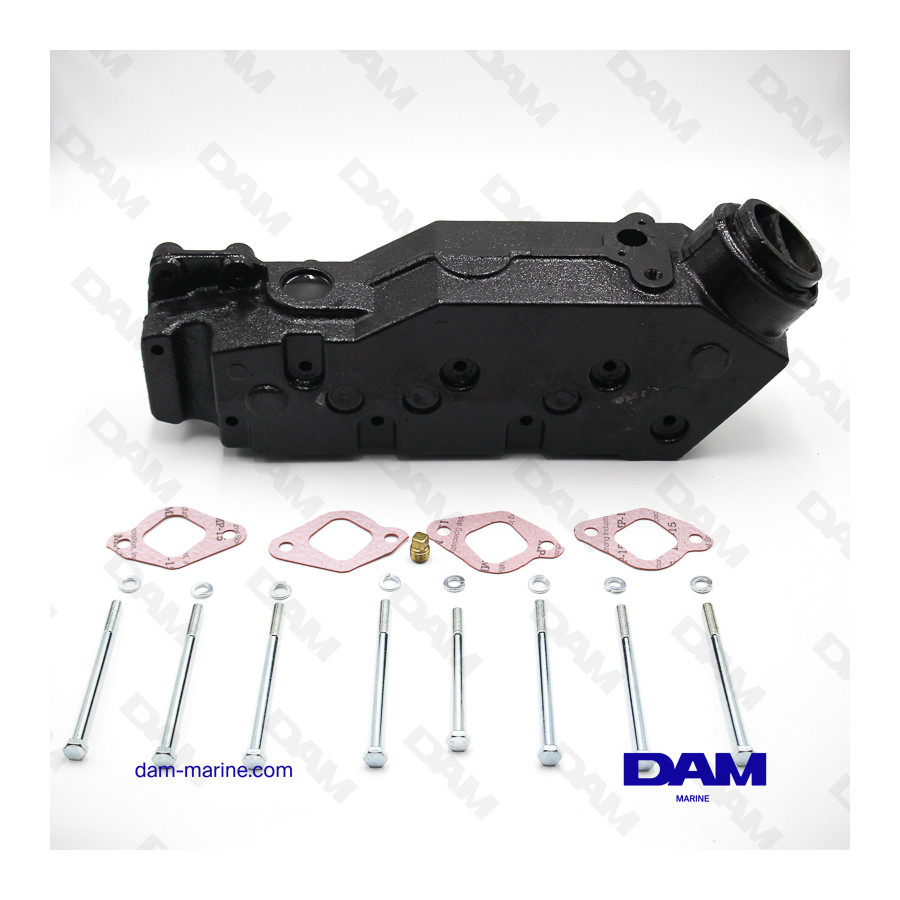

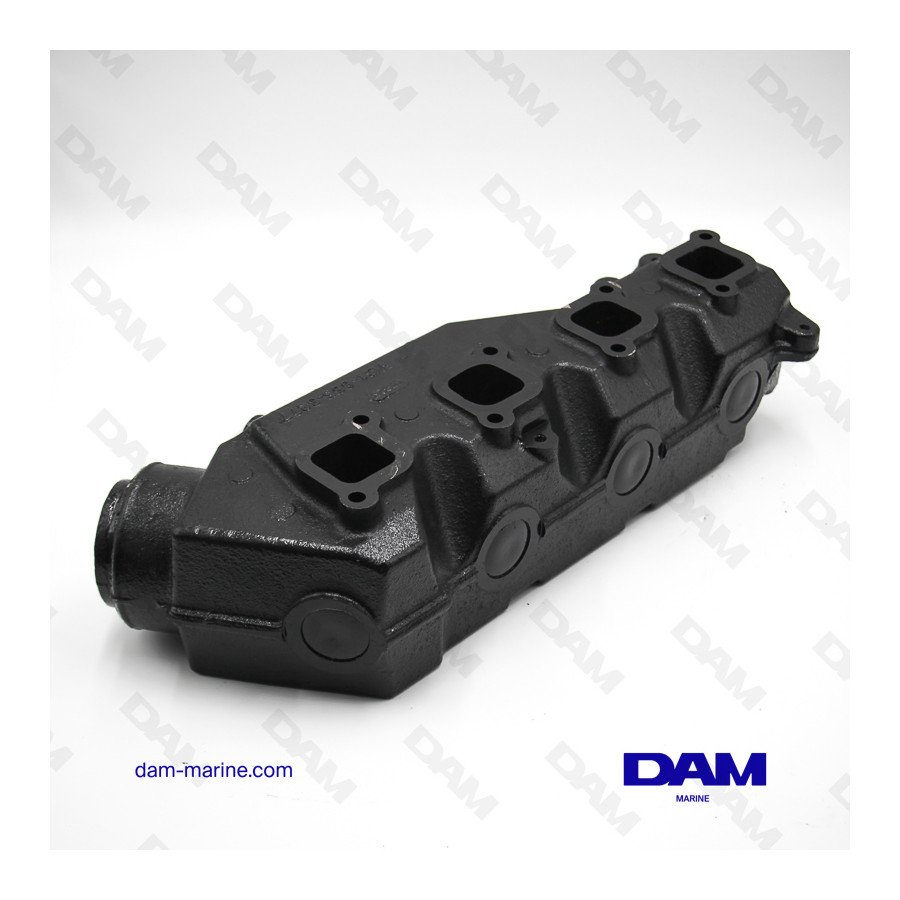

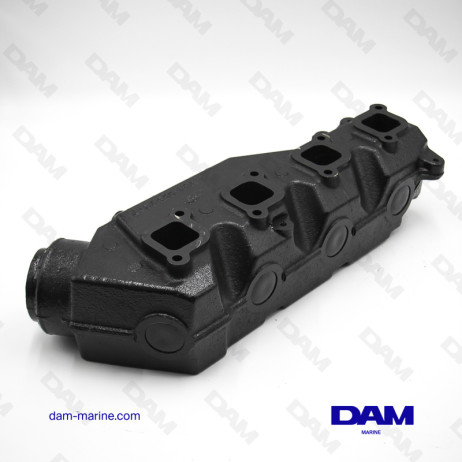

Exhaust collector for engine VOLVO PENTA B21 - B23 - B25.

Barr MARINE cast iron collector, of equivalent quality to the original VOLVO PENTA, produced in the USA.

Replaces the original collector VOLVO PENTA perfectly.

Delivered with joints, screws and caps.

Tested and approved for marine use, high quality product.

Compatible with the following VOLVO engines:

AQ120B

AQ125A - AQ125B

AQ131A - AQ131B - AQ131C - AQ131D

AQ140A

BB140A

AQ145A - AQ145B

BB145A

AQ151A - AQ151B - AQ151C

230A - 230B

250A - 250B

?? Role of the exhaust manifold on a marine engine

1. Exhaust gas collection

The exhaust manifold is a metal part attached to the engine head. Its main function is to collect burned gases from the various engine cylinders after combustion.

2. Exhaust gas pipeline

Once recovered, these gases are directed to the exhaust system, to a silencer or an outlet pipe. This process must be fluid so as not to create excessive back pressure that would affect engine performance.

3. Gas cooling

In marine engines, the collector is often "wet", i.e. cooled by water (often seawater). This water is injected into the manifold or the exhaust elbow to:

Reduce gas temperature (avoid overheating and fire),

Protect materials around (hull, piping, etc.),

Reduce noise.

4. Corrosion resistance and durability

The marine collector shall be capable of resisting corrosion caused by salt water and acidic gases. This is why it is often made from specific materials (such as 316L stainless steel or processed cast iron).

?? Risks of failure

A cracked, pierced or blocked collector may result in:

Loss of engine power,

Overheating,

Toxic gas leaks (danger to crew),

An inlet of water into the cylinders (in cases of water return, which can destroy the engine).

Read the detailed description

Quantity

Vérifier la compatibilité Identifiez votre moteur pour vérifier la compatibilité de ce produit

Exhaust collector for engine VOLVO PENTA B21 - B23 - B25.

Barr MARINE cast iron collector, of equivalent quality to the original VOLVO PENTA, produced in the USA.

Replaces the original collector VOLVO PENTA perfectly.

Delivered with joints, screws and caps.

Tested and approved for marine use, high quality product.

Compatible with the following VOLVO engines:

AQ120B

AQ125A - AQ125B

AQ131A - AQ131B - AQ131C - AQ131D

AQ140A

BB140A

AQ145A - AQ145B

BB145A

AQ151A - AQ151B - AQ151C

230A - 230B

250A - 250B

?? Role of the exhaust manifold on a marine engine

1. Exhaust gas collection

The exhaust manifold is a metal part attached to the engine head. Its main function is to collect burned gases from the various engine cylinders after combustion.

2. Exhaust gas pipeline

Once recovered, these gases are directed to the exhaust system, to a silencer or an outlet pipe. This process must be fluid so as not to create excessive back pressure that would affect engine performance.

3. Gas cooling

In marine engines, the collector is often "wet", i.e. cooled by water (often seawater). This water is injected into the manifold or the exhaust elbow to:

Reduce gas temperature (avoid overheating and fire),

Protect materials around (hull, piping, etc.),

Reduce noise.

4. Corrosion resistance and durability

The marine collector shall be capable of resisting corrosion caused by salt water and acidic gases. This is why it is often made from specific materials (such as 316L stainless steel or processed cast iron).

?? Risks of failure

A cracked, pierced or blocked collector may result in:

Loss of engine power,

Overheating,

Toxic gas leaks (danger to crew),

An inlet of water into the cylinders (in cases of water return, which can destroy the engine).

SIERRA : 18-1930-2
VOLVO PENTA : 834438
VOLVO PENTA : 855387
VOLVO PENTA : 834438-4
ORBITRADE : 16387
GLM : 51610
BARR MARINE : VO1-855387
HGE : HGE5387
