CHAUFFE EAU

Kit de dérivation complet pour l'installation d'un chauffe eau pour moteurs Yanmar série :

- 2YM15

- 3YM20

Kit de dérivation complet pour raccordement d'un chauffe-eau sur moteurs Yanmar séries :

- 3YM30

Kit de dérivation complet pour l'installation d'un chauffe eau sur moteurs Yanmar série :

- JH

- CR

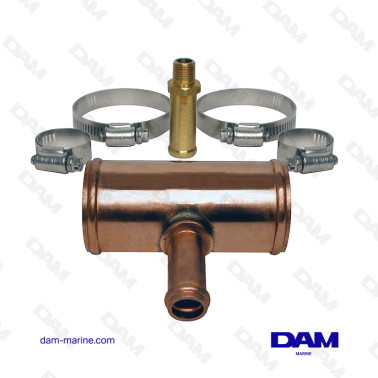

Branch kit allowing the installation of a hot water outlet for a water heater.

Hose diameter: 40mm

Hose diameter: 15mm

Kit de dérivation eau chaude pour moteurs Volvo Penta série D3 suivants :

D3-220I-G

D3-140A-D

D3-170A-D

D3-200A-D

D3-220A-D

D3-140I-D

D3-140A-E

D3-170A-E

D3-200A-E

D3-220A-E

D3-140I-E

D3-140A-F

D3-170A-F

D3-200A-F

D3-220A-F

D3-140I-F

D3-140A-G

D3-170A-G

D3-200A-G

D3-220A-G

D3-140I-G

D3-110I-D

D3-150I-D

D3-170I-D

D3-200I-D

D3-220I-D

D3-110I-E

D3-150I-E

D3-170I-E

D3-200I-E

D3-220I-E

D3-110I-F

D3-150I-F

D3-170I-F

D3-200I-F

D3-220I-F

D3-110I-G

D3-150I-G

D3-170I-G

D3-200I-G

D3-110I-H

D3-140A-H

D3-170A-H

D3-200A-H

D3-220A-H

D3-150I-H

D3-170I-H

D3-200I-H

D3-220I-H

D3-140I-H

Kit de dérivation eau chaude pour moteurs Volvo Penta série D3 suivants :

D3-110I-B

D3-110I-C

D3-130I-C

D3-130A-A

D3-160A-A

D3-130A-B

D3-160A-B

D3-130A-C

D3-160A-C

D3-190A-B

D3-190A-C

D3-190I-A

D3-110I-A

D3-130I-A

D3-160I-A

D3-160I-C

D3-190I-B

D3-190I-C

D3-130I-B

D3-160I-B

Volvo hot water bypass plumbing kit to replace old faucet type fittings.

High-end double-walled water heater in stainless steel, AISI 316L type WHD.

While conventional water heaters use a spiral tube to heat water, these water heaters use a highly efficient double-wall principle.

Thanks to this double-walled principle, double-walled water heaters have a much larger heating surface than a conventional spiral heating tube. This means that double-walled water heaters will heat water much faster than conventional water heaters.

It comes with a 1500 watt electric heating element, 4 x 16mm hose connectors and a 6 bar pressure relief/non-return valve.

Features :

Fresh water capacity (liter): 20.

Coolant capacity (liter): 2.

Engine cooling: G 1/2.

Fresh water: G 1/2.

Electric resistance: G 1/4, 1500 Watt, 230 V.

Safety valve setting: 6 bar (87 lbs / sq.inch)

High-end double-walled water heater in stainless steel, AISI 316L type WHD.

While conventional water heaters use a spiral tube to heat water, these water heaters use a highly efficient double-wall principle.

Thanks to this double-walled principle, double-walled water heaters have a much larger heating surface than a conventional spiral heating tube. This means that double-walled water heaters will heat water much faster than conventional water heaters.

It comes with a 1500 watt electric heating element, 4 x 16mm hose connectors and a 6 bar pressure relief/non-return valve.

Features :

Fresh water capacity (liter): 31.

Coolant capacity (liter): 3.

Engine cooling: G 1/2.

Fresh water: G 1/2.

Electric resistance: G 1/4, 1500 Watt, 230 V.

Safety valve setting: 6 bar (87 lbs / sq.inch)

Kit de dérivation eau chaude pour moteurs Volvo Penta série D3 suivants :

D2-55

D2-55B

D2-55C

D2-55D

D2-55E

D2-55F

D2-50F

MD2030-C

MD2030-D

MD2040-C

MD2040-D

High-end double-walled water heater in stainless steel, AISI 316L type WHD.

While conventional water heaters use a spiral tube to heat water, these water heaters use a highly efficient double-wall principle.

Thanks to this double-walled principle, double-walled water heaters have a much larger heating surface than a conventional spiral heating tube. This means that double-walled water heaters will heat water much faster than conventional water heaters.

It comes with a 1500 watt electric heating element, 4 x 16mm hose connectors and a 6 bar pressure relief/non-return valve.

Features :

Fresh water capacity (liter): 45.

Coolant capacity (liter): 5.

Engine cooling: G 1/2.

Fresh water: G 1/2.

Electric resistance: G 1/4, 1500 Watt, 230 V.

Safety valve setting: 6 bar (87 lbs / sq.inch)

High-end double-walled water heater in stainless steel, AISI 316L type WHD.

While conventional water heaters use a spiral tube to heat water, these water heaters use a highly efficient double-wall principle.

Thanks to this double-walled principle, double-walled water heaters have a much larger heating surface than a conventional spiral heating tube. This means that double-walled water heaters will heat water much faster than conventional water heaters.

It comes with a 1500 watt electric heating element, 4 x 16mm hose connectors and a 6 bar pressure relief/non-return valve.

Features :

Fresh water capacity (liter): 55.

Coolant capacity (liter): 7.

Engine cooling: G 1/2.

Fresh water: G 1/2.

Electric resistance: G 1/4, 1500 Watt, 230 V.

Safety valve setting: 6 bar (87 lbs / sq.inch)

High-end double-walled water heater in stainless steel, AISI 316L type WHD.

While conventional water heaters use a spiral tube to heat water, these water heaters use a highly efficient double-wall principle.

Thanks to this double-walled principle, double-walled water heaters have a much larger heating surface than a conventional spiral heating tube. This means that double-walled water heaters will heat water much faster than conventional water heaters.

It comes with a 1500 watt electric heating element, 4 x 16mm hose connectors and a 6 bar pressure relief/non-return valve.

Features :

Fresh water capacity (liter): 75.

Coolant capacity (liter): 9.

Engine cooling: G 1/2.

Fresh water: G 1/2.

Electric resistance: G 1/4, 1500 Watt, 230 V.

Safety valve setting: 6 bar (87 lbs / sq.inch)

Standard double coil water heater type WHT in stainless steel and insulated with 50mm thick polyester foam.

This range of dual-coil water heaters will double your onboard hot water comfort. One heating coil can be connected to the engine's cooling circuit to utilize excess engine heat. The other coil can be connected to an integrated heating system.

All water heaters are supplied with: a 1500 watt electric heating element, 6 x 16mm pipe connectors and a 6 bar pressure limiter / non-return valve.

Features :

Fresh water capacity (liter): 25.

Coolant capacity (liter): 0.5.

Engine coolant connection: G 1/2.

Fresh water connection: G 1/2.

Heating element connection: G 1 1/4.

Fresh water relief valve setting: 6 bar (87 psi).

Standard double coil water heater type WHT in stainless steel and insulated with 50mm thick polyester foam.

This range of dual-coil water heaters will double your onboard hot water comfort. One heating coil can be connected to the engine's cooling circuit to utilize excess engine heat. The other coil can be connected to an integrated heating system.

All water heaters are supplied with: a 1500 watt electric heating element, 6 x 16mm pipe connectors and a 6 bar pressure limiter / non-return valve.

Features :

Fresh water capacity (liter): 50.

Coolant capacity (liter): 0.5.

Engine coolant connection: G 1/2.

Fresh water connection: G 1/2.

Heating element connection: G 1 1/4.

Fresh water relief valve setting: 6 bar (87 psi).
