VETUS round portholes – Marine ventilation and natural light

Stainless steel portholes - Type PQ (AII)

VETUS offers a range of portholes made of stainless steel (AISI 316) in categories AI and AII.

They come with a stainless steel (AISI 316) inner frame, 8mm "smoked" acrylic glazing and a mosquito net on anodized aluminum frame.

These portholes are suitable for a structure thickness of 3 to 11mm and include a counter frame.

Screws for different wall thicknesses can be

ordered separately.

Features :

External dimensions (in mm): 210.

Cut-out dimensions (in mm): 176.

Replacement mosquito net: HORPQ53.

Ultra-thin portholes - Type PW

The PW series portholes are so flush that they resemble fritted glass and are suitable for installation in

a variety of materials.

Despite their low thickness, they are still CE approved for the AI location area, which means they can be used for all areas listed in the ISO standard! A very flat aluminum edge combined with the clamping mechanism ensures a very low-profile porthole even when mounted in the glass itself. They are also equipped with the new ergonomic buttons.

These ultra-thin portholes can accept panel thicknesses ranging from 2 to 20 mm. The inside of the clamping profile can be finished with the supplied trim. All

PW portholes are anodized in fashionable satin black with 10mm thick "dark smoke" tinted acrylic for a premium look.

Features :

External dimensions A Ø (in mm): 260.

Cutting dimensions B Ø (in mm): 236.

Replacement mosquito net: HOR2213.

Stainless steel portholes - Type PWS (AI)

VETUS offers a range of portholes made of stainless steel (AISI 316) in categories AI and AII.

They come with a stainless steel (AISI 316) inner frame, 8mm "smoked" acrylic glazing and a mosquito net on anodized aluminum frame.

These portholes are suitable for a structure thickness of 3 to 18mm.

Screws for different wall thicknesses can be ordered separately.

Features :

External dimensions (in mm): 260.

Cut-out dimensions (in mm): 238.

Replacement mosquito net: HOR32S.

Stainless steel portholes - Type PQ (AII)

VETUS offers a range of portholes made of stainless steel (AISI 316) in categories AI and AII.

They come with a stainless steel (AISI 316) inner frame, 8mm "smoked" acrylic glazing and a mosquito net on anodized aluminum frame.

These portholes are suitable for a structure thickness of 3 to 11mm and include a counter frame.

Screws for different wall thicknesses can be

ordered separately.

Features :

External dimensions (in mm): 184.

Cut-out dimensions (in mm): 151.

Replacement mosquito net: HORPQ52.

Ultra-thin portholes - Type PW

The PW series portholes are so flush that they resemble fritted glass and are suitable for installation in

a variety of materials.

Despite their low thickness, they are still CE approved for the AI location area, which means they can be used for all areas listed in the ISO standard! A very flat aluminum edge combined with the clamping mechanism ensures a very low-profile porthole even when mounted in the glass itself. They are also equipped with the new ergonomic buttons.

These ultra-thin portholes can accept panel thicknesses ranging from 2 to 20 mm. The inside of the clamping profile can be finished with the supplied trim. All

PW portholes are made from fashionable satin black aluminum with 10mm thick "dark smoke" tinted acrylic for a premium look.

Features :

External dimensions A Ø (in mm): 260.

Cutting dimensions B Ø (in mm): 236.

Replacement mosquito net: HOR2213.

Stainless steel portholes - Type PWS (AI)

VETUS offers a range of portholes made of stainless steel (AISI 316) in categories AI and AII.

They come with a stainless steel (AISI 316) inner frame, 8mm "smoked" acrylic glazing and a mosquito net on anodized aluminum frame.

These portholes are suitable for a structure thickness of 3 to 18mm.

Screws for different wall thicknesses can be ordered separately.

Features :

External dimensions (in mm): 220.

Cut-out dimensions (in mm): 198.

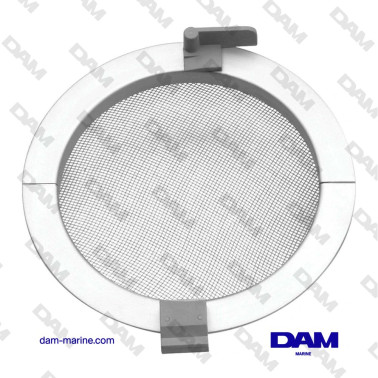

Replacement mosquito net: HOR31S.

Stainless steel portholes - Type PQ (AII)

VETUS offers a range of portholes made of stainless steel (AISI 316) in categories AI and AII.

They come with a stainless steel (AISI 316) inner frame, 8mm "smoked" acrylic glazing and a mosquito net on anodized aluminum frame.

These portholes are suitable for a structure thickness of 3 to 11mm and include a counter frame.

Screws for different wall thicknesses can be

ordered separately.

Features :

External dimensions (in mm): 158.

Cut-out dimensions (in mm): 126.

Replacement mosquito net: HORPQ51.
