Replacement solenoid for DELCO, Mercruiser, Volvo and OMC starters in OEM origin only.

Also fits Verado outboard motors.

Does not fit ARCO brand DR30460 - DR51150HP starters.

4-terminal relay isolated from the base for Mercury and Mercruiser engines.

Equivalent to the SW101 but with a curved stirrup.

Very common assembly on all inboard engines and bases.

4-terminal base-isolated relay for the following Mercury engines:

- 15 to 60HP 2-stroke 2 and 3 cylinders

- Mercruiser inboard

12 volt 4 terminal relay for Mercury 75 to 225HP engine.

White relay body.

4-terminal starter relay for Johnson - Evinrude engines between 9.9 and 15 HP.

2 or 4 stroke assembly isolated by the base.

12v 30 amp small pin relay for Volvo Penta 4 cylinder V6 - V8 petrol engines.

12v 30amp small pin relay for multiple applications, namely:

Volvo Penta

Indmar

Ilmor

Solenoid for large model starters of types DR9597 or ST70.

2 solenoid lengths exist, namely:

- Short height 8 cm for the body

- Long height 10 cm for the body

Information to be specified when purchasing.

12 volt 70 Amp relay for Volvo Penta application replacing the older 40 Amp generations.

Replacement made by Volvo factory.

Montages:

2002D, 2003, 2003D, AD31

AD31B, AD31D, AD31D-A, AD31L-A

AD31P-A, AD31XD, AD41A, AD41B

AD41BJ, AD41D, AD41L-A, AD41P-A

AQAD30A, AQAD31A, AQAD40B, AQAD41A

D3-110I-A, D3-110I-B, D3-110I-C, D3-130A-A

D3-130A-B, D3-130A-C, D3-130I-A, D3-130I-B

D3-130I-C, D3-160A-A, D3-160A-B, D3-160A-C

D3-160I-A, D3-160I-B, D3-160I-C, D3-190A-B

D3-190I-A, D3-190I-B, D3-190I-C, D41A

D41B, D41D, D41L-A, KAD300-A

KAD32P, KAD42A, KAD42B, KAD42P-A

KAD43P-A, KAD44P, KAD44P-B, KAD44P-C

KAMD300-A, KAMD42A, KAMD42B, KAMD42P-A

KAMD43P-A, KAMD44P-A, KAMD44P-C, MD22A

MD22A-A, MD22L, MD22L-A, MD22L-B

MD22P, MD22P-B, MD30A, MD31A

TAMD22P-B, TAMD30A, TAMD31A, TAMD31B

TAMD31D, TAMD31L, TAMD31L-A, TAMD31M-A

TAMD31P, TAMD31P-A, TAMD31S, TAMD31S-A

TAMD40B, TAMD41A, TAMD41B, TAMD41D

TAMD41H-A, TAMD41H-B, TAMD41L-A, TAMD41M-A

TAMD41P, TAMD41P-A, TAMD42, TAMD42WJ-A

TMD22A, TMD22-A, TMD22-B, TMD22P-C

TMD30A, TMD31, TMD31A, TMD31B

TMD31D, TMD31L-A, TMD41A, TMD41B

TMD41D, TMD41L-A

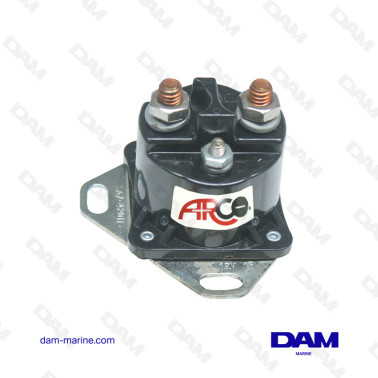

12 Volt 3 terminal relay isolated by the base.

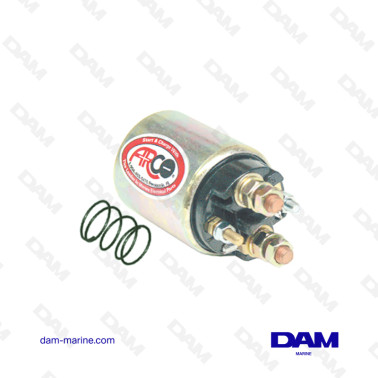

Solenoid for Arco brand reduction starter types DR30460 and DR51150HP only.

For all other assemblies, please refer to reference SW463.

12 volt relay with black waterproof coating with a capacity of 85 Amps continuous.

4-terminal 12 Volt relay.

Mass at the base

Solenoid for Arco brand reduction starter types ARC70125 and 11002LH.

Conversion kit to transform a 3-wire Mercury or Yamaha engine trim into a 2-wire one.

Assembly initially intended for TC2001 trim sets in Mercury 135 to 225HP 2-STROKE application.

12 volt 100 Amp 2 pole relay for Volvo Penta engines.

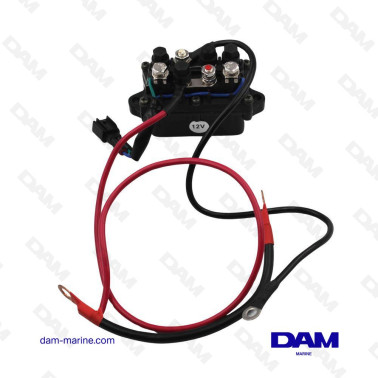

Trim relay for Yamaha 4-stroke engine:

- F200

- F225

- F250

12 Volt 30 Amp Relay for Mercury Verado and Mercruiser 8.1L Engine.

This module is ideal for intermittent lifting applications. It can also be used on winches, hatches, intake/exhaust fans, vehicle stabilizers, and other reversing applications. When the appropriate control circuit is energized with a pulse, it will reverse the motor direction.

High performance tin contacts ensure long life.

70A at 12Vdc intermittent, max On time 5 mins- Off time 3 mins-

50A at 12Vdc continuous.

Charging current: 150A.

Pull-up voltage of 7.8V max.

Low coil current.

Coil resistance 82? 10%.

Vibration resistance: 10-55Hz. Double amplitude 1.5mm.

Environment: -40C to 85C. Rust and moisture resistant plastic housing.

Fully waterproof IP-67 with high resistance for total protection against moisture.

Protected against inflammation.

Tin-plated brass studs and nuts for corrosion resistance.

Dielectric strength: 500 V RMS between antenna and contact.

For intermittent operation Mom-On-Off-Mom On- for continuous operation On-Off-On.

Glow plug relay for the following Mercruiser diesel engines:

- 530D-TA

- 636D-TA

- D183

- D3.0L

- D3.6L

- D4.2L

- D254 TURBO AC

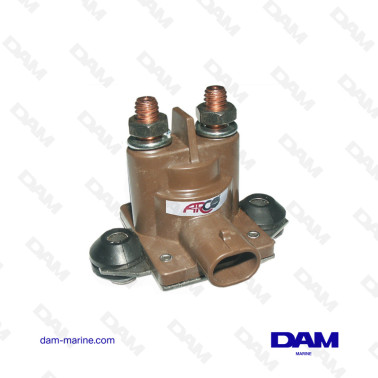

Relay for Johnson - Evinrude ETEC outboard motors from 15 to 300 HP.

Solenoid for Evinrude G2 starter type ARC5357.
