Evinrude - johnson ve48eslcer - 1989

View all compatible parts

Exploded views

search

Carburettor

View exploded view

Crankshaft and pistons

Crankshaft and pistons

View exploded view

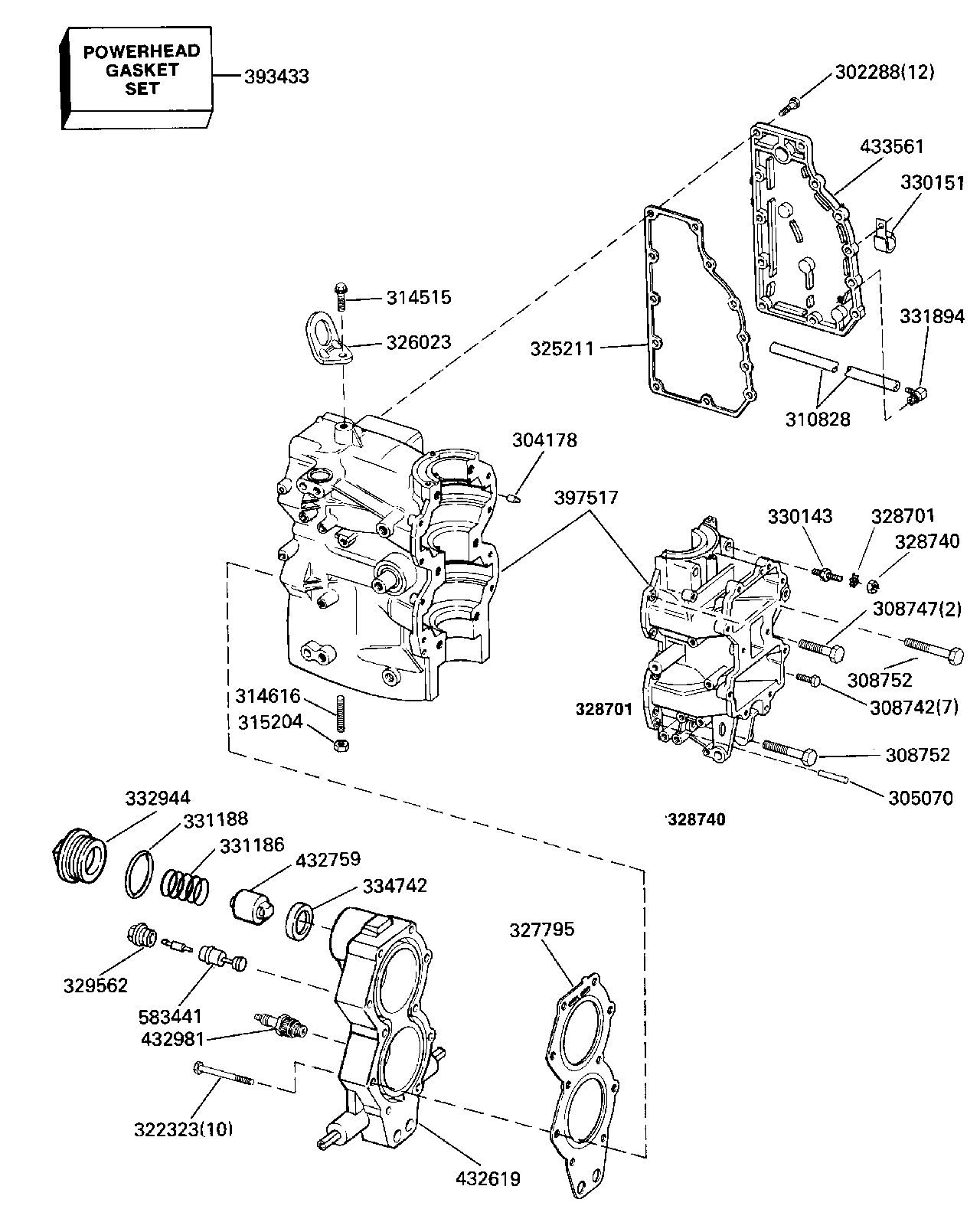

Cylinders and crankcase

Cylinders and crankcase

View exploded view

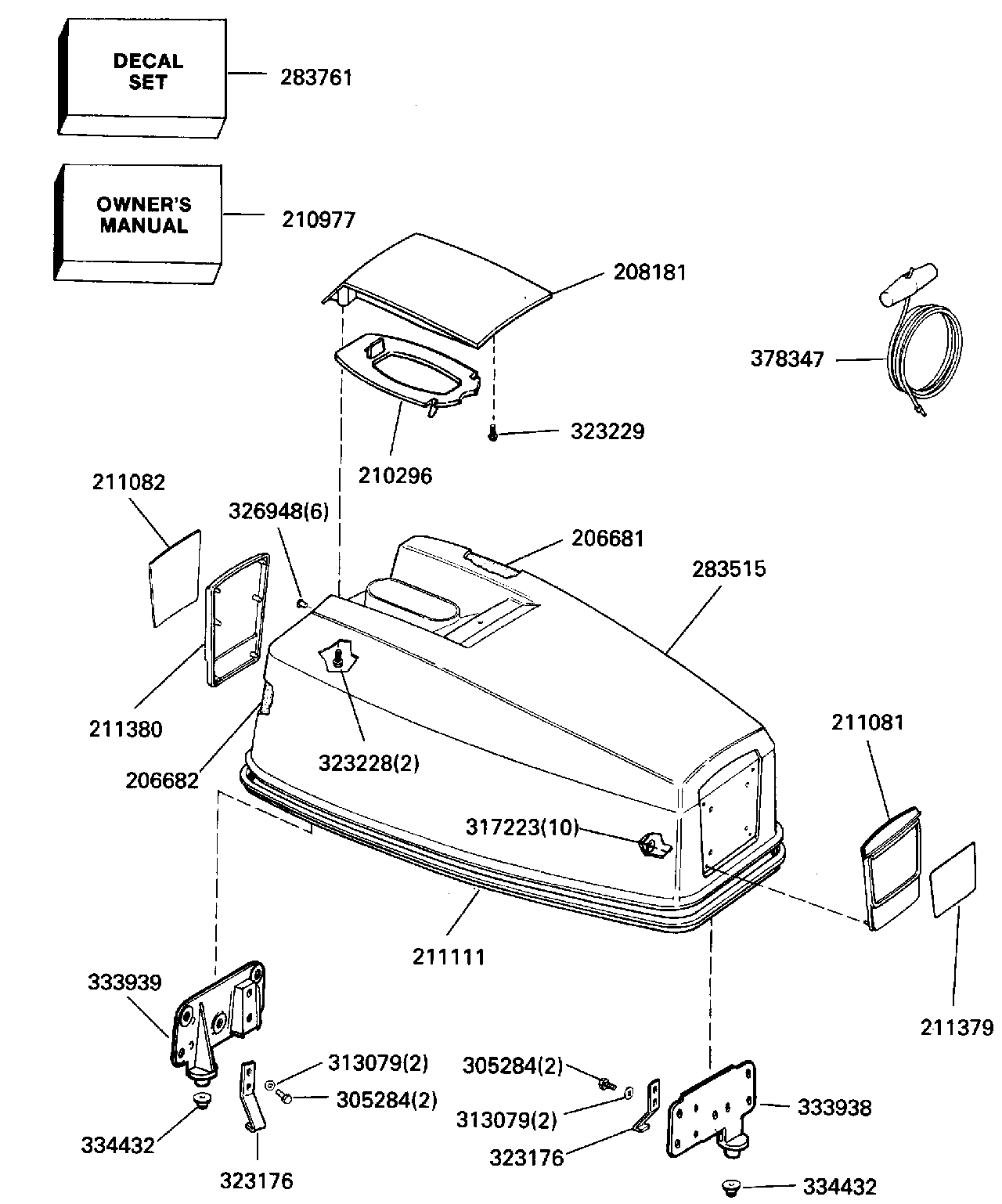

Engine cover – Evinrude

Engine cover – Evinrude

View exploded view

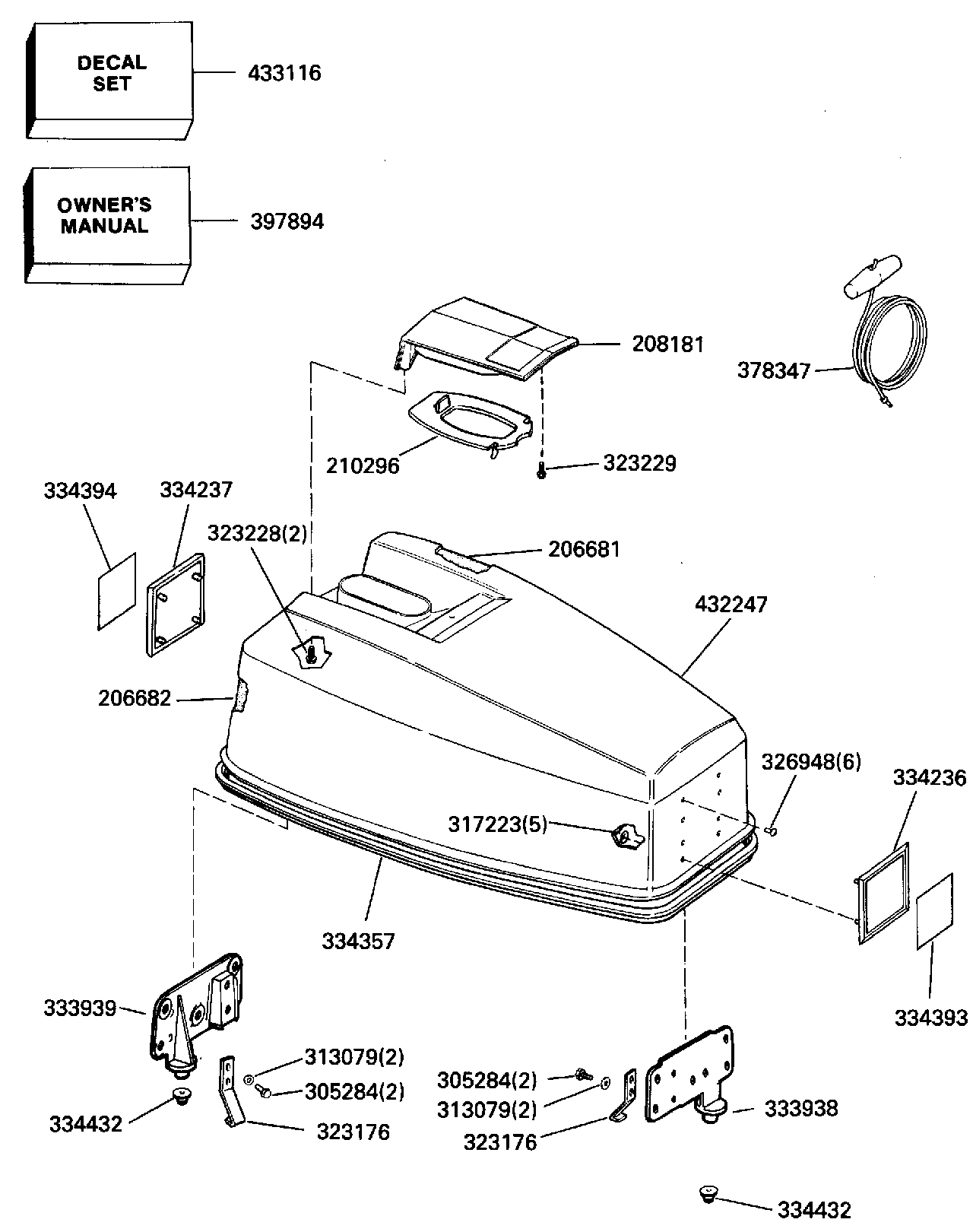

Engine cover – Johnson

Engine cover – Johnson

View exploded view

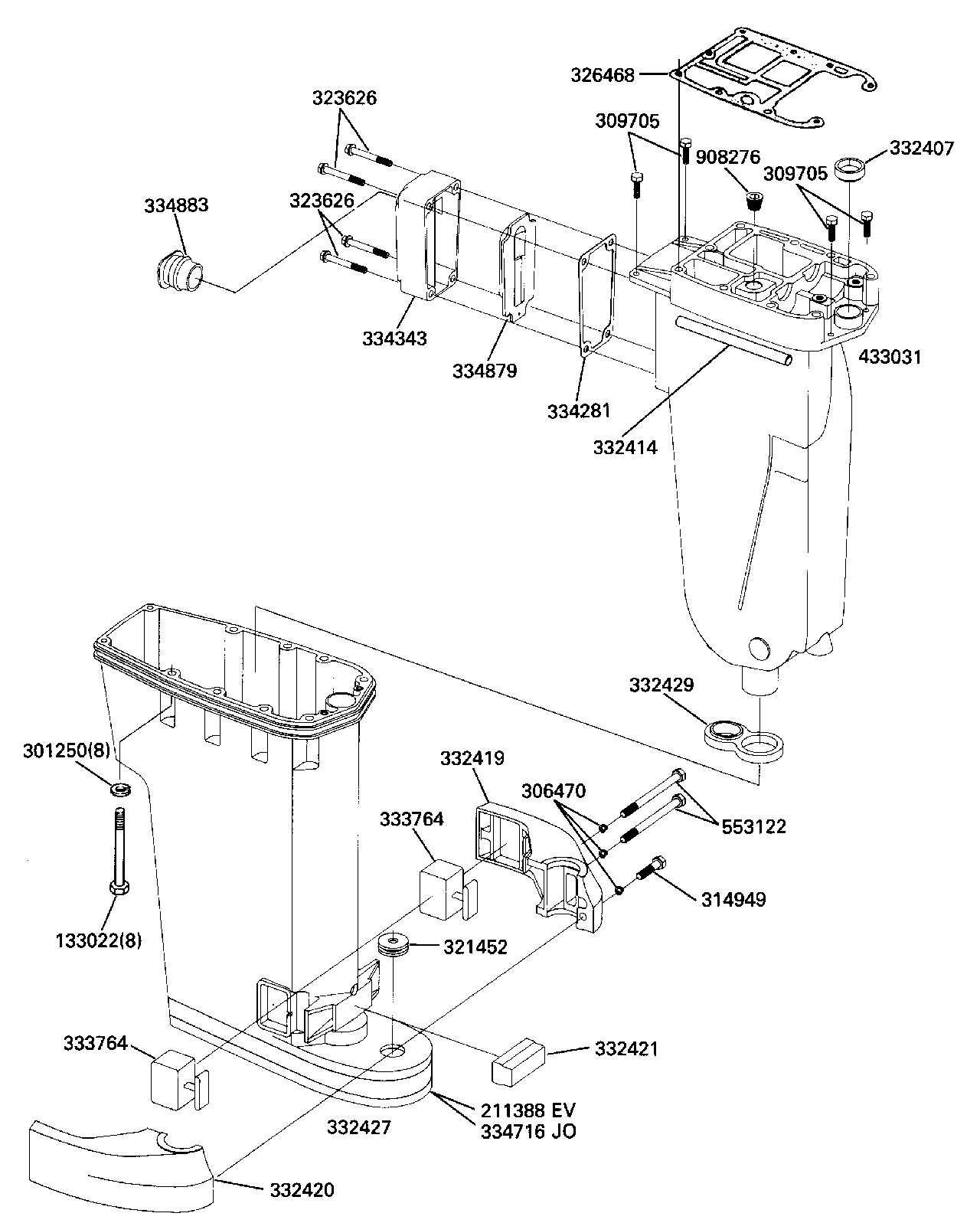

Exhaust housing

Exhaust housing

View exploded view

Fuel pump

View exploded view

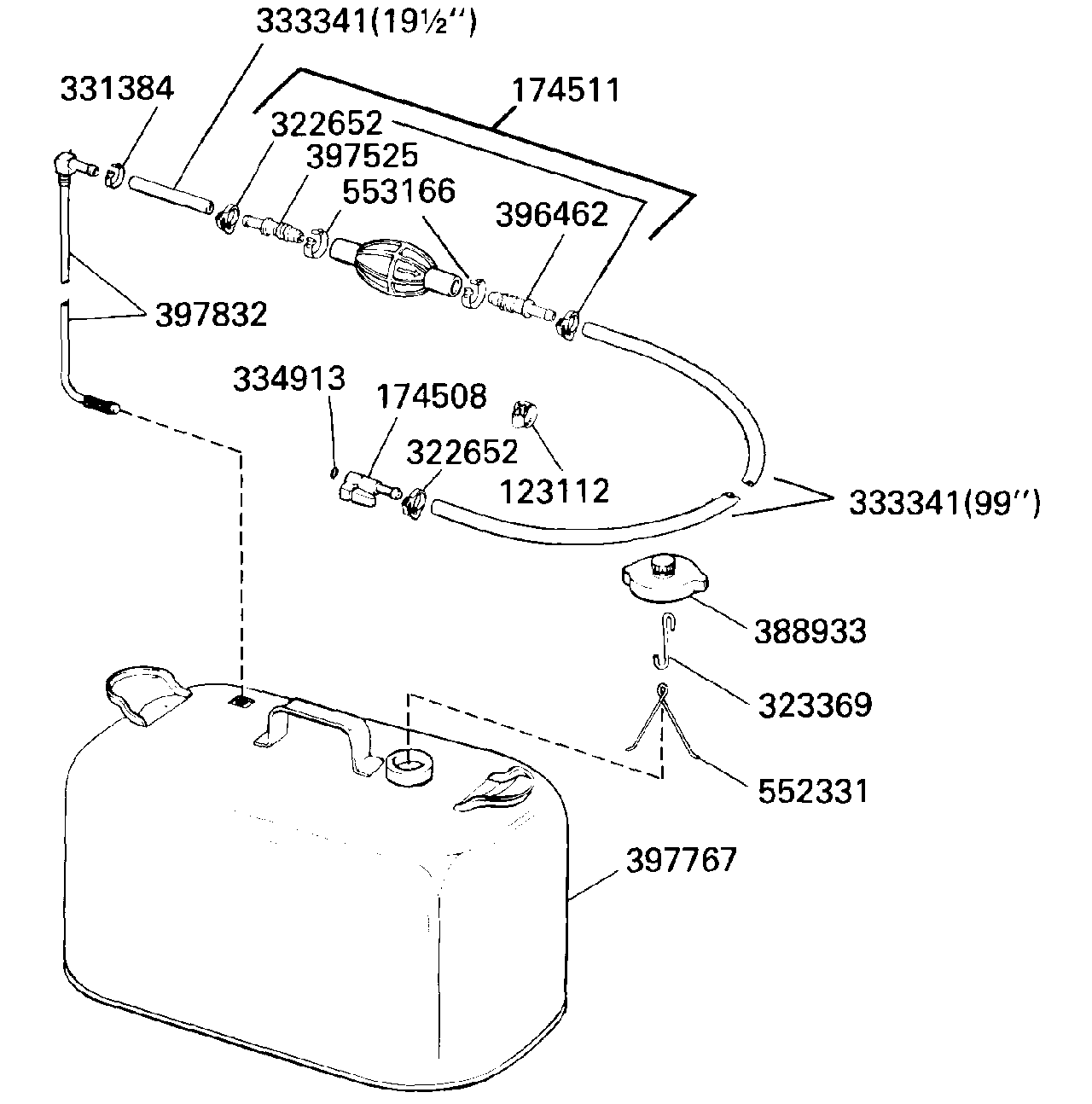

Fuel tank

View exploded view

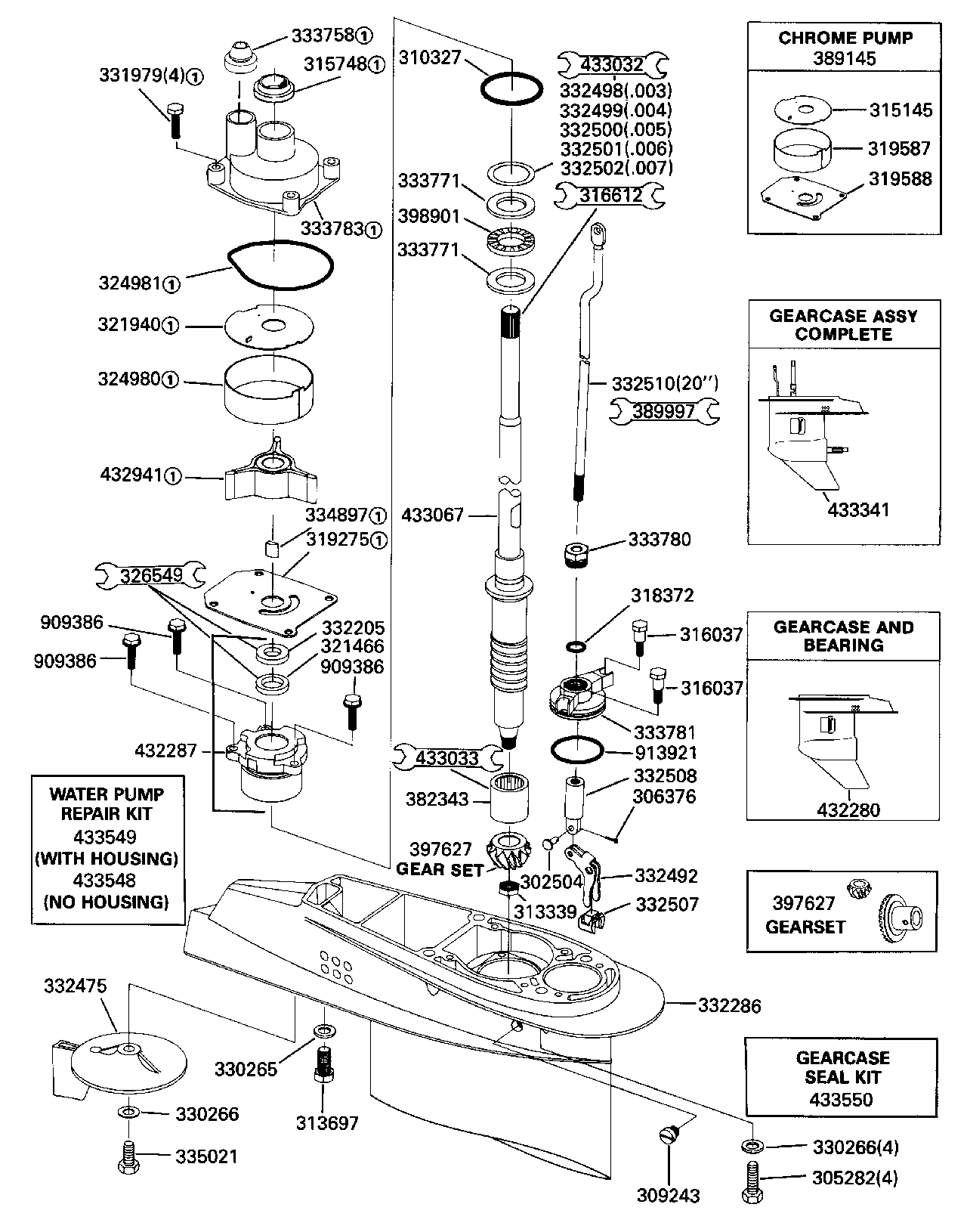

Gearcase

View exploded view

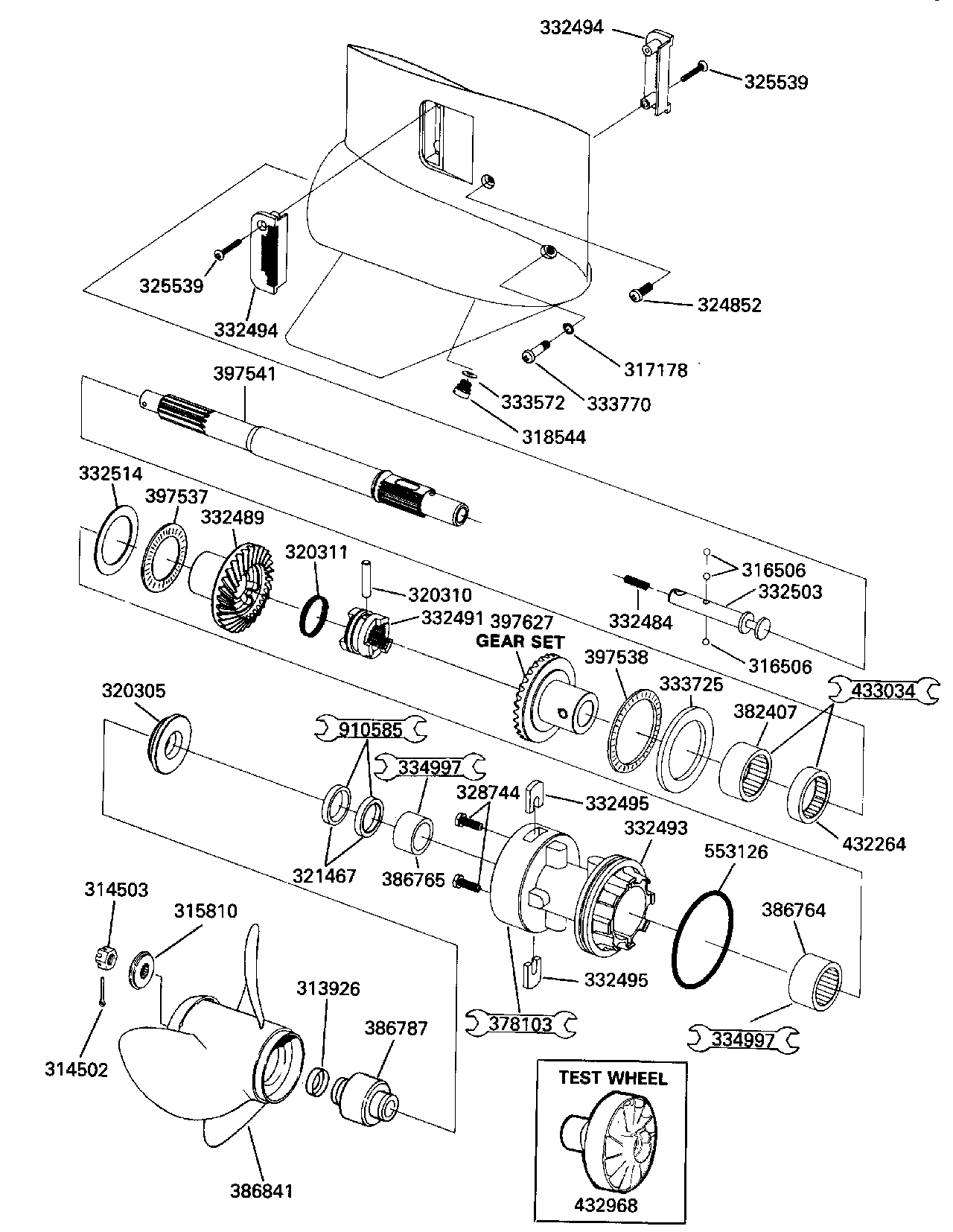

Gearcase (continued)

Gearcase (continued)

View exploded view

Ignition system

Ignition system

View exploded view

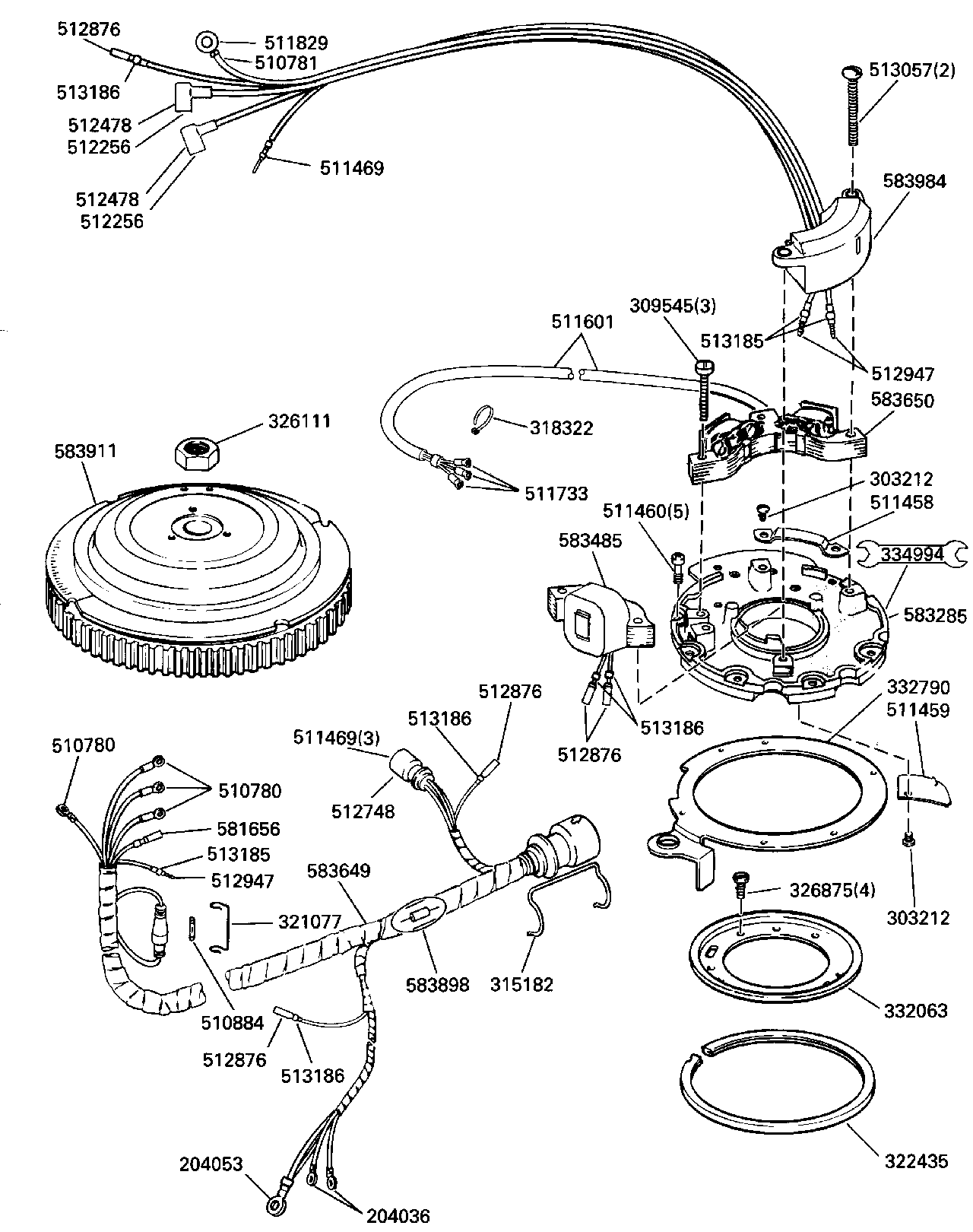

Ignition system (continued)

Ignition system (continued)

View exploded view

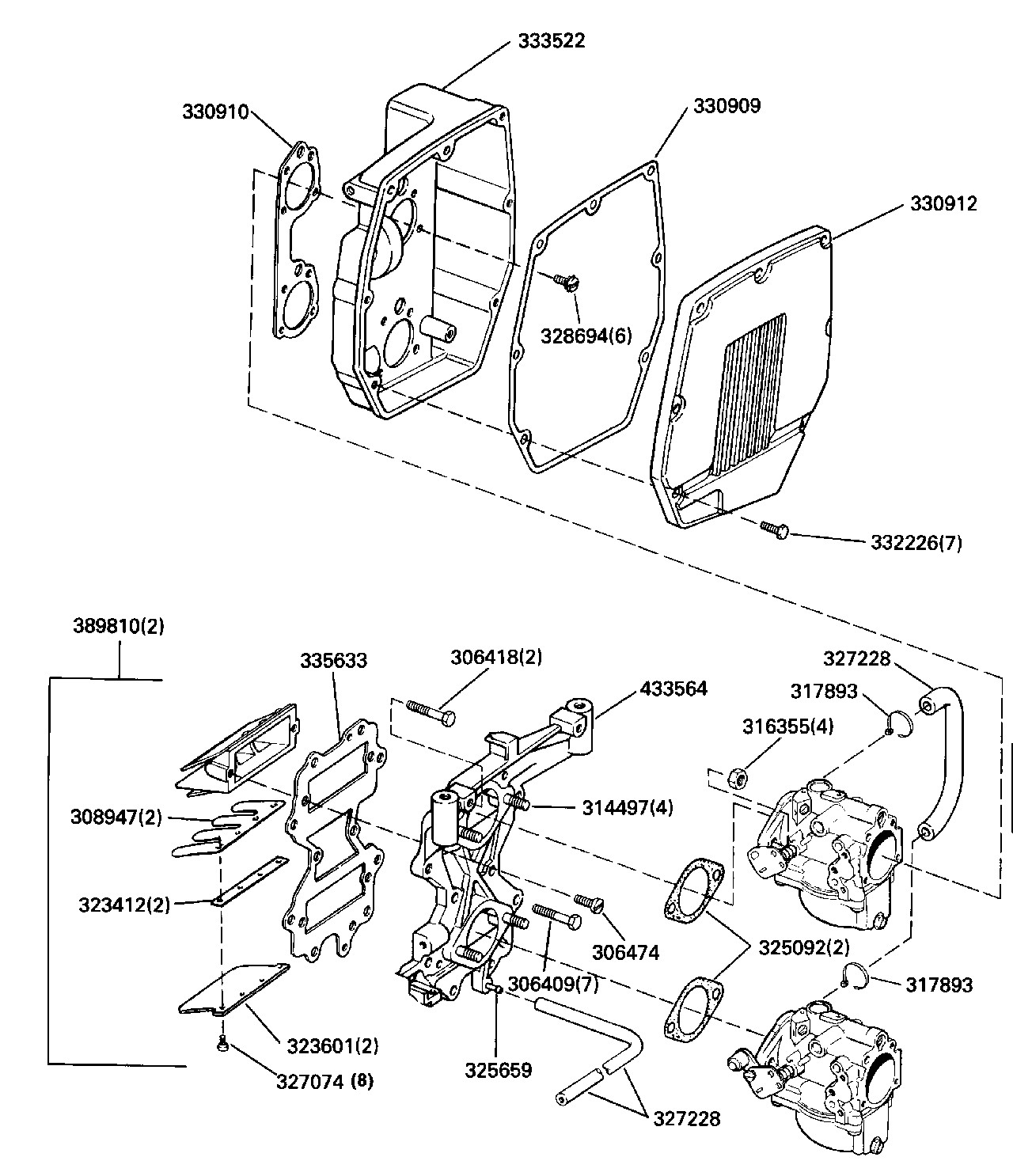

Intake manifold

Intake manifold

View exploded view

Lower engine cover

Lower engine cover

View exploded view

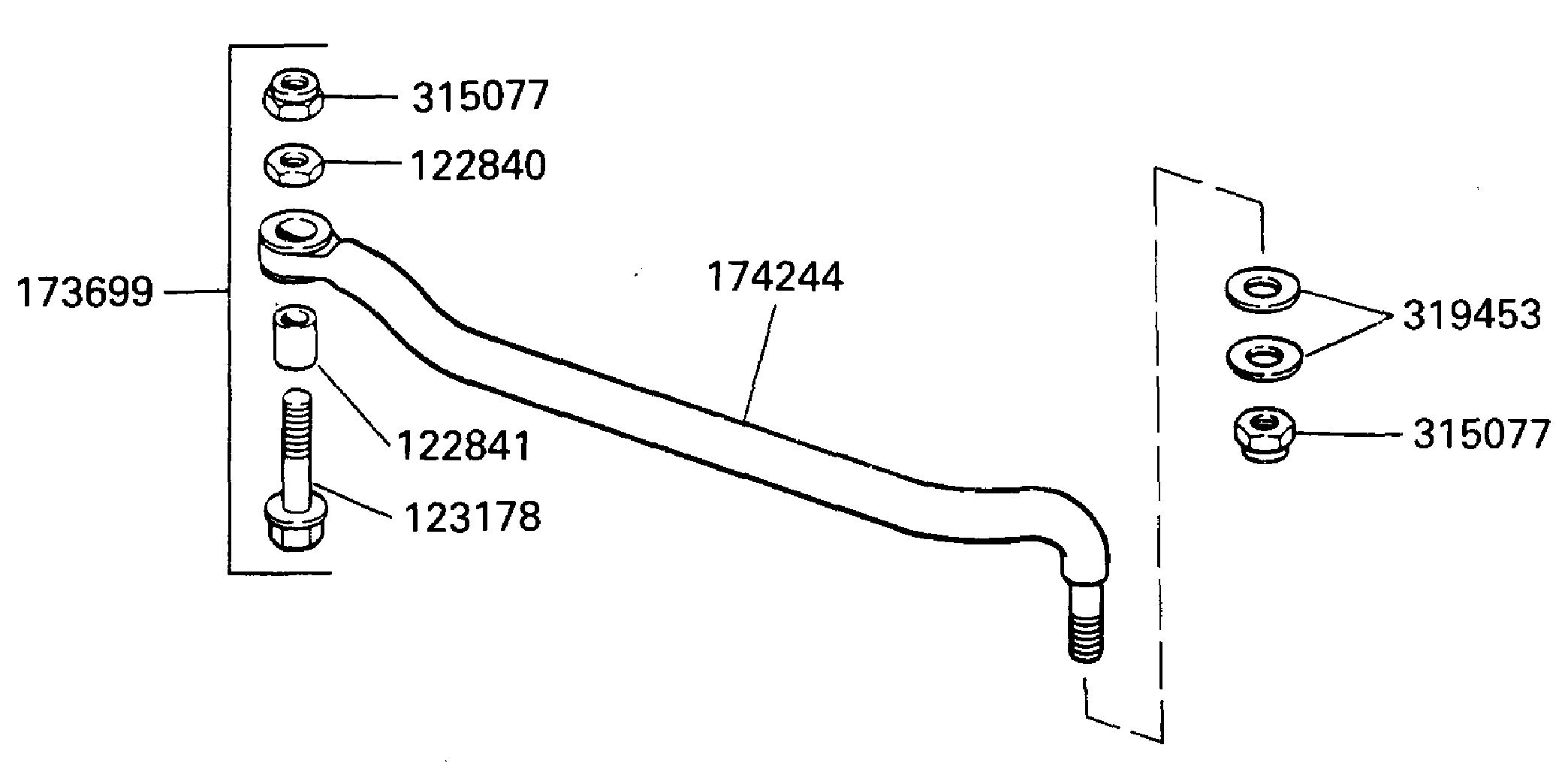

Primer system – steering connector kit

Primer system – steering connector kit

View exploded view

Rear and swivel brackets

Rear and swivel brackets

View exploded view

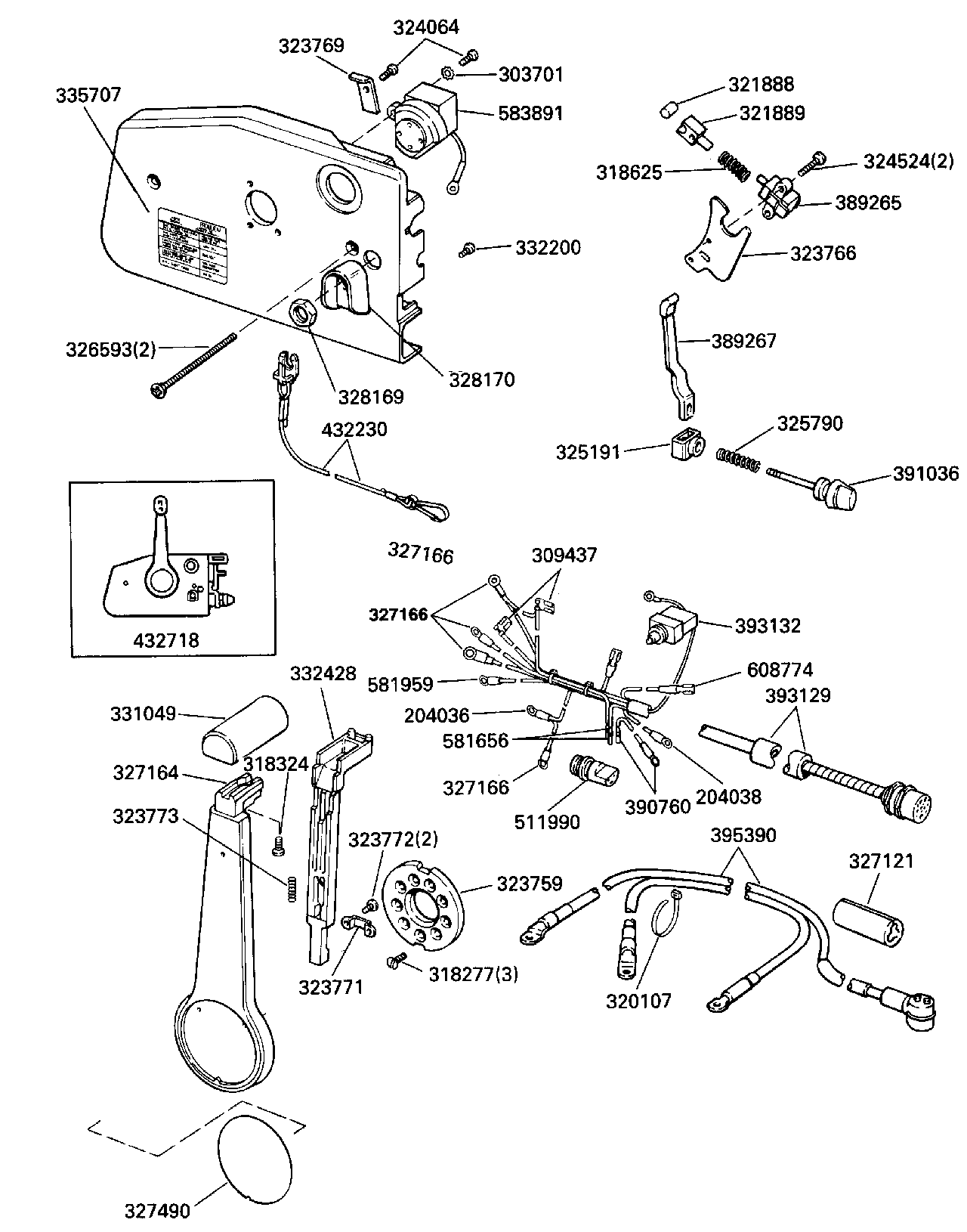

Remote control

View exploded view

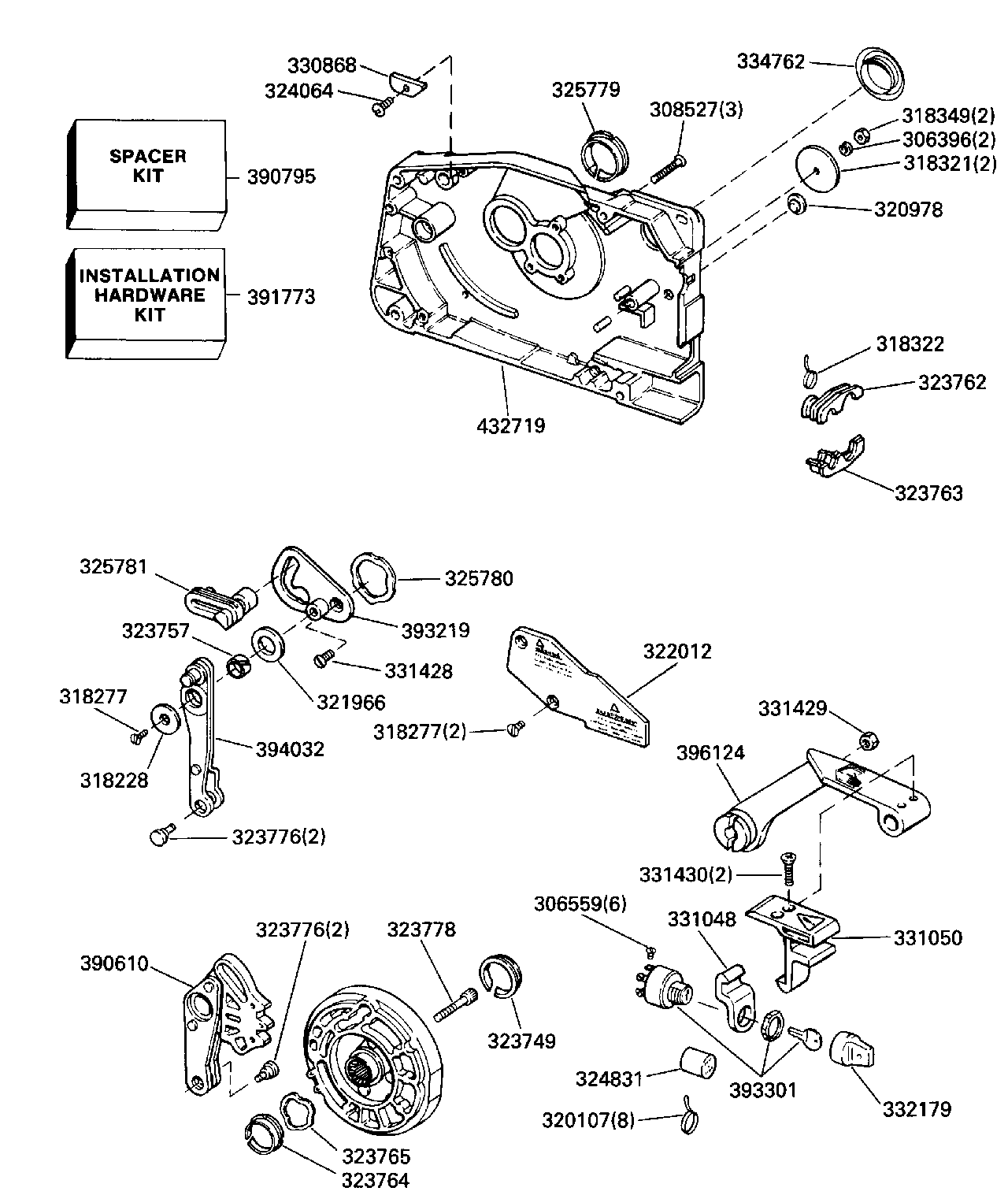

Remote control (continued)

Remote control (continued)

View exploded view

Shift and throttle linkage (continued)

Shift and throttle linkage (continued)

View exploded view

Starter motor

View exploded view

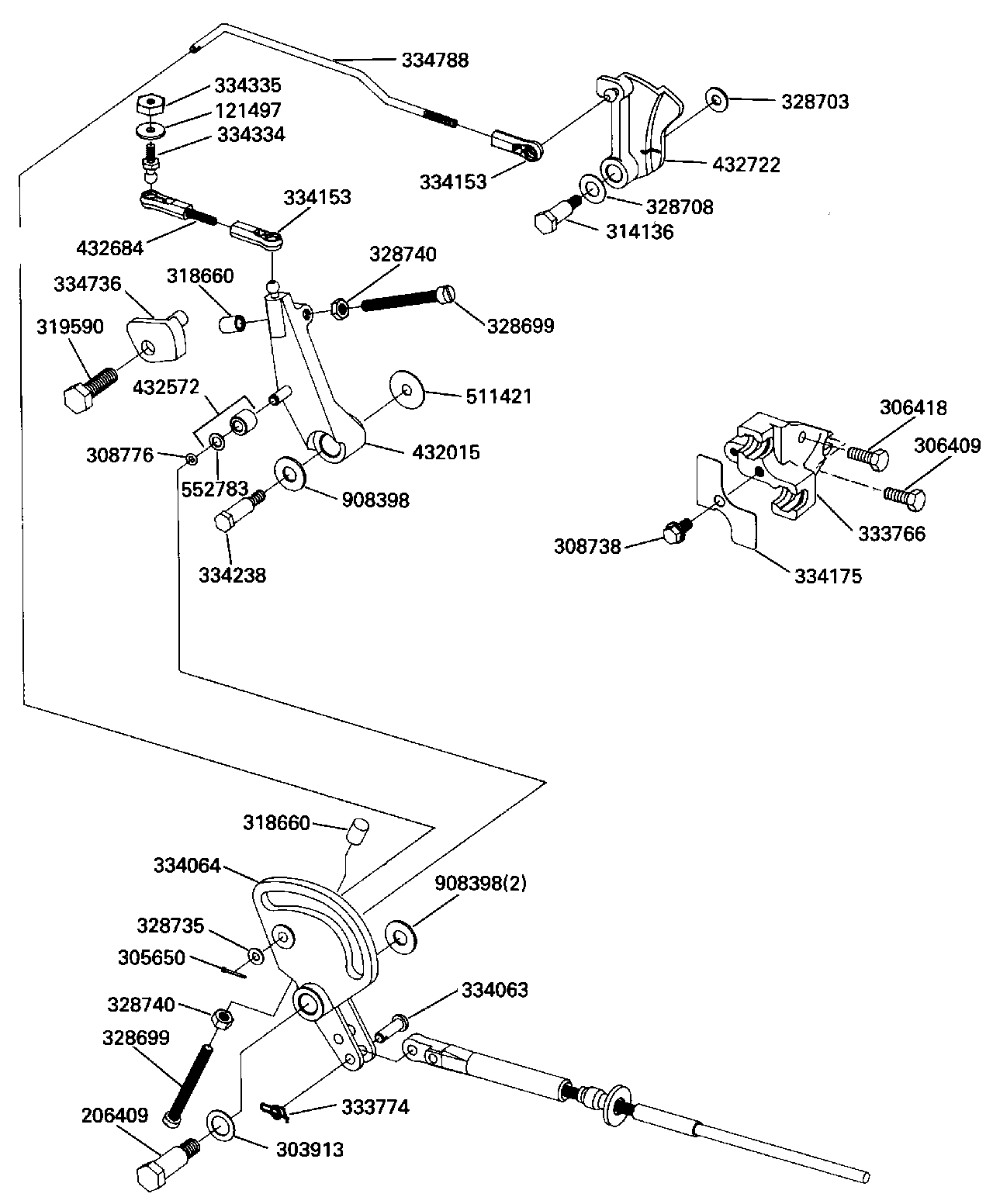

Throttle and shift linkage

Throttle and shift linkage

View exploded view
