Honda BF200DK1 XCDA Parts and Exploded Views
Honda Marine BF200DK1 XCDA Spare Parts Catalogue
Access the exploded views and diagrams for the Honda Marine BF200DK1 XCDA engine catalogue to browse the different assemblies and identify parts suitable for this precise model.
This page corresponds to the exact Honda BF200DK1 XCDA catalogue. The XCDA code is retained as a variant identifier to distinguish this catalogue from other BF200DK1 versions, including LRA, XCRA, XDA and XRA.
The exploded views make it easier to locate a part, its position and its reference number within the relevant assembly. Use the complete BF200DK1 XCDA model when searching to avoid consulting the wrong catalogue among the available Honda variants.
No year or serial range is provided for this engine. References must therefore be checked against the diagrams and the information specific to the Honda BF200DK1 XCDA catalogue.

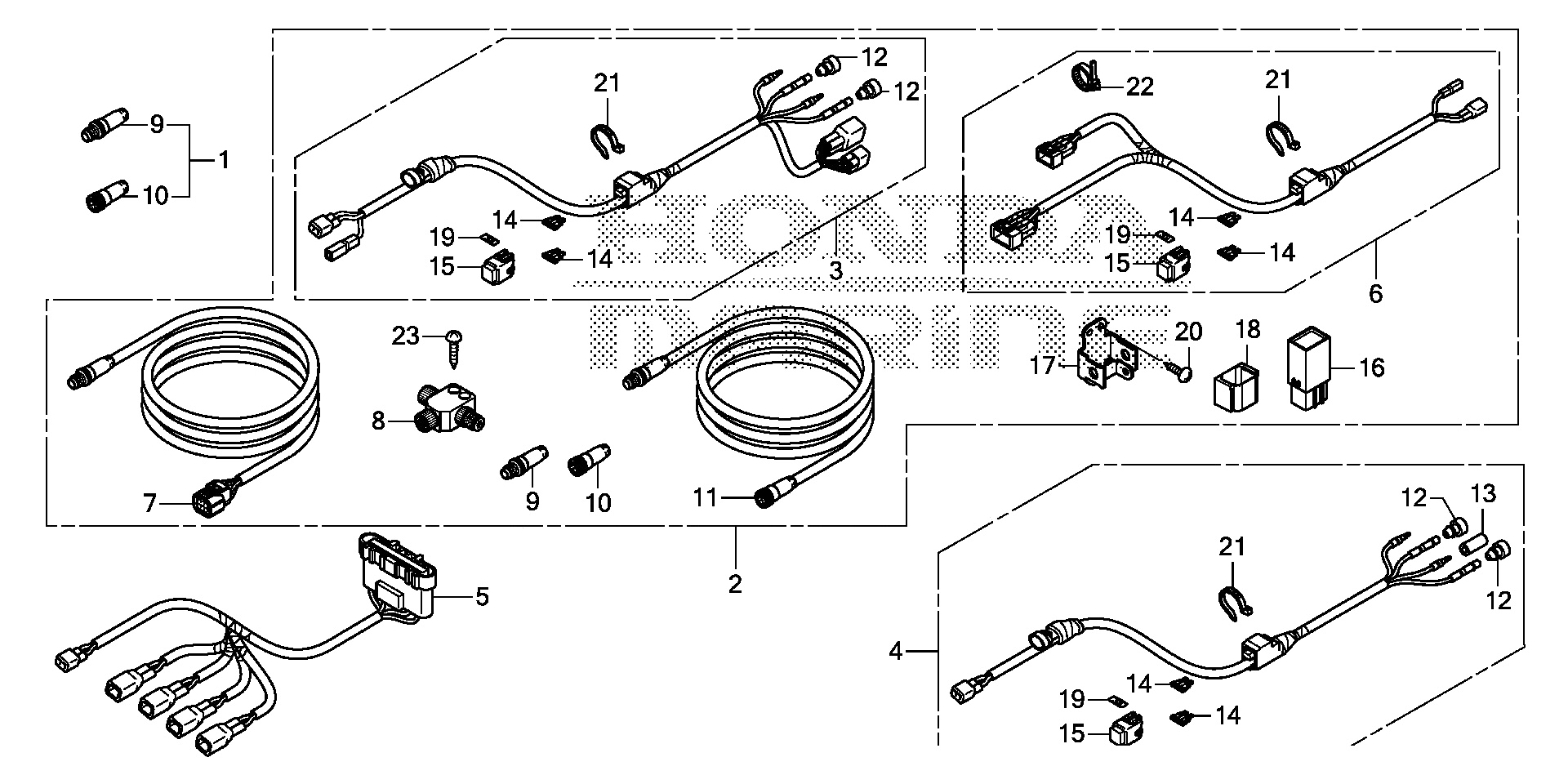

Exploded views and diagrams of parts in the Honda BF200DK1 XCDA catalogue, with reference identification for this variant.
