Honda Marine
Honda BF2D2 LCHA engine parts

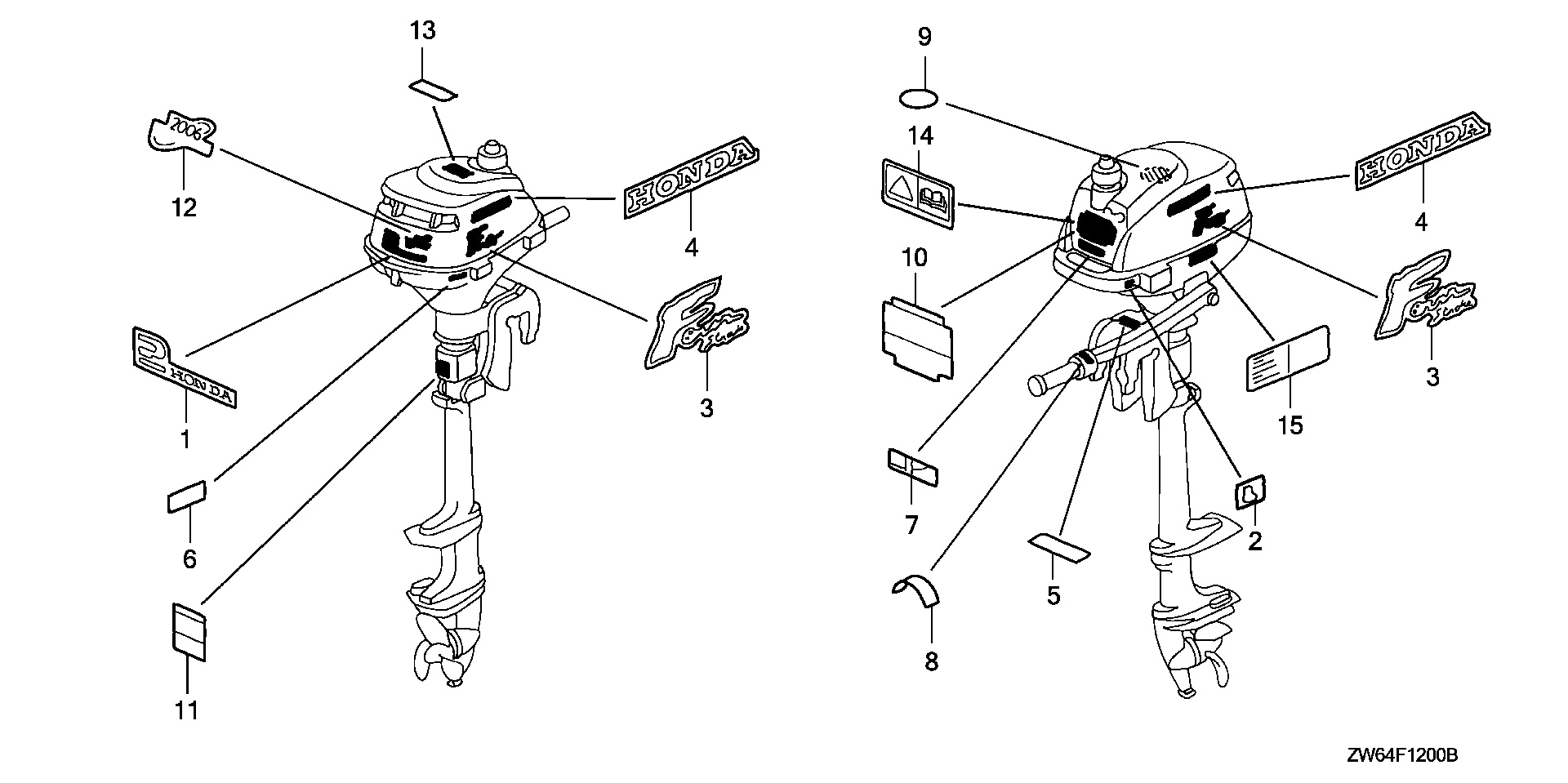

Exploded view and references for the Honda BF2D2 LCHA catalogue
The Honda BF2D2 variants have separate catalogues. This page specifically covers the Honda BF2D2 LCHA outboard engine: the LCHA code distinguishes it from the BF2D2 SA, SAB, SCAB, SCHA and SHA catalogues.
The catalogue brings together the exploded views and references associated with the Honda BF2D2 LCHA. Use the diagram for the relevant assembly to locate the part and note its reference.
No model year or serial identifier is provided for this catalogue. To avoid selecting the wrong part, check that your engine’s complete code matches BF2D2 LCHA before identifying a Honda spare part.
The exploded views make it easier to find Honda BF2D2 LCHA parts and compare the components included in each mechanical assembly.
Honda BF2D2 LCHA parts and exploded views, with references distinct from other BF2D2 catalogues.
