Parts and exploded diagrams for Yamaha ft8gepl - 2015 4-stroke engine
This page allows you to view the exploded diagrams for the Yamaha ft8gepl - 2015 4-stroke engine and easily identify the compatible parts for your engine.
Yamaha is a recognised brand in the outboard engine sector. It offers engines designed to meet the requirements of recreational boaters and professionals, with ranges suited to maintenance, repair and use in marine environments.

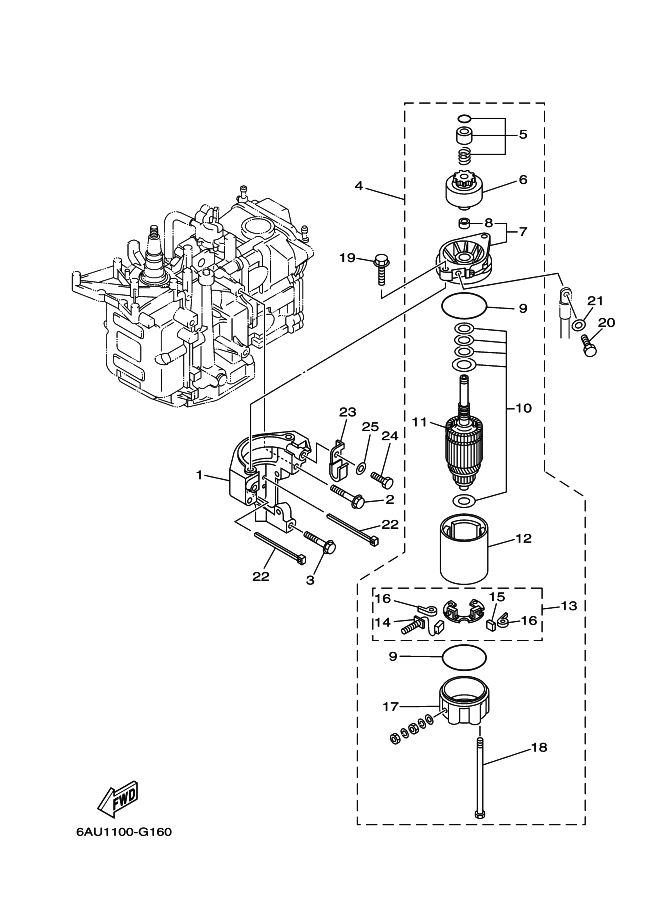

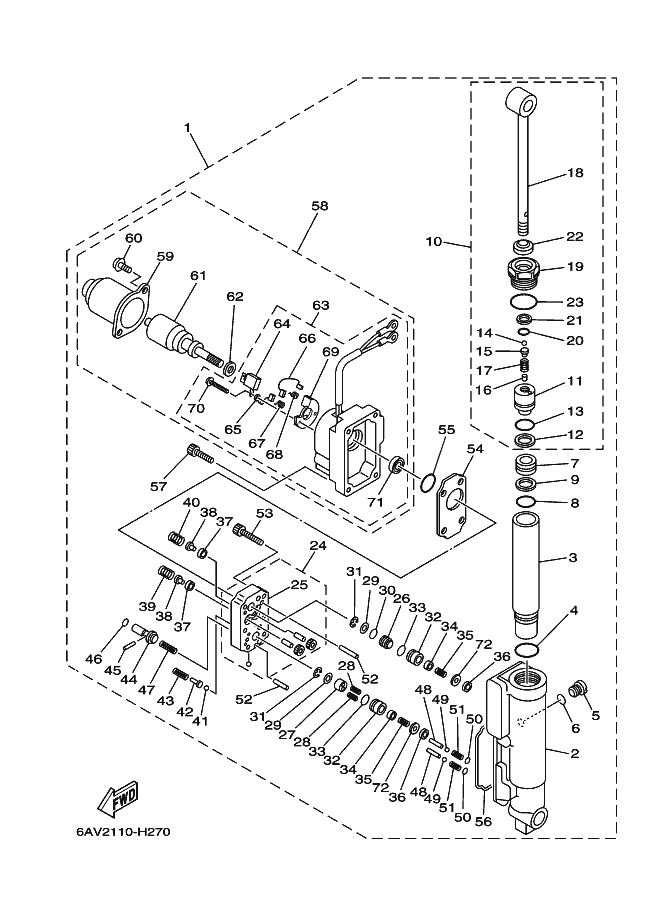

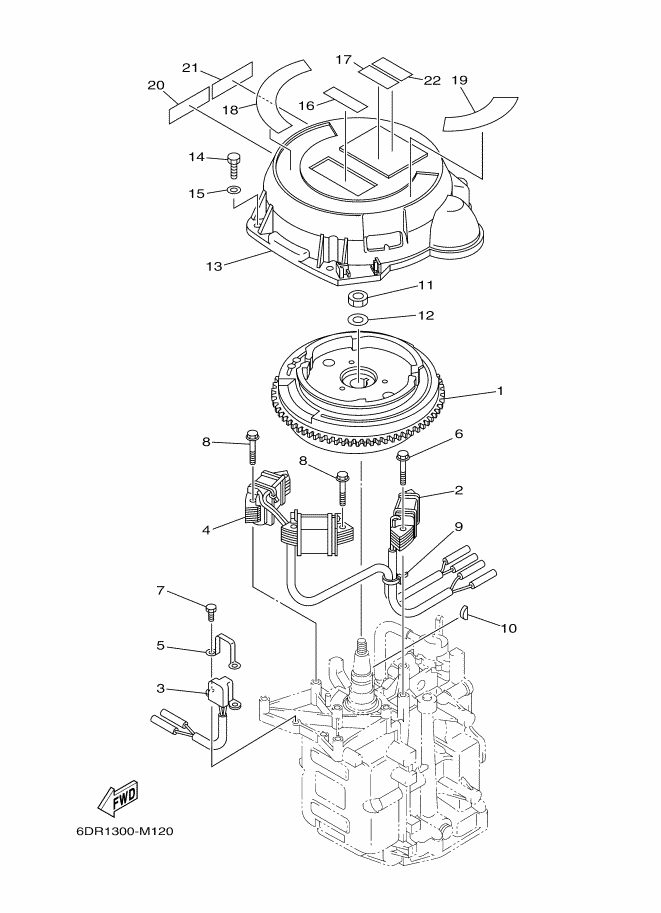

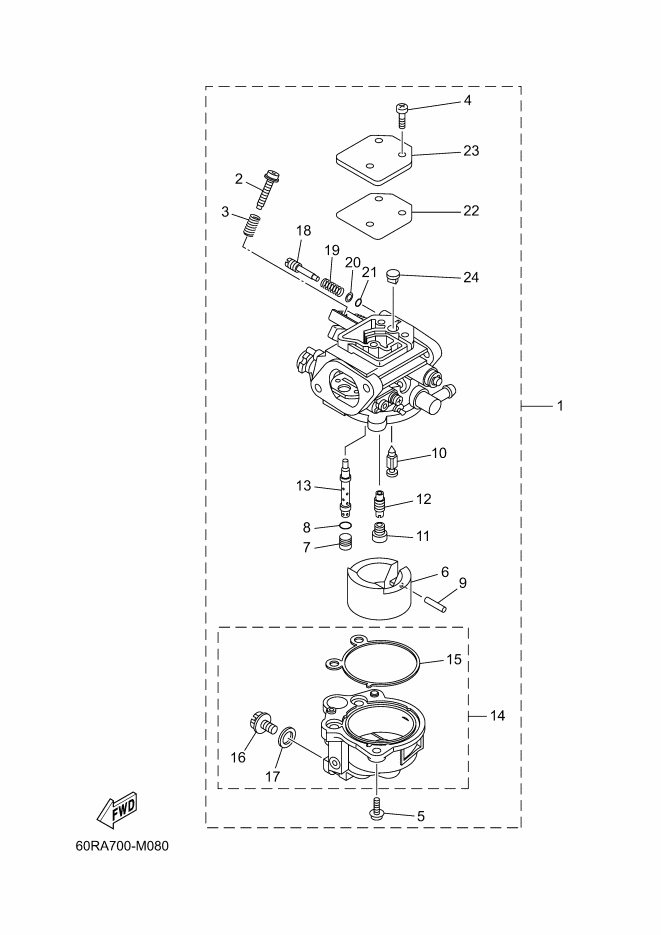

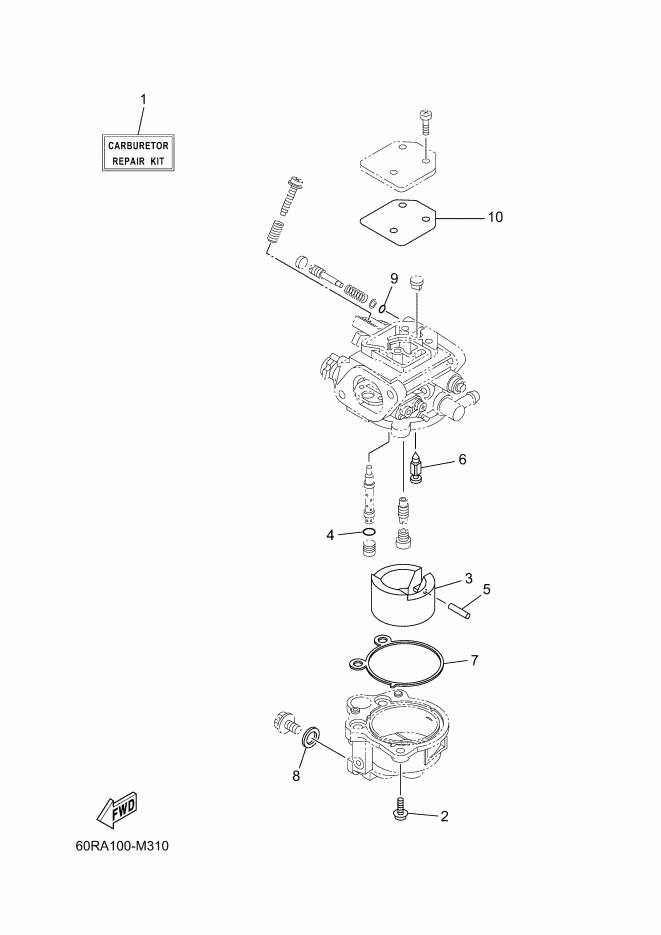

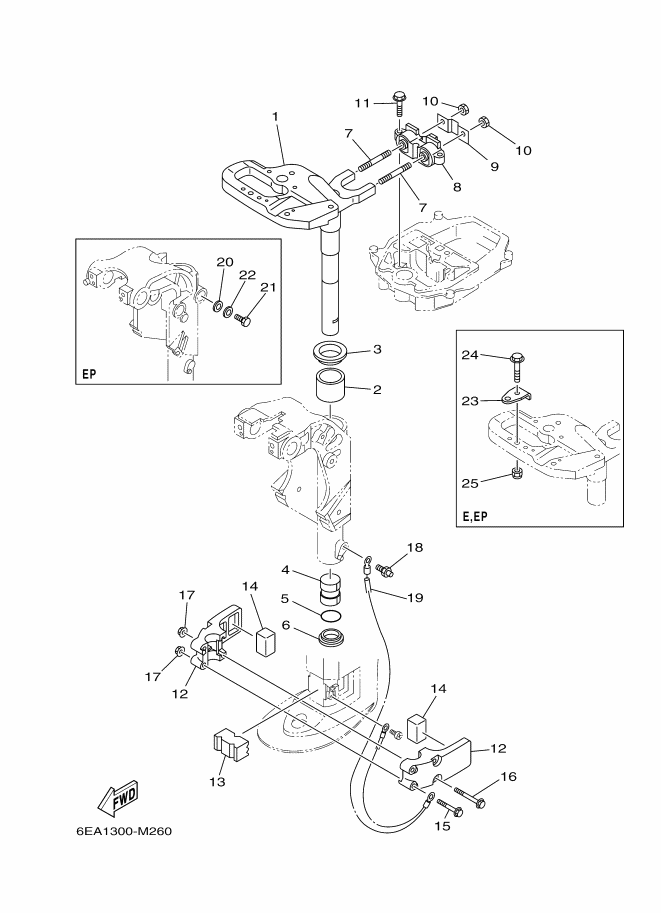

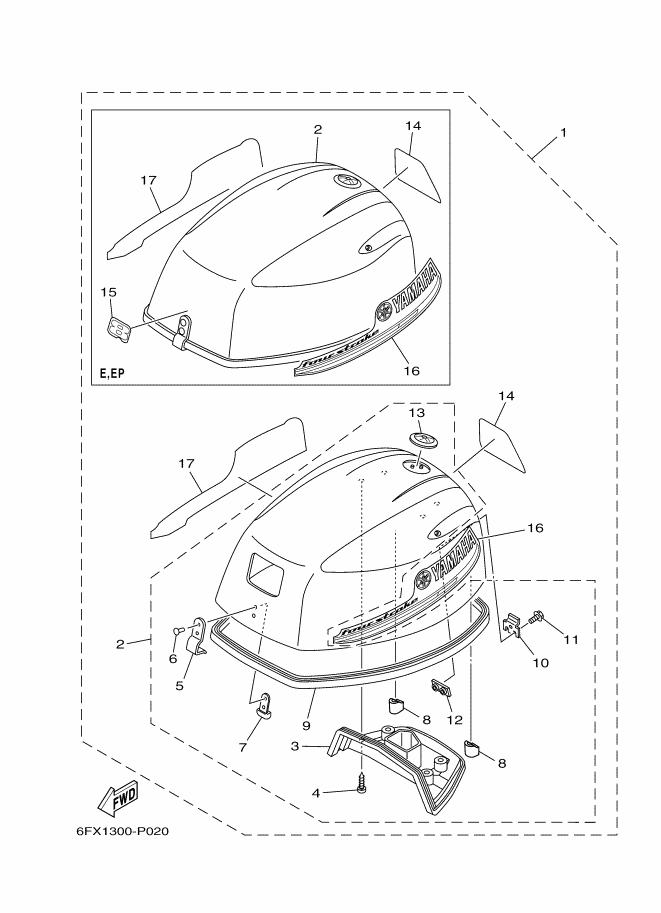

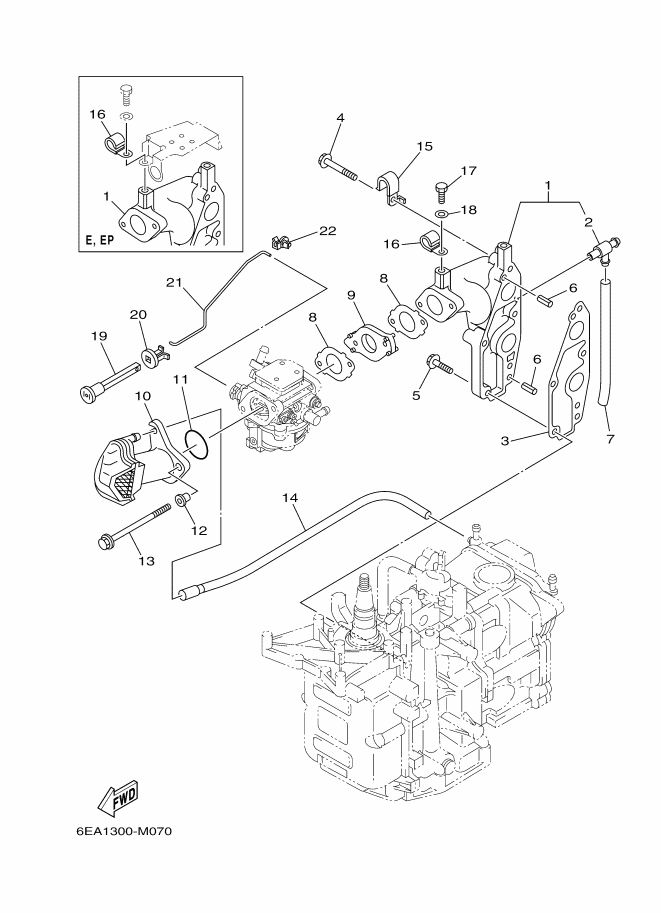

Select an exploded diagram for your Yamaha ft8gepl - 2015 4-stroke engine
Yamaha ft8gepl - 2015
The Yamaha ft8gepl - 2015 is an outboard engine delivering 8 HP through a 4-stroke cycle. Its mechanical architecture combines two inline cylinders with SOHC valve operation and a displacement of 212 cm³. Bore and stroke measure 56.0 × 43.0 mm, while the compression ratio is 9.4:1.
Fuel is supplied through one carburettor, and ignition is provided by a CDI system. Wet-sump lubrication offers an engine oil capacity of 0.8 L. The electrical installation also includes a 6 A alternator connected to a rectifier-regulator.

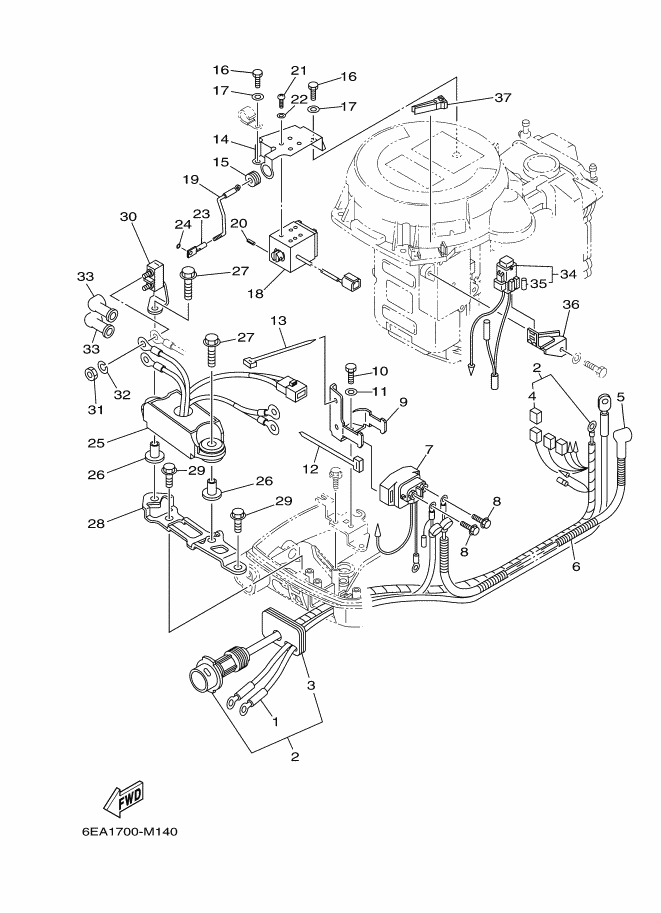

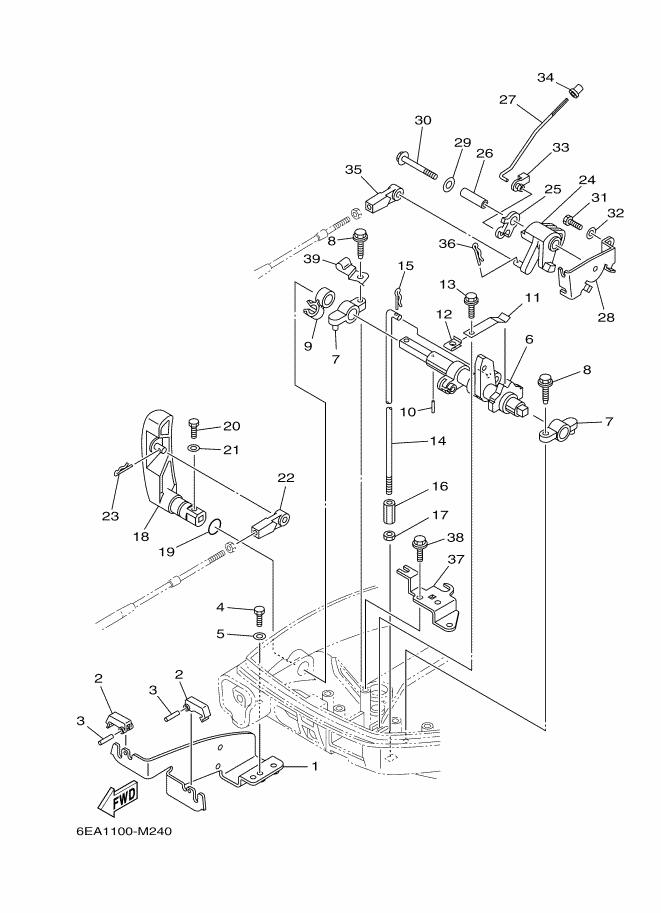

The exploded diagrams for the Yamaha ft8gepl - 2015 show the components within each mechanical assembly and their position in the engine. They simplify part-number searches and the selection of compatible parts required when preparing maintenance or repair work.
Yamaha ft8gepl - 2015 engine features- 8 HP 4-stroke outboard engine based on a compact mechanical configuration
- Inline twin-cylinder SOHC block with a total displacement of 212 cm³
- 9.4:1 compression ratio with a bore and stroke of 56.0 × 43.0 mm
- Carburettor fuel supply combined with a CDI ignition system
- 6 A alternator completed by a rectifier-regulator
View exploded diagrams Yamaha ft8gepl - 2015
