This page allows you to view the exploded diagrams for the Yamaha ft8depl - 2009 4-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a recognised brand in the outboard engine sector. It offers engines designed to meet the requirements of recreational boaters and professionals, with ranges suited to maintenance, repair and use in marine environments.

Un doute?  > contact us

Select an exploded diagram for your Yamaha ft8depl - 2009 4-stroke engine

Yamaha ft8depl - 2009 engine 8 HP 4-stroke

Yamaha ft8depl - 2009

The Yamaha ft8depl - 2009 combines an output of 8 HP with a 4-stroke outboard power unit. Its inline twin-cylinder SOHC block has a displacement of 212 cm³, with a bore and stroke of 56.0 × 43.0 mm and a compression ratio of 9.4:1.

Fuel enters the engine through one carburettor, while ignition relies on a CDI system. Wet-sump lubrication provides an engine oil capacity of 0.8 L. The electrical equipment also includes a 6 A alternator connected to a rectifier-regulator.

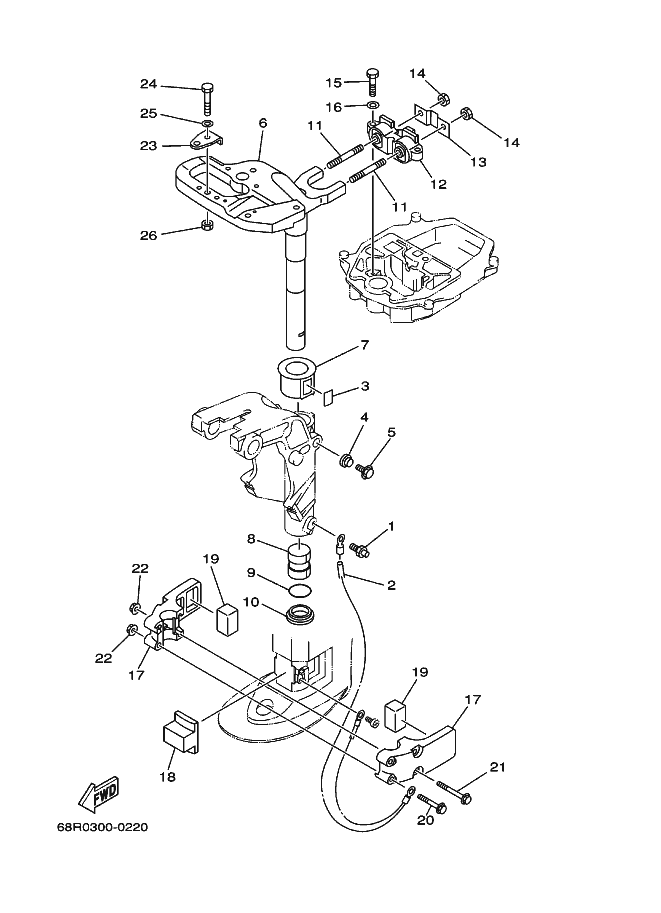

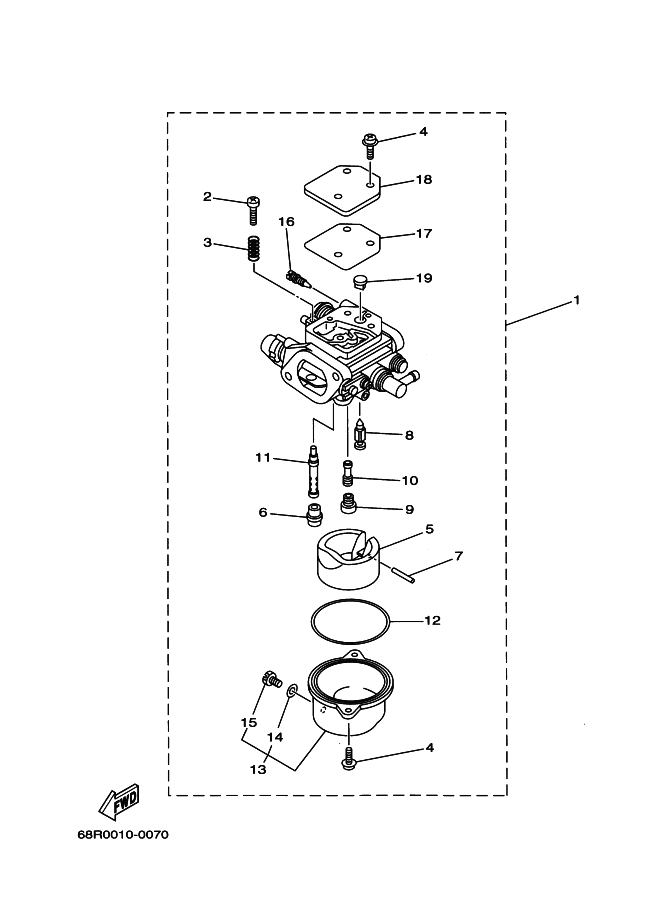

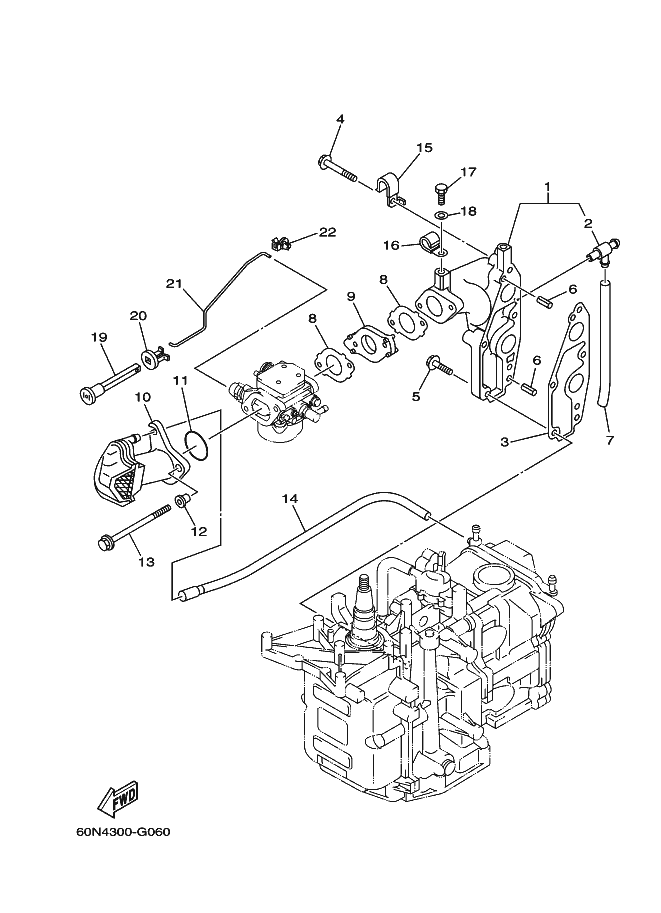

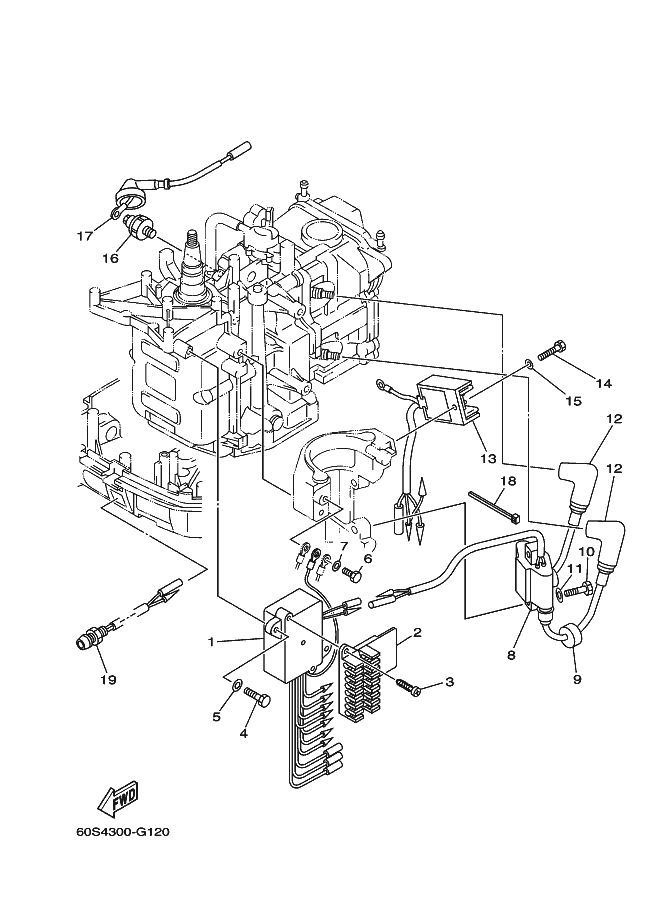

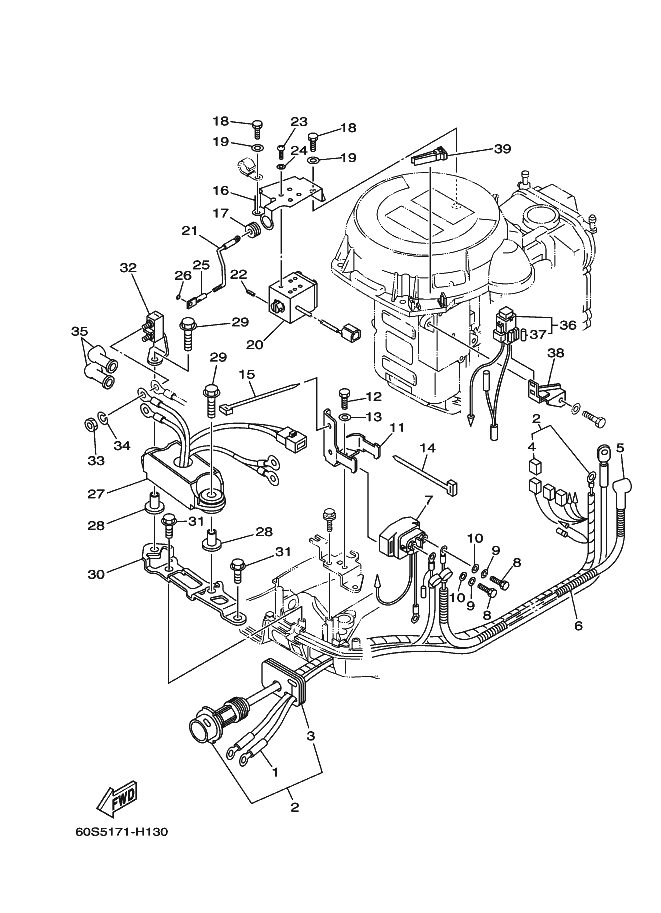

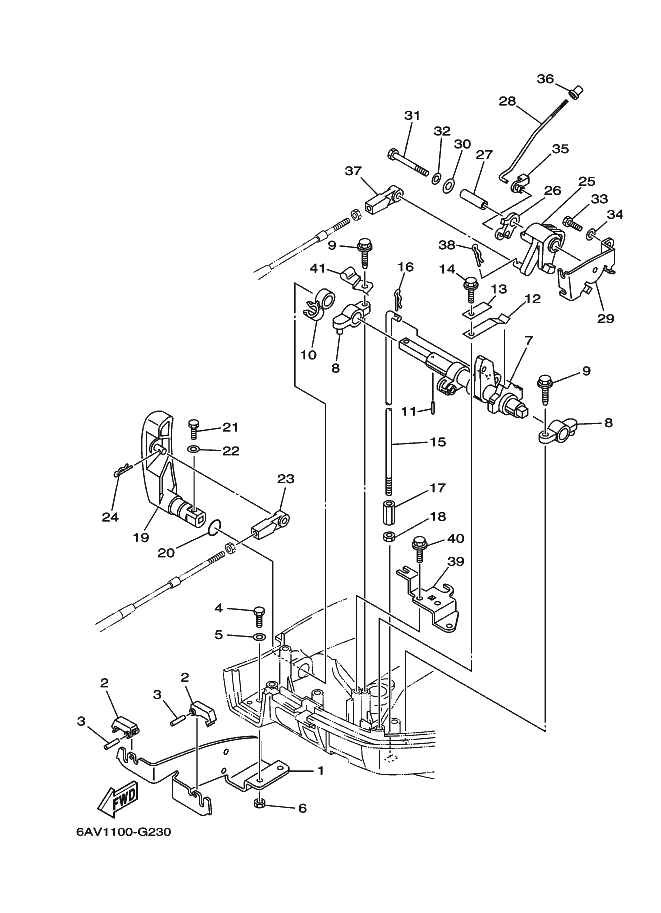

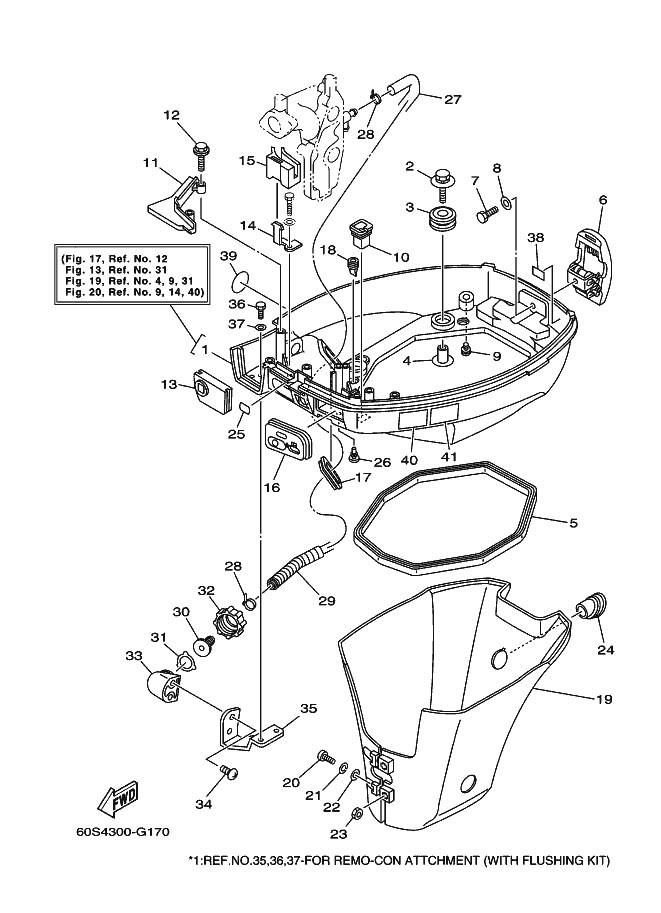

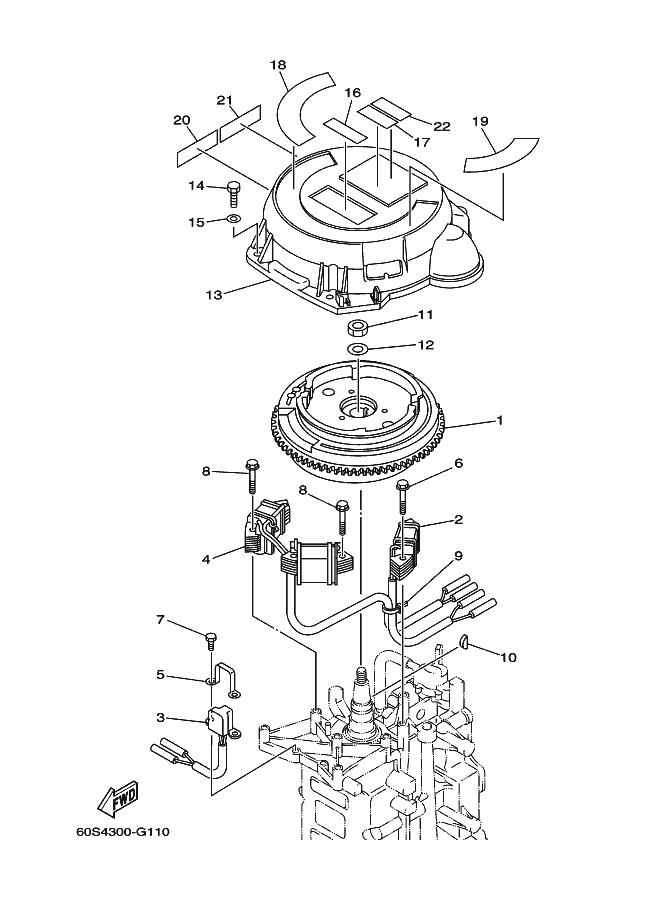

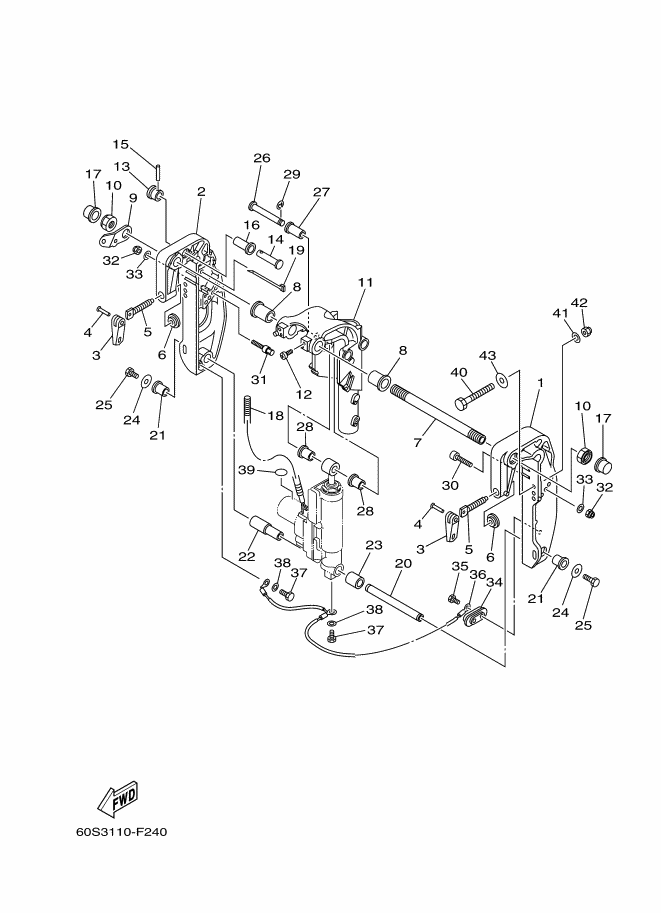

The exploded diagrams for the Yamaha ft8depl - 2009 show the structure of the different assemblies and the position of each component. They make it easier to verify part numbers, locate individual elements and select the correct compatible parts before maintenance or repair work.
