This page allows you to view the exploded diagrams for the Yamaha f8fmhl - 2016 4-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a recognised brand in the outboard engine industry. It offers engines designed to meet the requirements of recreational boaters and professionals, with ranges suited to maintenance, repair and marine use.

Un doute?  > contact us

Select an exploded diagram for your Yamaha f8fmhl - 2016 4-stroke engine

Yamaha f8fmhl - 2016 engine 8 HP 4-stroke

Yamaha f8fmhl - 2016

Designed for applications requiring a compact engine, the Yamaha f8fmhl - 2016 delivers 8 HP through its 4-stroke operation. It features a 212 cm³ in-line twin-cylinder SOHC engine with a bore and stroke of 56.0 × 43.0 mm and a compression ratio of 9.4:1.

Fuel is supplied by one carburettor, while lubrication relies on a wet sump with a capacity of 0.8 L. CDI ignition is combined with a 6 A alternator and rectifier-regulator, forming a system that can be checked as part of routine maintenance.

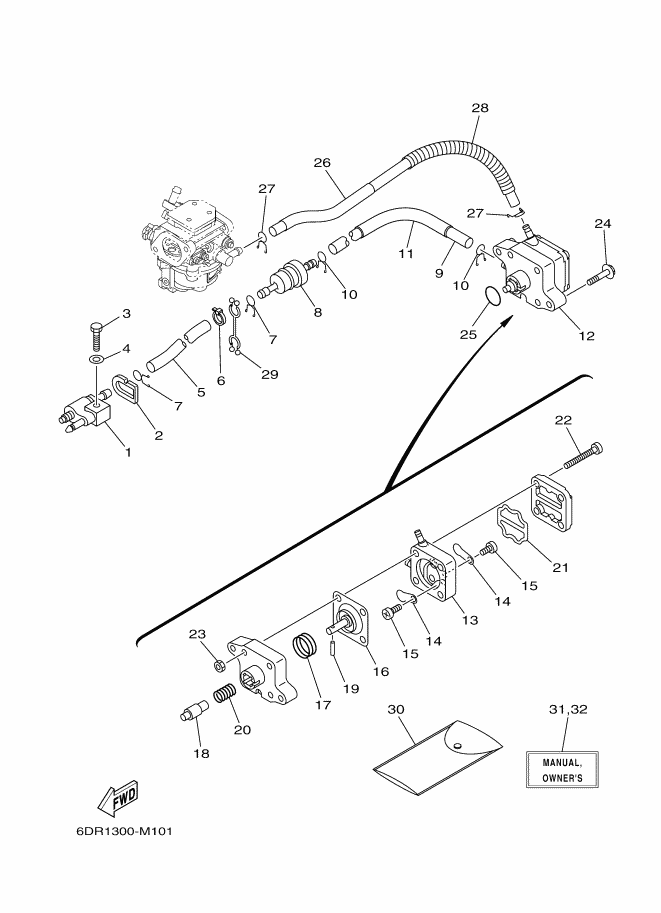

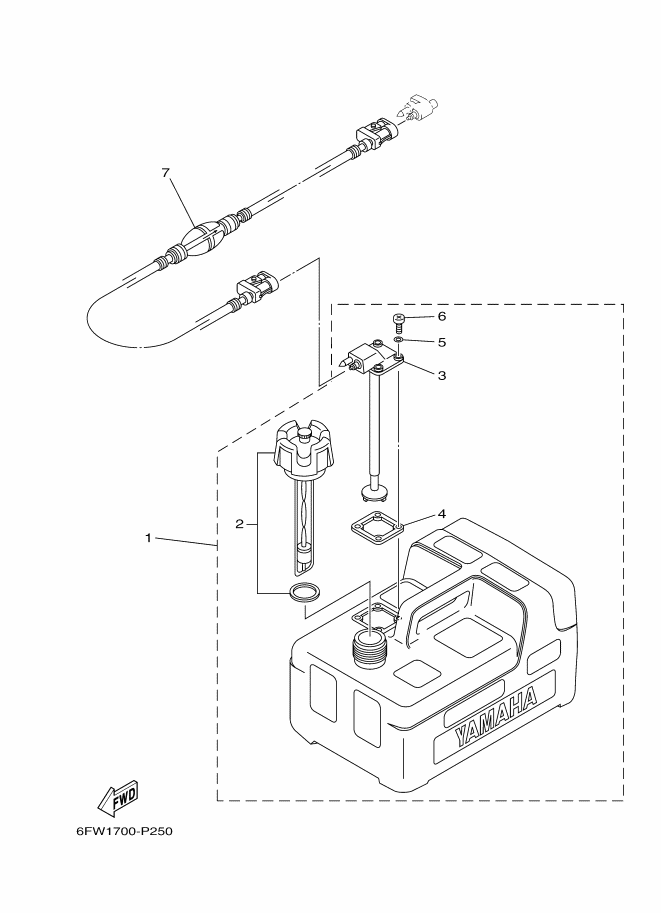

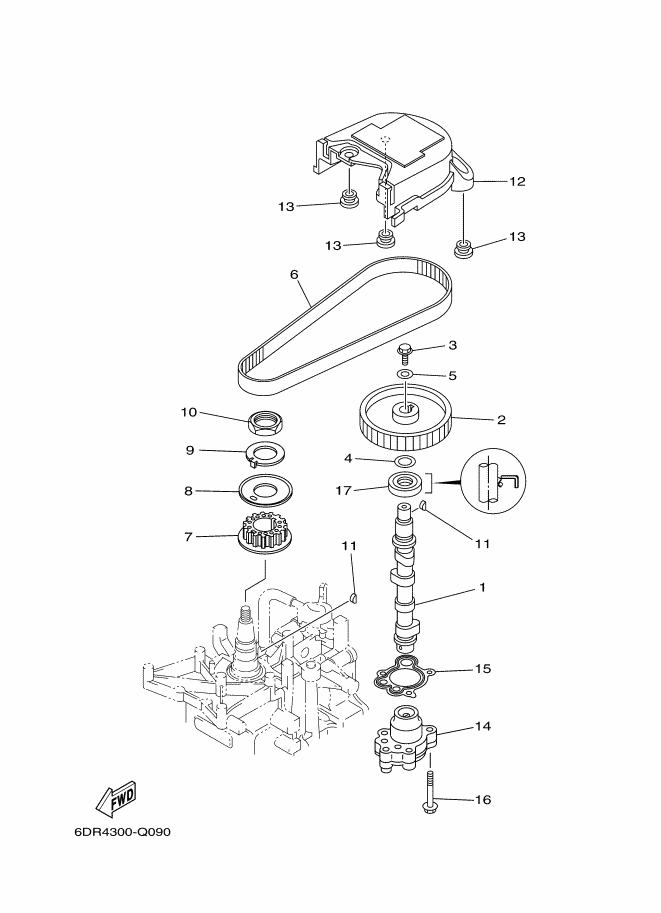

The exploded diagrams for the Yamaha f8fmhl - 2016 help separate the different assemblies before dismantling or replacement. They make it easier to locate compatible parts, confirm their position in the engine and identify the correct references for each maintenance or repair operation.

Yamaha f8fmhl - 2016 engine features
  • 8 HP output suited to a compact 4-stroke outboard engine
  • In-line twin-cylinder SOHC engine based on a displacement of 212 cm³
  • 9.4:1 compression ratio combined with a 56.0 × 43.0 mm bore and stroke
  • 0.8 L wet-sump lubrication associated with a carburettor fuel system
  • CDI ignition system completed by a 6 A alternator with rectifier-regulator

View exploded diagrams Yamaha f8fmhl - 2016
