This page allows you to view the exploded diagrams for the Yamaha f6d - 2023 4-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a well-known brand in the outboard engine industry. It offers engines designed to meet the needs of recreational and professional users, with ranges suited to maintenance, repair and operation in marine environments.

Un doute?  > contact us

Select an exploded diagram for your Yamaha f6d - 2023 4-stroke engine

Yamaha f6d - 2023 engine 6 HP 4-stroke

Yamaha f6d - 2023

The Yamaha f6d - 2023 is a 6 HP 4-stroke outboard powered by a 139 cm³ single-cylinder OHV engine. Its compact format suits small craft, short-distance boating and users requiring an auxiliary engine that is easy to transport.

Its configuration includes carburettor fuel delivery, CDI ignition and a wet-sump lubrication system. Manual starting and tiller control provide direct operation, while the 0.6 L engine oil capacity is a useful specification for routine servicing.

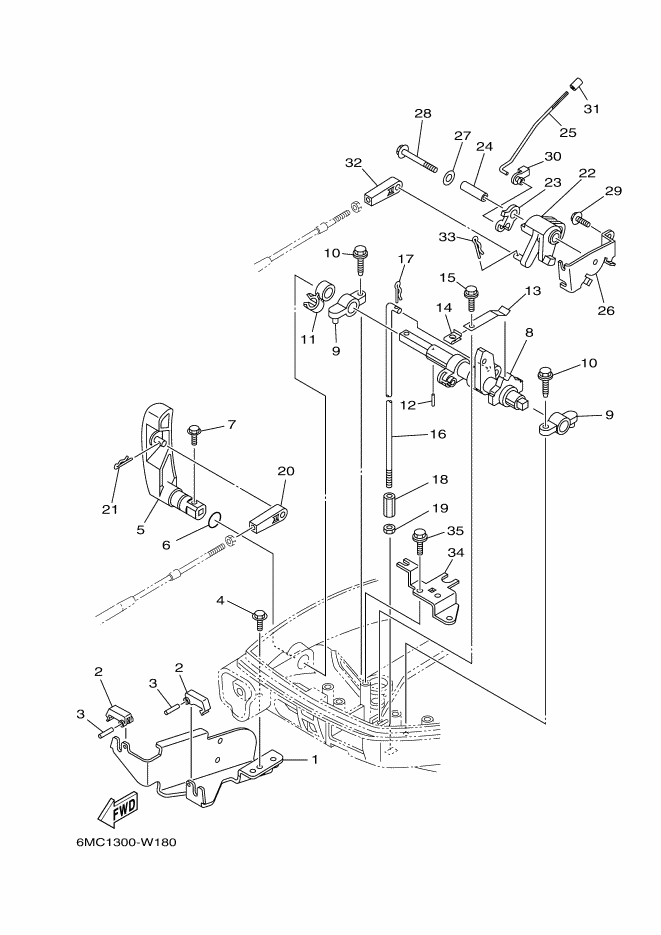

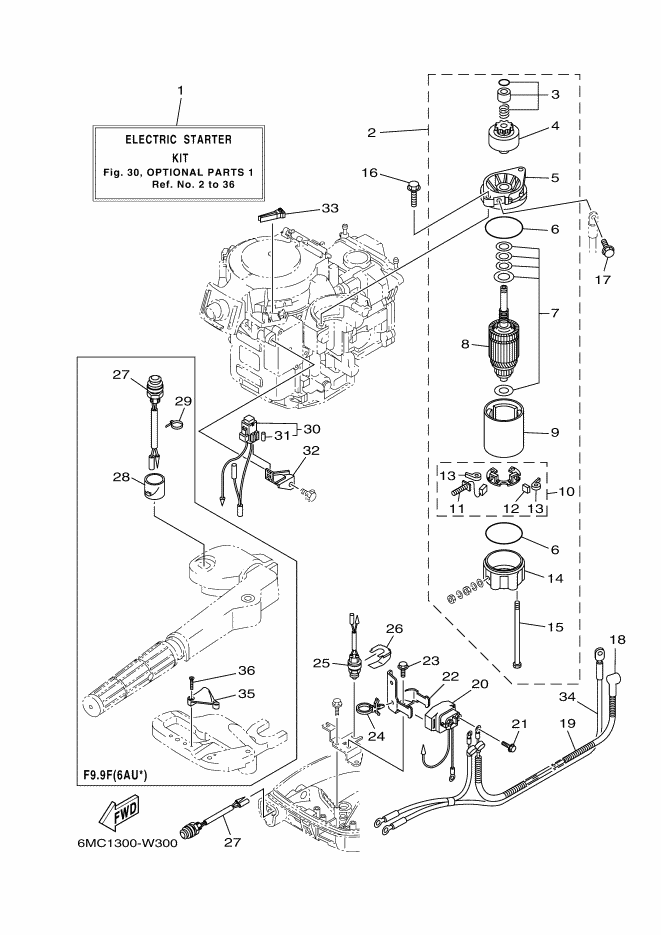

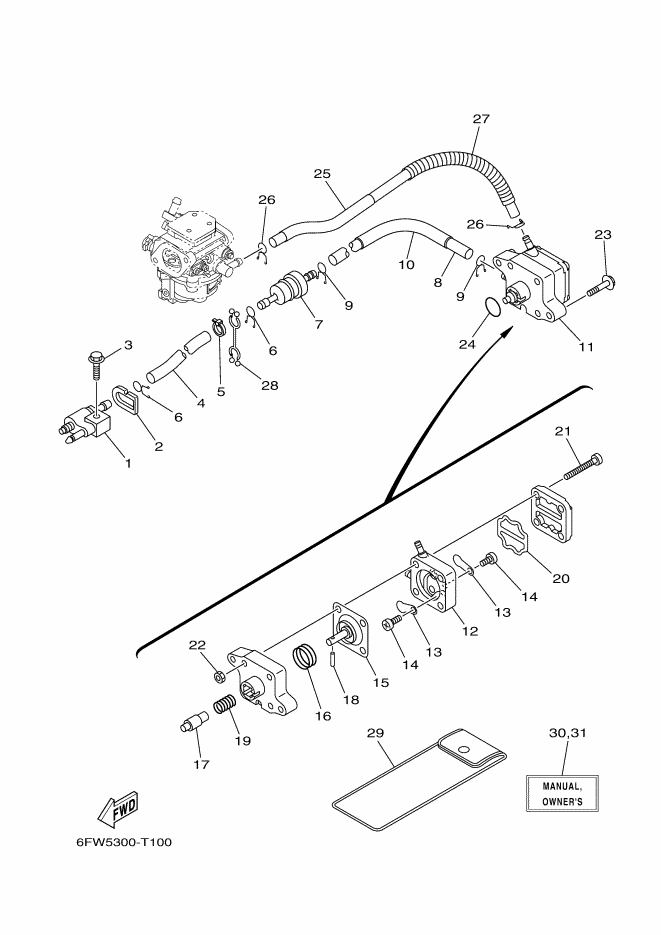

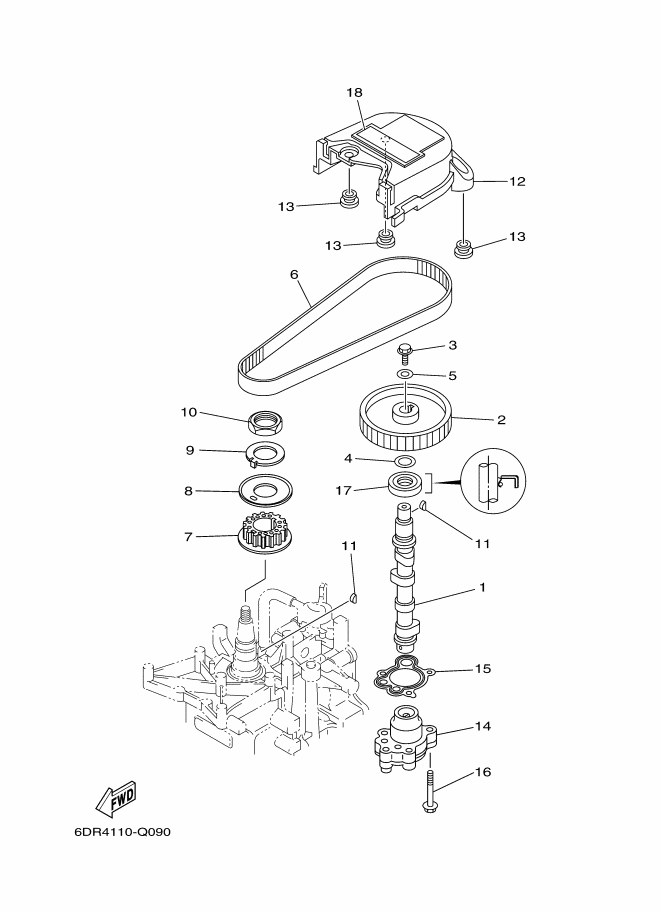

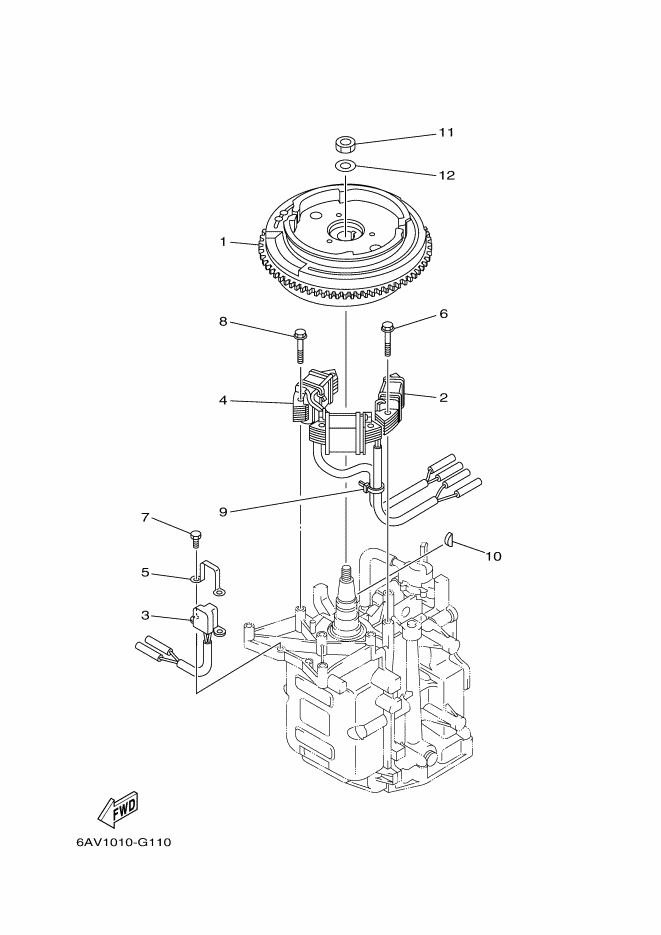

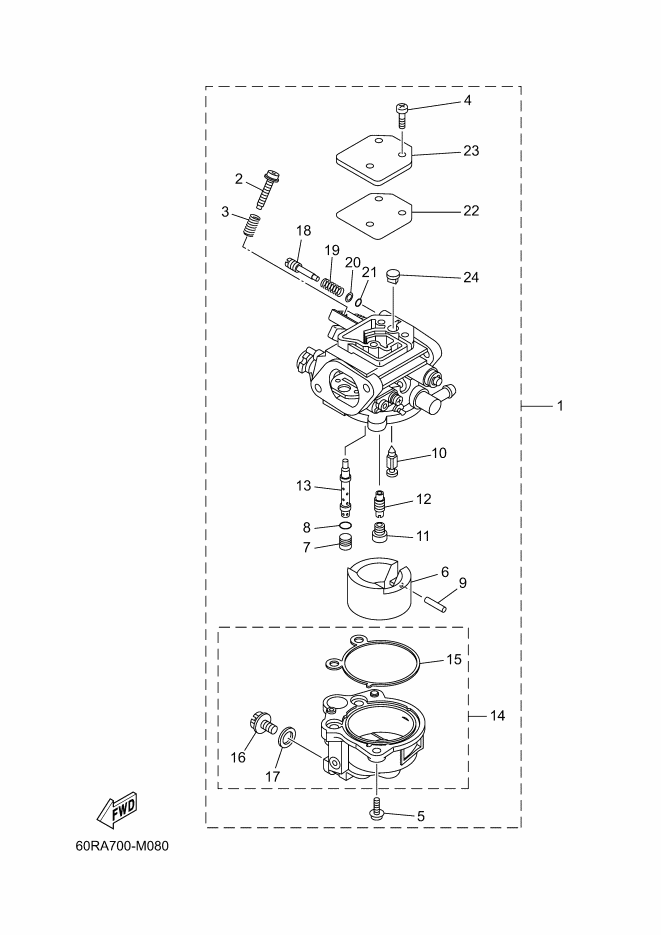

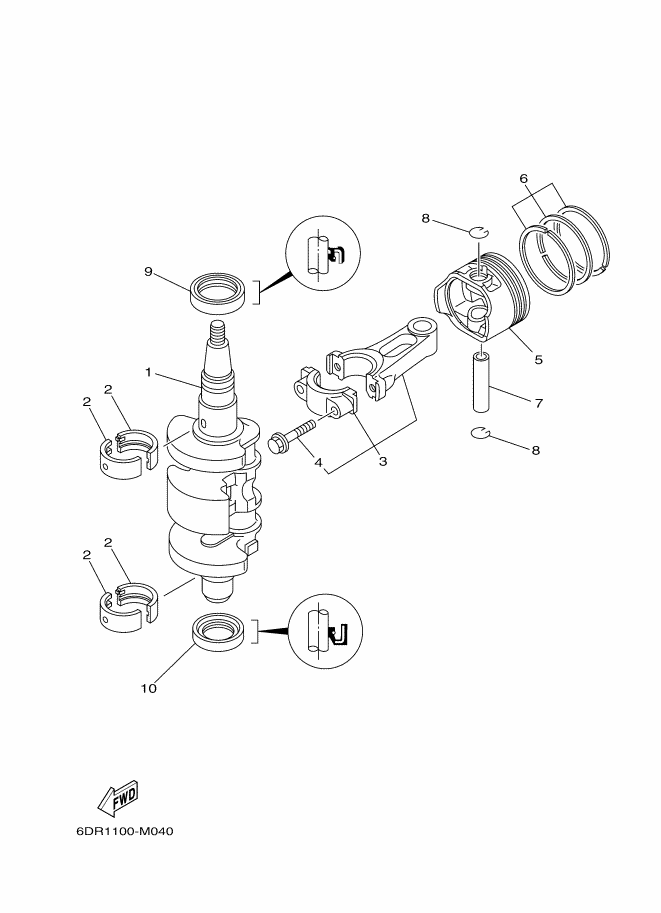

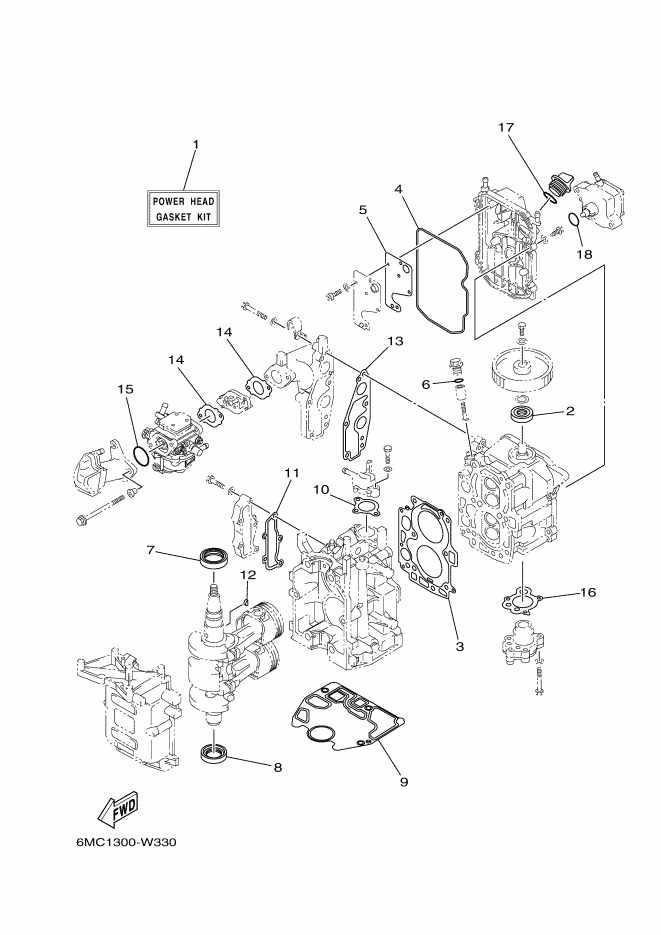

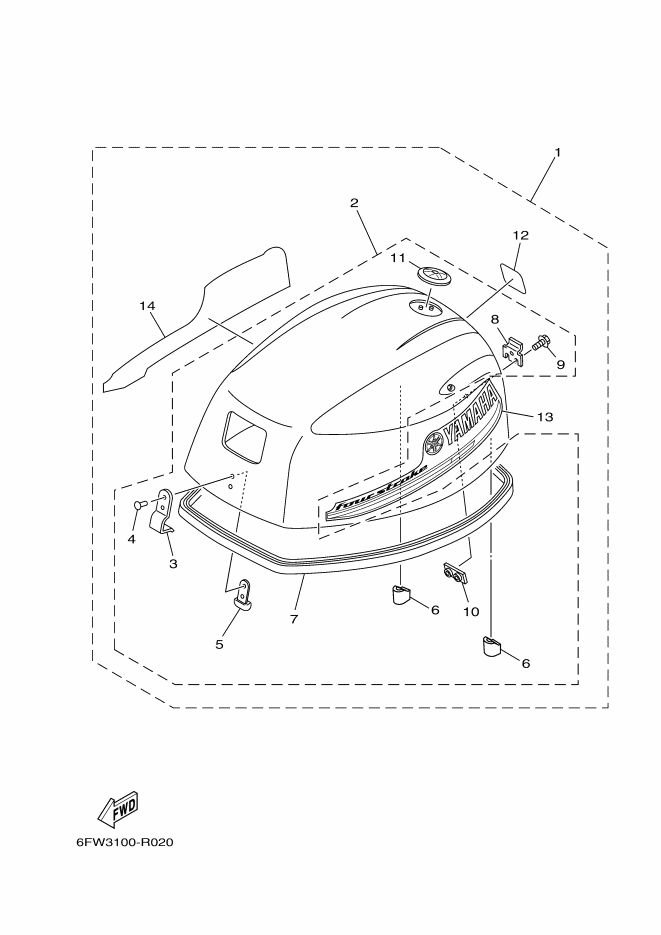

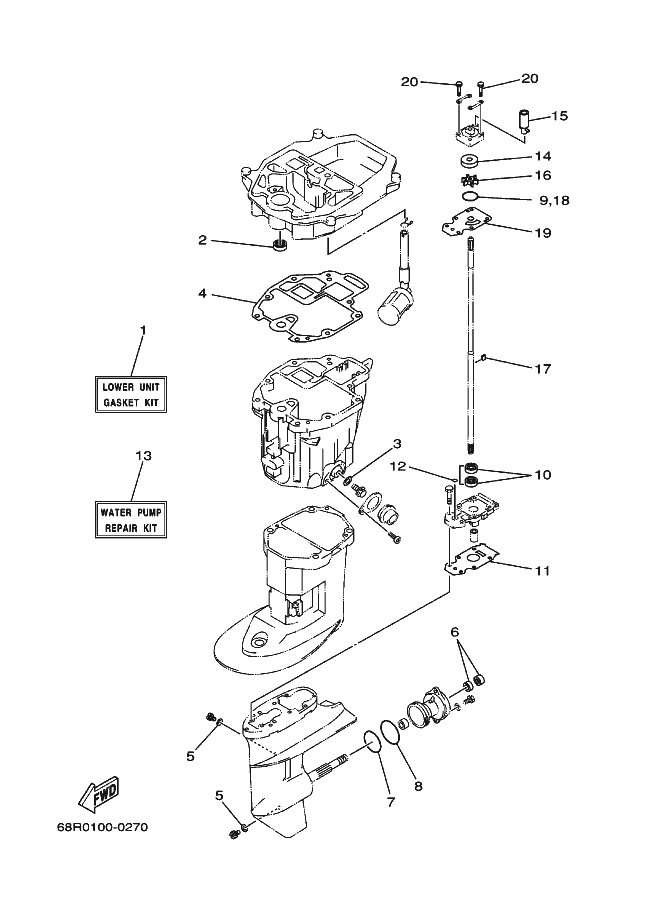

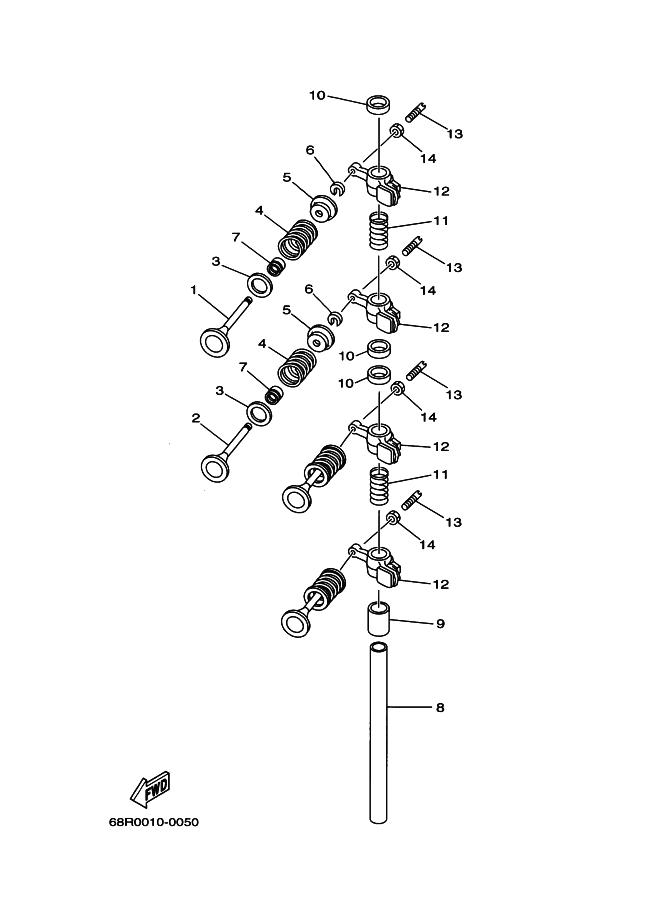

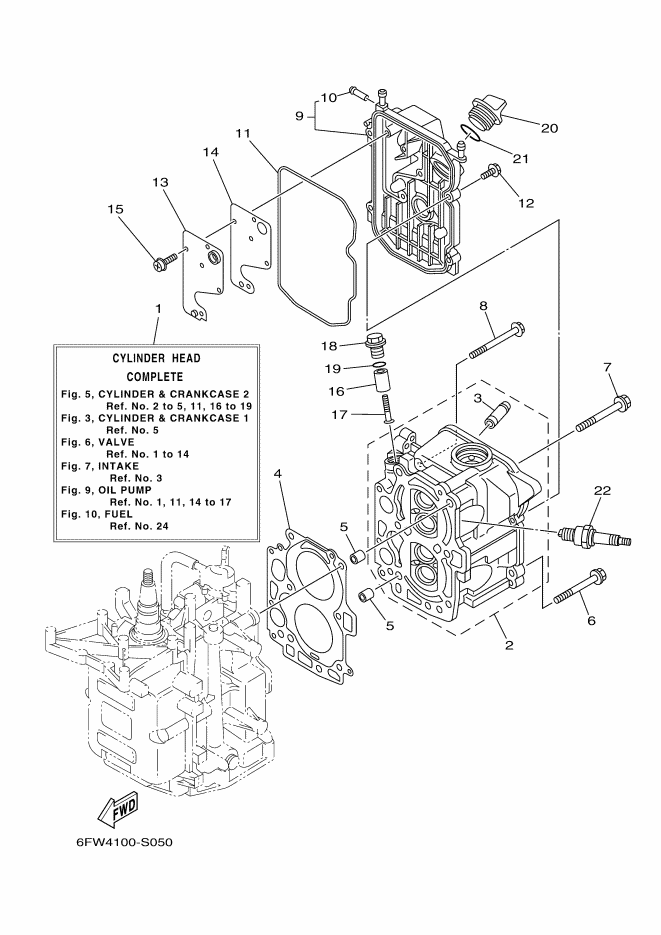

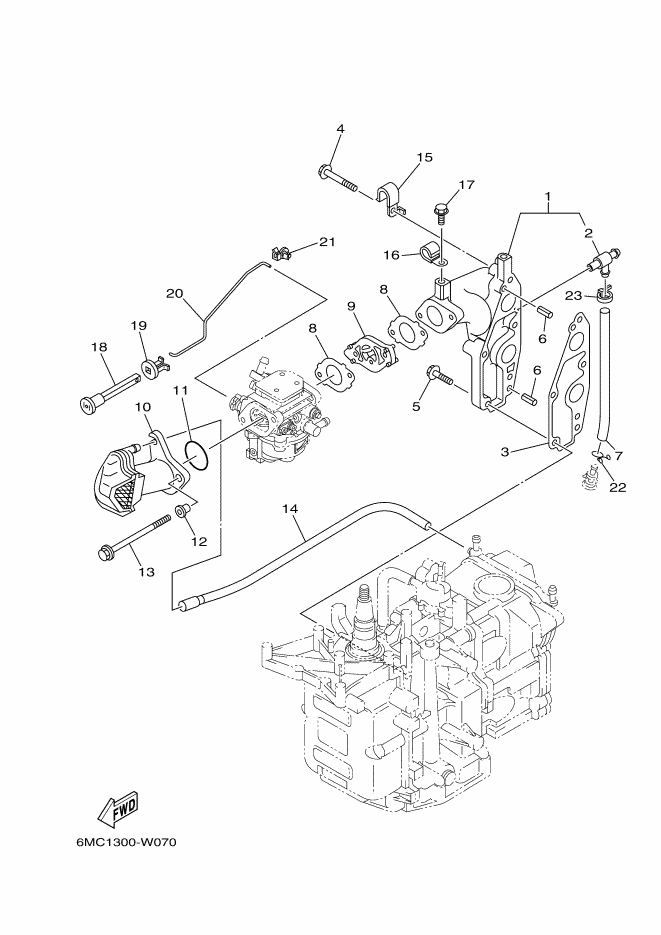

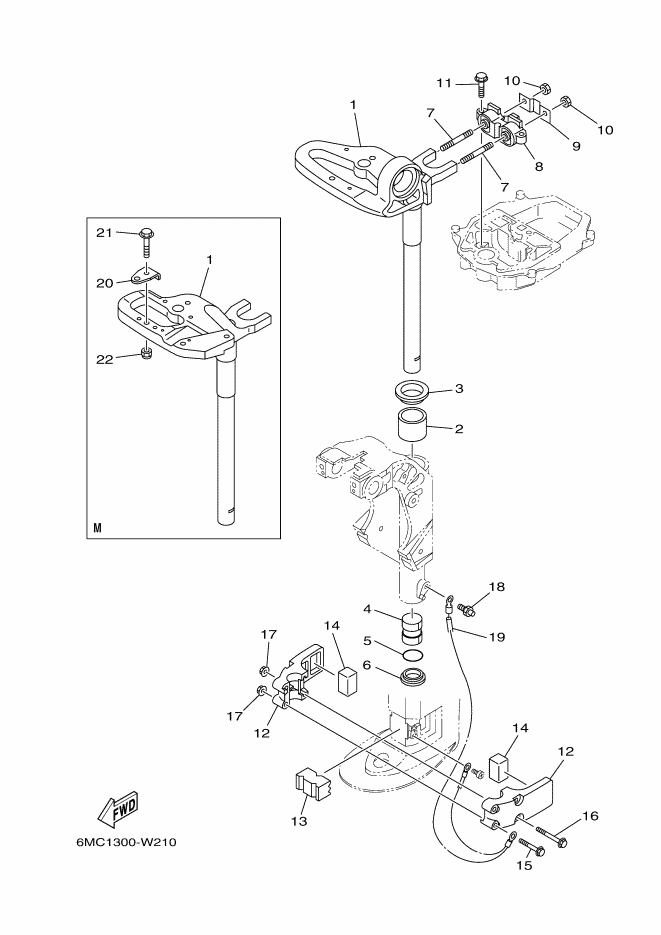

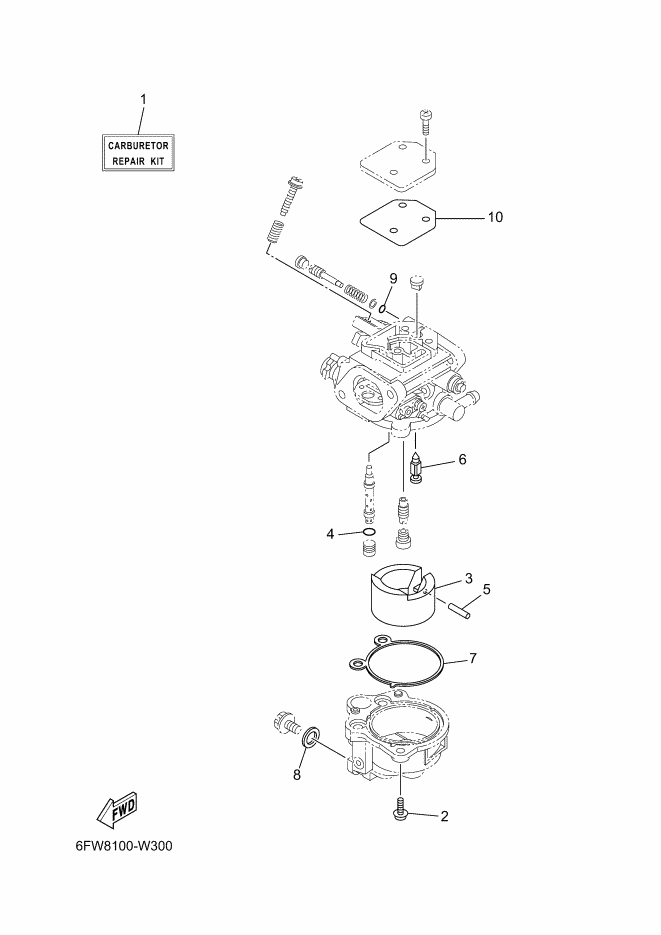

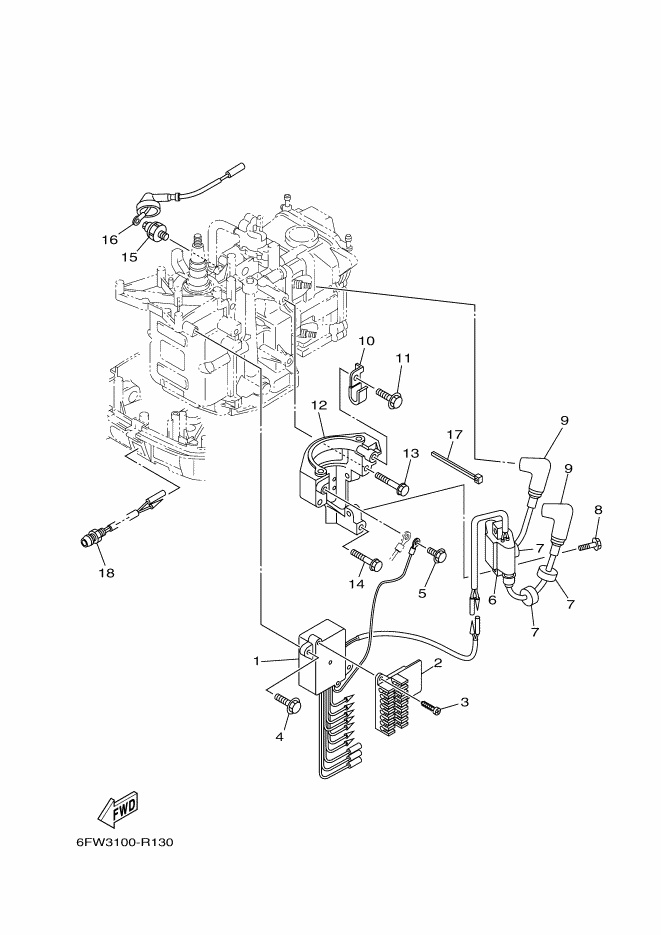

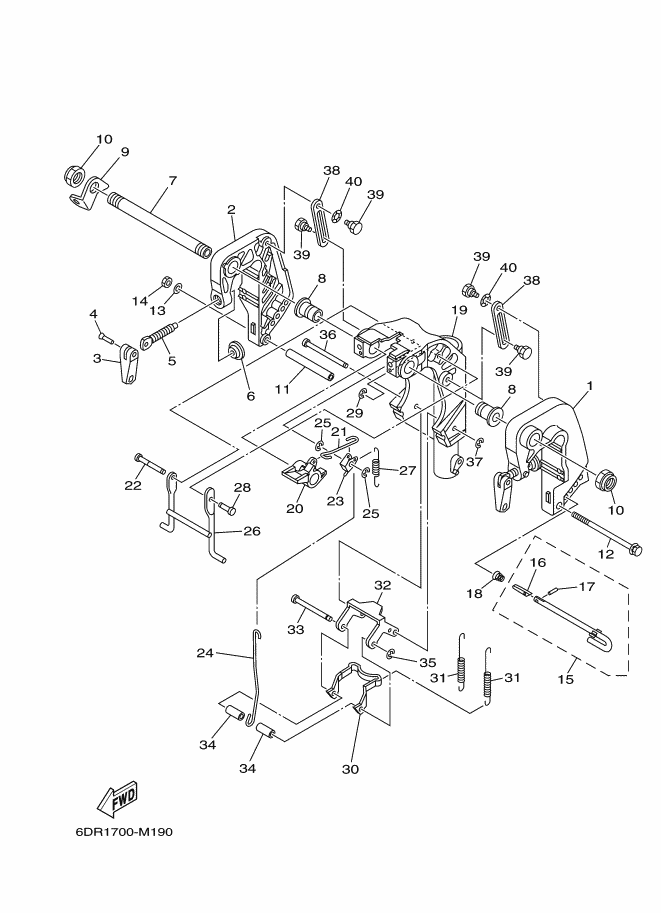

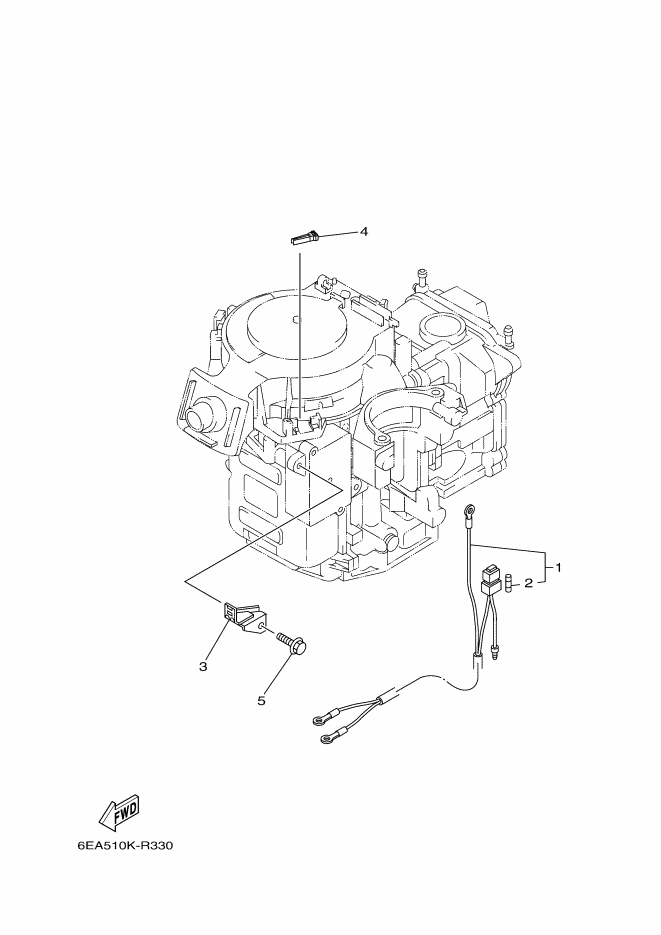

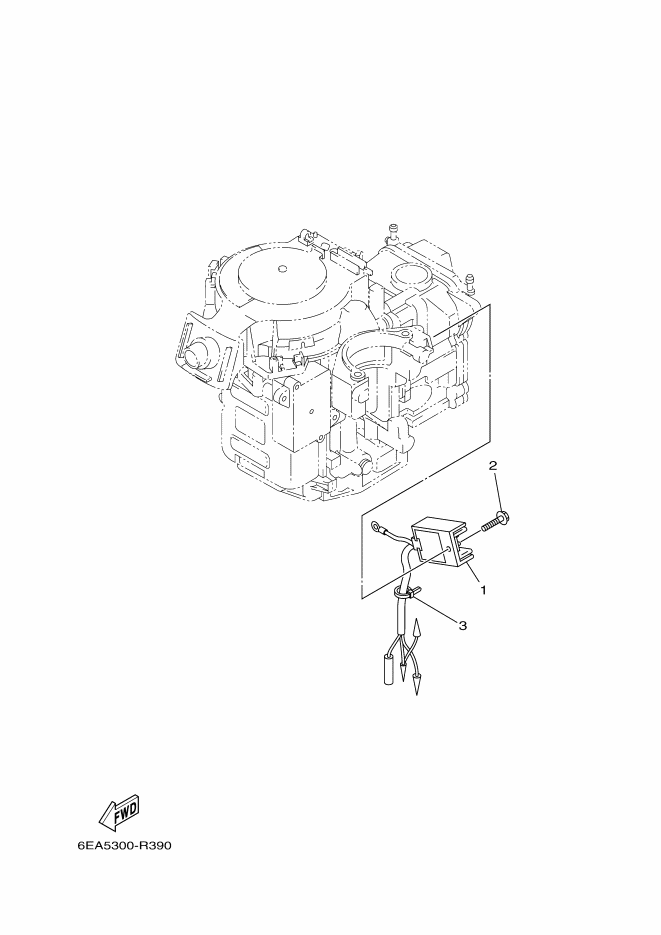

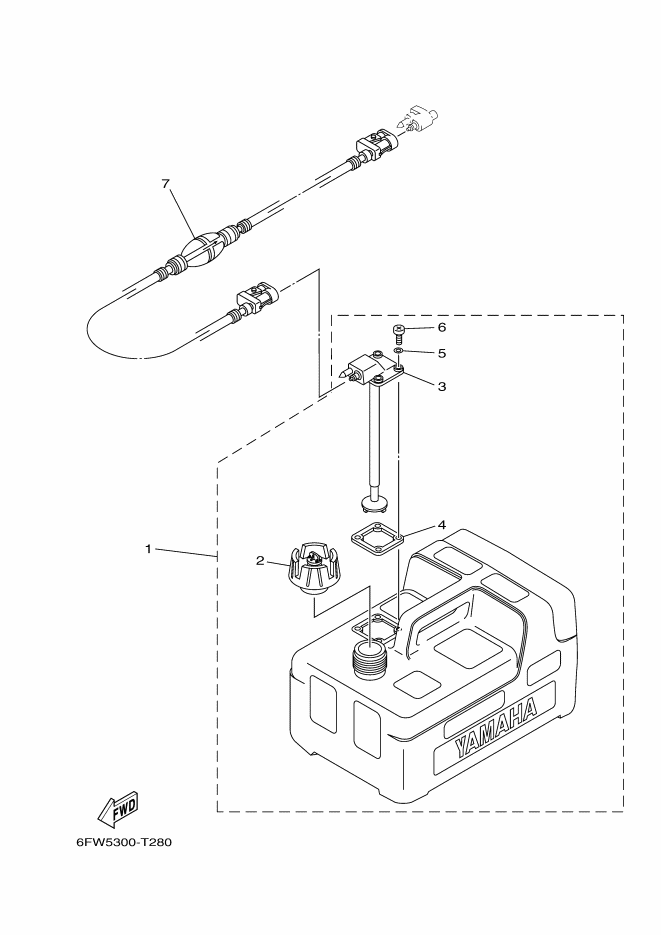

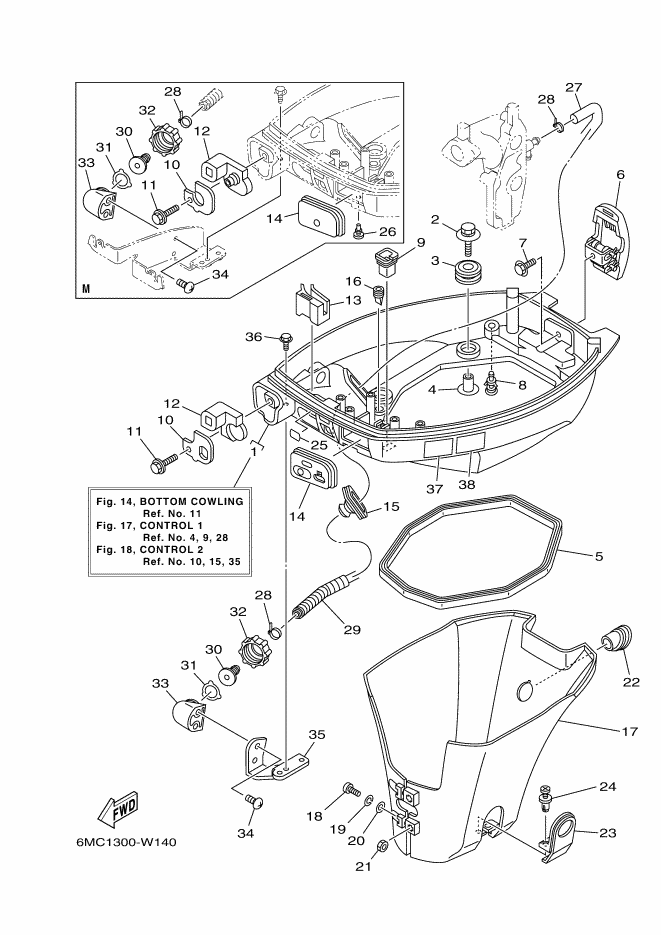

The exploded diagrams make it easier to examine each mechanical assembly and accurately locate its components. They help verify part numbers, identify compatible parts and prepare dismantling, maintenance or repair work more efficiently.

Features of the Yamaha f6d - 2023 engine
  • 6 HP output suited to small craft and auxiliary engine applications
  • 139 cm³ single-cylinder OHV engine providing a compact mechanical layout
  • 62.0 × 46.0 mm bore and stroke combined with an 8.9:1 compression ratio
  • Single-carburettor fuel system supplying the fuel required for operation
  • Wet-sump lubrication with an engine oil capacity of 0.6 L

View exploded diagrams Yamaha f6d - 2023

View all compatible parts
