Parts and exploded diagrams for Yamaha f6bmhl - 2006 4-stroke engine

Parts and exploded diagrams for Yamaha f6bmhl - 2006 4-stroke engine

Yamaha logo

This page allows you to view the exploded diagrams for the Yamaha f6bmhl - 2006 4-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a recognised brand in the outboard engine sector. It offers engines designed to meet the needs of recreational boaters and professionals, with ranges suited to maintenance, repairs and use in marine environments.

Un doute?  > contact us

Select an exploded diagram for your Yamaha f6bmhl - 2006 4-stroke engine

Yamaha f6bmhl - 2006 engine 6 HP 4-stroke

Yamaha f6bmhl - 2006

Designed for use on small boats, the Yamaha f6bmhl - 2006 is a portable 6 HP 4-stroke outboard. Its 139 cm³ single-cylinder OHV engine is housed in a compact design that can also meet auxiliary propulsion requirements.

The engine block has a 62.0 mm bore and a 46.0 mm stroke, combined with an 8.9:1 compression ratio. Fuel intake is provided by one carburettor, while the wet-sump lubrication system holds 0.6 L of oil and ignition is controlled by a CDI system.

Before maintenance or repair work, the exploded diagrams for the Yamaha f6bmhl - 2006 show how its different components are arranged. They help locate a part, check the corresponding reference and select the compatible parts suited to the planned operation.

Yamaha f6bmhl - 2006 engine specifications
  • 6 HP output intended for small boats and auxiliary propulsion applications
  • Single-cylinder OHV 4-stroke architecture incorporated into a compact and portable engine
  • 139 cm³ displacement with a 62.0 mm bore and a 46.0 mm stroke
  • Carburettor intake system based on a single carburettor
  • CDI ignition combined with a 0.6 L wet-sump lubrication system

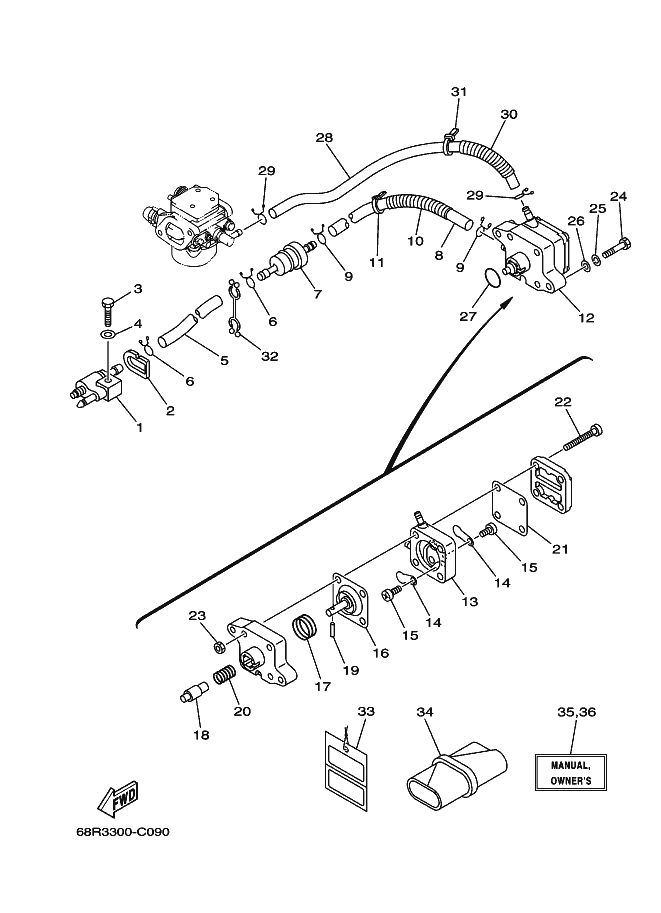

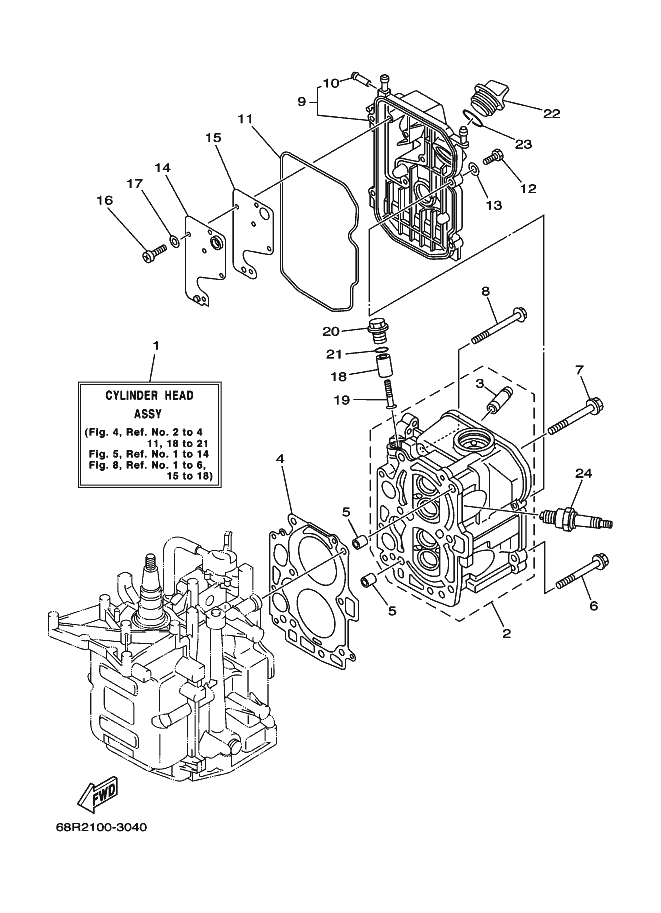

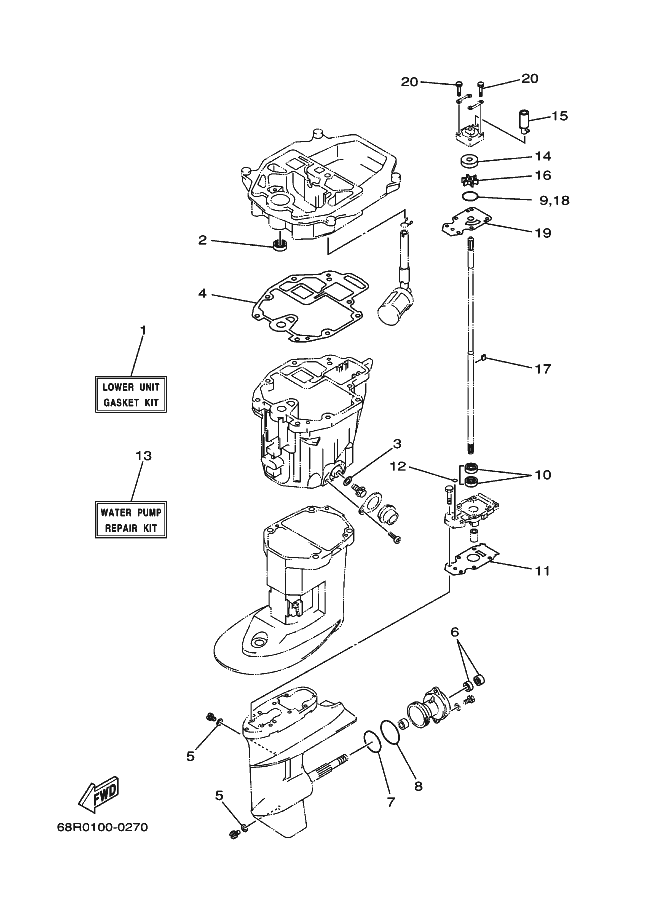

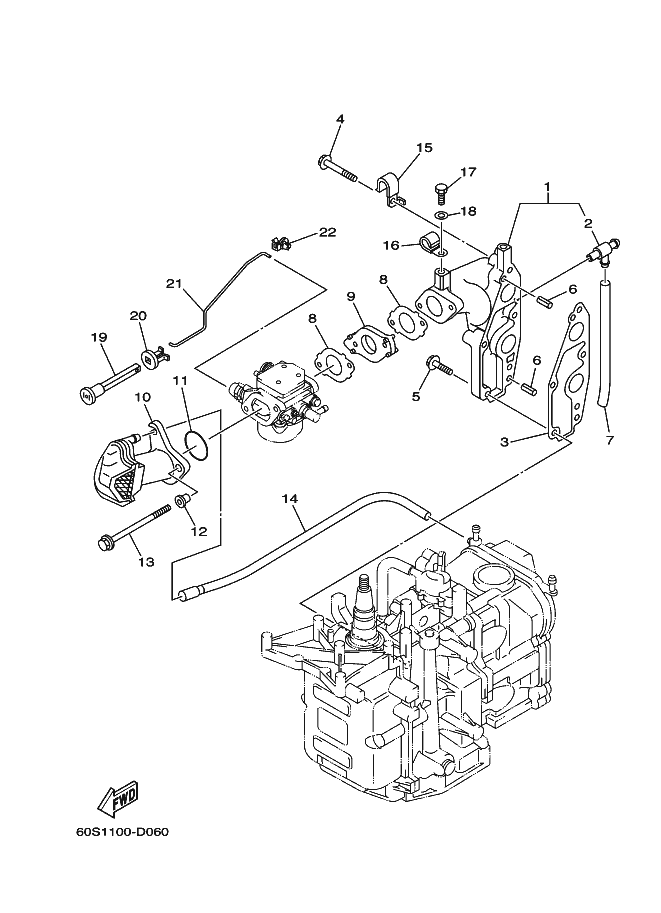

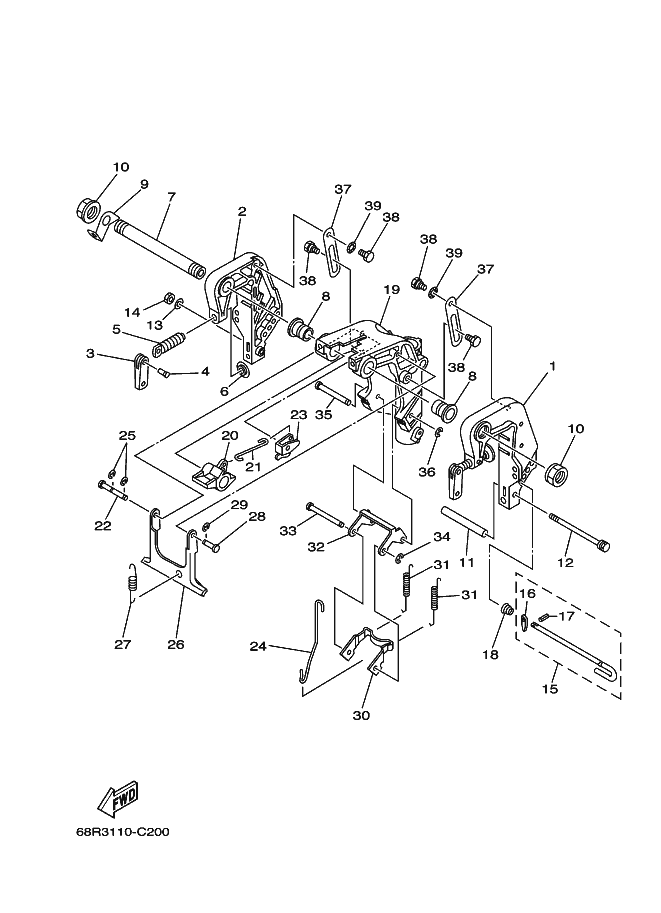

View exploded diagrams Yamaha f6bmhl - 2006

View all compatible parts

Exploded views
