Parts and exploded diagrams for Yamaha f6a - 2007 4-stroke engine

Parts and exploded diagrams for Yamaha f6a - 2007 4-stroke engine

Yamaha logo

This page allows you to view the exploded diagrams for the Yamaha f6a - 2007 4-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a recognised brand in the outboard engine sector. It offers engines designed to meet the needs of recreational boaters and professionals, with ranges suited to maintenance, repairs and use in marine environments.

Un doute?  > contact us

Select an exploded diagram for your Yamaha f6a - 2007 4-stroke engine

Yamaha f6a - 2007 engine 6 HP 4-stroke

Yamaha f6a - 2007

Designed for small boats, the Yamaha f6a - 2007 is a portable 6 HP 4-stroke outboard. Its single-cylinder OHV engine has a displacement of 139 cm³ and brings its main components together in a compact unit.

The engine uses a 62.0 mm bore and a 46.0 mm stroke, combined with an 8.9:1 compression ratio. Fuel delivery is handled by one carburettor, while CDI ignition and wet-sump lubrication with a 0.6 L oil capacity support its operation.

The exploded diagrams show how the Yamaha f6a - 2007 is organised before servicing begins. They make it easier to locate assemblies, check part references and identify the compatible parts required for engine maintenance or repair.

Yamaha f6a - 2007 engine specifications
  • 6 HP output suitable for small boats and auxiliary propulsion
  • Single-cylinder OHV 4-stroke engine housed in a portable format
  • 139 cm³ displacement combined with a bore and stroke of 62.0 × 46.0 mm
  • Carburettor intake system based on a single carburettor
  • Wet-sump lubrication with 0.6 L of engine oil and CDI ignition

View exploded diagrams Yamaha f6a - 2007

View all compatible parts

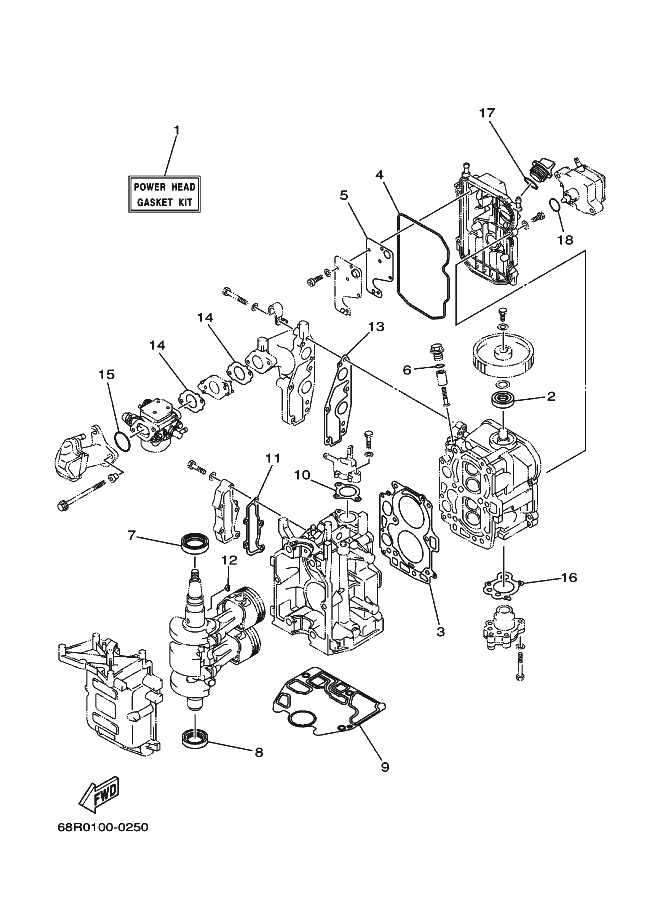

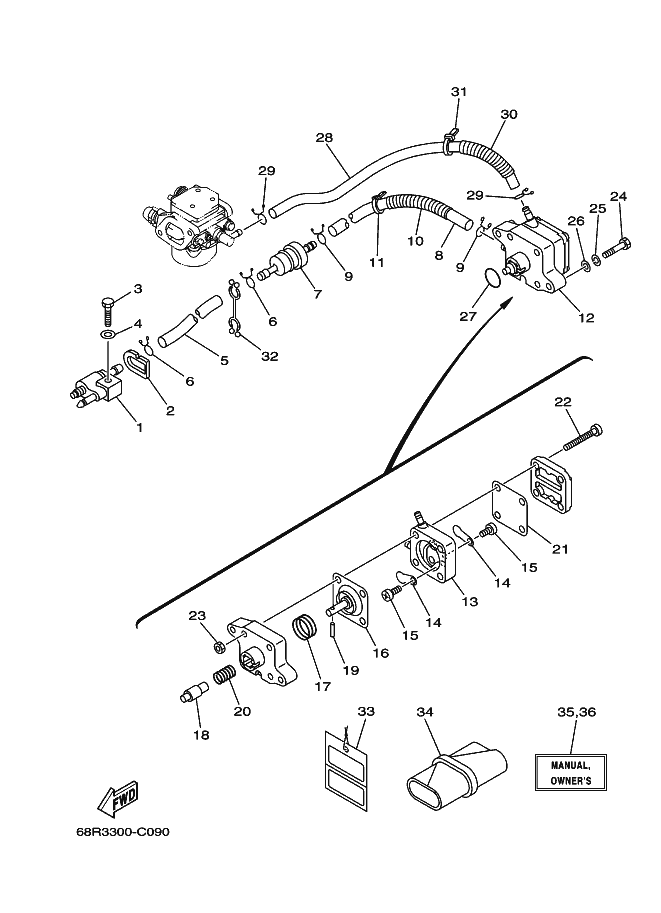

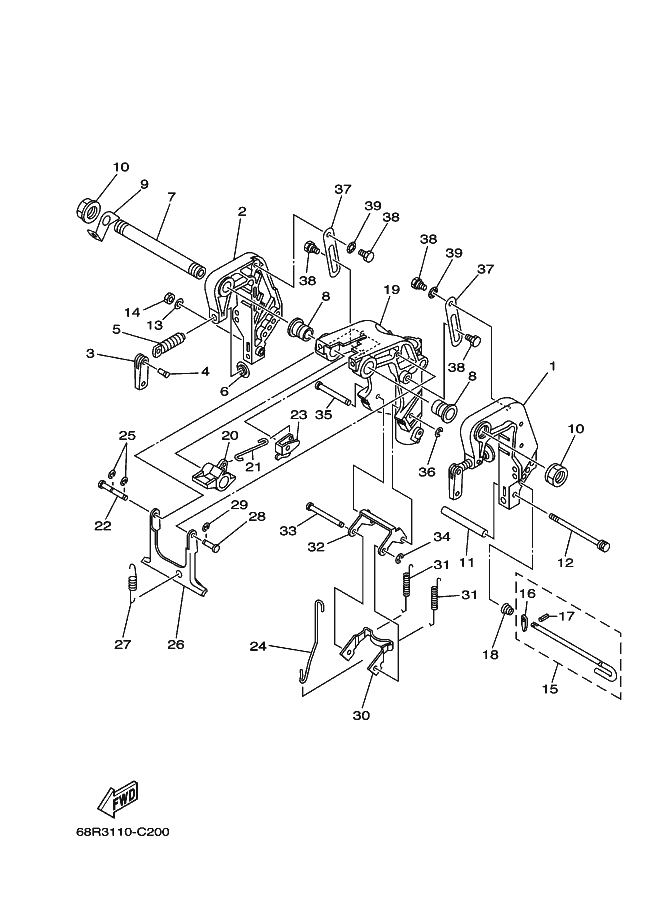

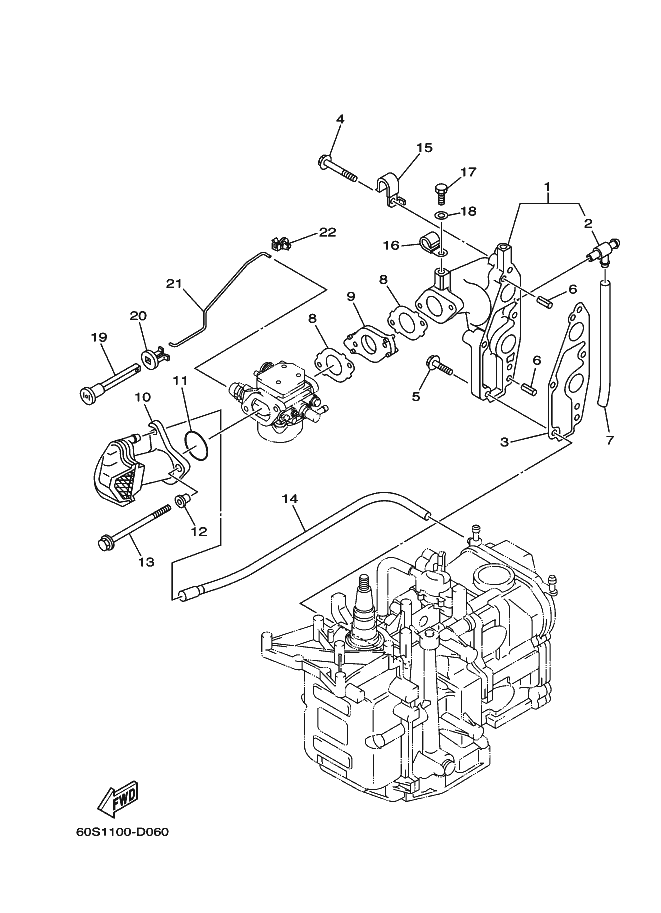

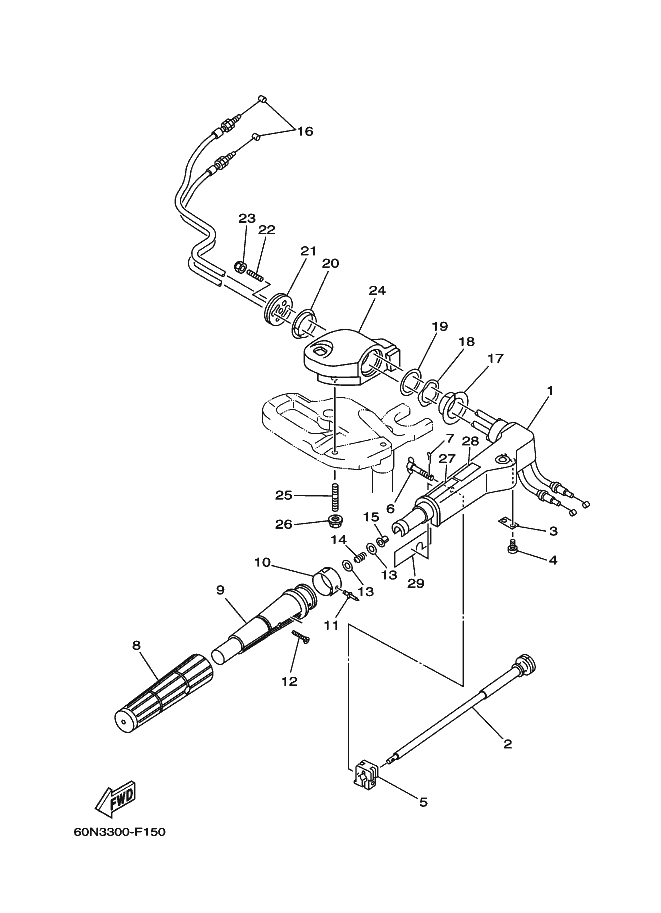

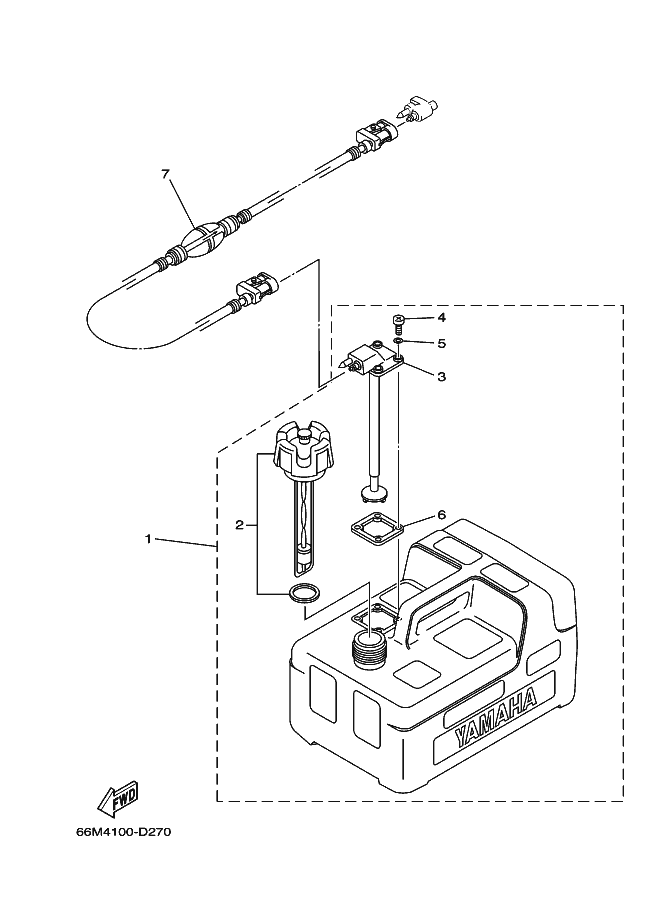

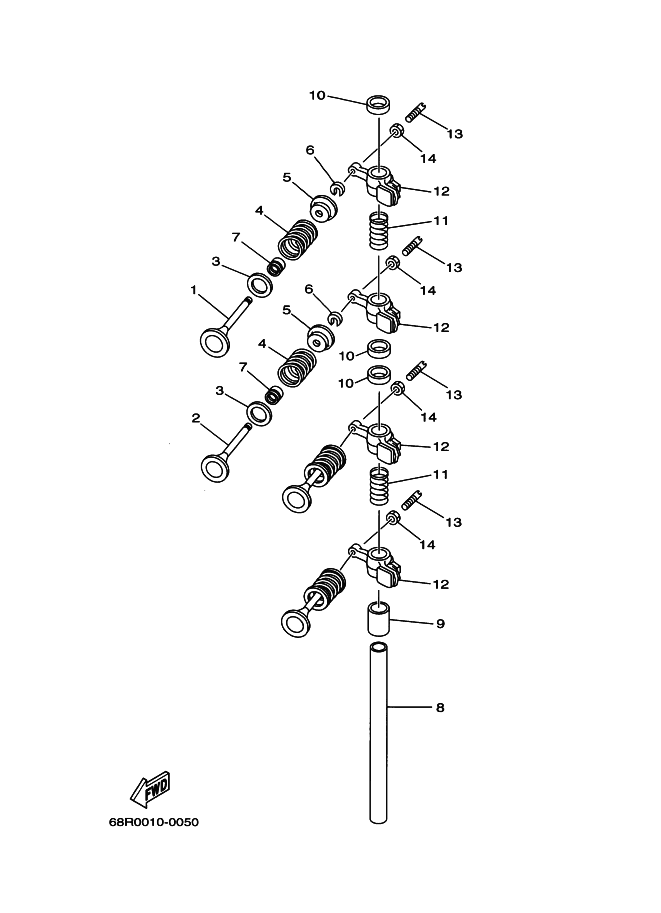

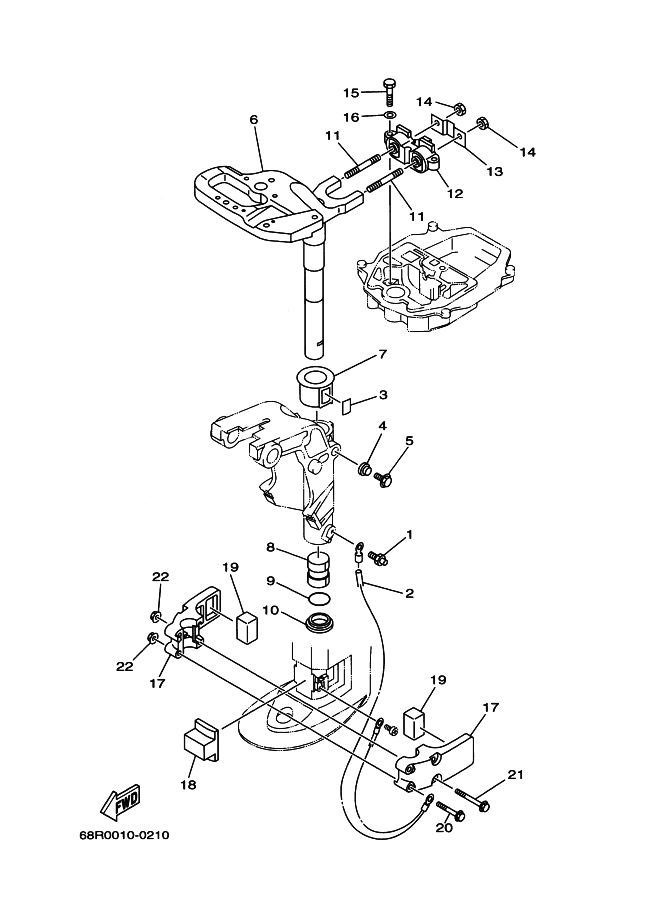

Exploded views
