Parts and exploded diagrams for Yamaha f4bmhl - 2019 - 4-stroke engine
This page lets you view the exploded diagrams for the Yamaha f4bmhl - 2019 - 4-stroke engine and easily identify the compatible parts for your outboard.
Yamaha is a well-known brand in the world of outboard engines. It offers engines designed to meet the needs of leisure boaters and professionals, with ranges suited to maintenance, repair and marine use.
Select an exploded diagram for your Yamaha f4bmhl - 2019 - 4-stroke engine
Yamaha f4bmhl - 2019
The Yamaha f4bmhl - 2019 is a portable 4 HP 4-stroke outboard engine designed for small boats, tenders and light cruising. Its 139 cc single-cylinder OHV engine, carburettor fuel system and wet sump lubrication provide a simple, economical and easy-to-maintain power unit.
With manual starting, tiller steering, a carrying handle and a built-in 1.1 L fuel tank, this Yamaha 4 HP outboard focuses on mobility and ease of use. Depending on the configuration, it can be fitted with a 15-inch short shaft or a 20-inch long shaft, with standard clockwise rotation and the option to connect an external fuel tank.

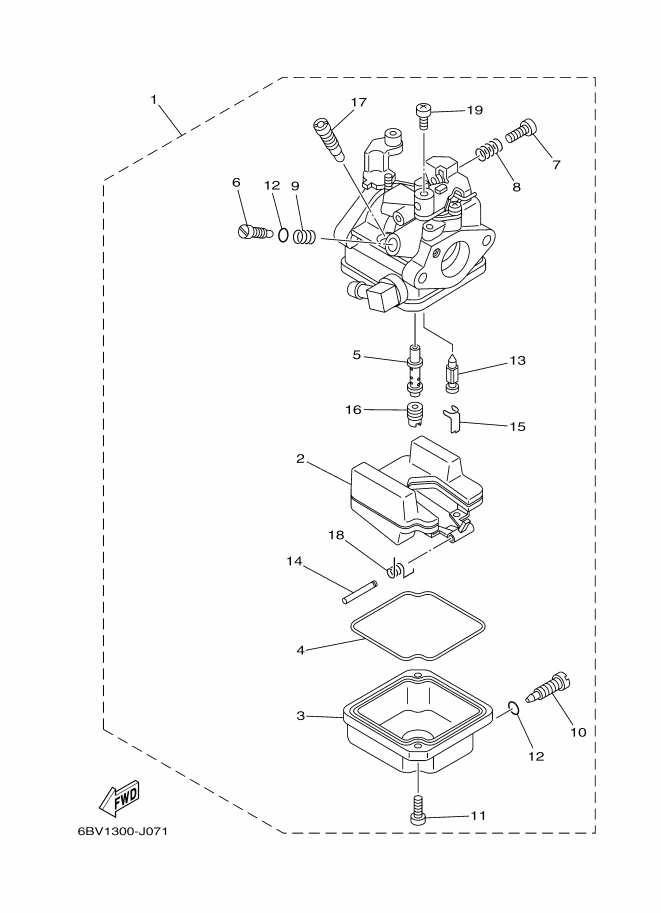

The exploded diagrams help you quickly identify the references needed for maintenance or repair: CDI ignition parts, carburettor components, gaskets, lower unit parts, propeller items, control accessories and routine service parts. They make it easier to find compatible parts and keep your engine in reliable working condition.
Features of the Yamaha f4bmhl - 2019 engine- 4 HP 4-stroke power suited to tenders, small hulls and portable use.
- 139 cc single-cylinder OHV engine with a 62.0 × 46.0 mm bore and stroke.
- Carburettor fuel system for a simple design that is practical to maintain.
- Manual start and tiller control for direct operation without remote controls.
- Easy transport with integrated carrying handle, leak-free storage and 90° turning to each side.
See exploded views "Yamaha f4bmhl - 2019"
