This page allows you to view the exploded views for the Yamaha f4a - 2001 - 4-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a well-known brand in the world of outboard engines. It offers engines designed to meet the needs of both leisure boaters and professionals, with ranges suited to maintenance, repair and marine use.

Un doute?  > contact us

Select an exploded view for your Yamaha f4a - 2001 - 4-stroke engine

Yamaha f4a - 2001 4 hp 4-stroke engine

Yamaha f4a - 2001

The Yamaha f4a - 2001 is a portable 4 hp 4-stroke outboard engine suited to tenders, small boats and short-distance boating. Compact and easy to handle, it provides a practical solution for boaters looking for a lightweight, economical and simple-to-maintain engine.

This Yamaha 4-stroke engine is based on a 139 cm³ single-cylinder OHV design, with a carburettor fuel system, wet sump lubrication and CDI ignition. Its manual start, tiller handle control and standard clockwise rotation make it straightforward to use on a daily basis.

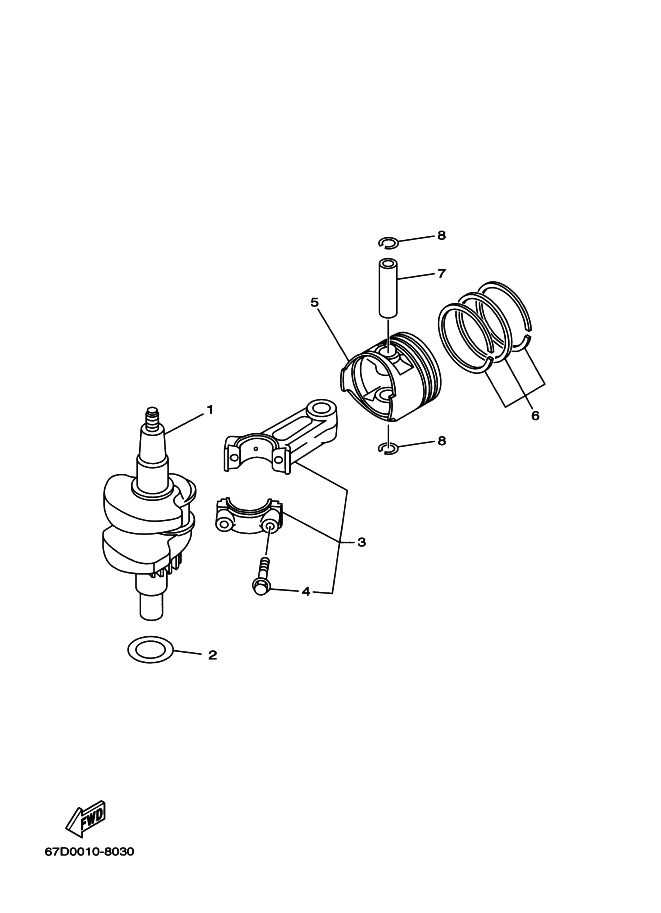

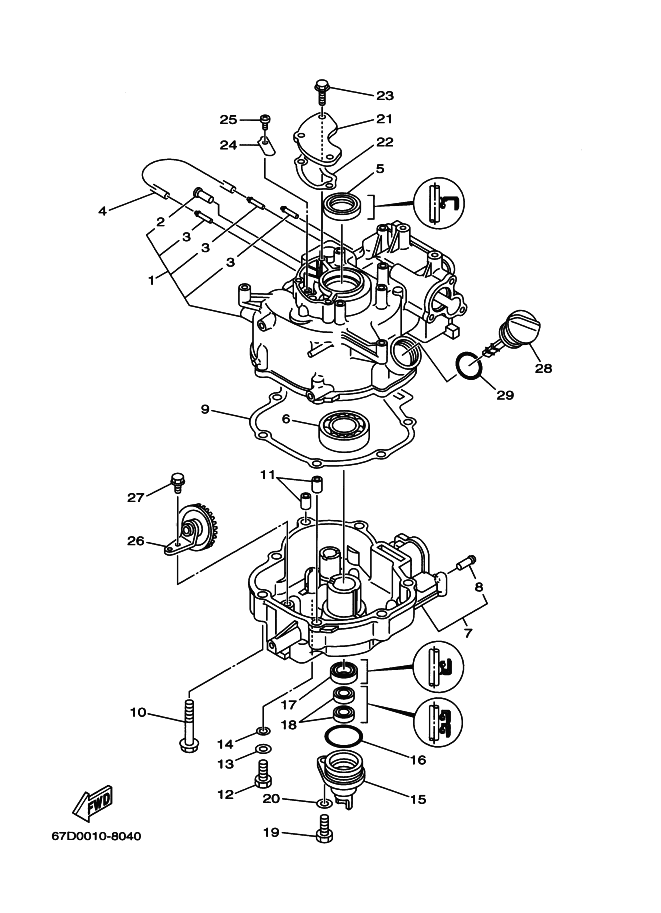

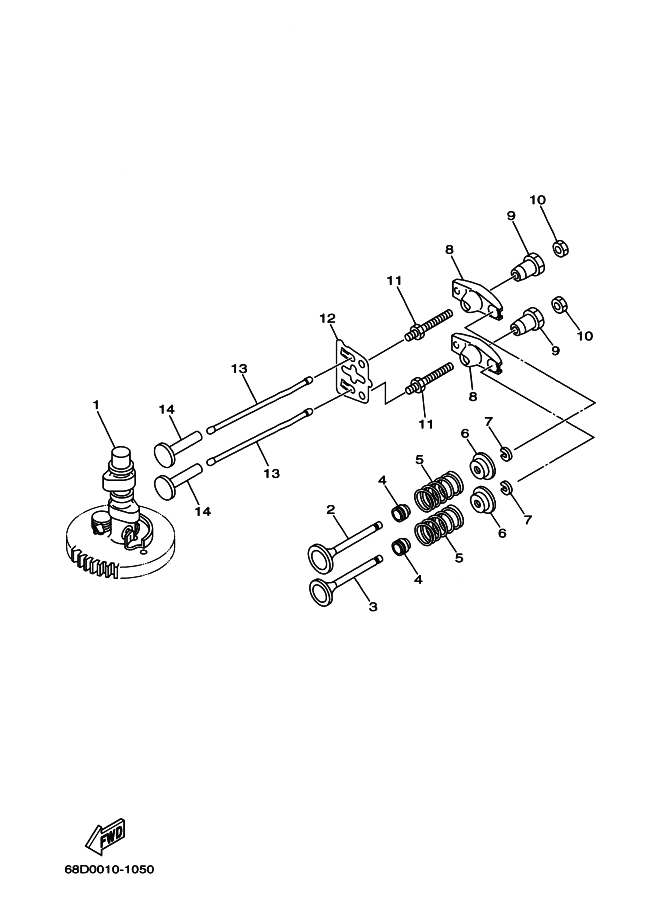

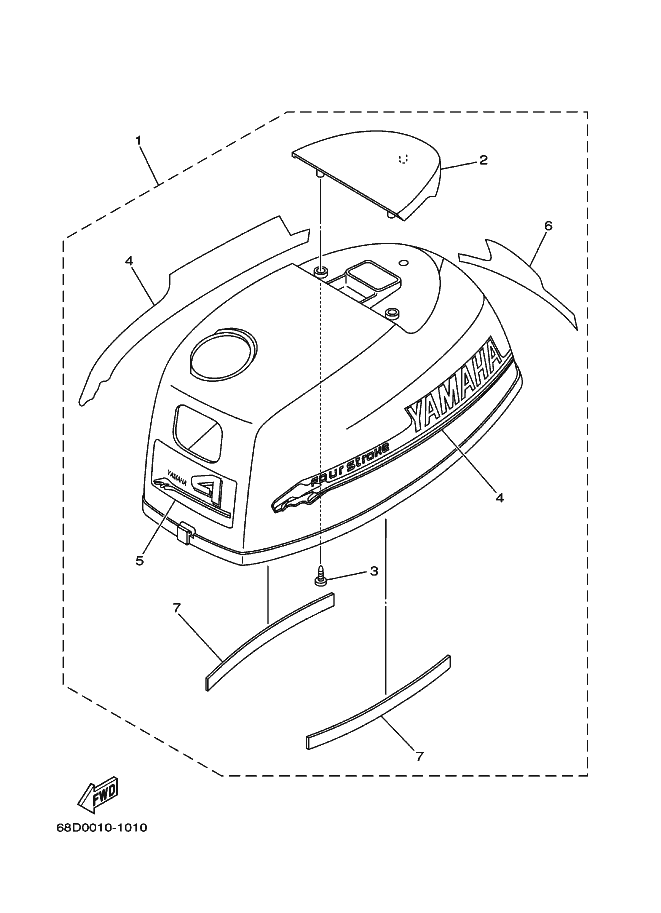

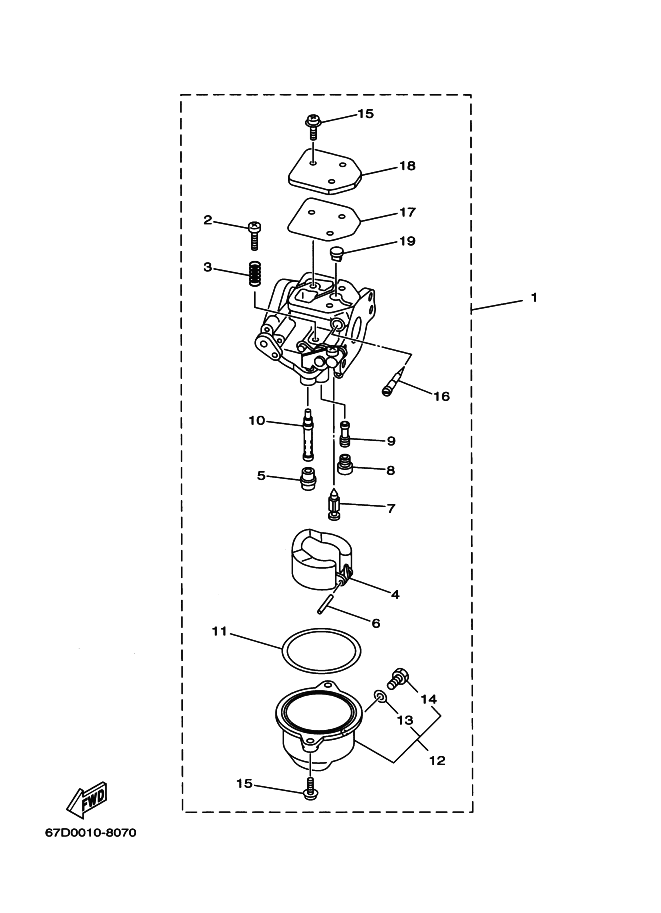

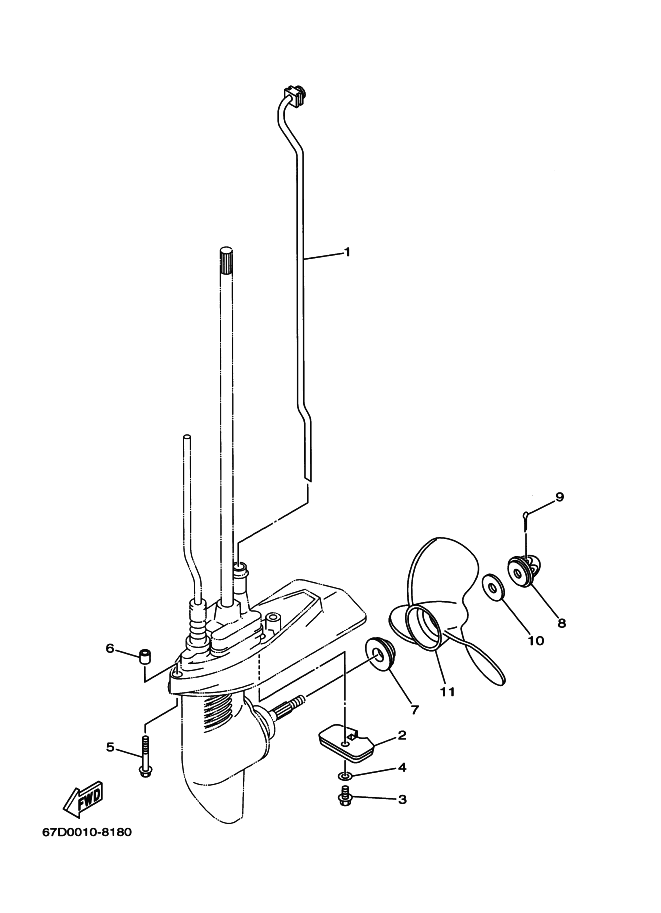

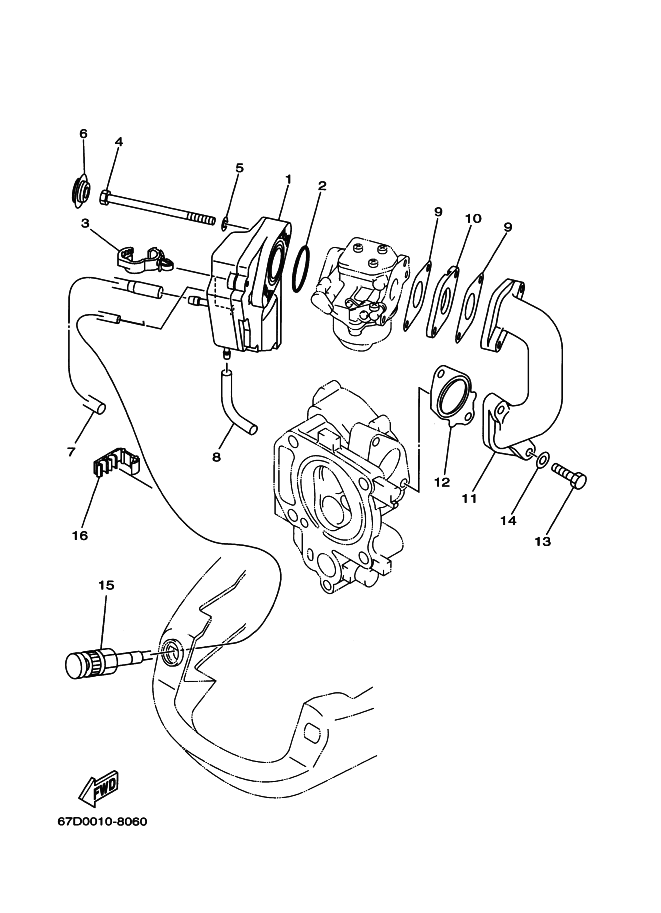

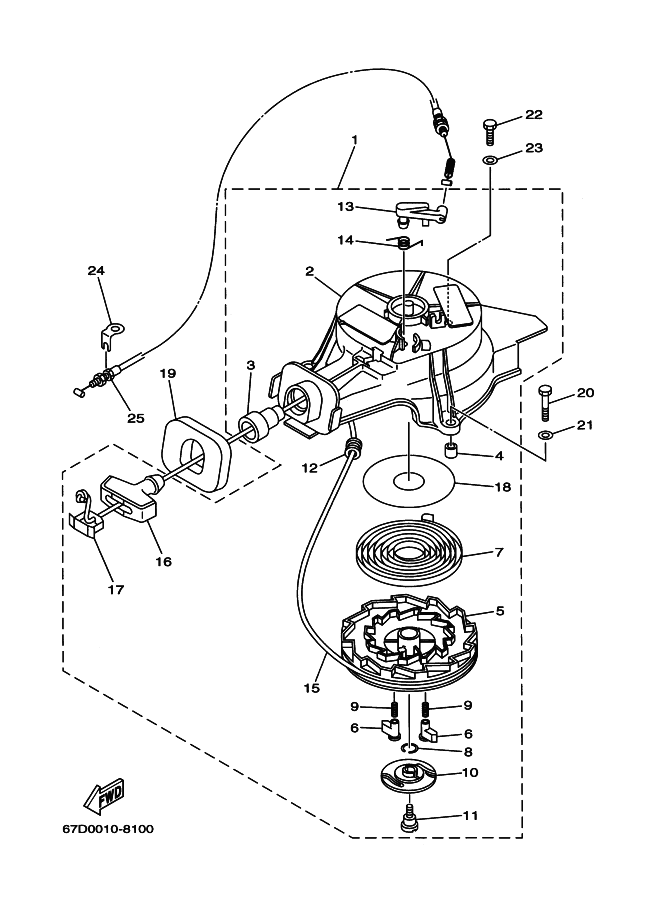

The exploded views for the Yamaha f4a - 2001 help you locate each engine component, check the required references and order compatible parts for outboard maintenance or repair.

Yamaha f4a - 2001 engine features
  • 4 hp 4-stroke power for practical use on tenders and small boats
  • Single-cylinder OHV engine with a 139 cm³ displacement for a compact design
  • Carburettor fuel system for simple operation and accessible maintenance
  • Manual start and tiller handle for direct control while boating
  • Short or long shaft depending on version with standard clockwise rotation and manual tilt

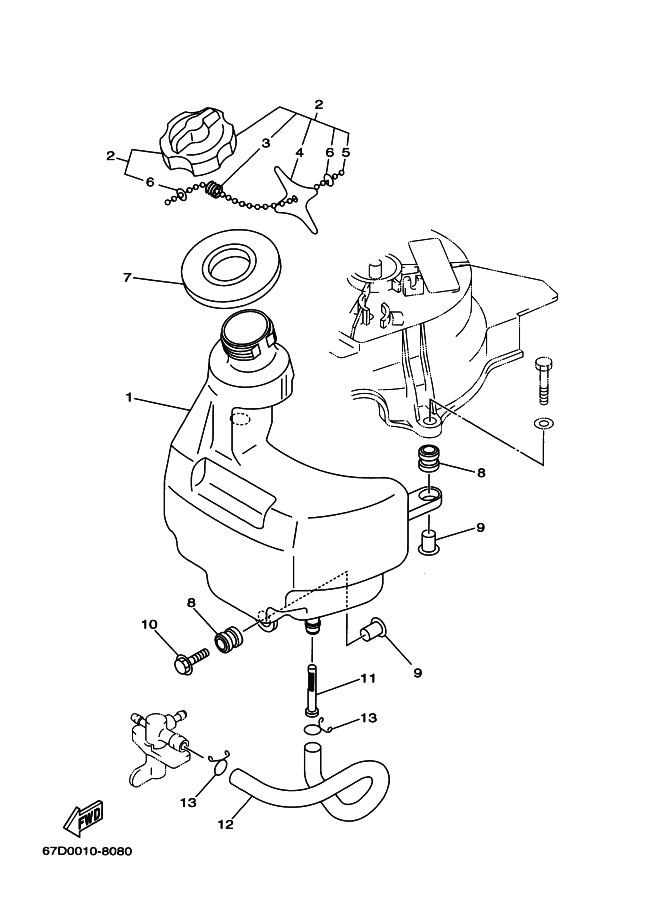

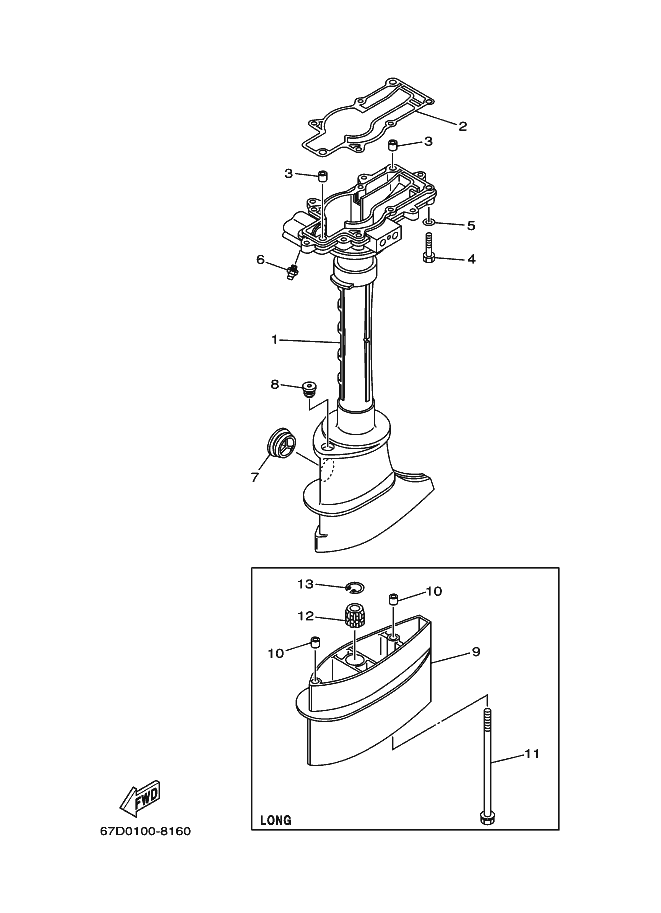

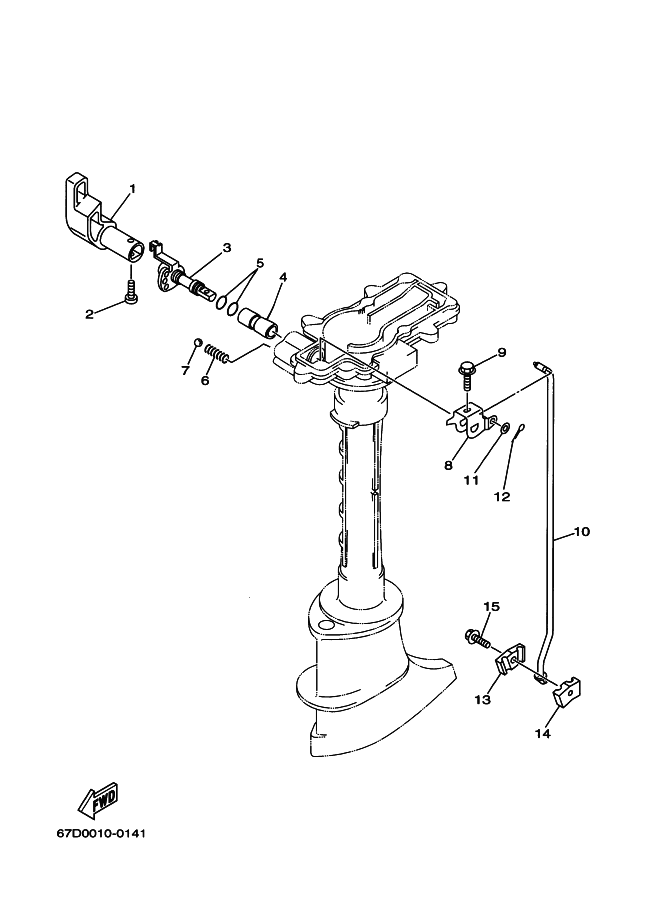

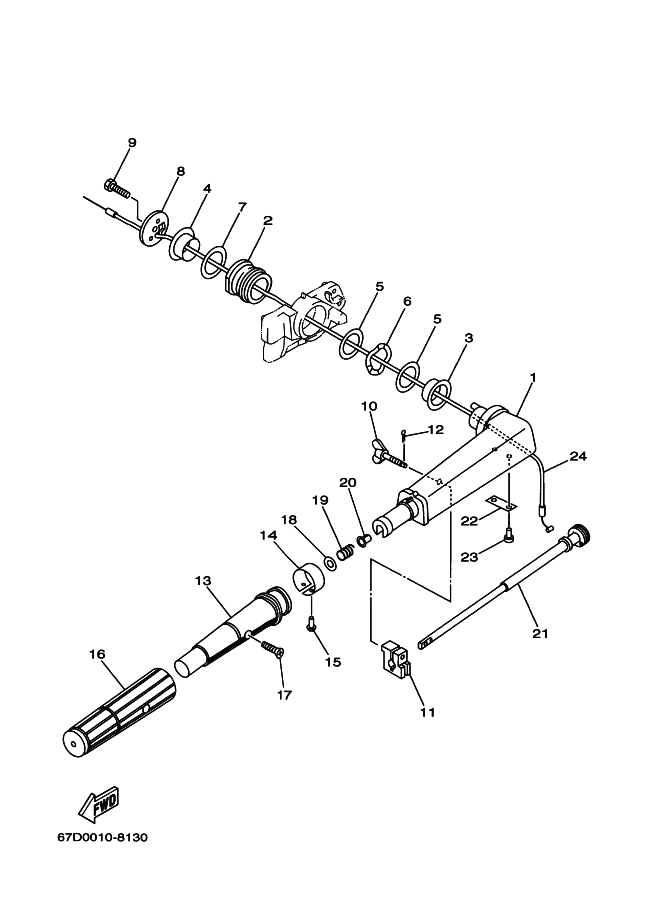

See the exploded views "Yamaha f4a - 2001"
