This page allows you to view the exploded diagrams for the Yamaha f30elhc - 2004 4-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a recognised brand in the outboard engine industry. It offers engines designed to meet the requirements of leisure boaters and professionals, with ranges suited to maintenance, repairs and use in marine environments.

Un doute?  > contact us

Select an exploded diagram for your Yamaha f30elhc - 2004 4-stroke engine

Yamaha f30elhc - 2004 30 HP 4-stroke engine

Yamaha f30elhc - 2004

The Yamaha f30elhc - 2004 is a 30 HP 4-stroke outboard engine built around an inline 3-cylinder block with SOHC valve gear. Its 747 cm³ displacement and fuel injection system provide controlled fuel delivery as engine speed changes during navigation.

Its configuration includes electric starting, remote control and an electro-hydraulic power trim and tilt system. This standard-rotation engine can be combined with either a 15-inch short shaft or a 20-inch long shaft to suit different installation requirements.

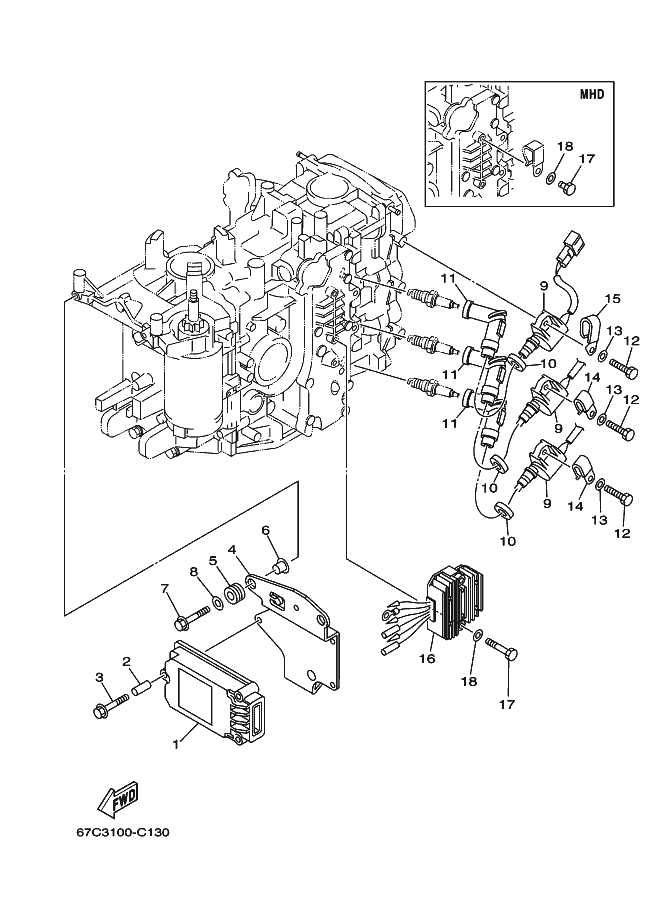

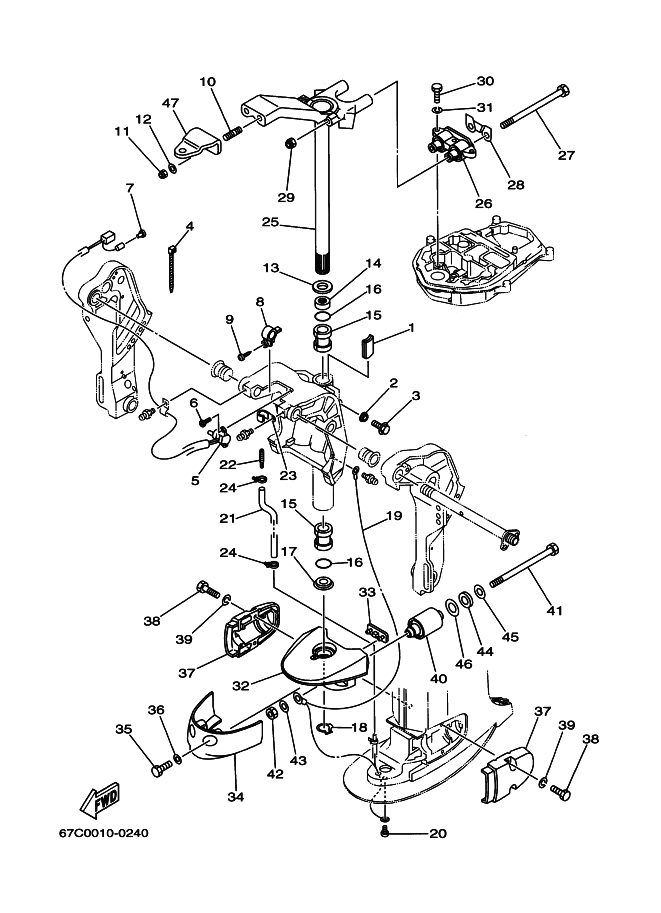

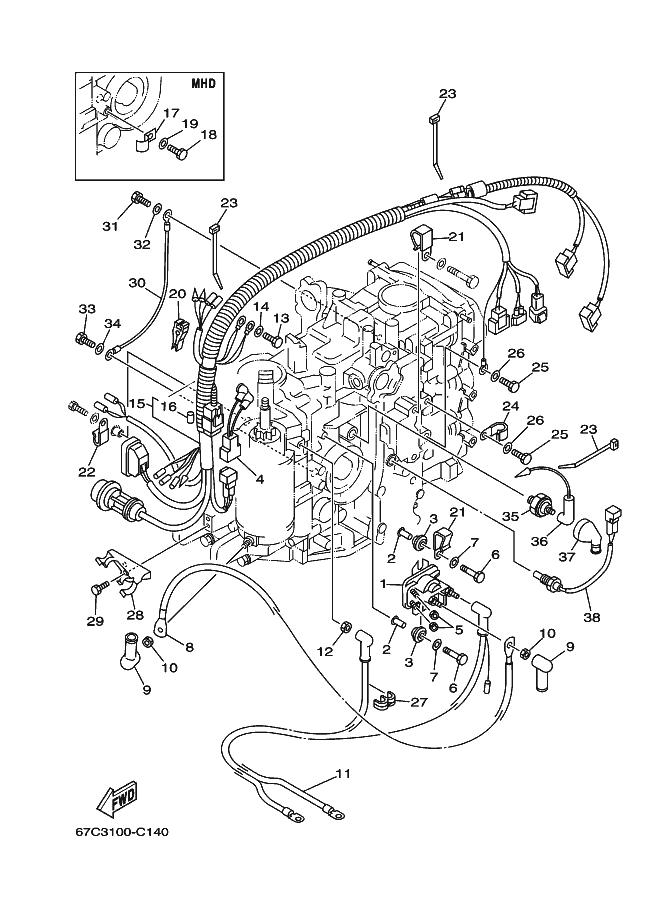

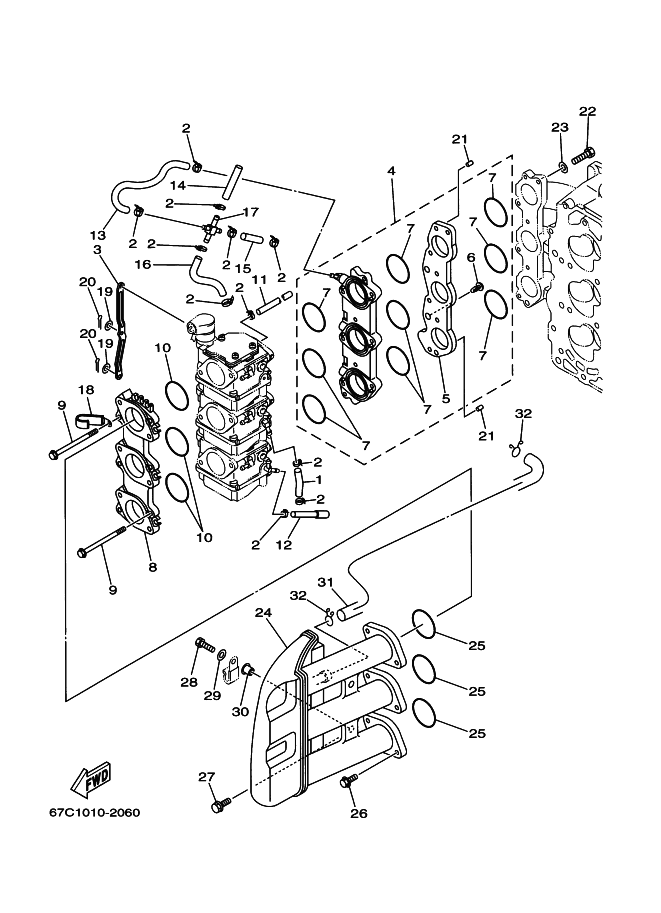

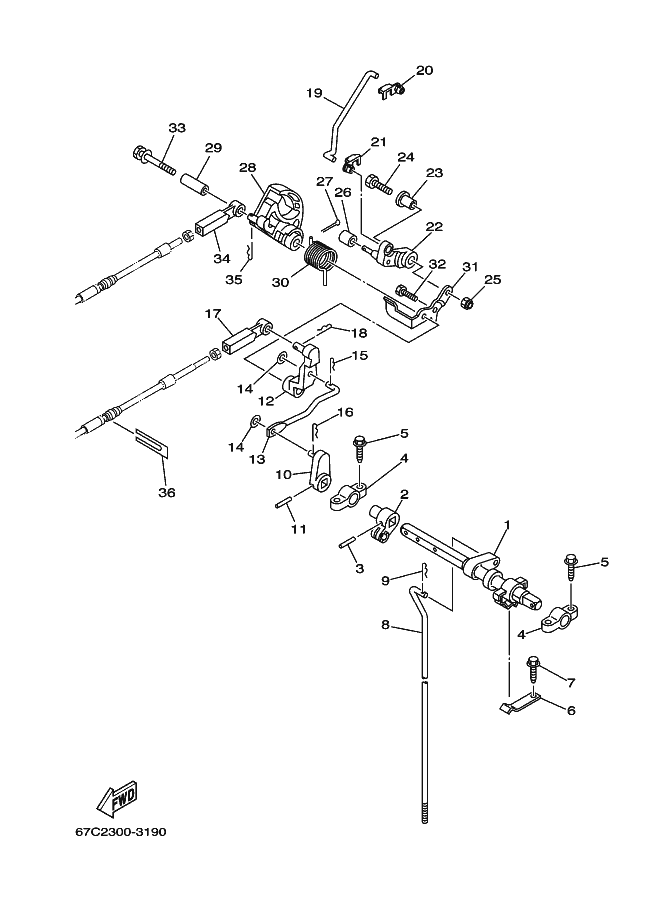

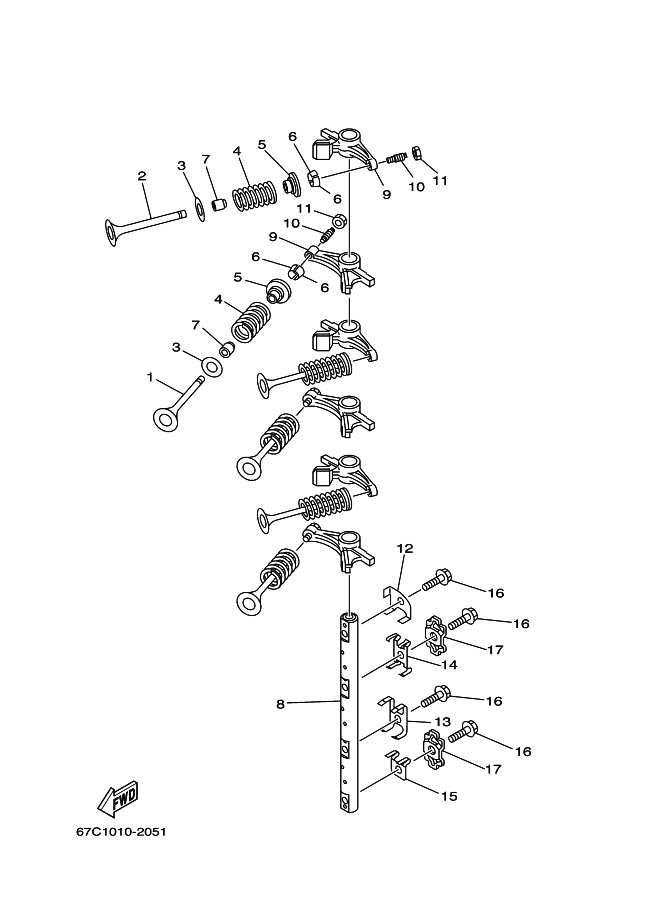

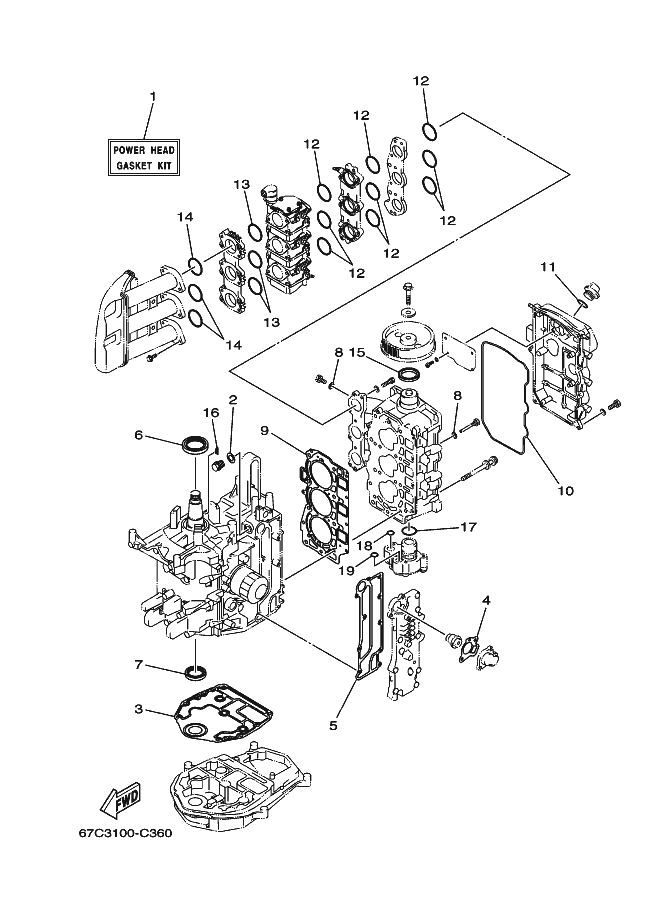

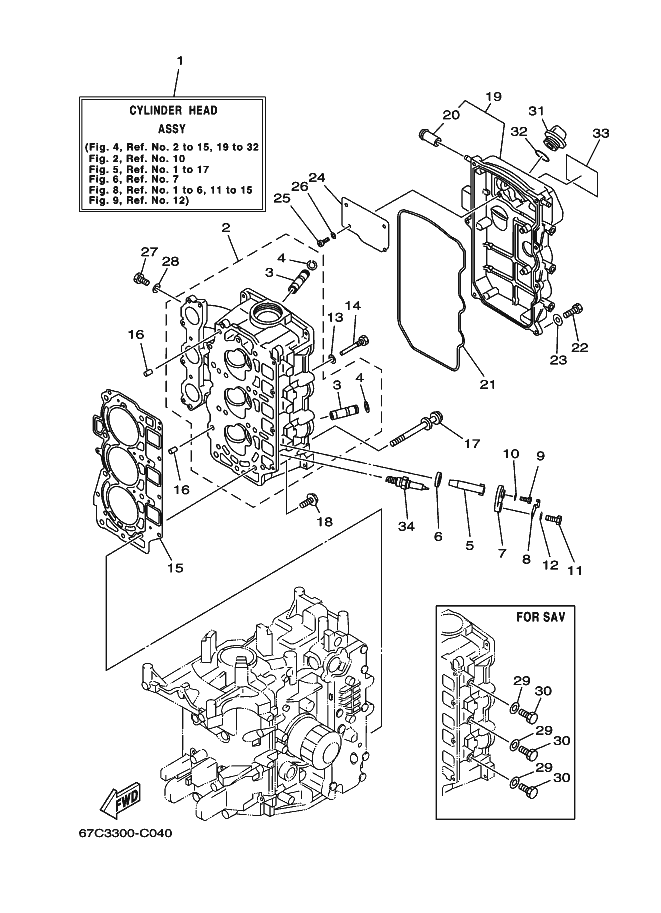

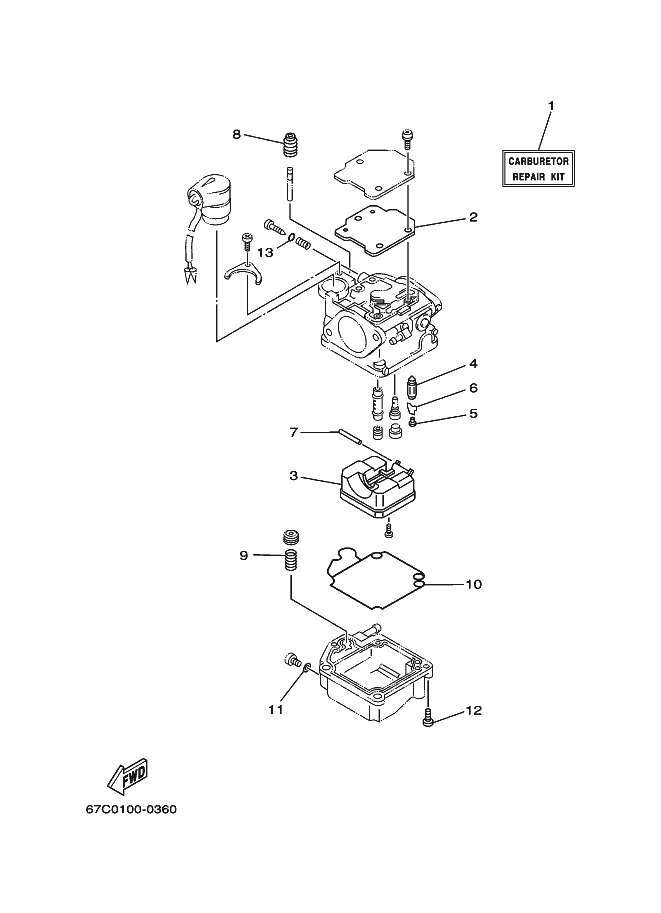

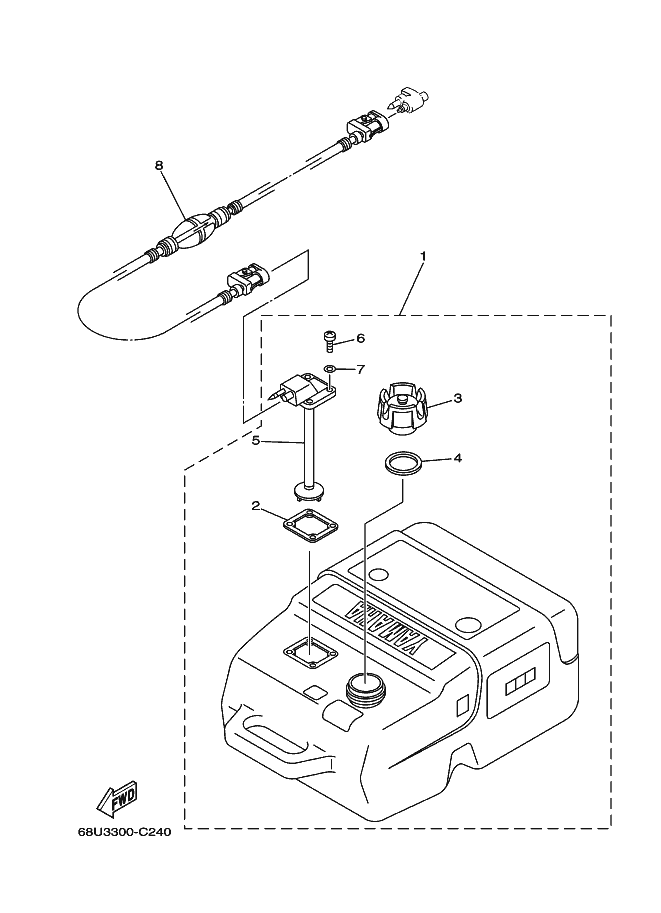

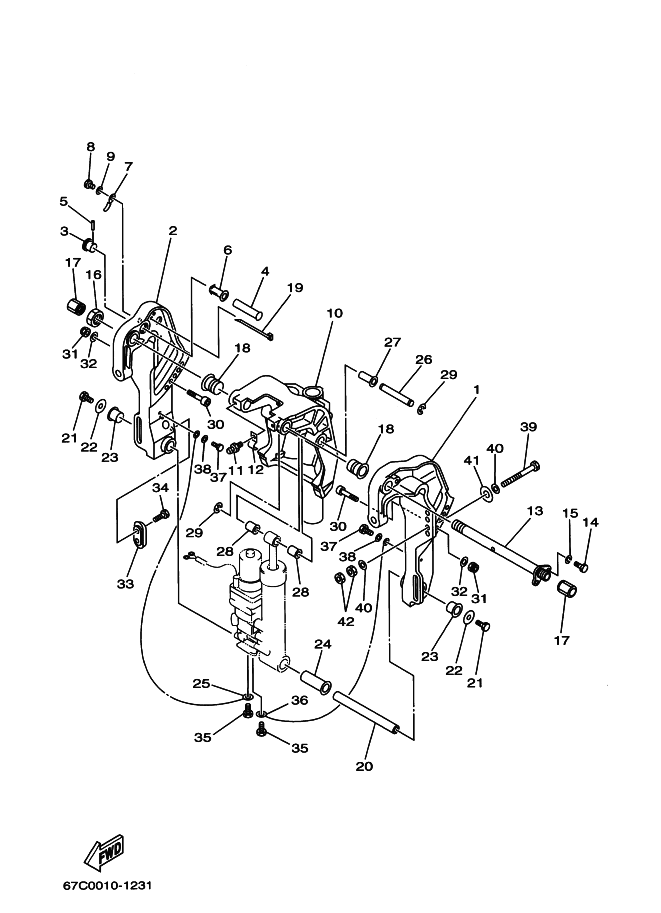

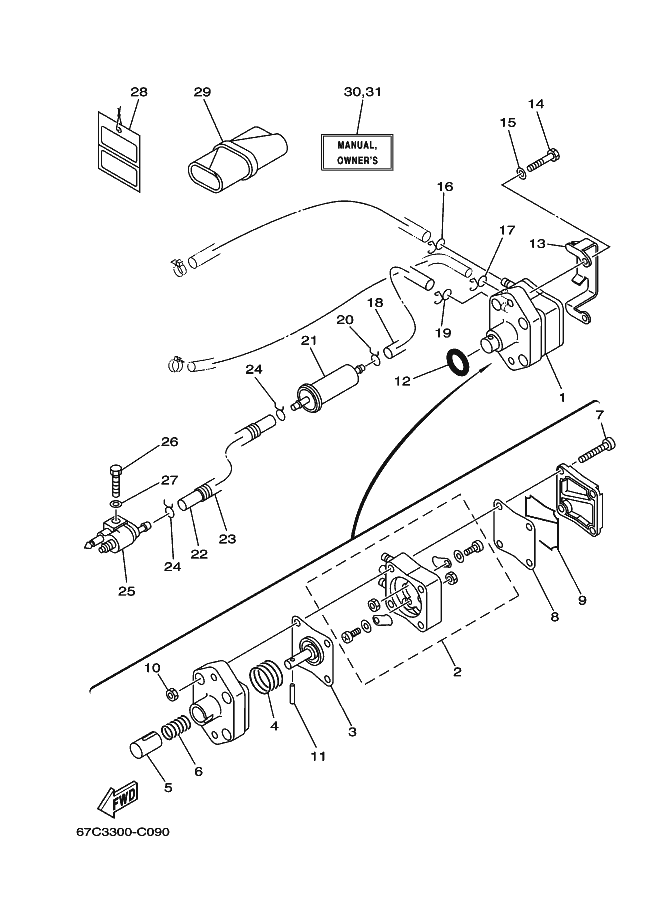

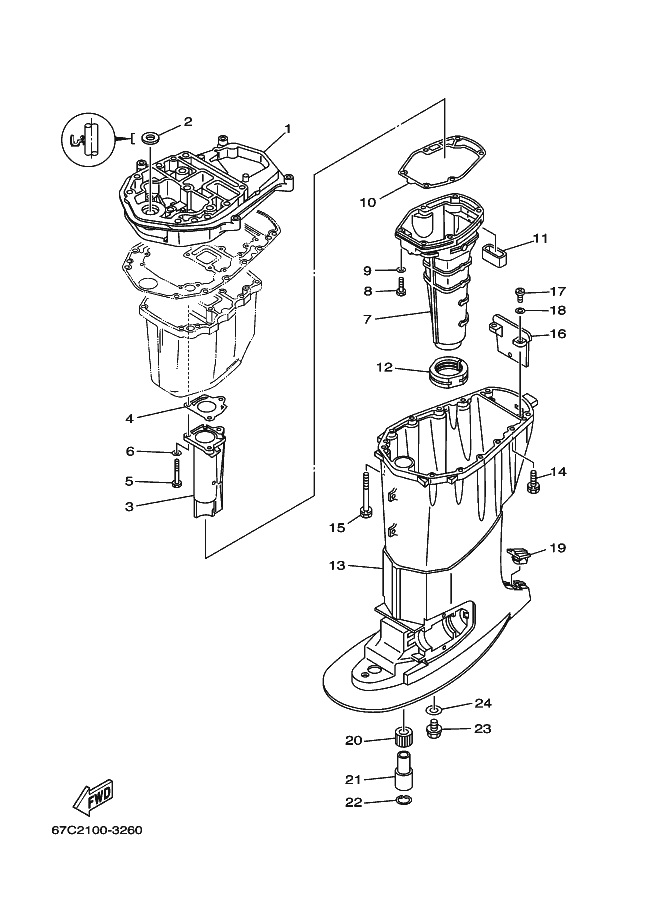

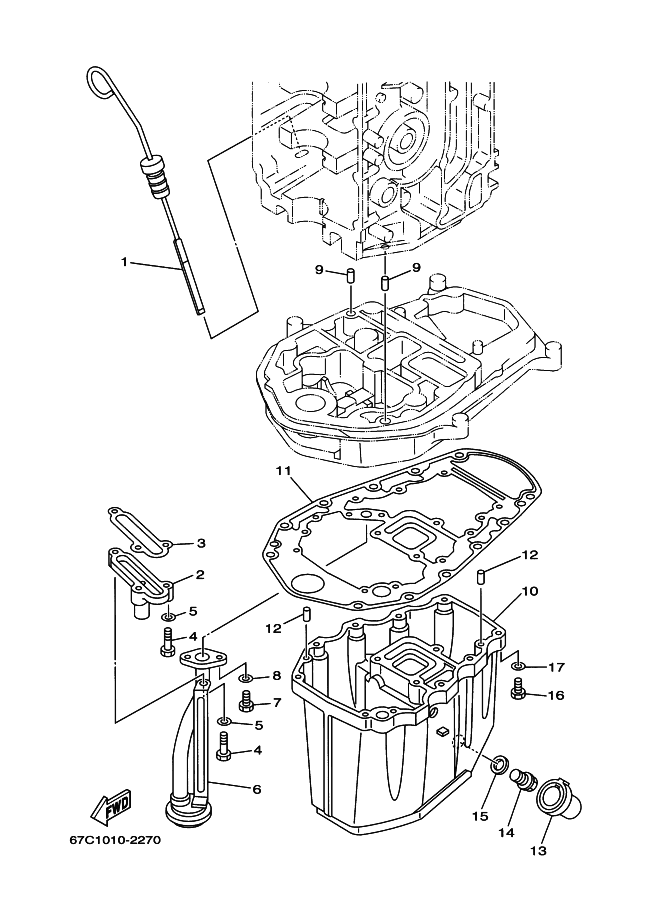

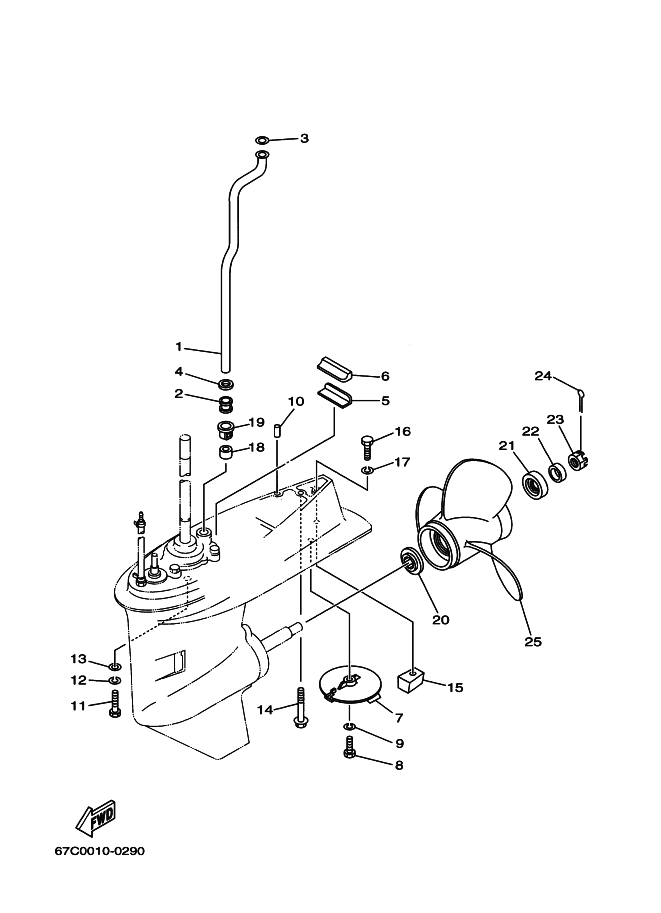

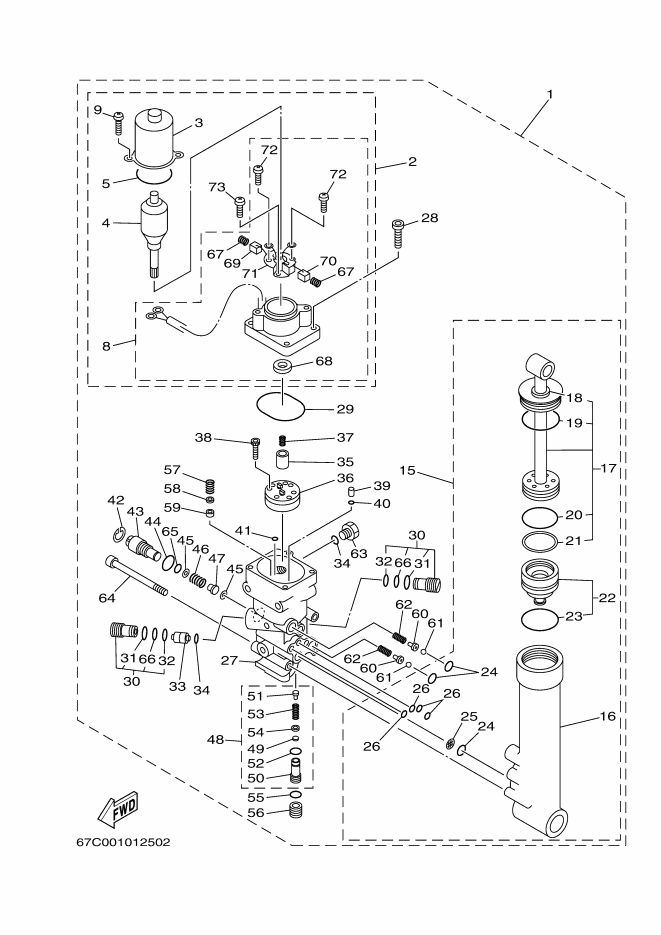

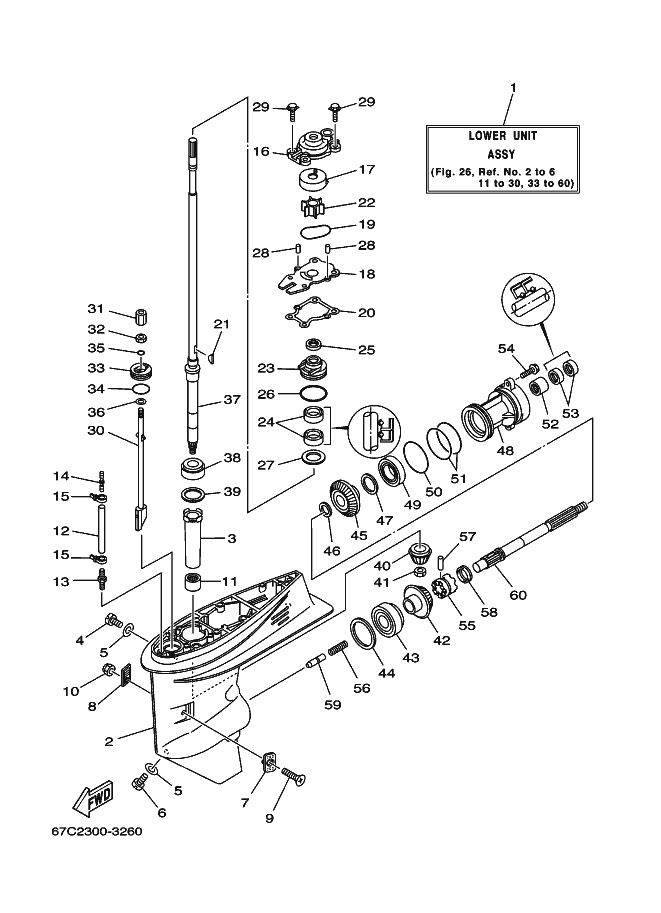

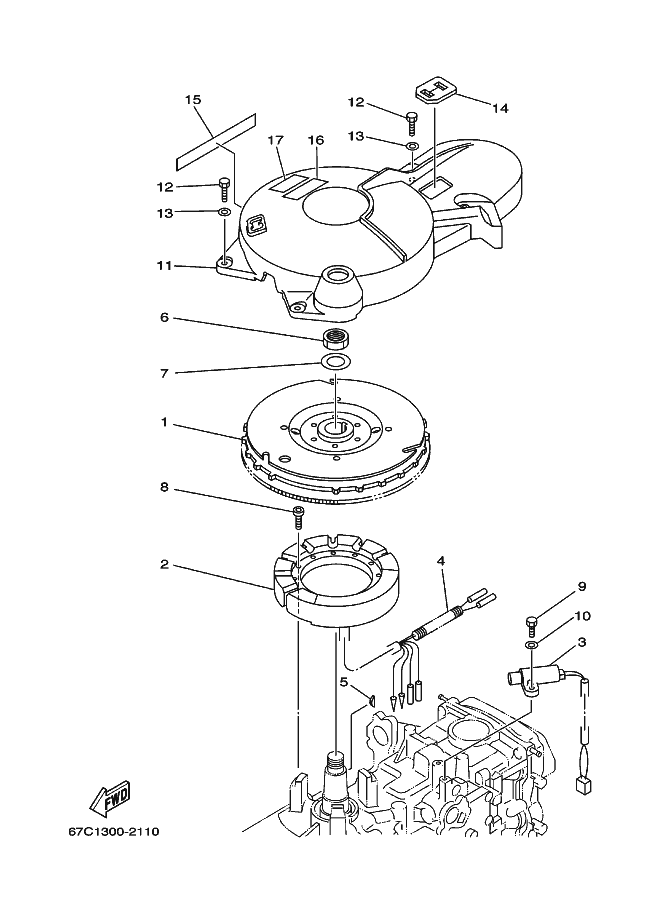

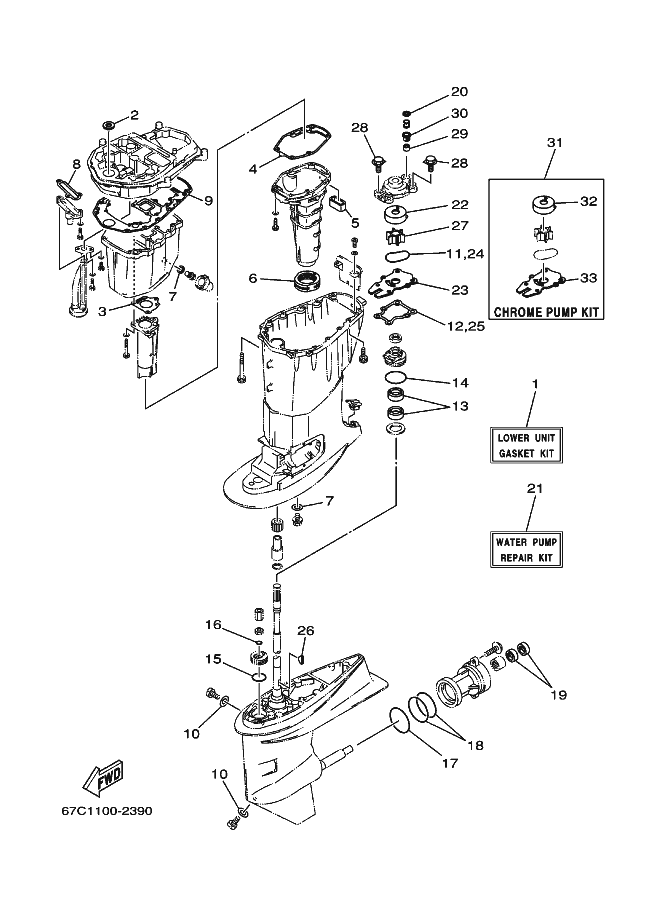

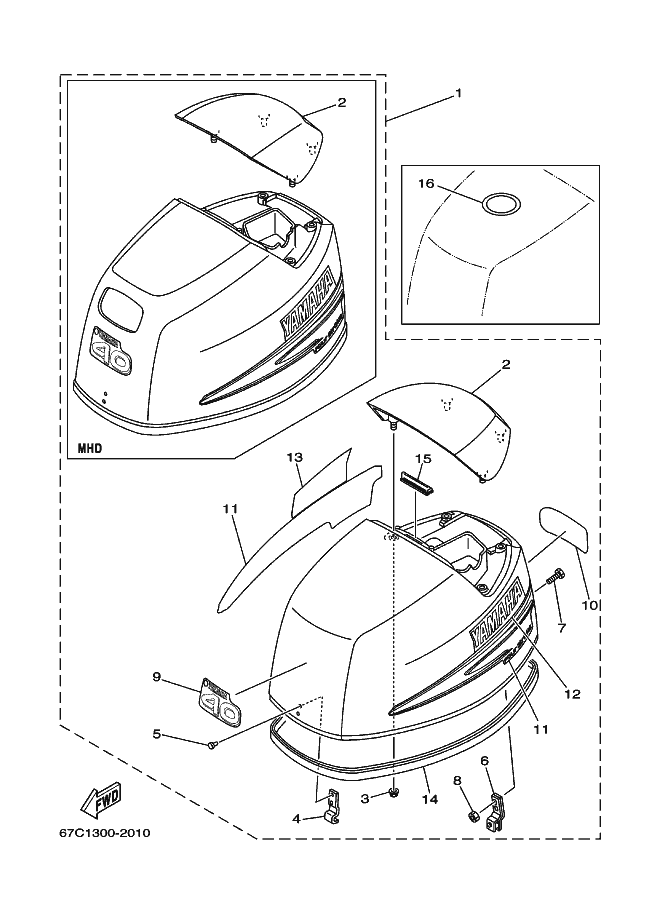

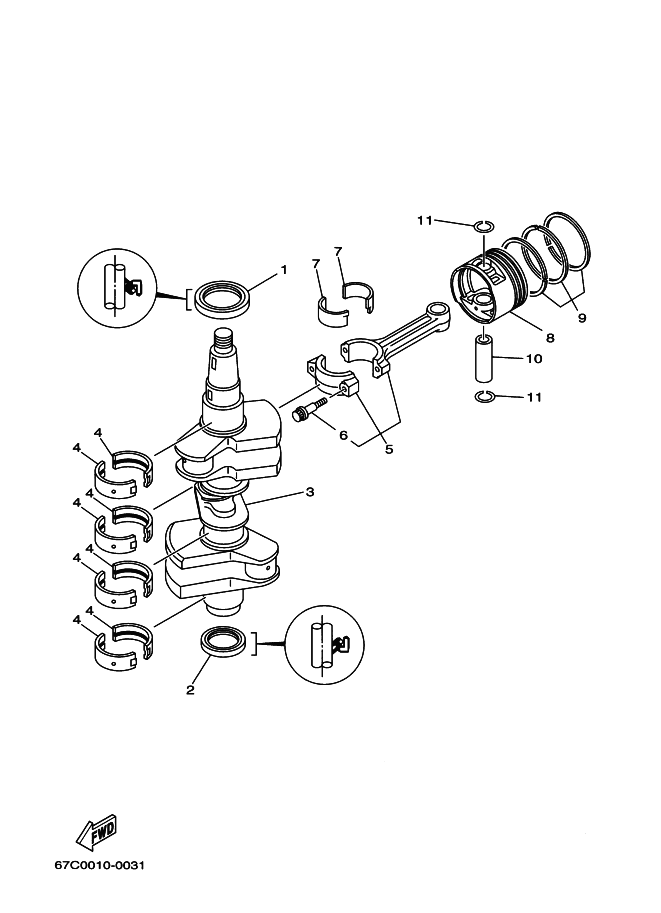

The exploded diagrams provide a precise view of how the components are assembled before maintenance or repair work. They help locate each part, check the required references and select components compatible with the Yamaha f30elhc - 2004.

Yamaha f30elhc - 2004 engine features
  • 30 HP 4-stroke engine: an output suited to several boating applications
  • Inline 3-cylinder block: a compact architecture equipped with SOHC valve gear
  • 747 cm³ displacement: an engine capacity designed to provide progressive power
  • Electric start and remote control: equipment that simplifies starting and operation
  • Short or long shaft: 15-inch or 20-inch lengths depending on the boat installation

View exploded diagrams Yamaha f30elhc - 2004

View all compatible parts
