This page allows you to view the exploded diagrams for the Yamaha f30aets - 2006 4-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a well-established brand in the outboard engine industry. It offers engines designed for the needs of recreational boaters and professionals, with ranges suited to maintenance, repair and use in marine environments.

Un doute?  > contact us

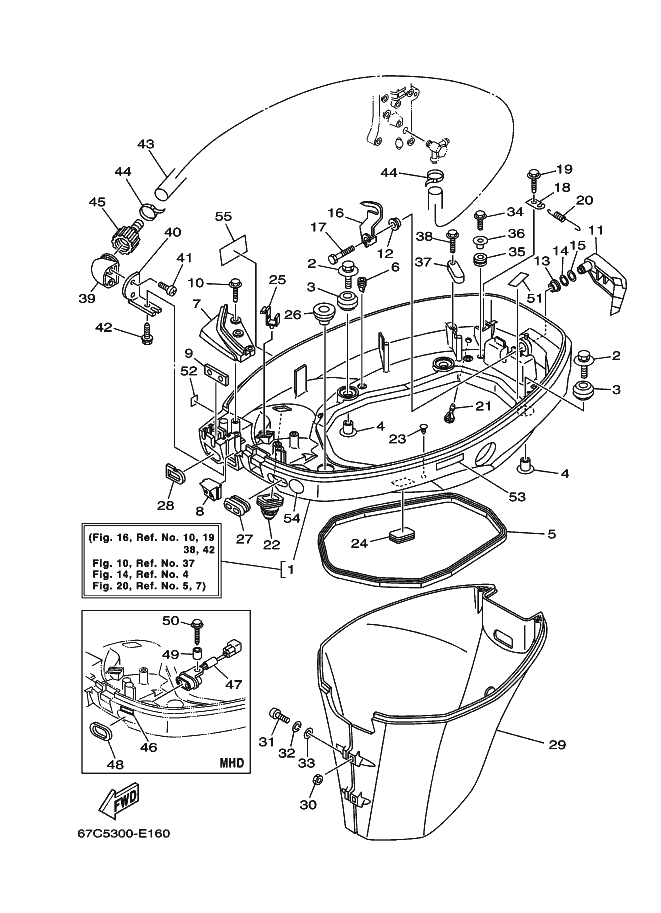

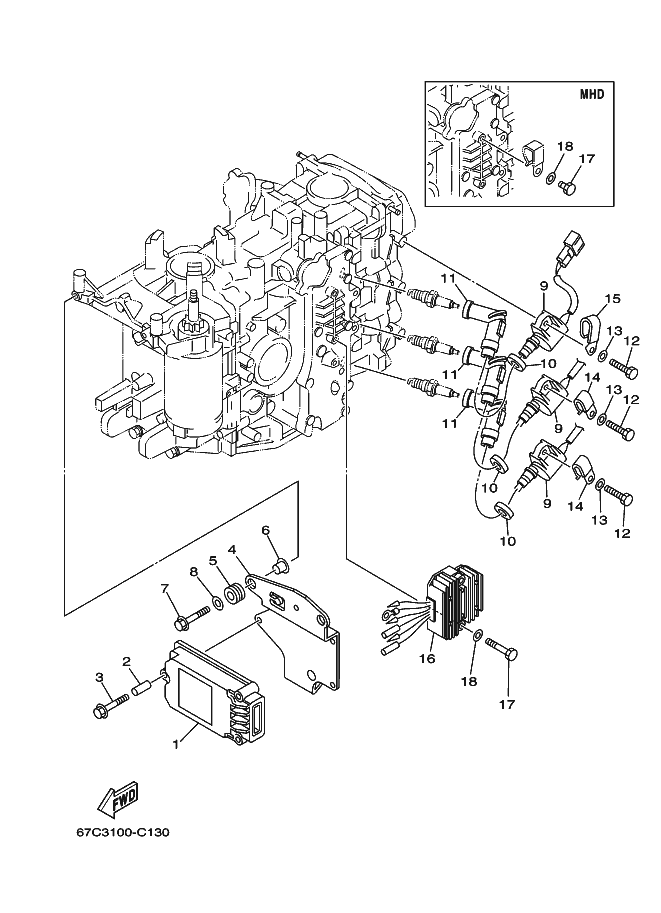

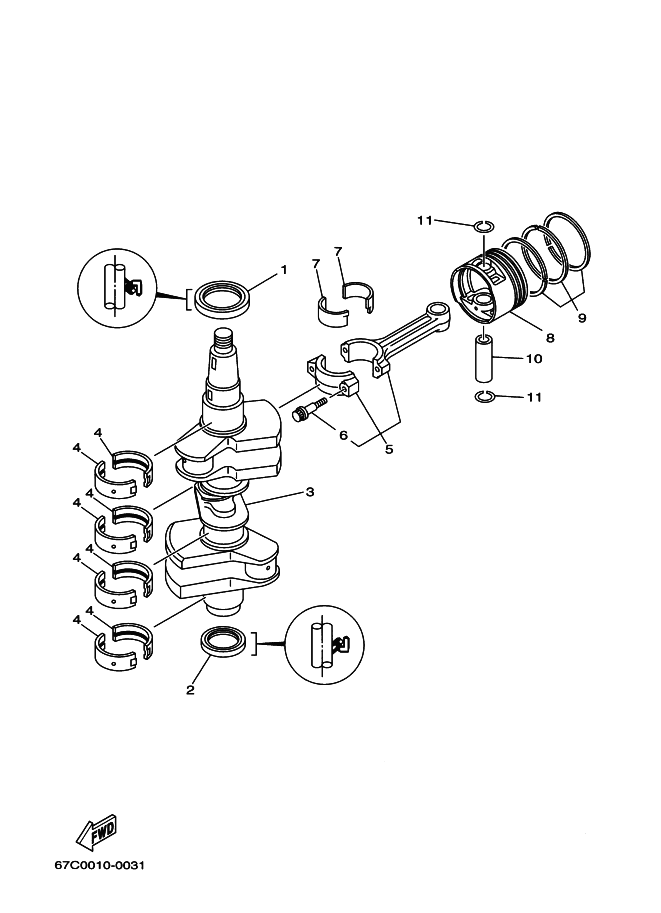

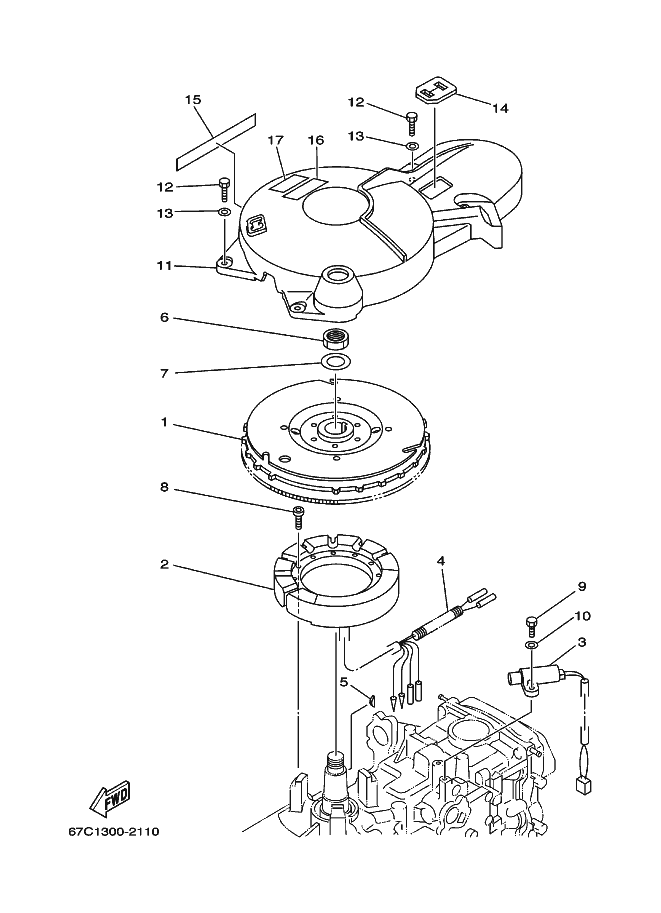

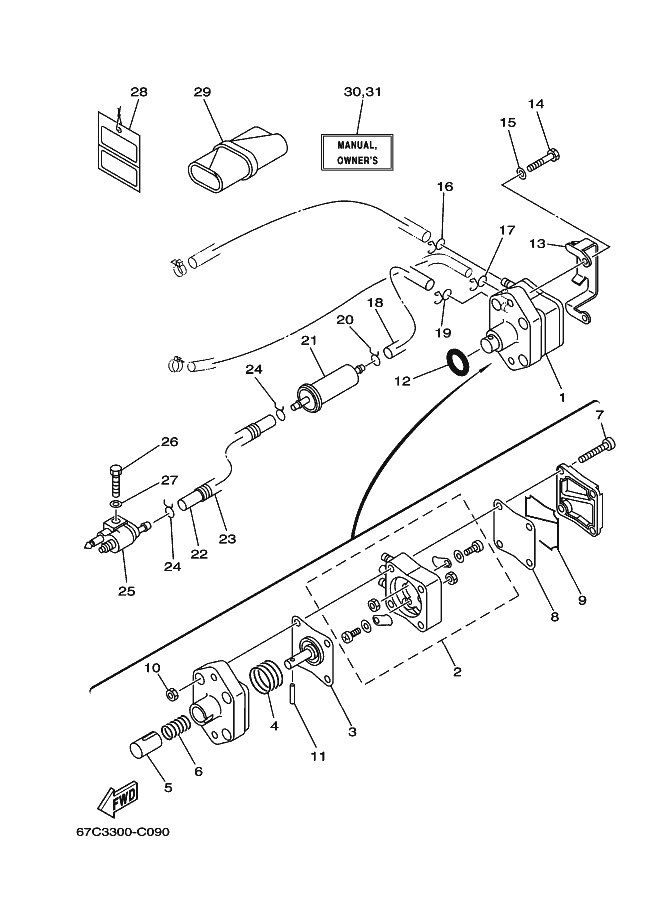

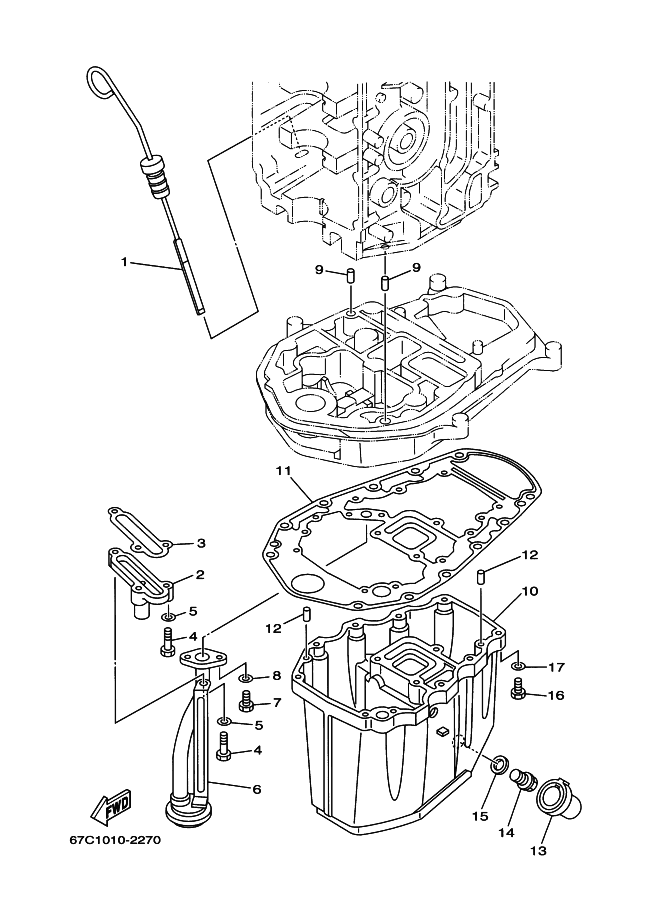

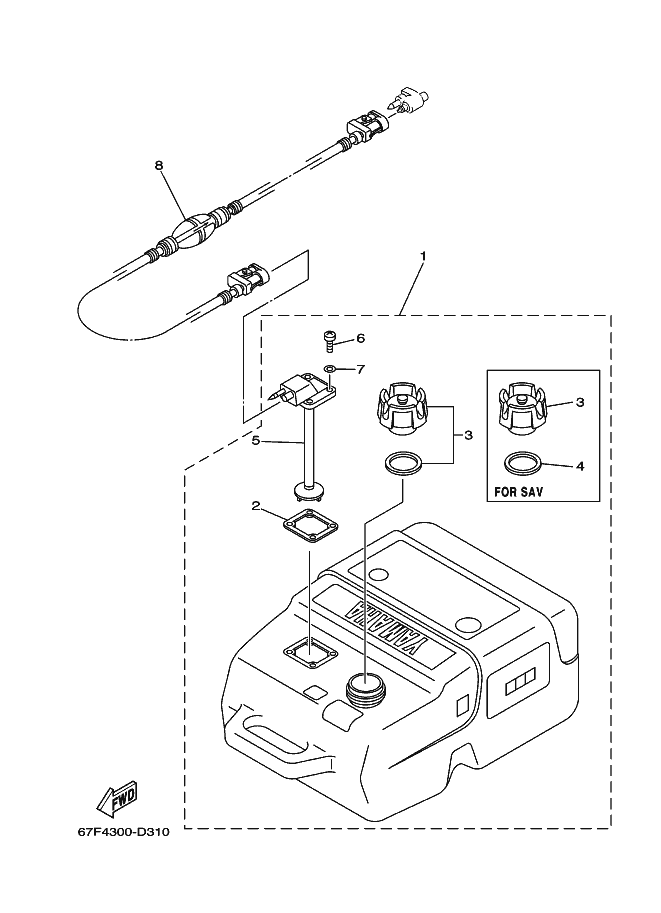

Select an exploded diagram for your Yamaha f30aets - 2006 4-stroke engine

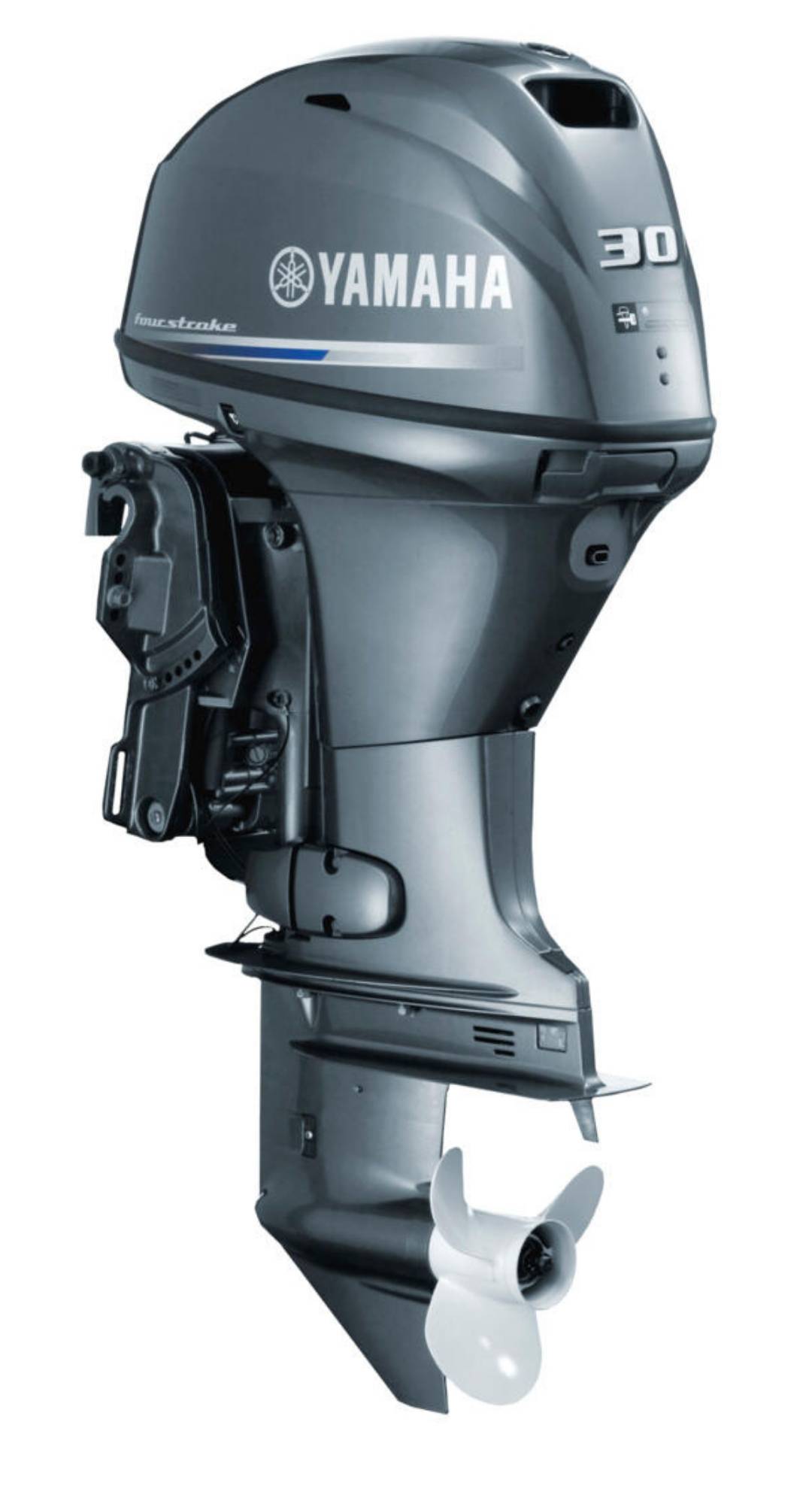

Yamaha f30aets - 2006 engine 30 HP 4-stroke

Yamaha f30aets - 2006

Producing 30 HP, the Yamaha f30aets - 2006 is a 4-stroke outboard engine based on an inline 3-cylinder block with SOHC valve operation. Its design includes a 747 cm³ displacement, a 65.0 mm bore, a 75.0 mm stroke and a 9.4:1 compression ratio.

The engine is supplied by a fuel injection system, while lubrication is handled by a wet sump. CDI ignition is combined with a 17 A alternator, including 13 A reserved for battery charging.

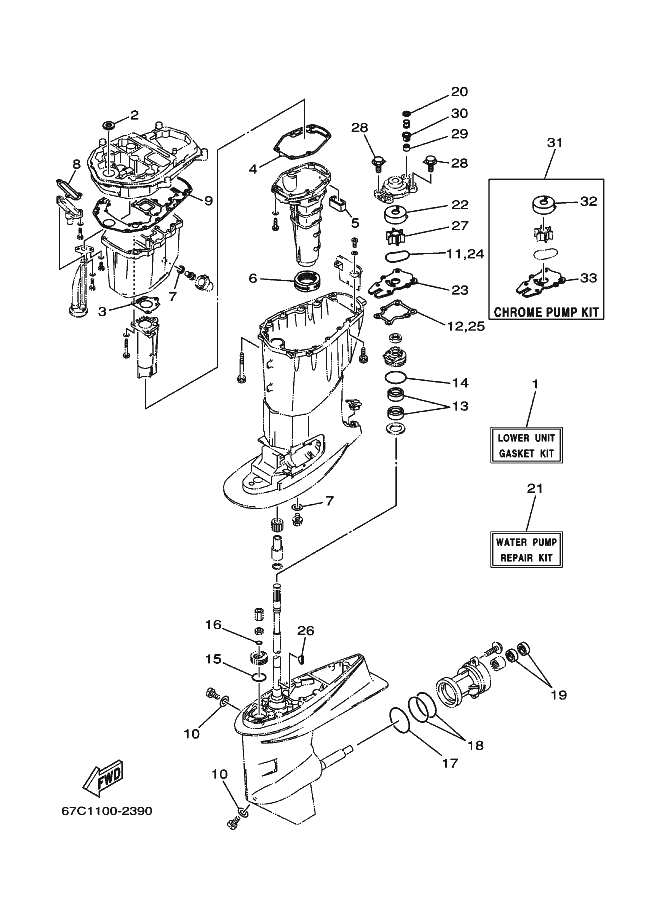

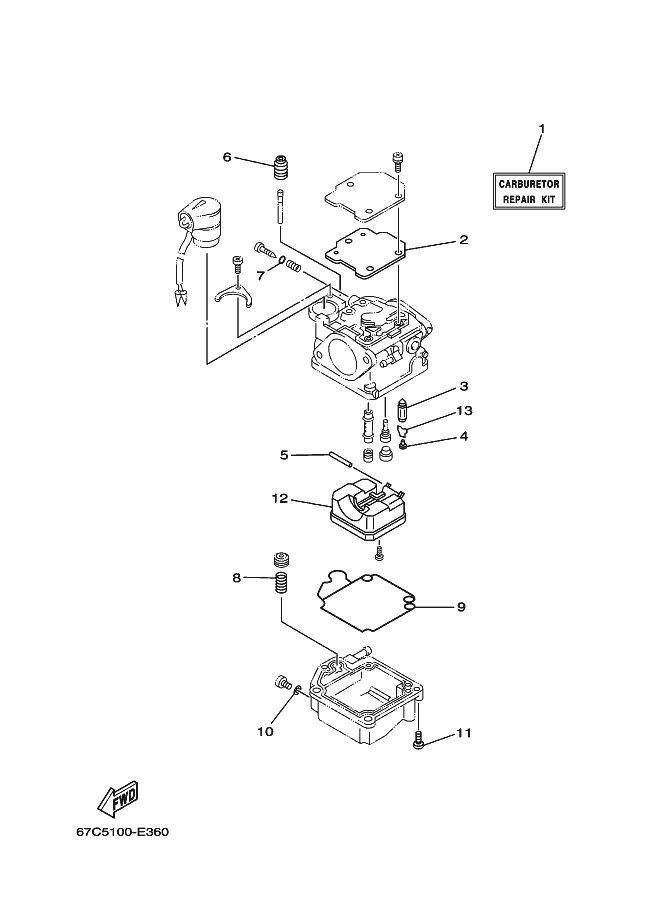

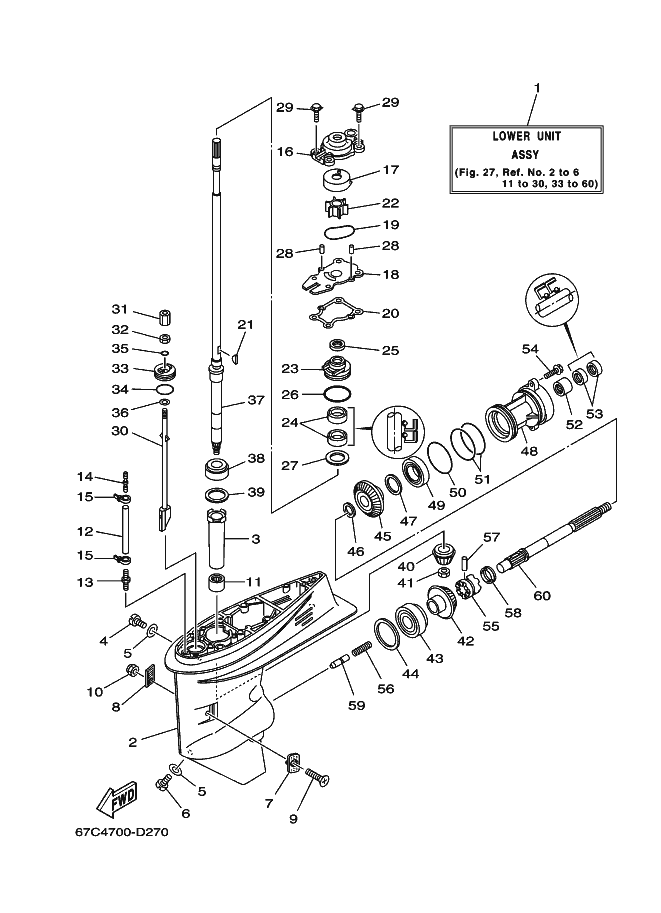

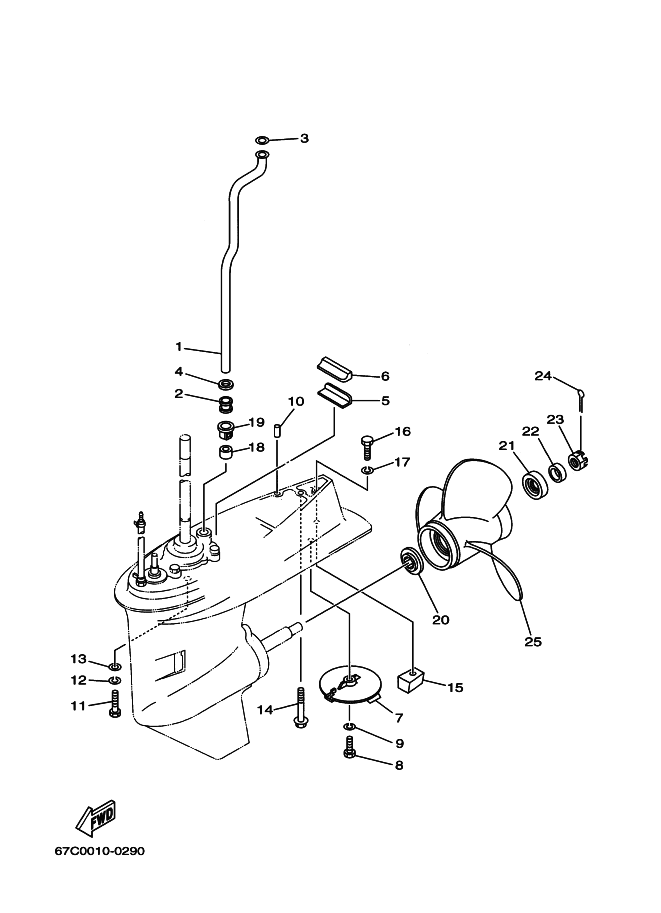

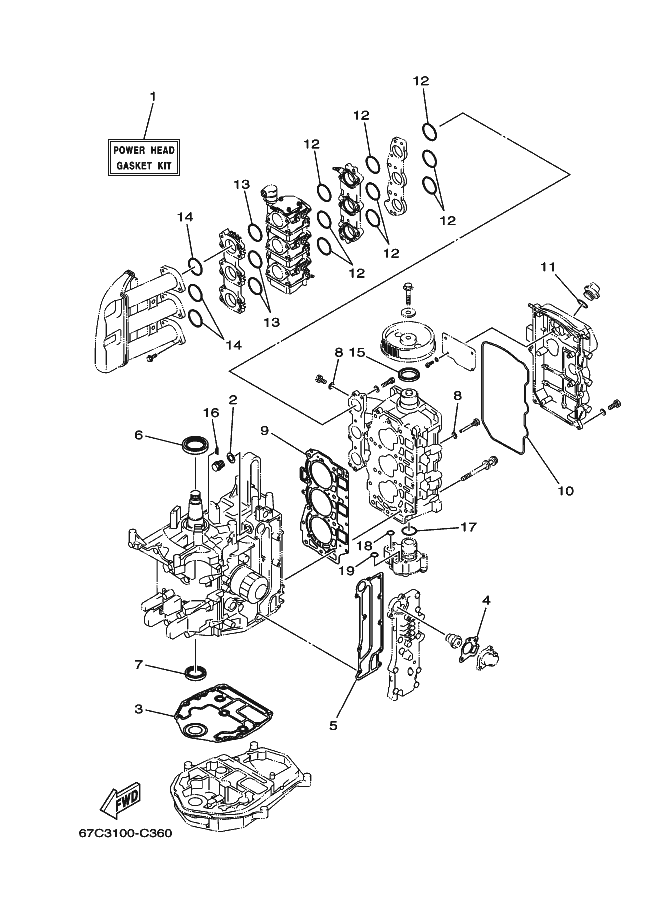

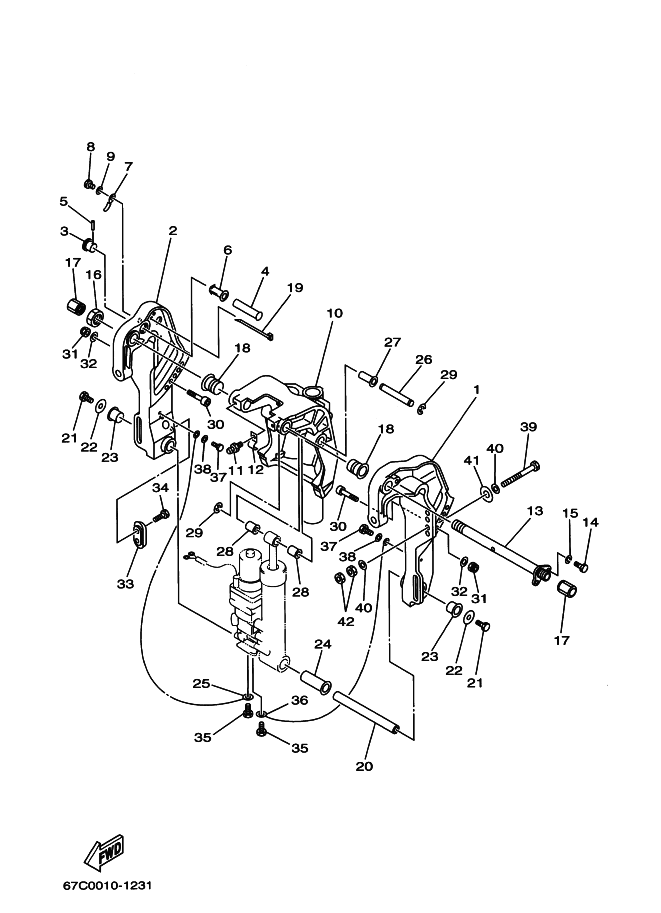

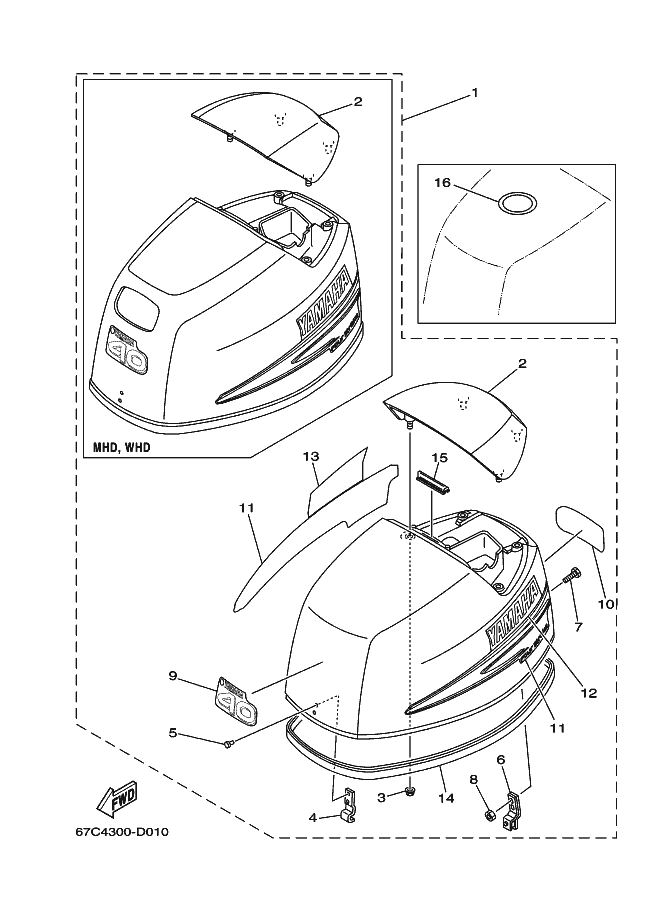

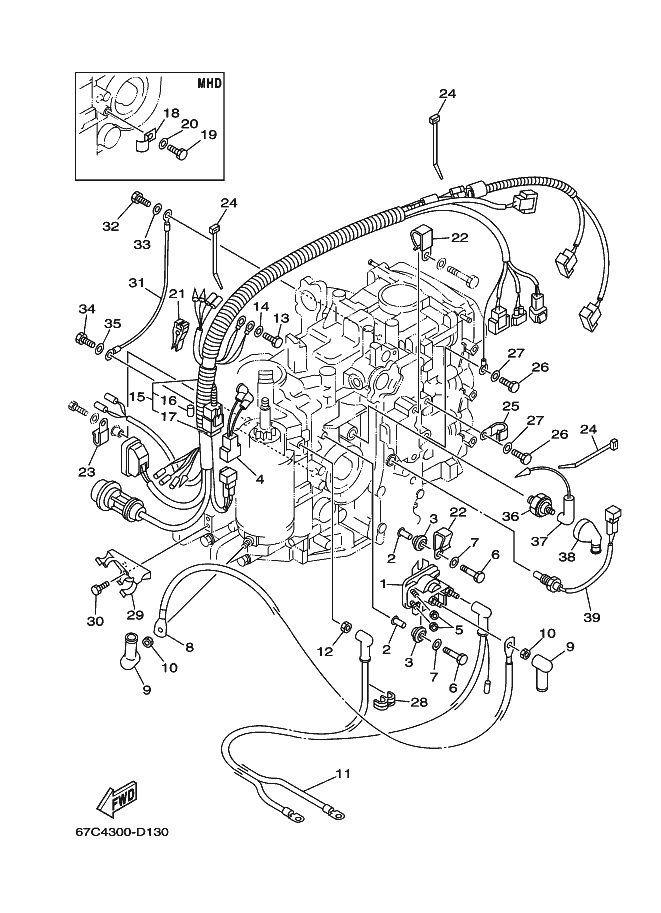

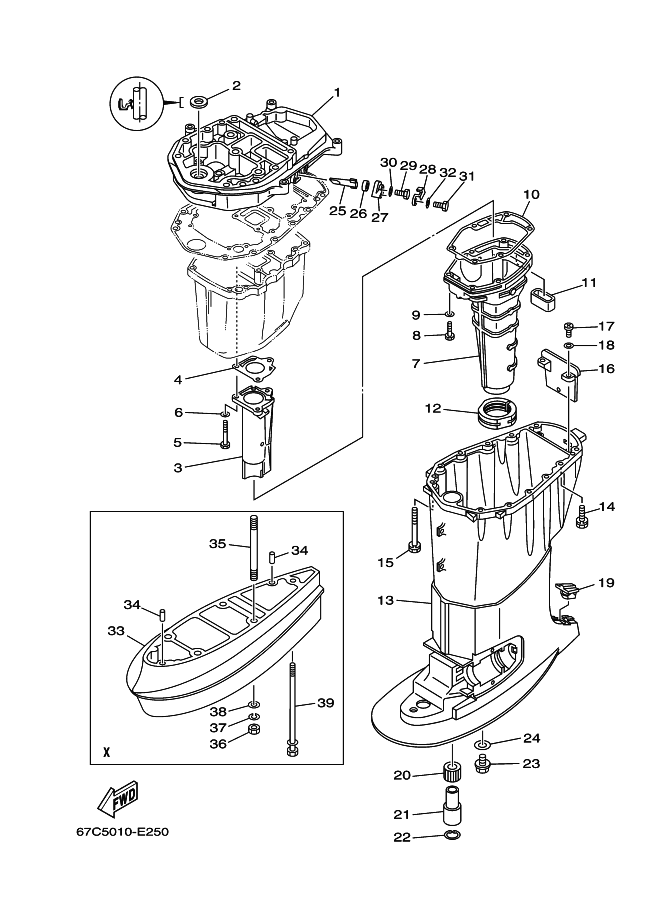

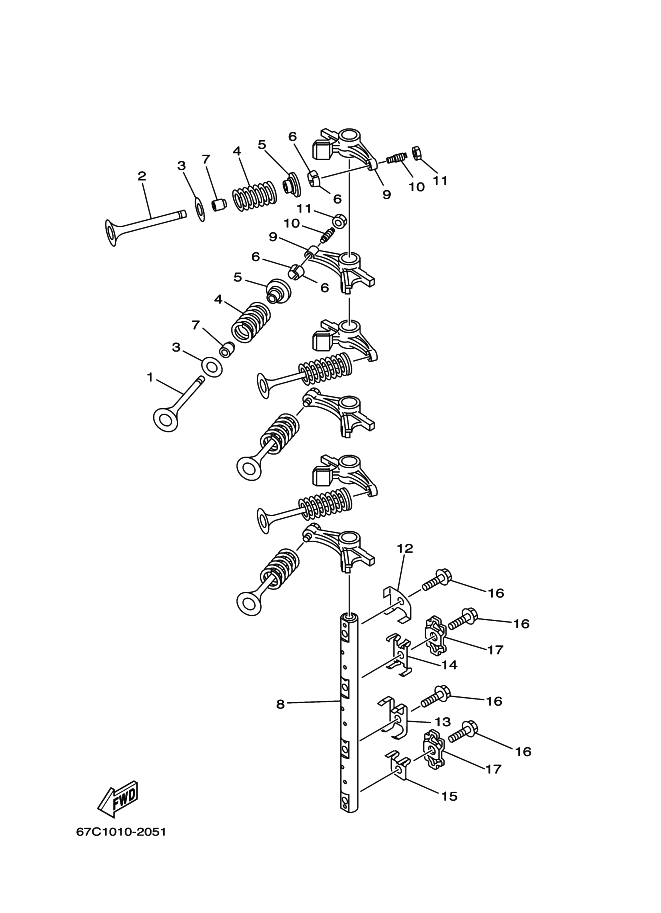

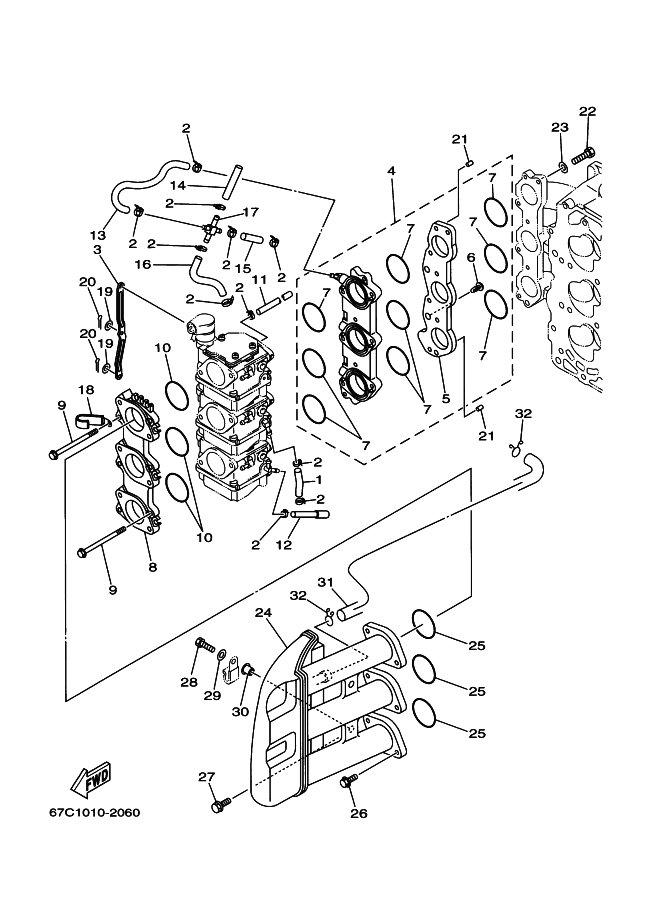

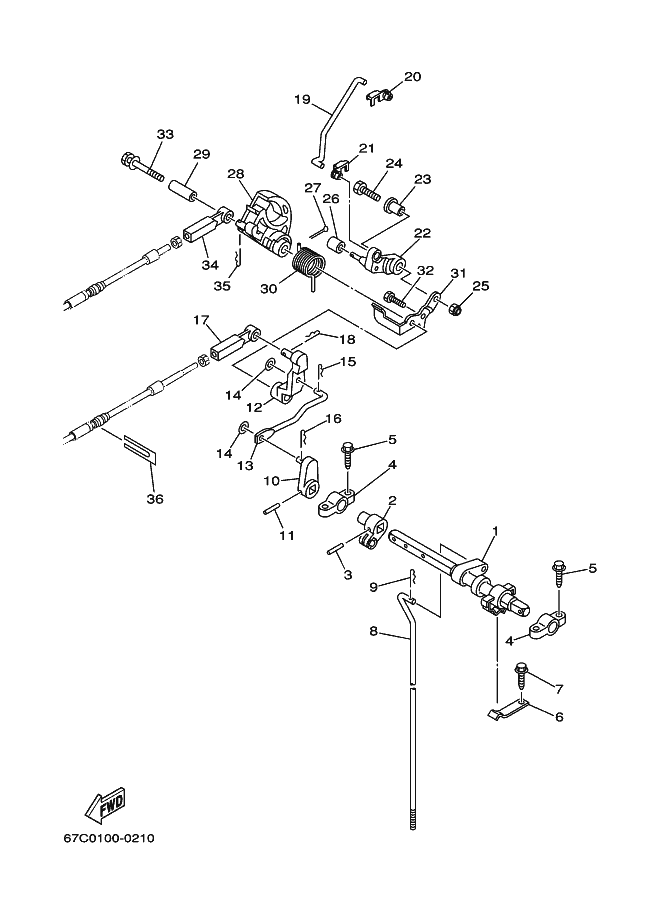

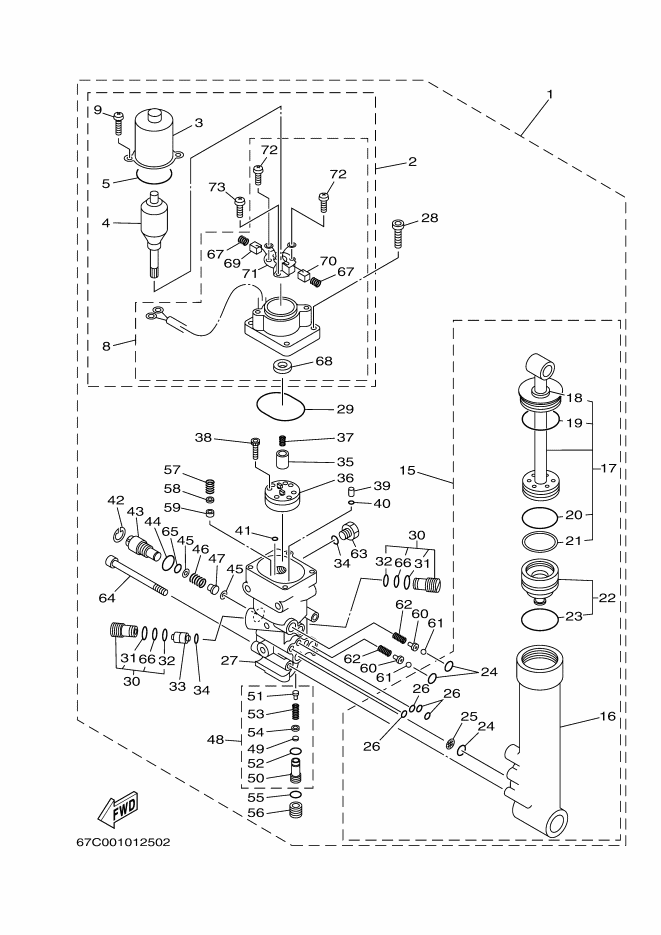

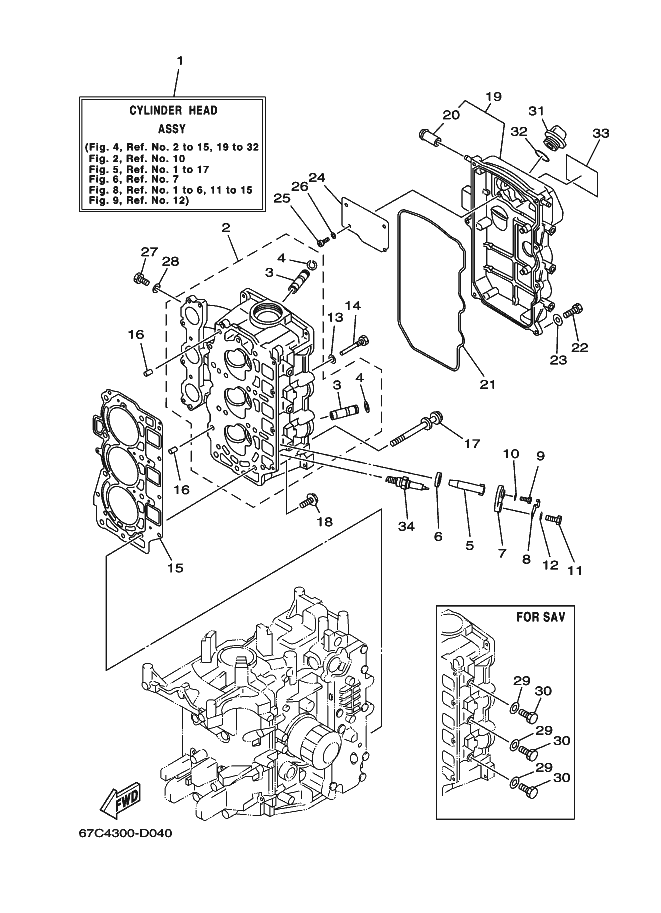

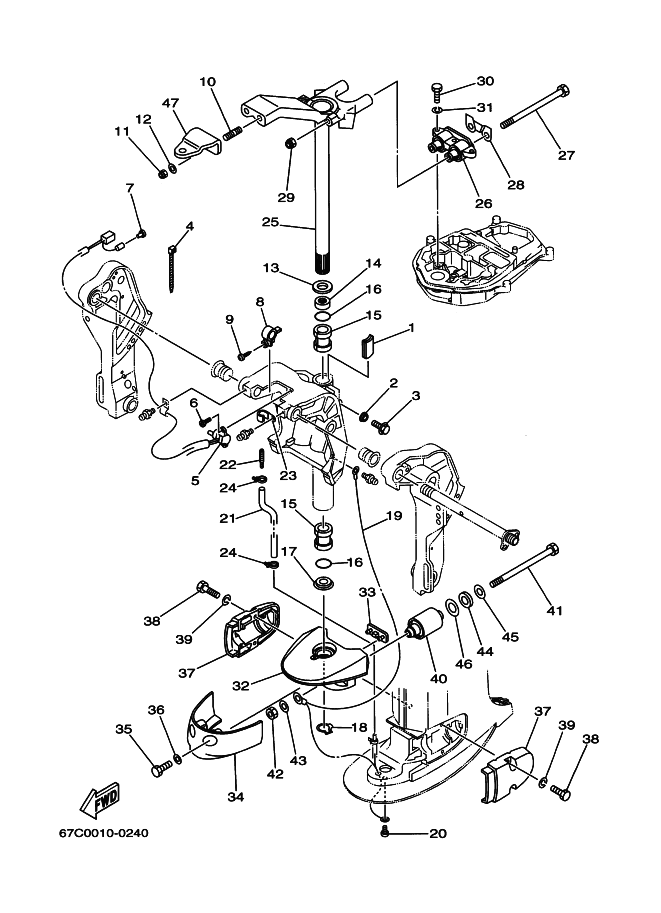

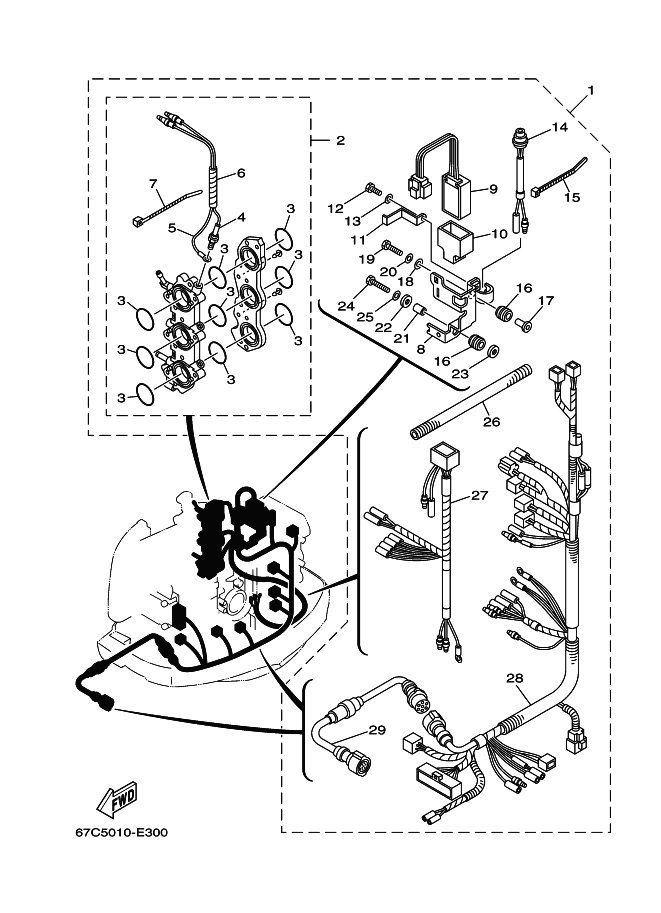

The exploded diagrams for the Yamaha f30aets - 2006 show the arrangement of the components and how they relate within each assembly. They help identify exact reference numbers and select the compatible parts required for engine maintenance or repair.

Yamaha f30aets - 2006 engine features
  • 30 HP 4-stroke engine designed for outboard use
  • Inline 3-cylinder block fitted with SOHC valve operation
  • 747 cm³ displacement with 65.0 × 75.0 mm dimensions
  • Fuel injection system combined with wet-sump lubrication
  • CDI ignition supported by a 17 A alternator

View exploded diagrams Yamaha f30aets - 2006

View all compatible parts
