Parts and exploded views for Yamaha f100betl - 2019 - 4-stroke engine
This page allows you to view the exploded views for the Yamaha f100betl - 2019 - 4-stroke engine and easily identify the compatible parts for your engine.
Yamaha is a well-known brand in the world of outboard engines. It offers engines designed to meet the needs of both recreational boaters and professionals, with ranges suited to maintenance, repair and use in marine environments.

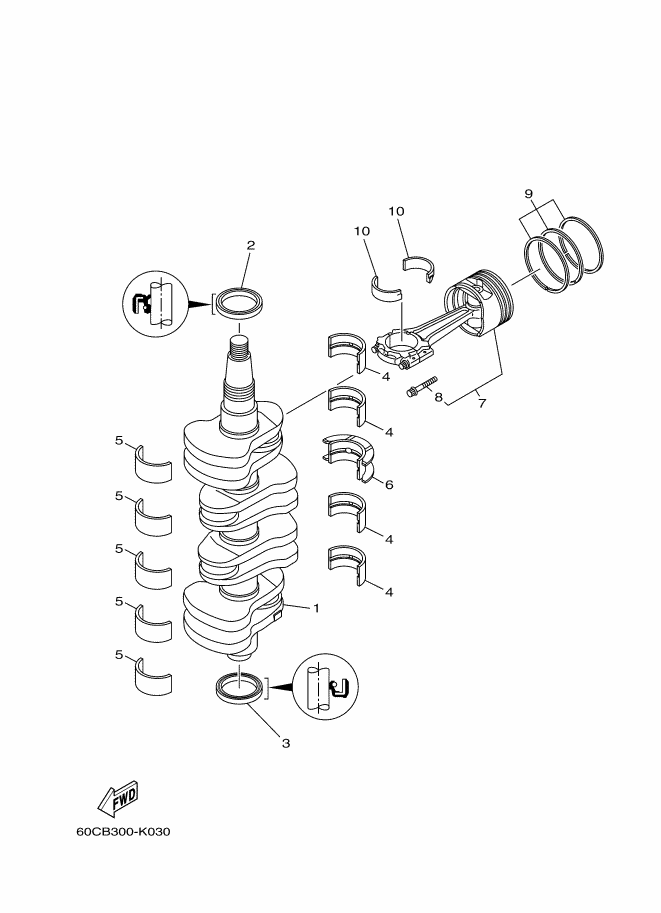

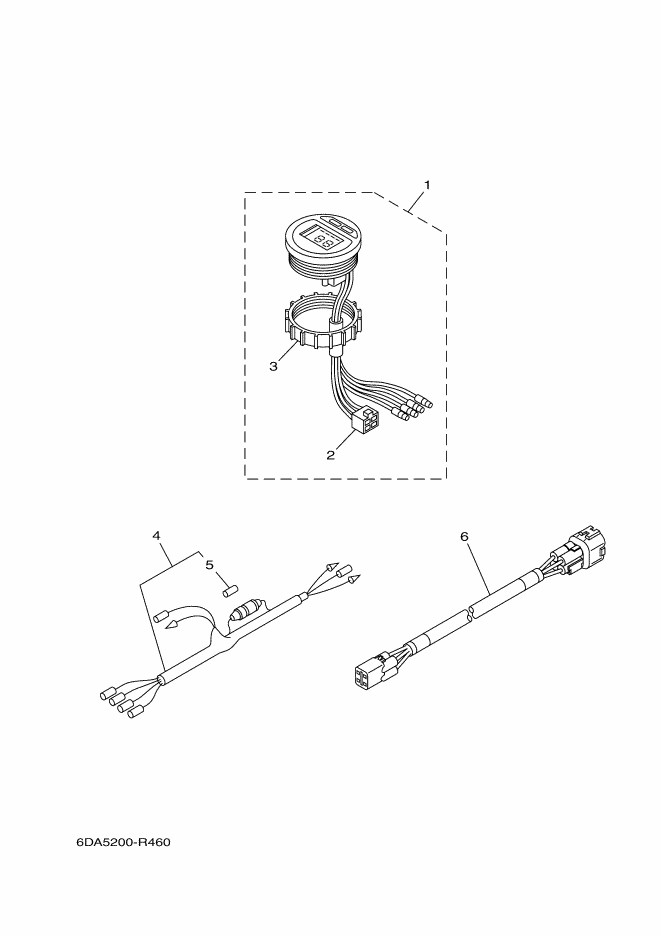

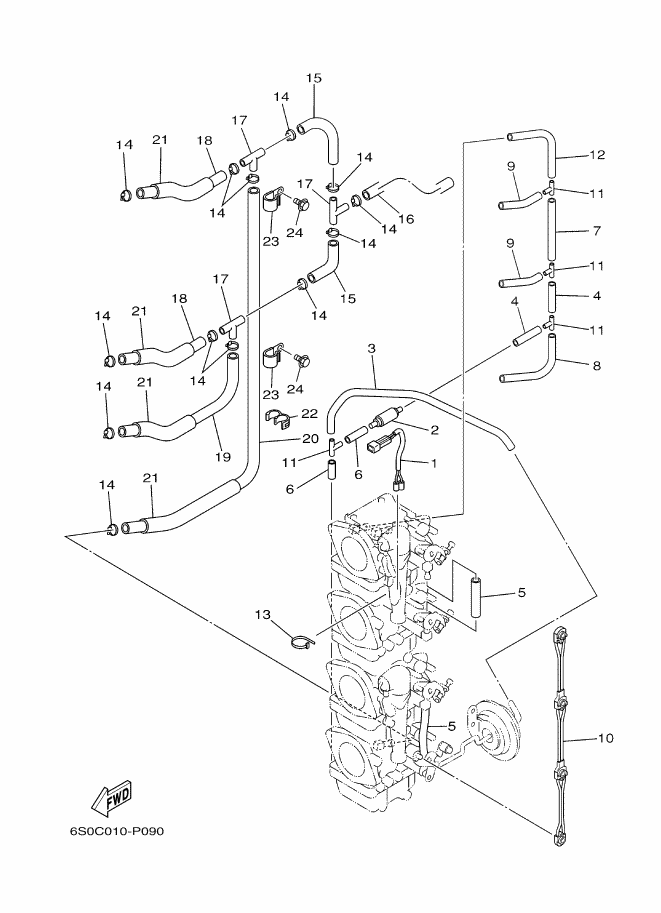

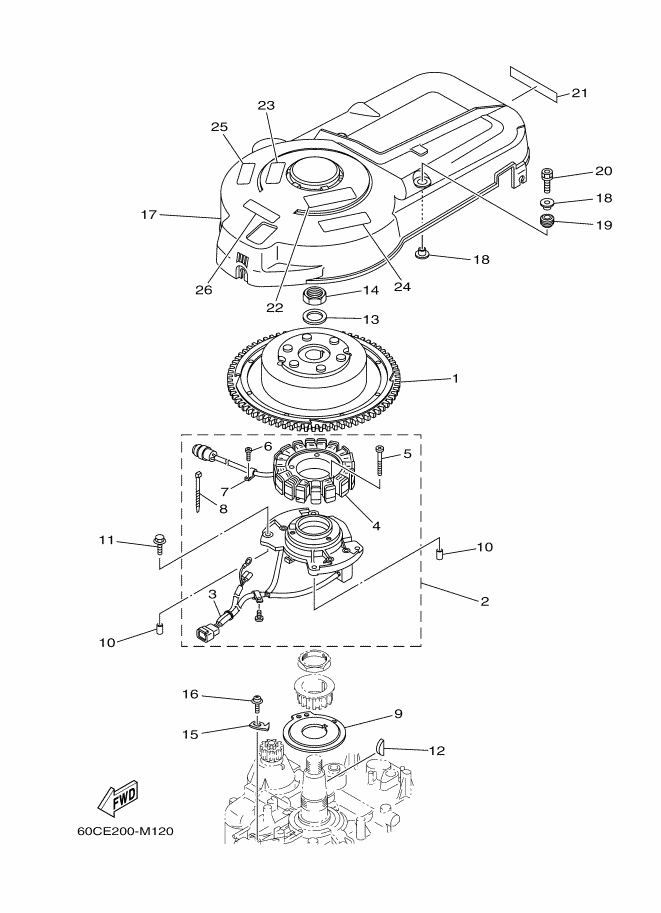

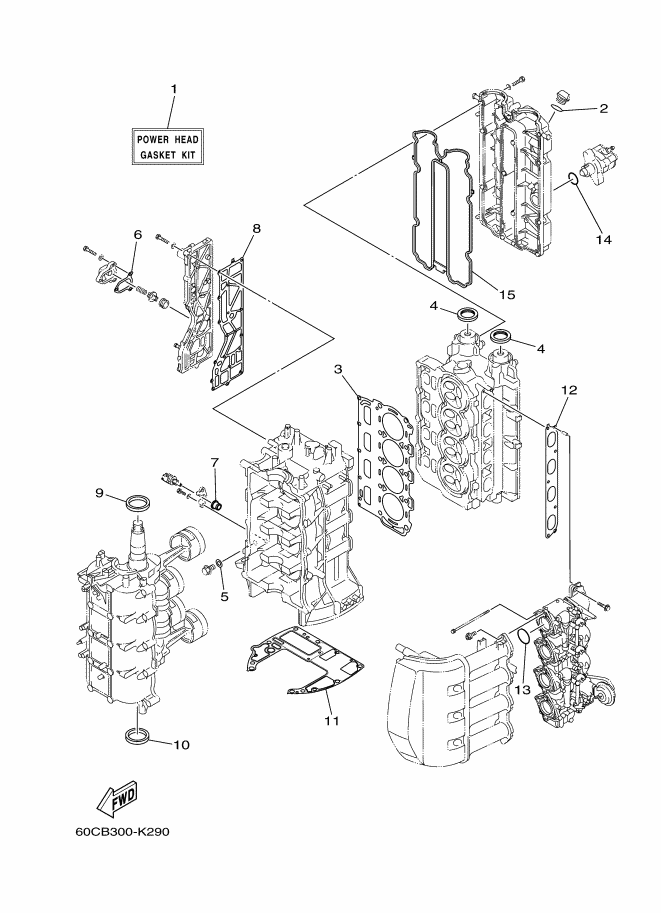

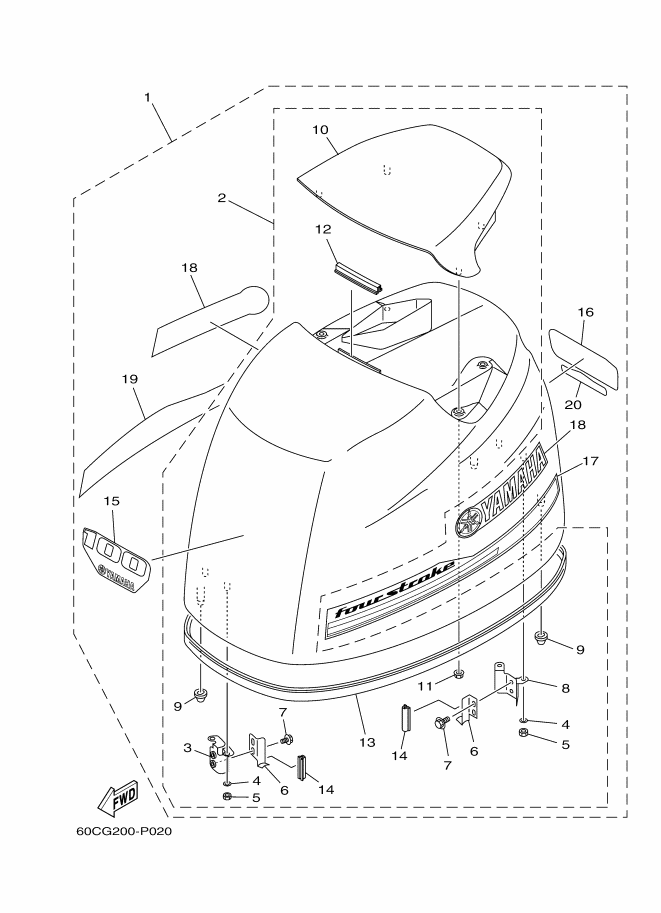

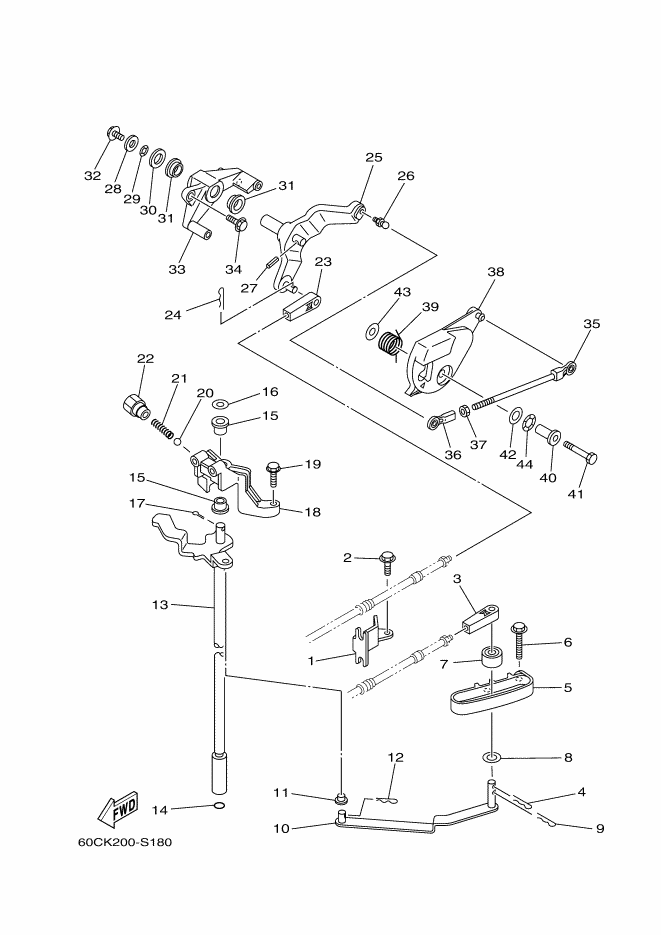

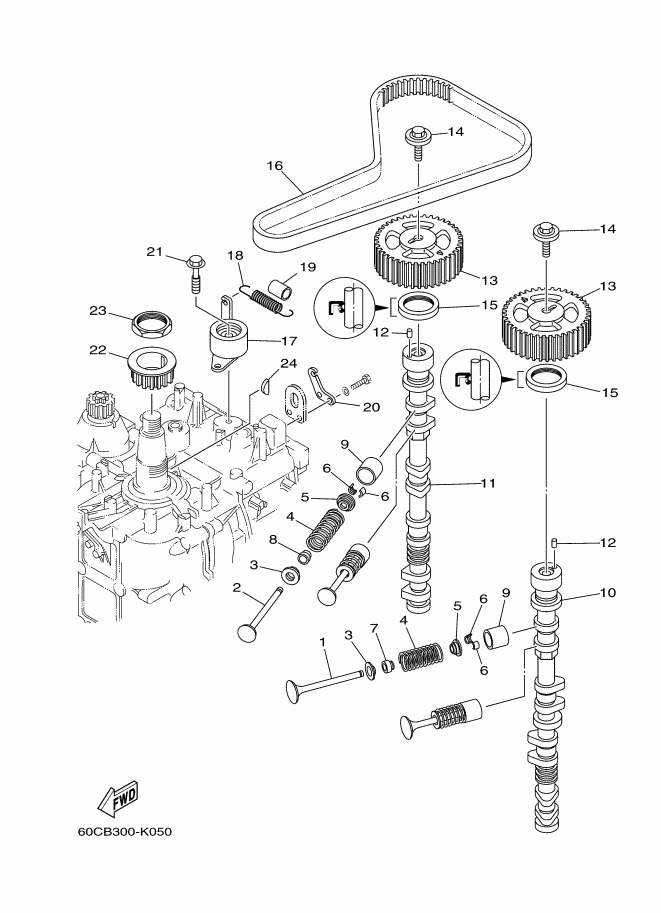

Select an exploded view for your Yamaha f100betl - 2019 - 4-stroke engine
Yamaha f100betl - 2019
The Yamaha f100betl - 2019 outboard engine is a 100 HP 4-stroke model designed to deliver a maximum prop shaft output of 73.6 kW, or 100 ps. With a full throttle operating range between 5000 and 6000 r/min, it meets the needs of boat owners and professionals looking for a reliable engine for regular use in marine environments.
This Yamaha 4-stroke engine features a 16-valve DOHC in-line 4-cylinder design with a displacement of 1596 cm³. Its 4-carburetor fuel induction system, raw-water thermostatically controlled cooling system and through-propeller-boss exhaust all contribute to proper operation and durability when the engine is correctly maintained.
The exploded views for the Yamaha f100betl - 2019 engine help you accurately identify compatible parts, original references and the components required for maintenance or repair. They are useful when working on the engine, gearcase, ignition, cooling system, lubrication system or drive components.
Yamaha f100betl - 2019 engine specifications- 100 HP 4-stroke power with a maximum prop shaft output of 73.6 kW
- DOHC in-line 4-cylinder engine with 16 valves and a displacement of 1596 cm³
- 5000 to 6000 r/min full throttle range for operation suited to the engine’s performance

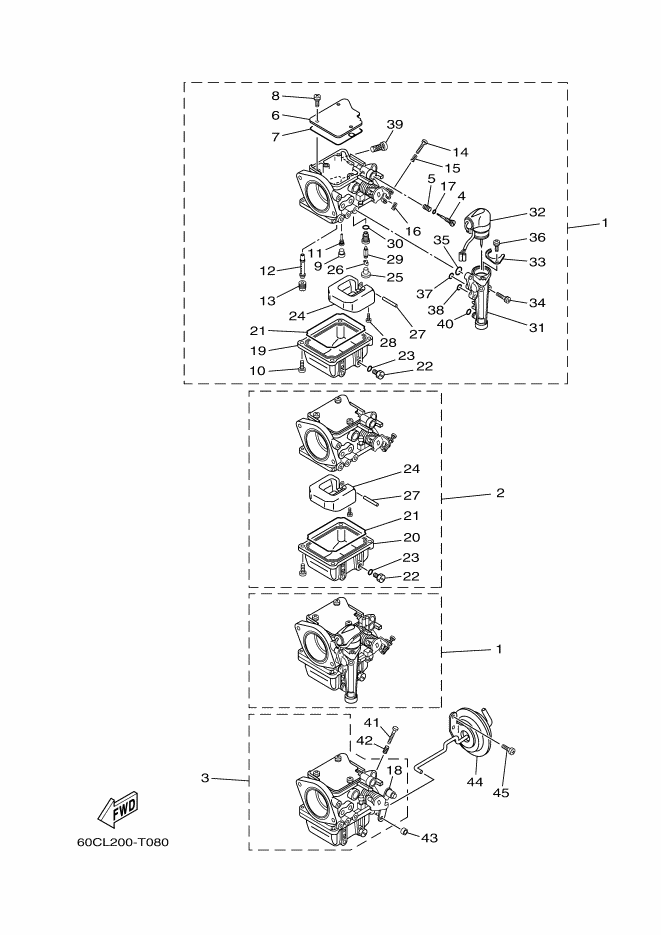

- 4-carburetor fuel induction to supply fuel to the engine
- F-N-R gear shift with a 2.15 gear ratio and clockwise propeller rotation
Find the exploded views for "Yamaha f100betl - 2019".
