Parts and exploded diagrams for Yamaha e75bmhdl - 2009 2-stroke engine
This page allows you to view the exploded diagrams for the Yamaha e75bmhdl - 2009 2-stroke engine and easily identify the compatible parts for your engine.
Yamaha is a well-known brand in the outboard engine industry. It offers engines designed to meet the needs of recreational boaters and professionals, with ranges suited to maintenance, repairs and use in marine environments.
Select an exploded diagram for your Yamaha e75bmhdl - 2009 2-stroke engine
Yamaha e75bmhdl - 2009
The Yamaha e75bmhdl - 2009 is a 75 HP 2-stroke outboard based on an in-line 3-cylinder configuration. Its displacement reaches 1,140 cm³, and the engine block features an 82.0 mm bore with a 72.0 mm stroke. Maximum output delivered to the propeller shaft is 55.2 kW (75 HP) at 5,000 rpm.
This engine uses a carburettor fuel induction system and lubrication requiring oil and fuel to be mixed beforehand. Depending on the model configuration, starting may be manual or electric and operation may be provided by remote control or a tiller handle. The Hydro Tilt system makes tilting the outboard easier.

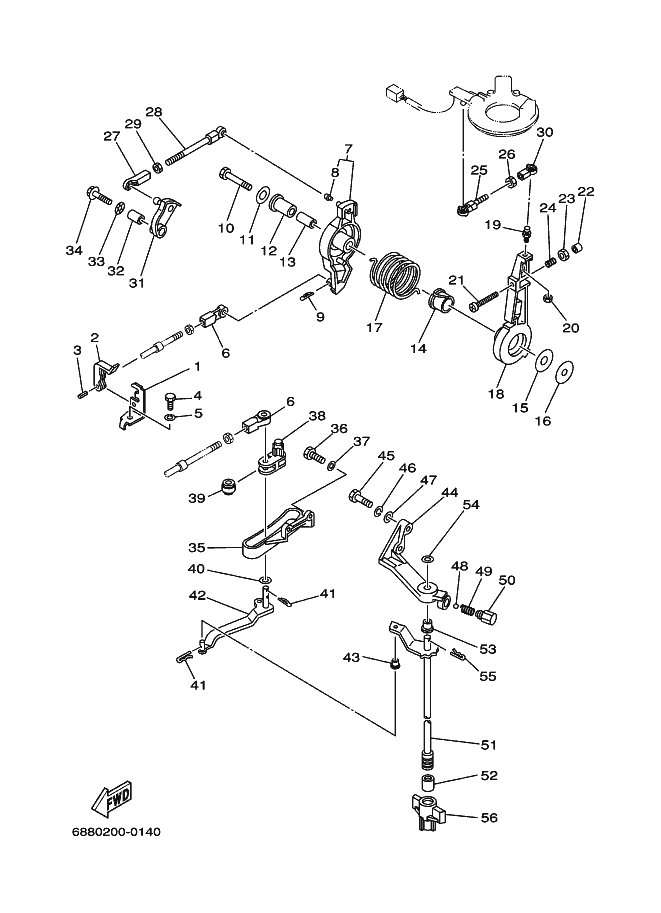

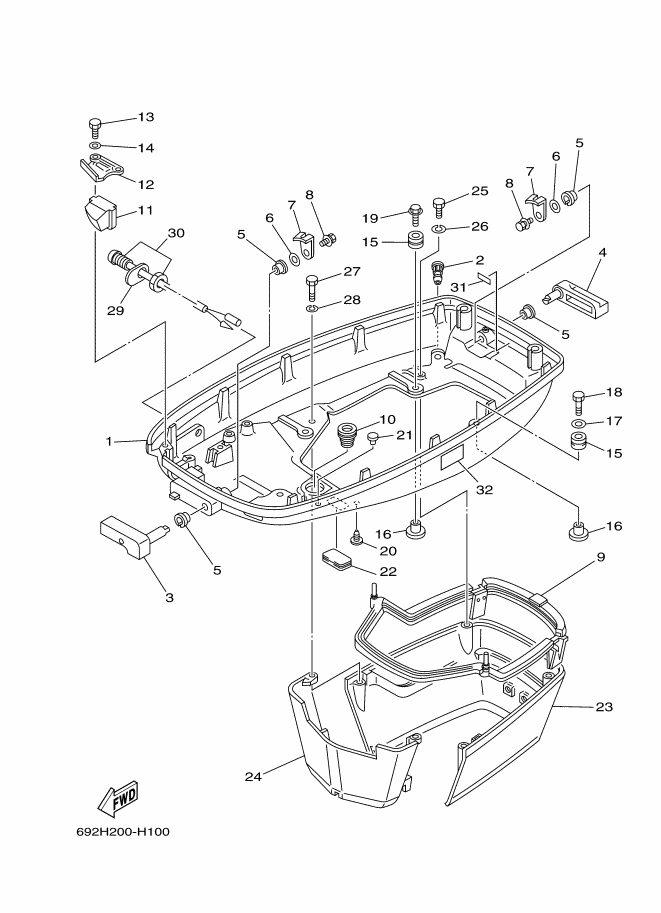

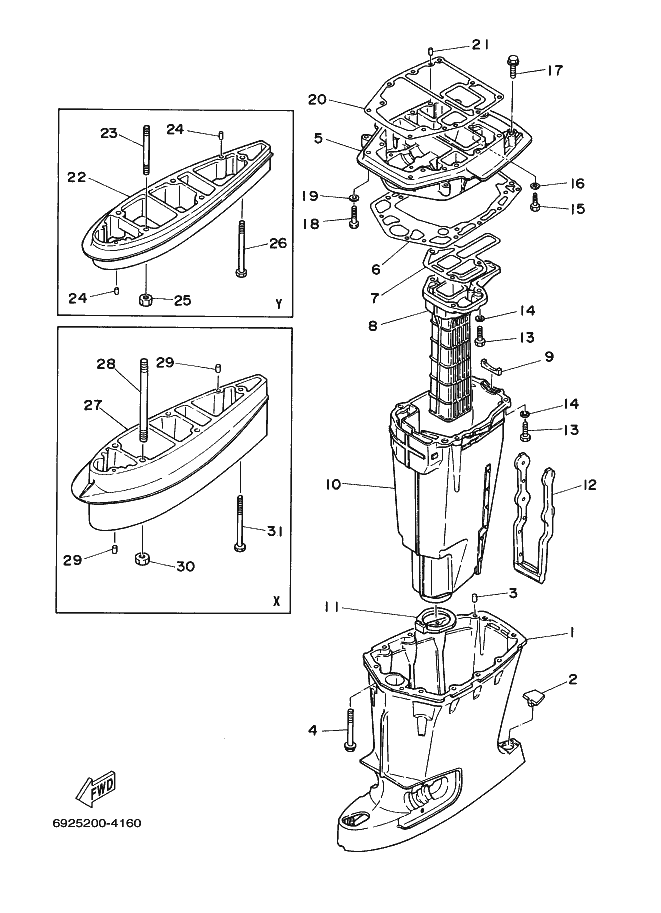

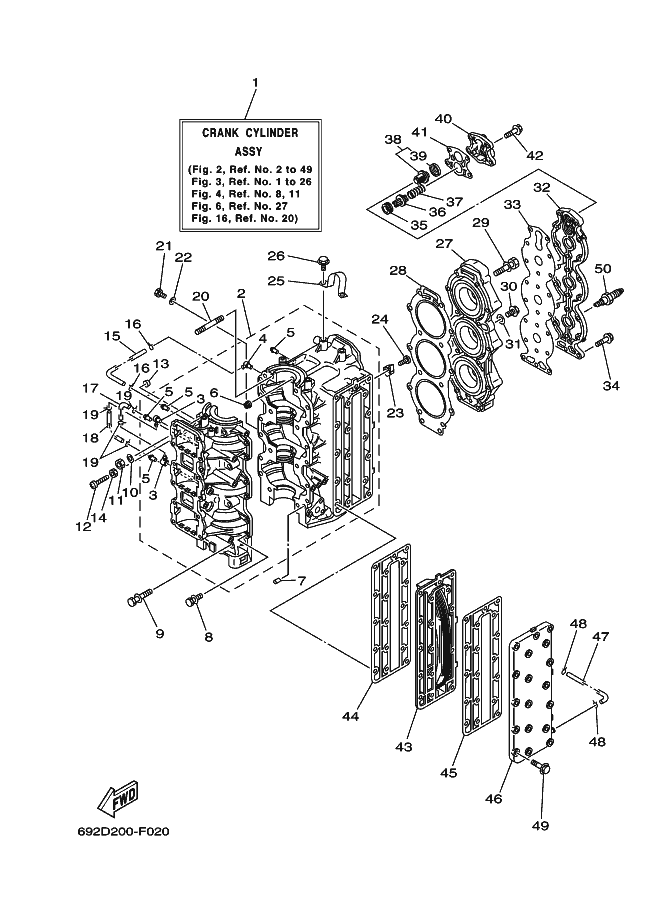

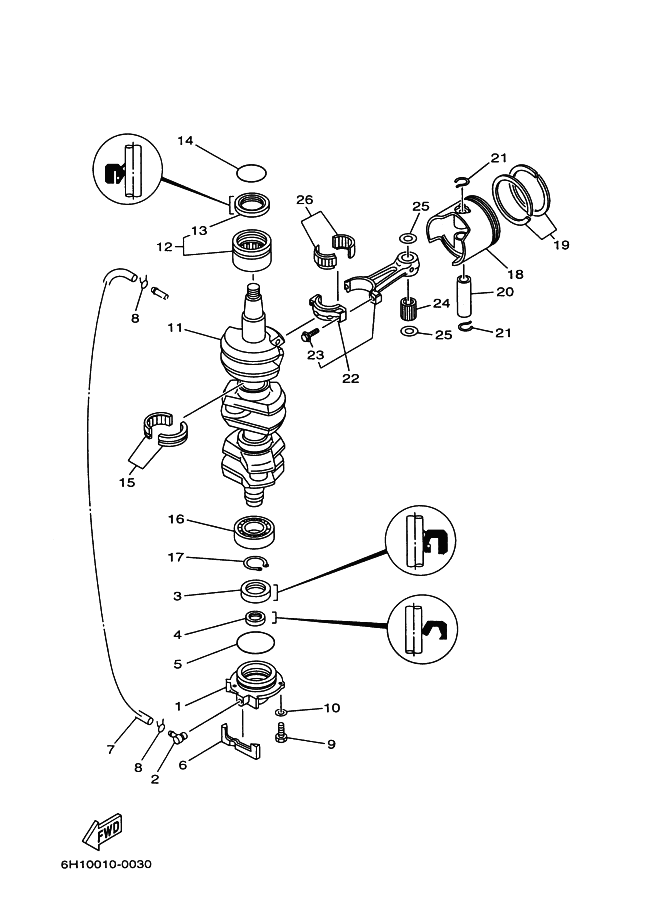

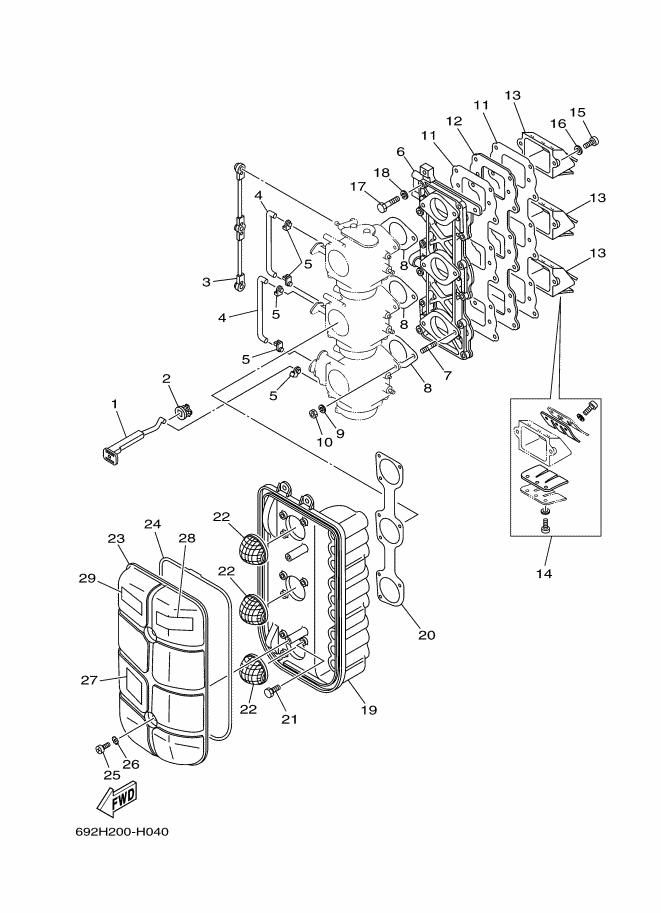

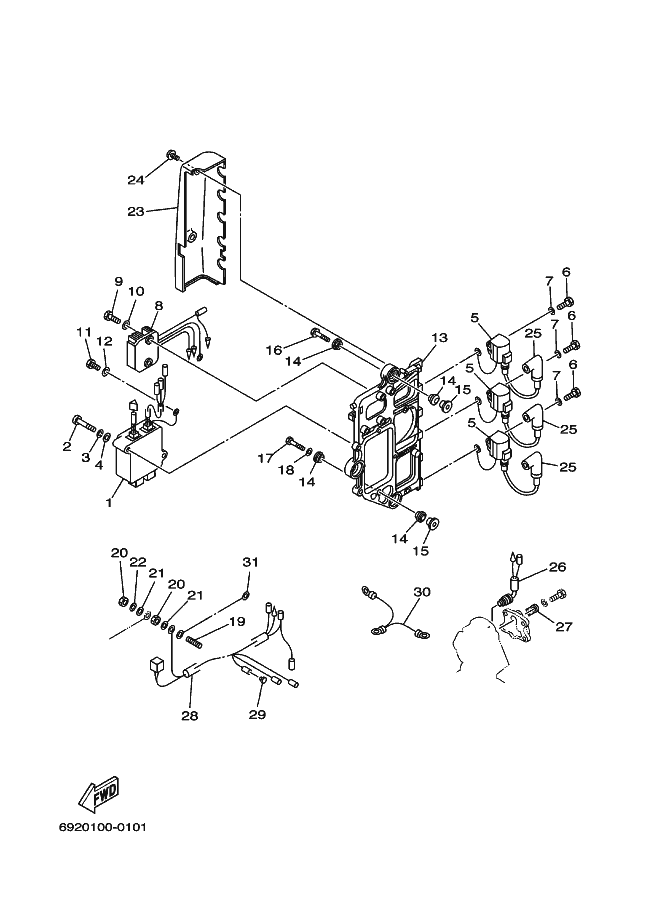

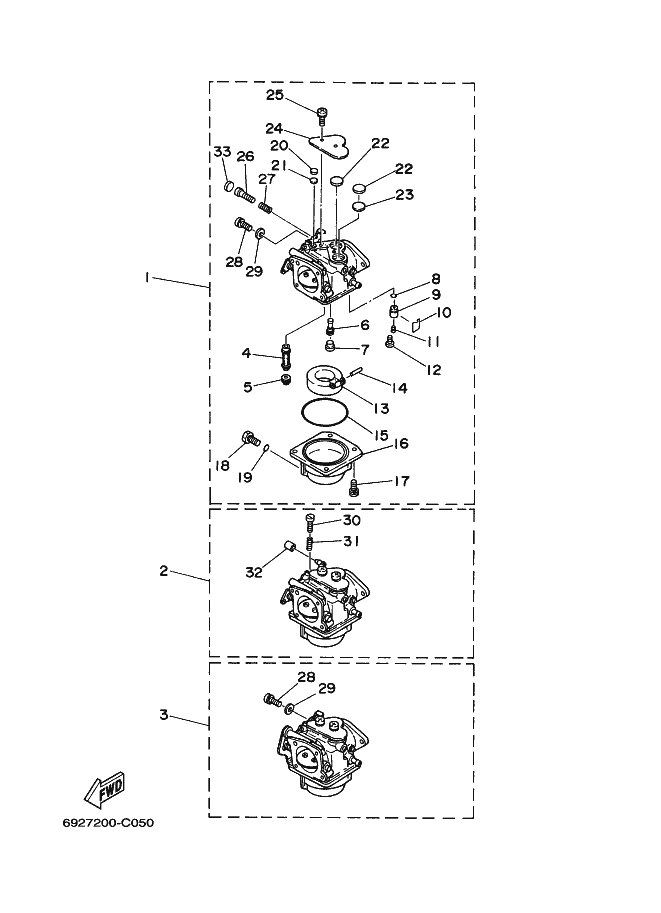

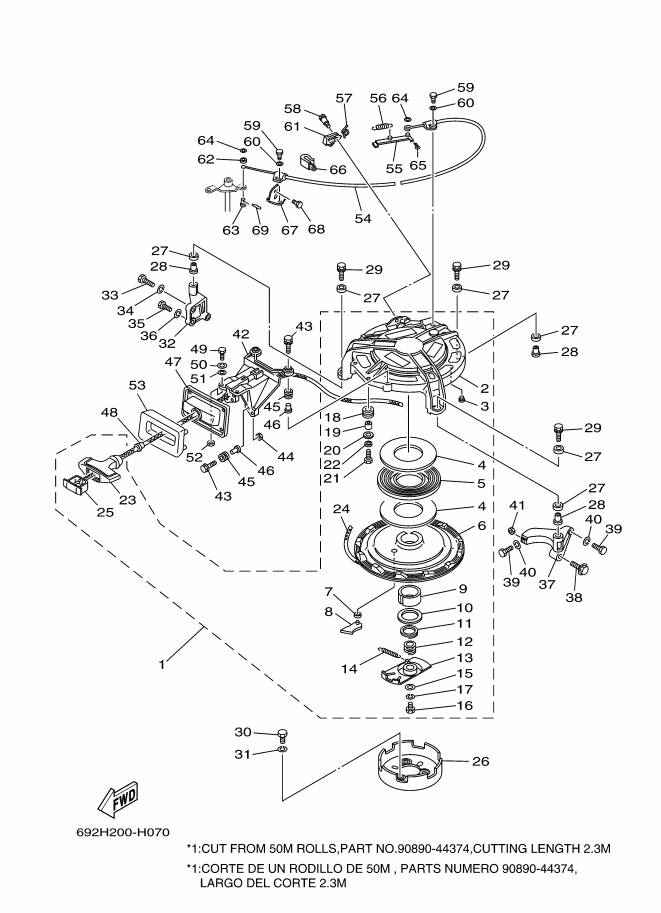

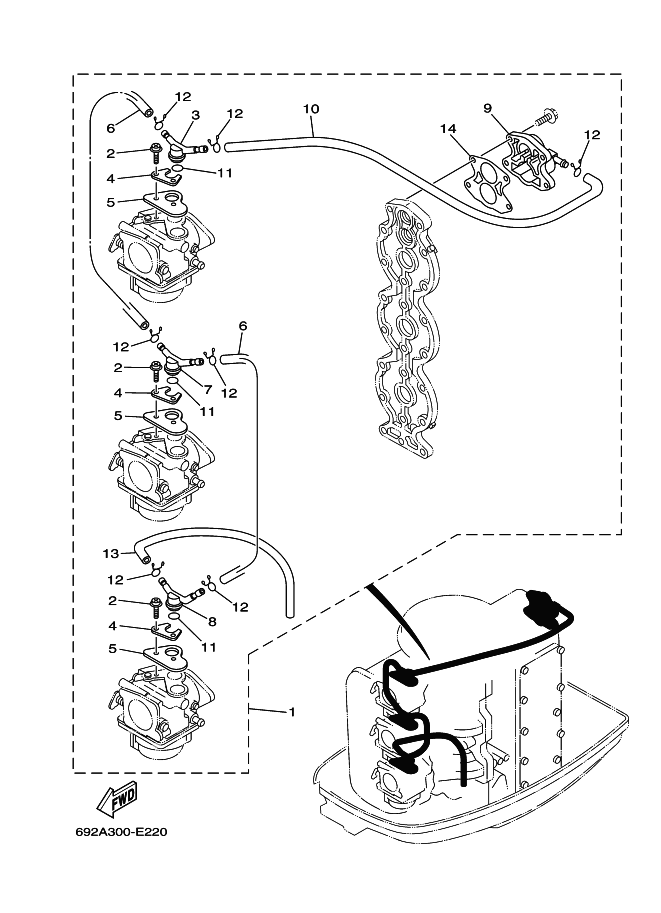

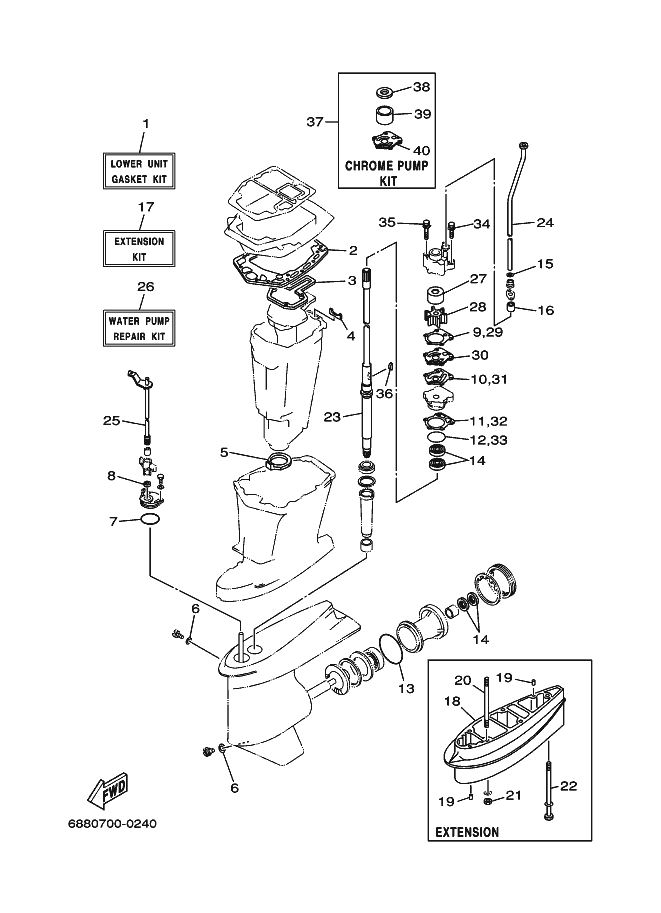

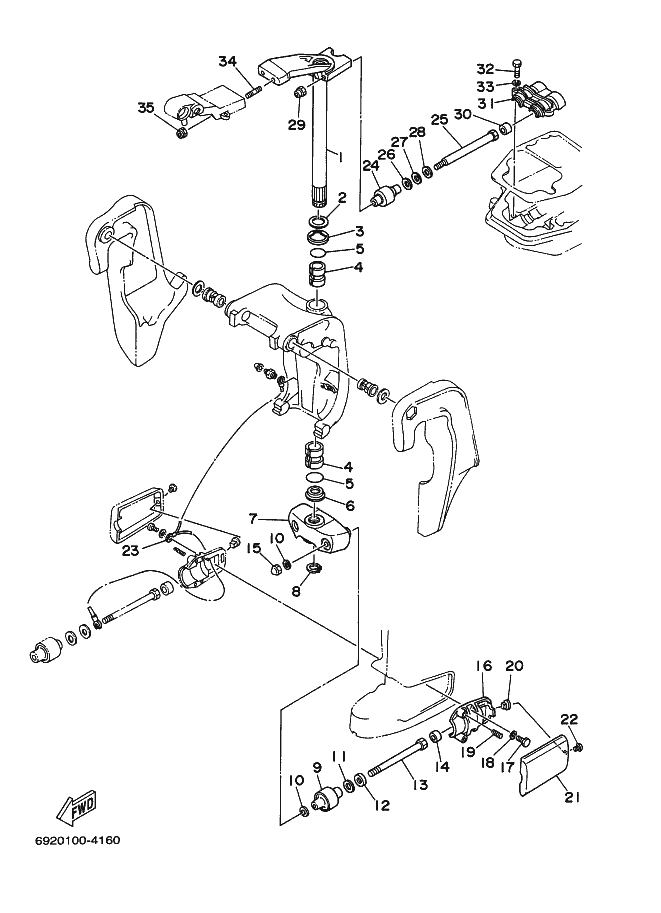

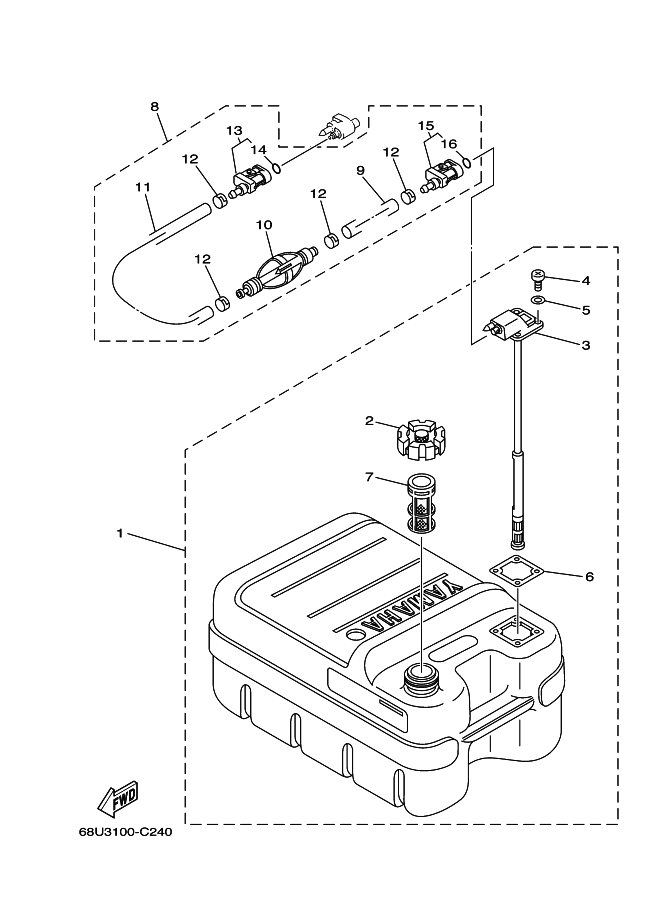

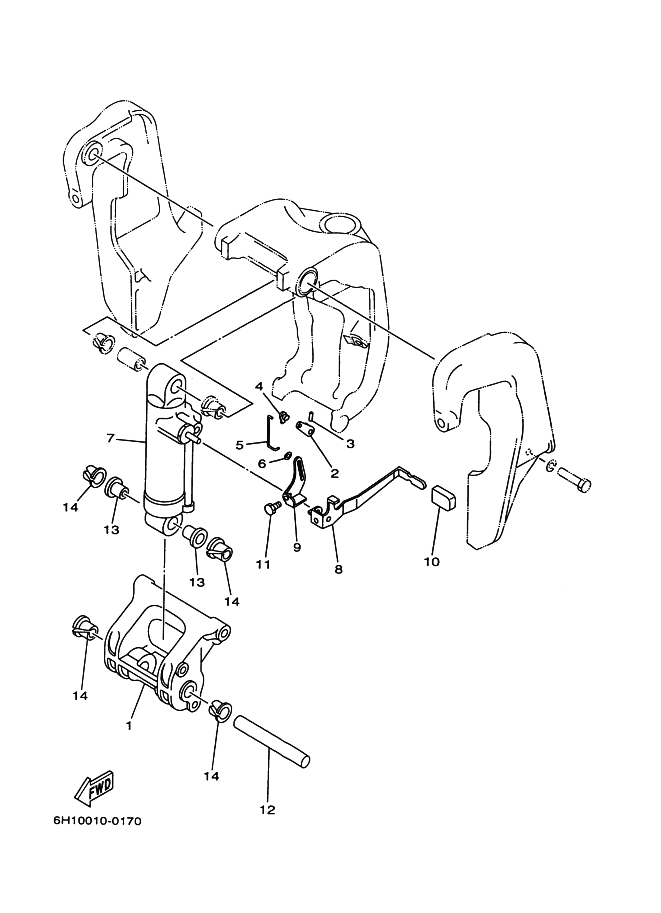

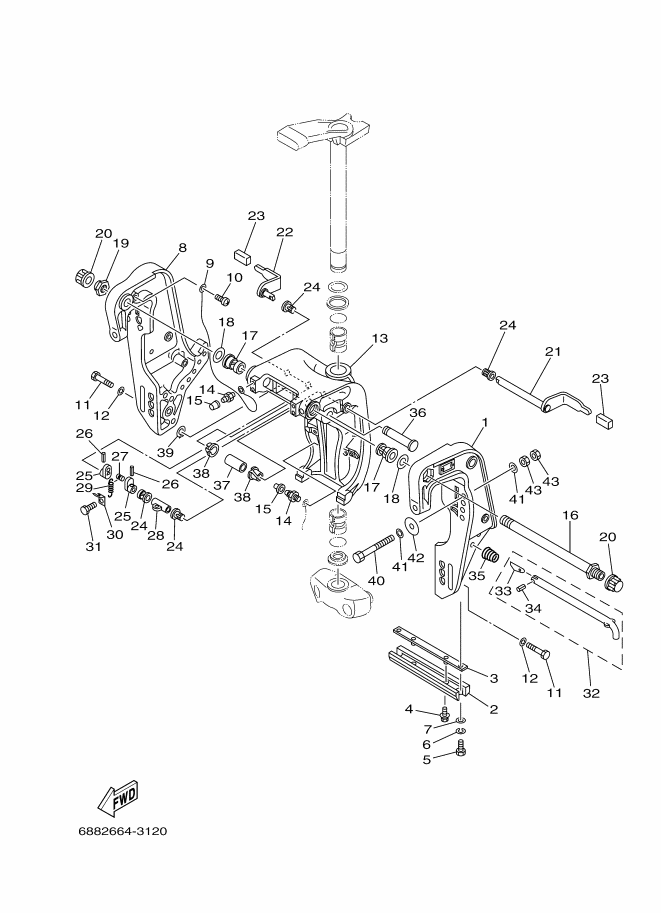

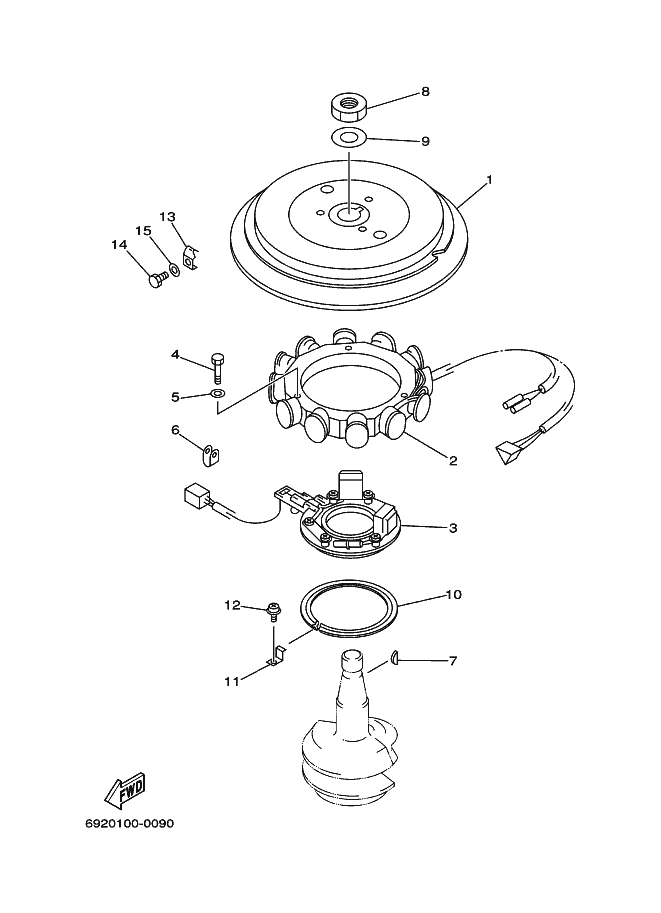

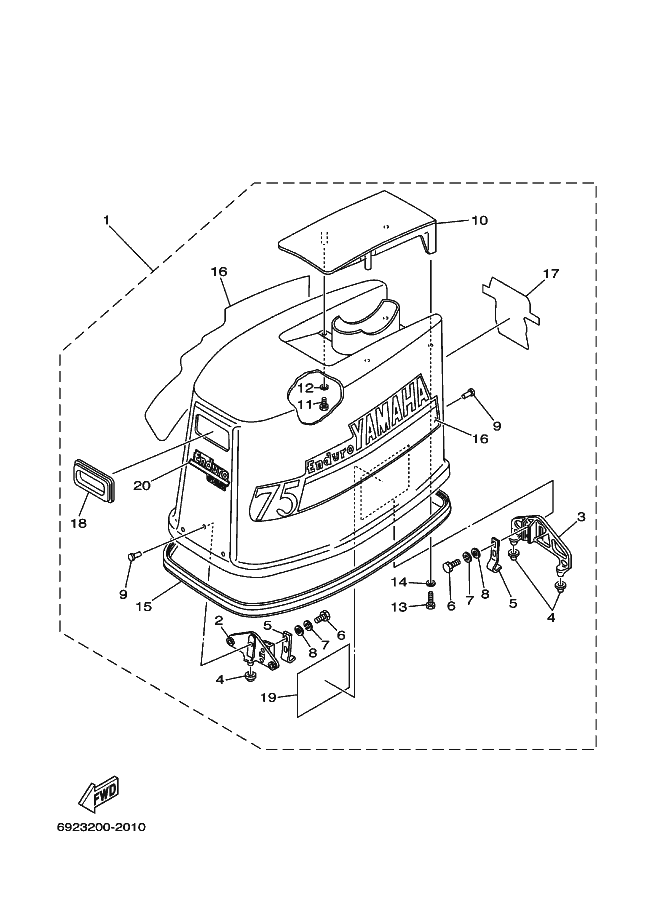

The exploded diagrams for the Yamaha e75bmhdl - 2009 allow the various engine assemblies to be examined and help locate the components involved in a specific operation. They simplify part-number searches and the identification of compatible parts for servicing, repairs or replacing a mechanical component.
Features of the Yamaha e75bmhdl - 2009 engine- In-line 3-cylinder configuration combined with a total displacement of 1,140 cm³
- 55.2 kW (75 HP) output delivered at the propeller shaft at 5,000 rpm
- Carburettor fuel induction used to supply fuel to the engine
- Manual or electric starting available according to the model version
- Pre-mixed lubrication requiring the fuel and oil to be combined before use
View exploded diagrams Yamaha e75bmhdl - 2009
