Parts and exploded diagrams for Yamaha e60hmhdx - 2017 2-stroke engine
This page allows you to view the exploded diagrams for the Yamaha e60hmhdx - 2017 2-stroke engine and easily identify the compatible parts for your engine.
Yamaha is a well-established brand in the outboard engine sector. It offers engines designed for the needs of both recreational boaters and professionals, with ranges suited to maintenance, repair and operation in marine environments.
Select an exploded diagram for your Yamaha e60hmhdx - 2017 2-stroke engine
Yamaha e60hmhdx - 2017
The Yamaha e60hmhdx - 2017 is a 60 HP 2-stroke outboard engine built around an in-line three-cylinder configuration. Its 849 cm³ displacement, combined with a bore and stroke of 72.0 × 69.5 mm, enables it to deliver a maximum propeller shaft output of 44.1 kW, equivalent to 60 HP, at 5,000 rpm.
Fuel induction is handled by a carburetor, while lubrication requires fuel and oil to be pre-mixed. Depending on the model configuration, starting can be manual or combine manual and electric starting, and the engine can be operated using either remote controls or a tiller handle. The Hydro Tilt system assists with raising and positioning the outboard.

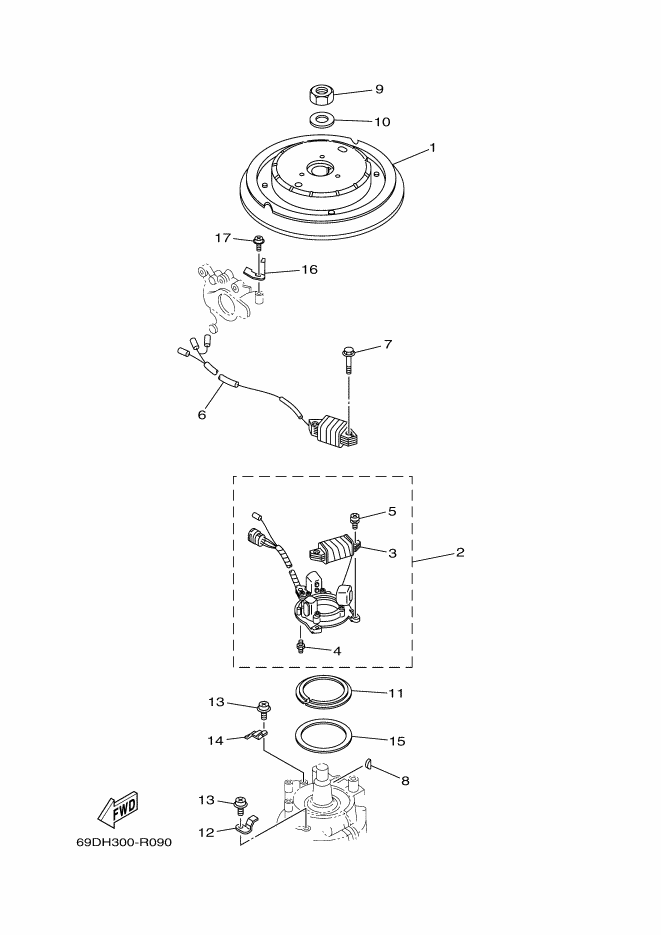

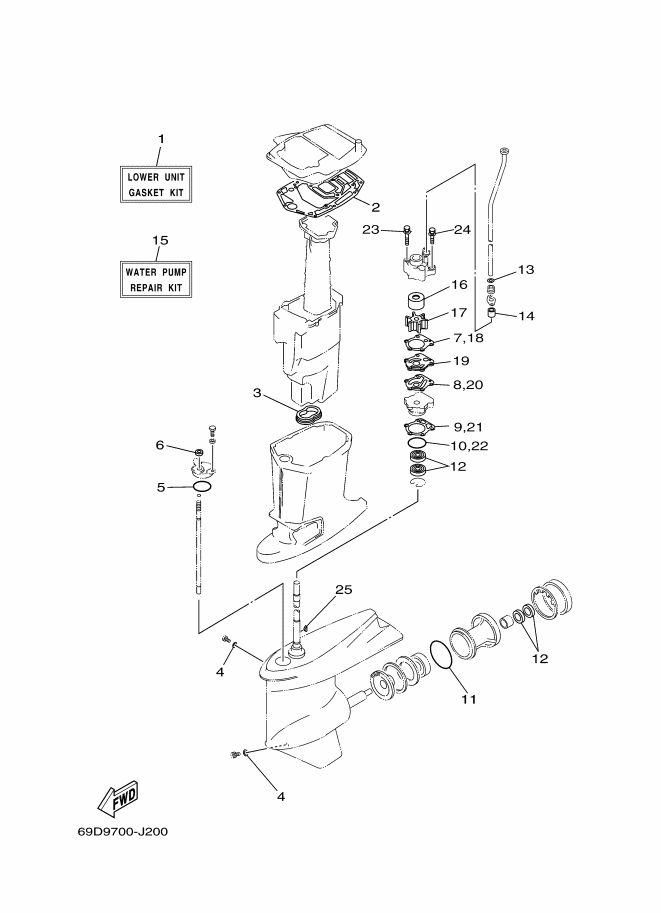

The exploded diagrams for the Yamaha e60hmhdx - 2017 show how its mechanical assemblies and individual components are arranged. They help users identify the correct references, locate compatible replacement parts and prepare maintenance or repair work more accurately.
Yamaha e60hmhdx - 2017 engine features- In-line three-cylinder engine: a 2-stroke configuration producing 60 HP
- 849 cm³ displacement: combined with a bore and stroke of 72.0 × 69.5 mm
- Carburetor fuel induction: a system used to supply the fuel mixture to the engine
- Different starting options: manual or manual and electric depending on the model version
- Hydro Tilt system: designed to assist with raising the outboard engine
View exploded diagrams Yamaha e60hmhdx - 2017
