Honda Marine
Parts and exploded diagrams for Yamaha e60hmhdl - 2008 2-stroke engine
This page allows you to view the exploded diagrams for the Yamaha e60hmhdl - 2008 2-stroke engine and easily identify the compatible parts for your engine.
Yamaha is a well-known brand in the outboard engine industry. It offers engines designed to meet the needs of recreational and professional users, with ranges suited to maintenance, repairs and operation in marine environments.
Select an exploded diagram for your Yamaha e60hmhdl - 2008 2-stroke engine
Yamaha e60hmhdl - 2008
The Yamaha e60hmhdl - 2008 is a 2-stroke outboard engine capable of producing 60 HP at 5,000 rpm. Its 849 cm³ power unit brings together 3 cylinders arranged in line and features a bore and stroke of 72.0 × 69.5 mm. Fuel delivery is provided by a carburettor.
The starting system varies according to the configuration and may be manual or combine a manual control with an electric device. Steering is handled through a tiller handle or remote control. The Hydro Tilt mechanism makes it easier to raise and angle the engine, while lubrication requires fuel and oil to be premixed.

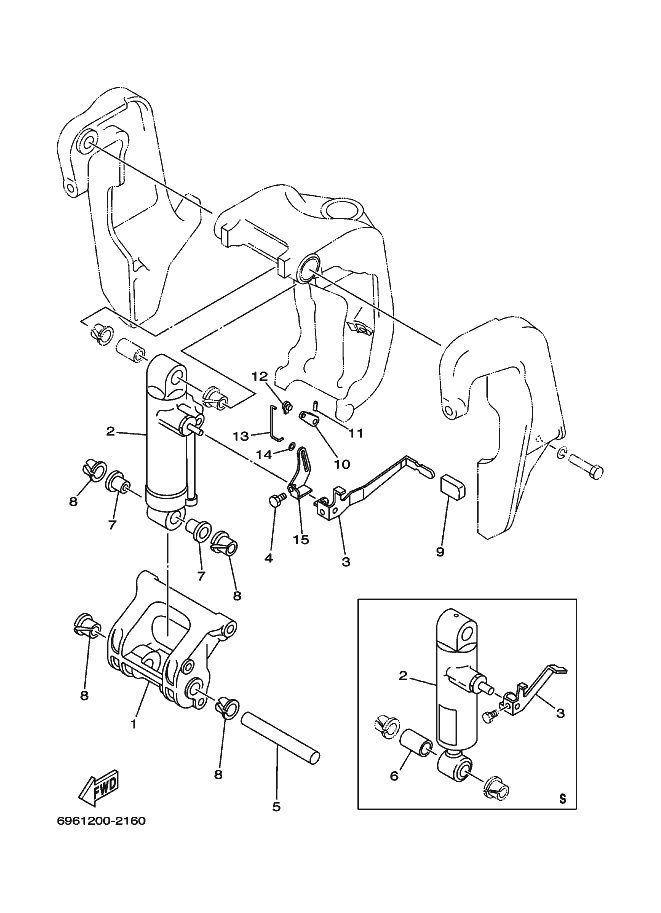

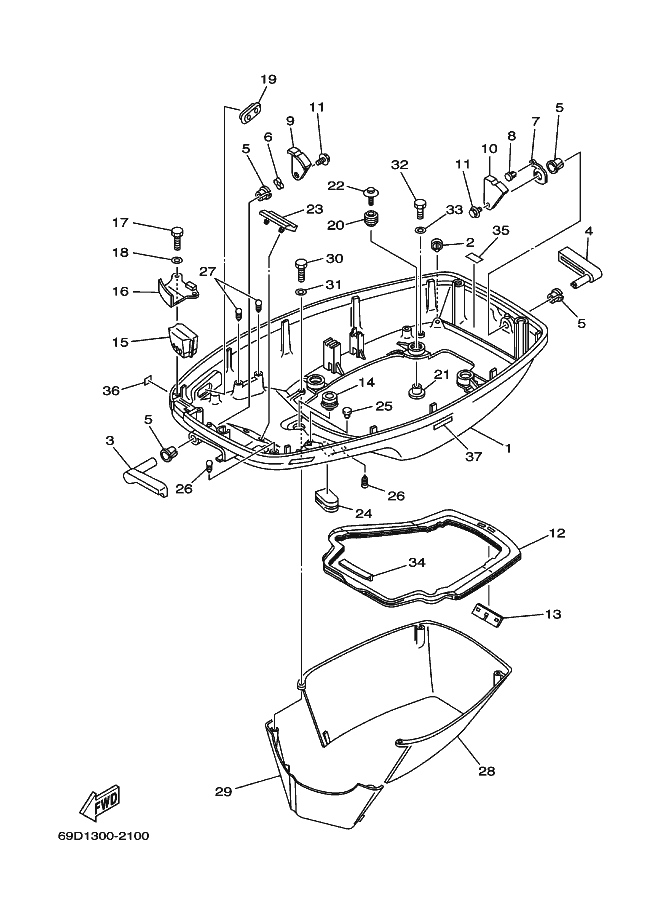

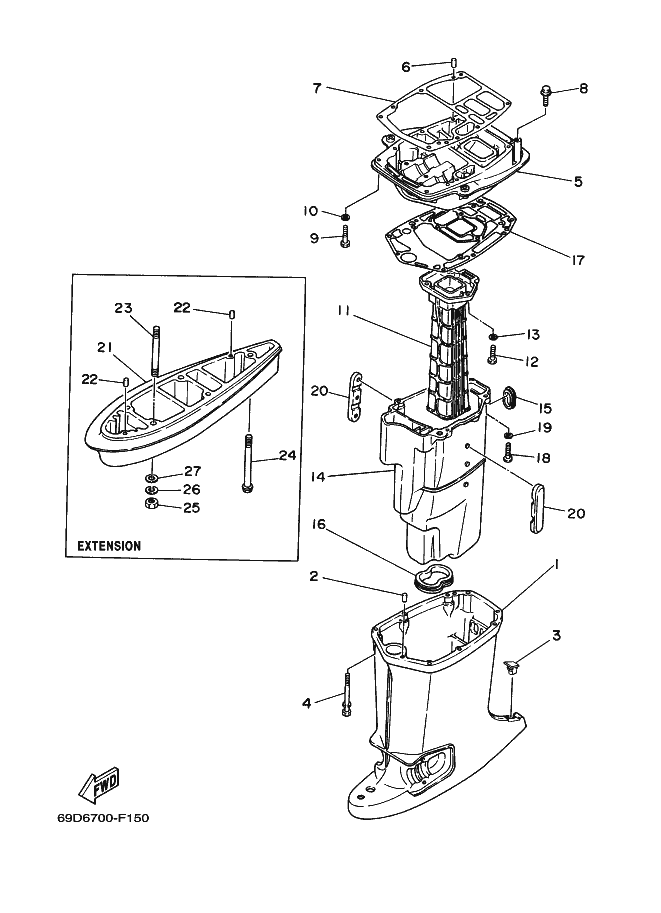

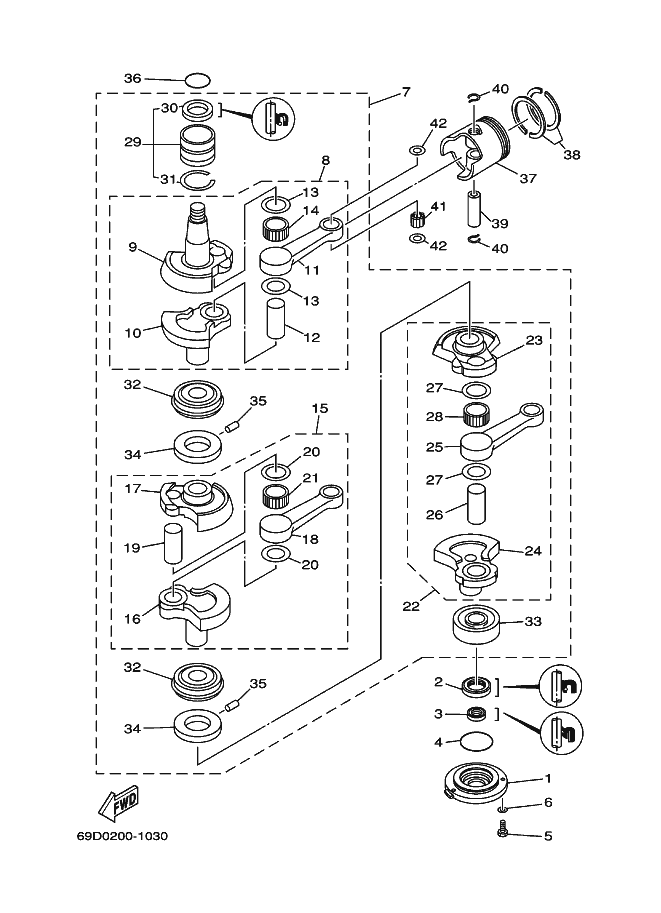

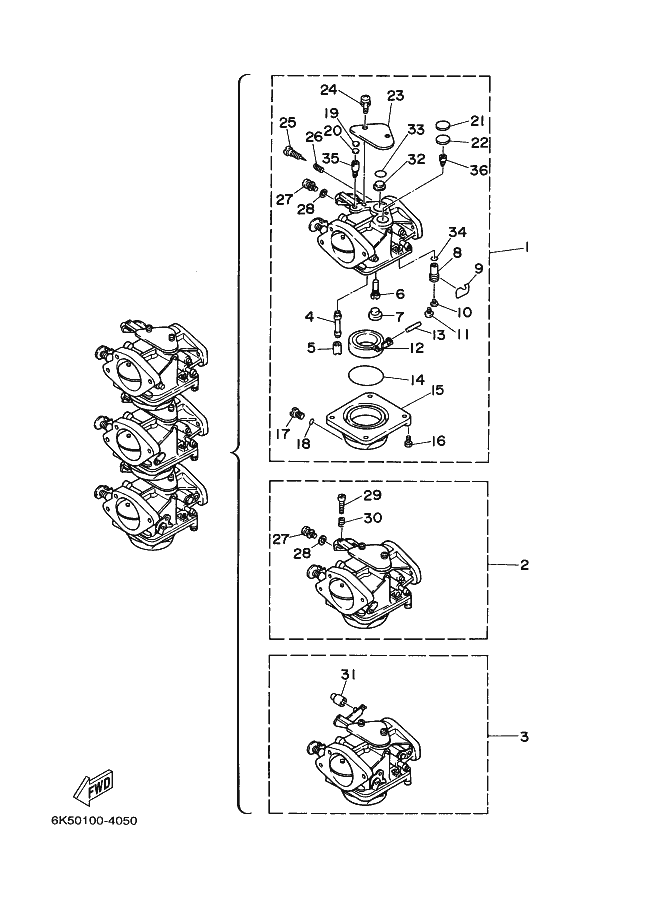

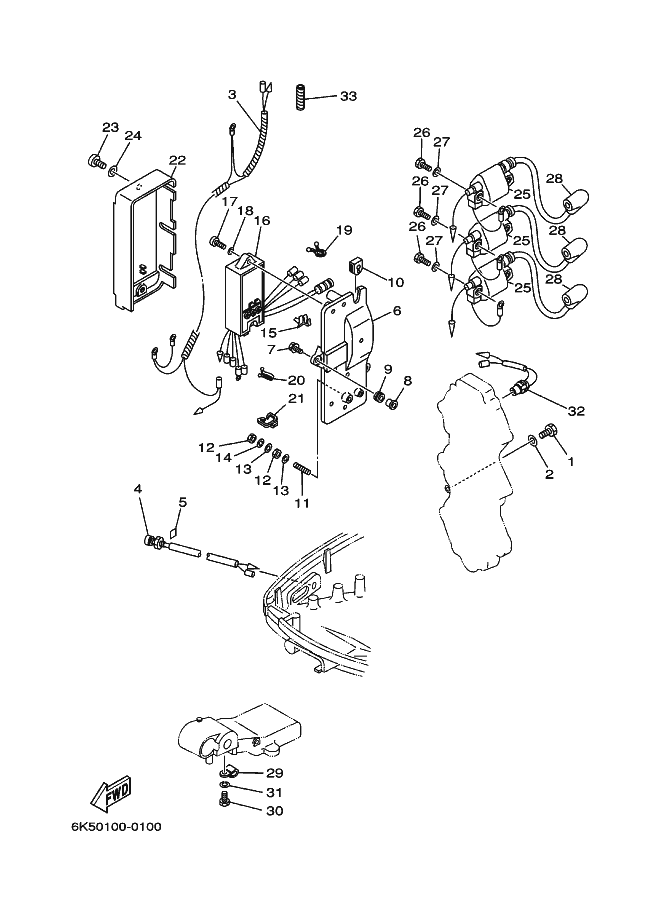

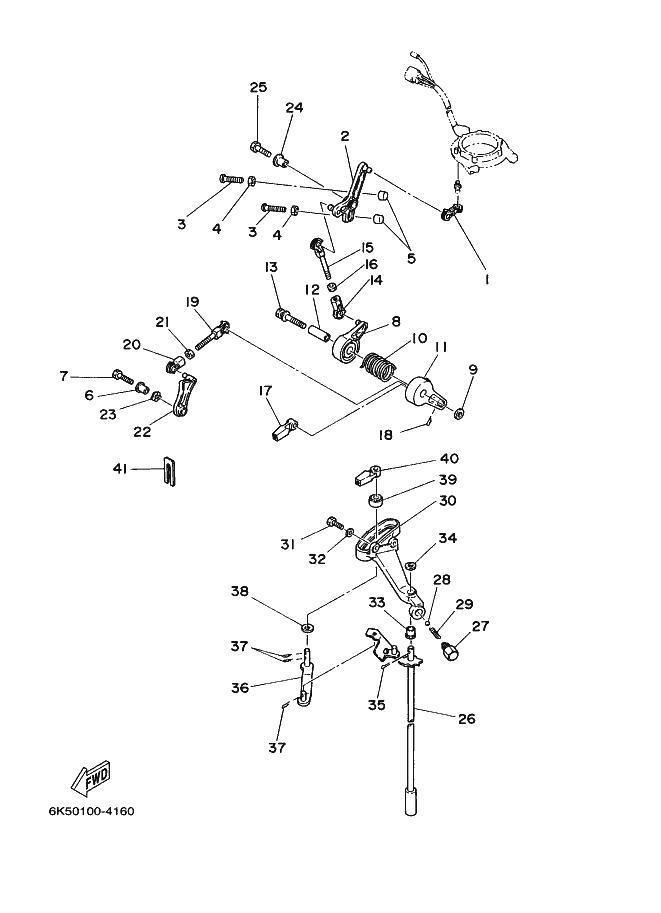

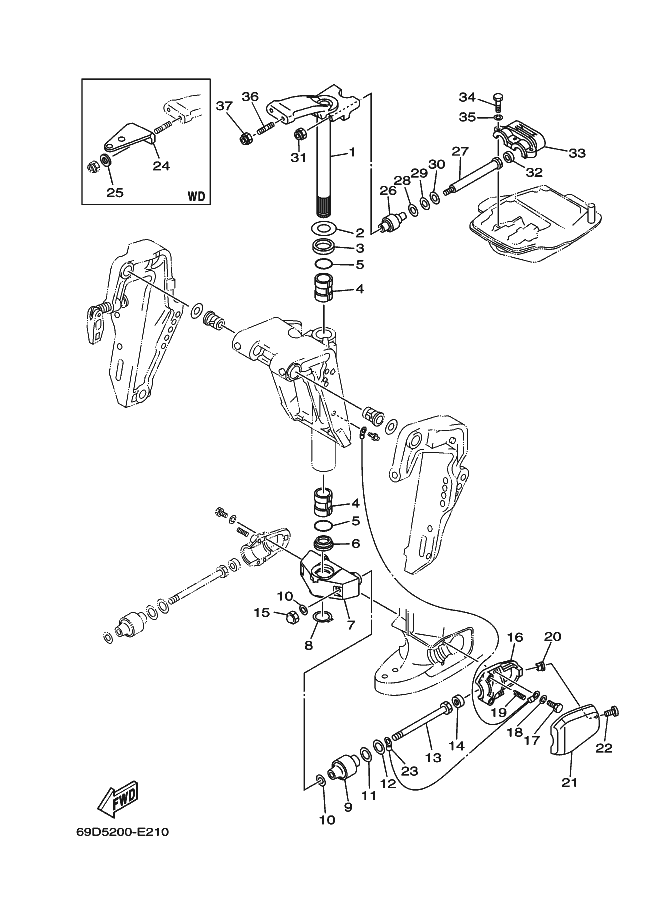

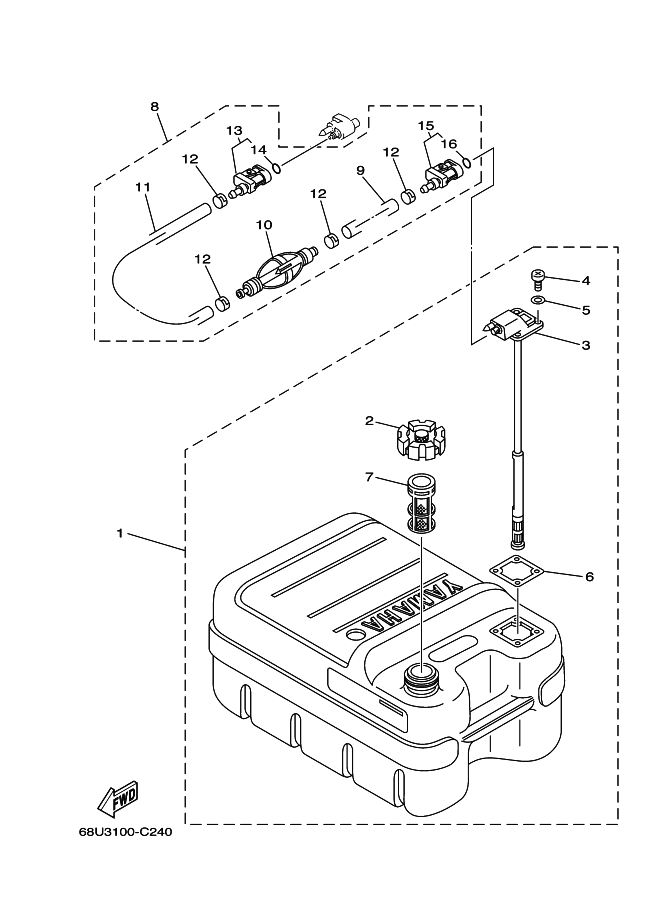

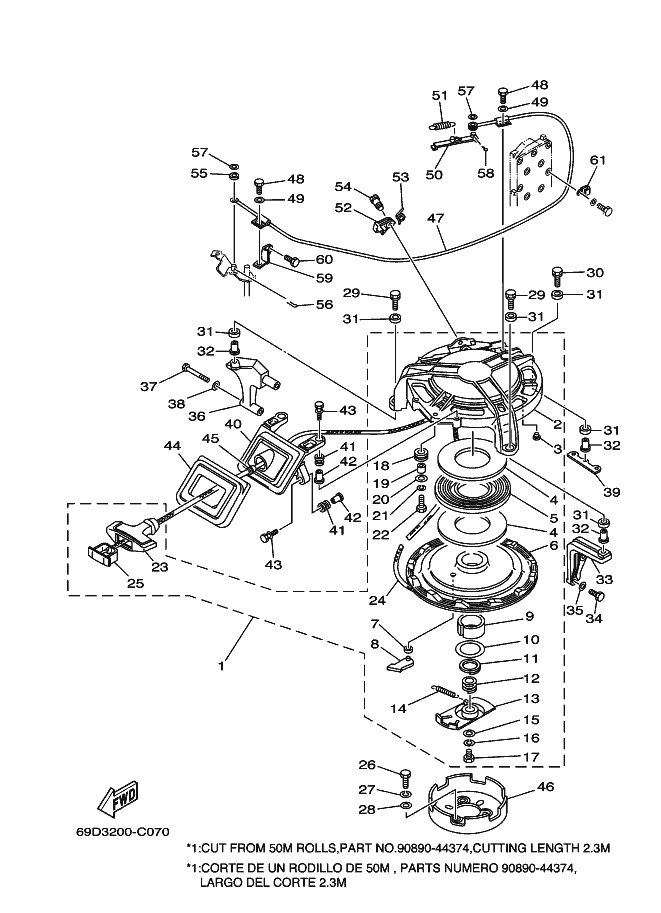

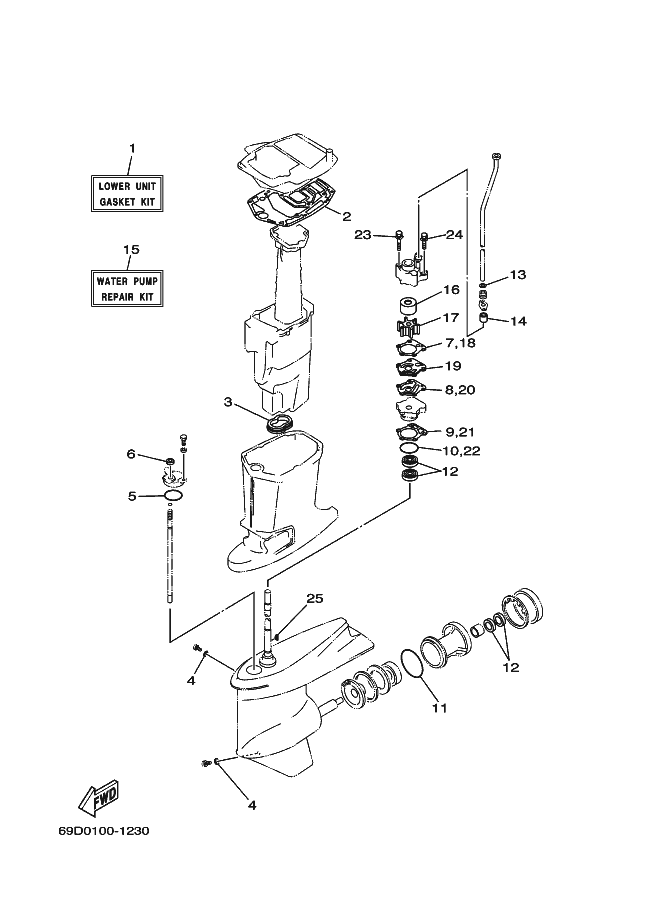

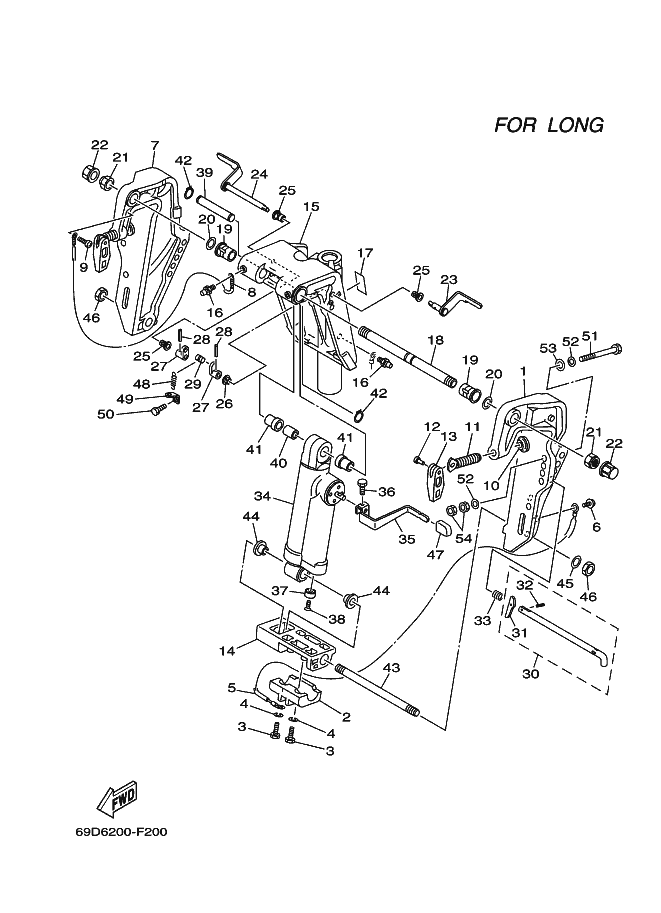

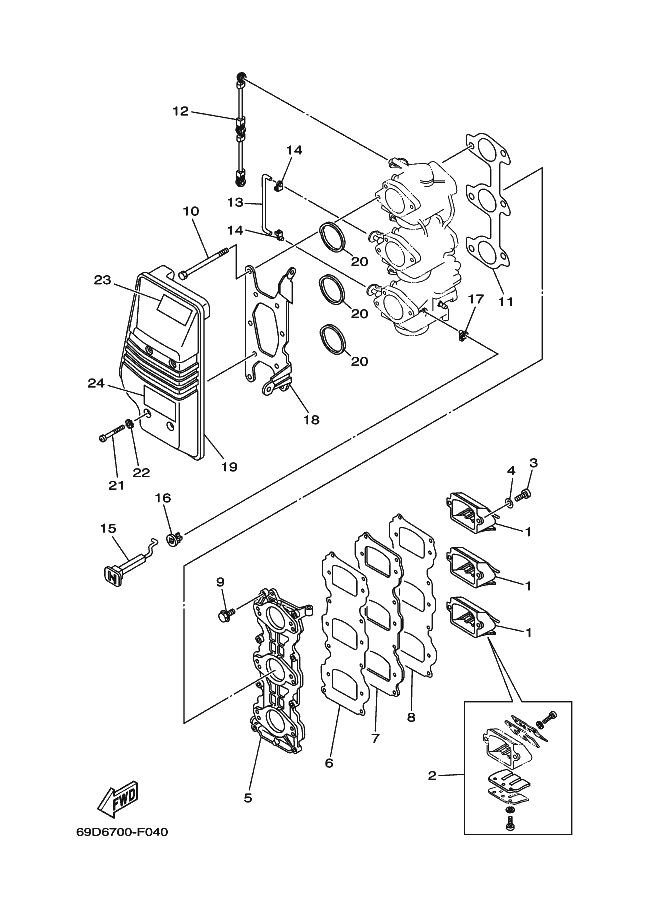

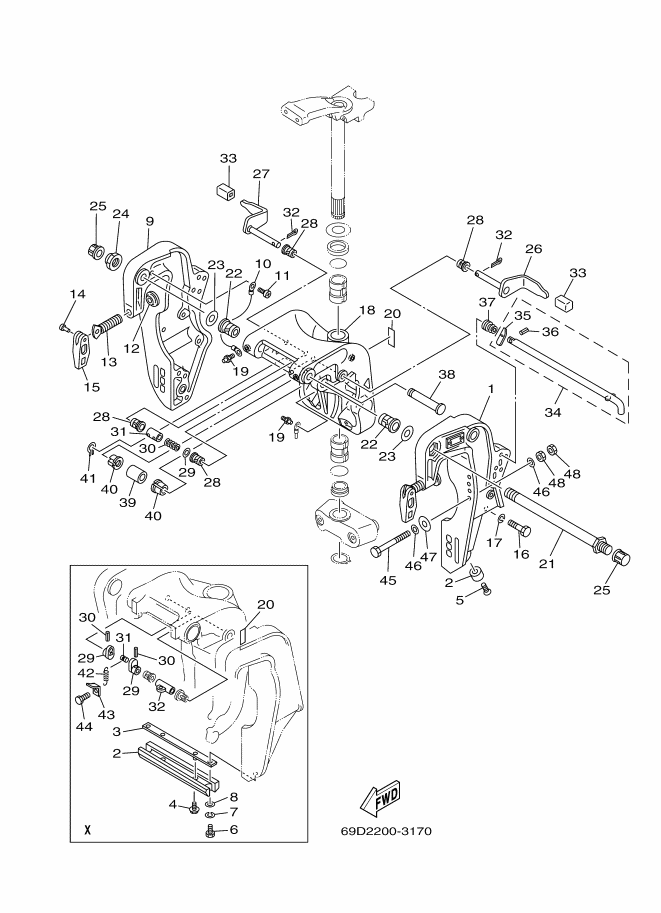

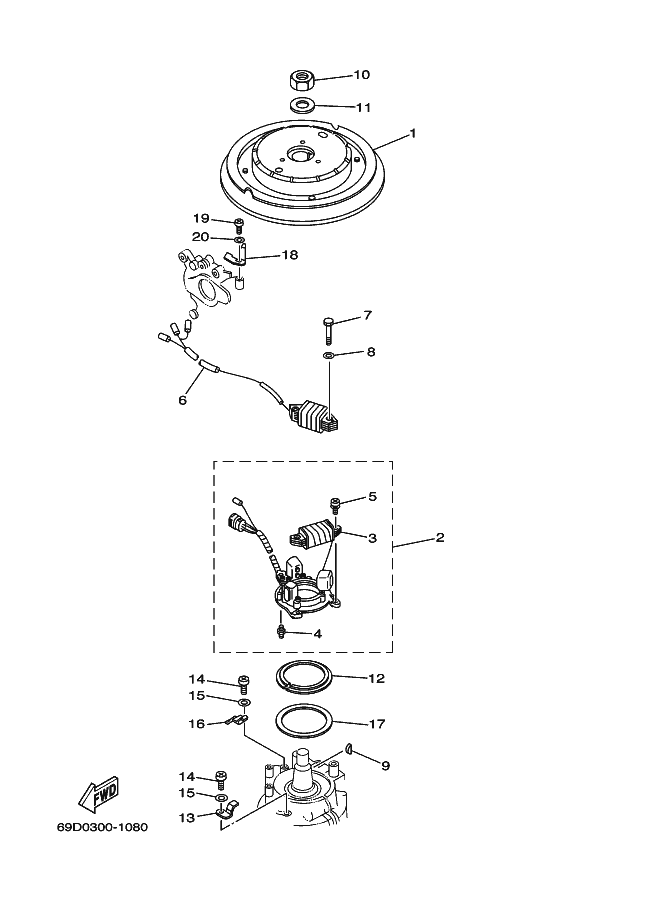

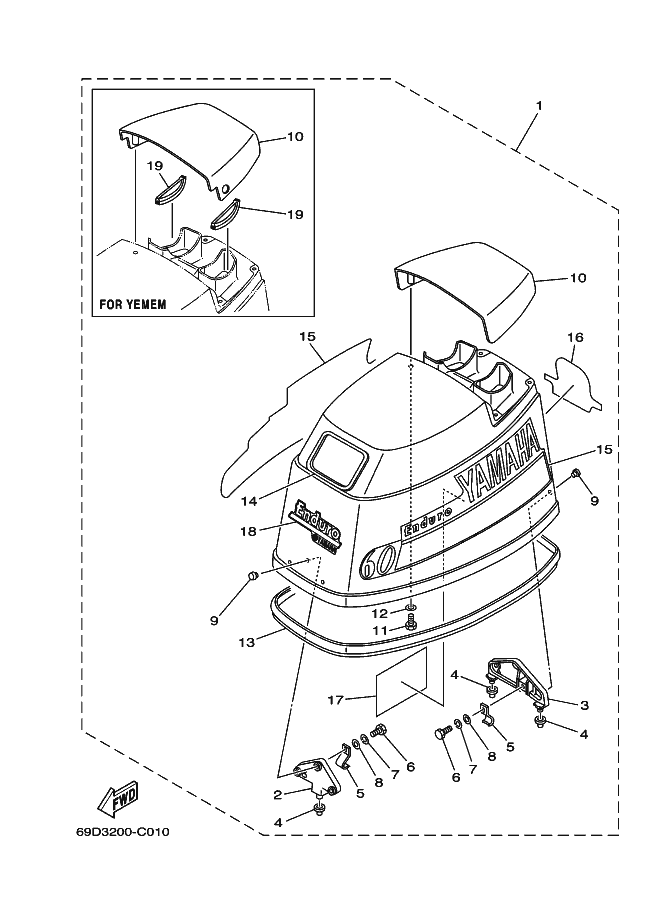

The exploded diagrams show how the different assemblies are arranged and help locate components before maintenance work. They make it easier to identify the references corresponding to the Yamaha e60hmhdl - 2008 and select compatible parts for accurate repair or replacement.
Yamaha e60hmhdl - 2008 engine features- 60 HP output delivered at an engine speed of 5,000 rpm
- In-line 3-cylinder layout incorporated into an 849 cm³ engine
- 72.0 × 69.5 mm bore and stroke corresponding to the internal dimensions of the block
- Manual or manual and electric starting depending on the engine version
- Hydro Tilt system making it easier to lift and adjust the outboard angle
View exploded diagrams Yamaha e60hmhdl - 2008
