Parts and exploded diagrams for Yamaha e60hmhdl - 2019 2-stroke engine
This page allows you to view the exploded diagrams for the Yamaha e60hmhdl - 2019 2-stroke engine and easily identify the compatible parts for your engine.
Yamaha is a well-known brand in the outboard engine industry. It offers engines designed to meet the needs of recreational and professional users, with ranges suited to maintenance, repairs and operation in marine environments.

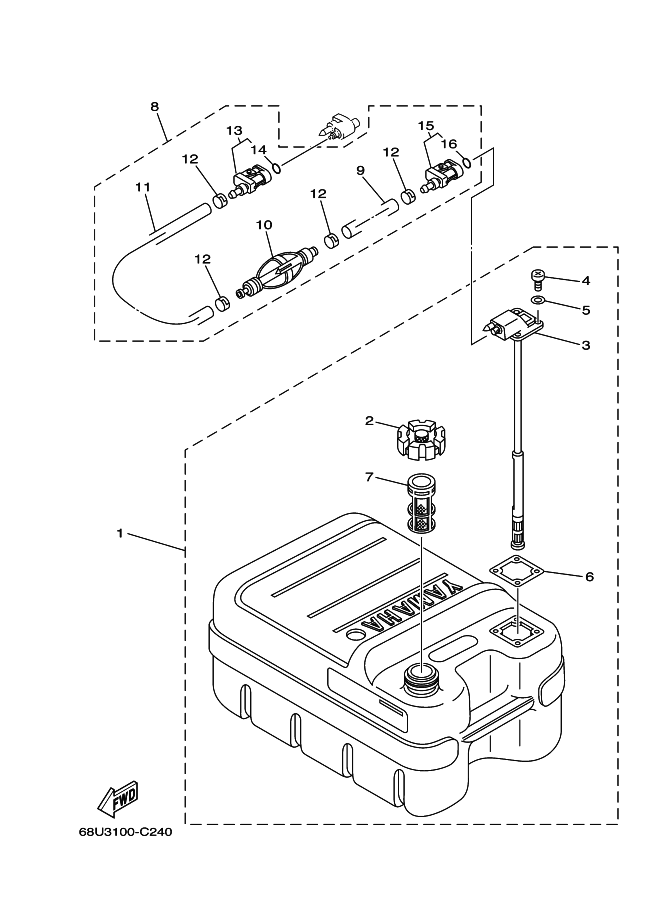

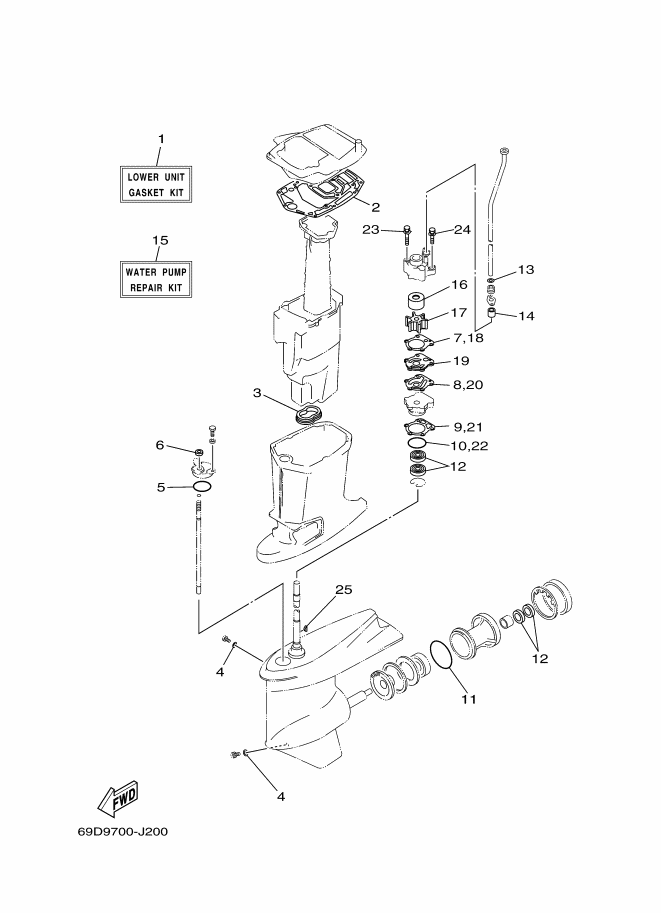

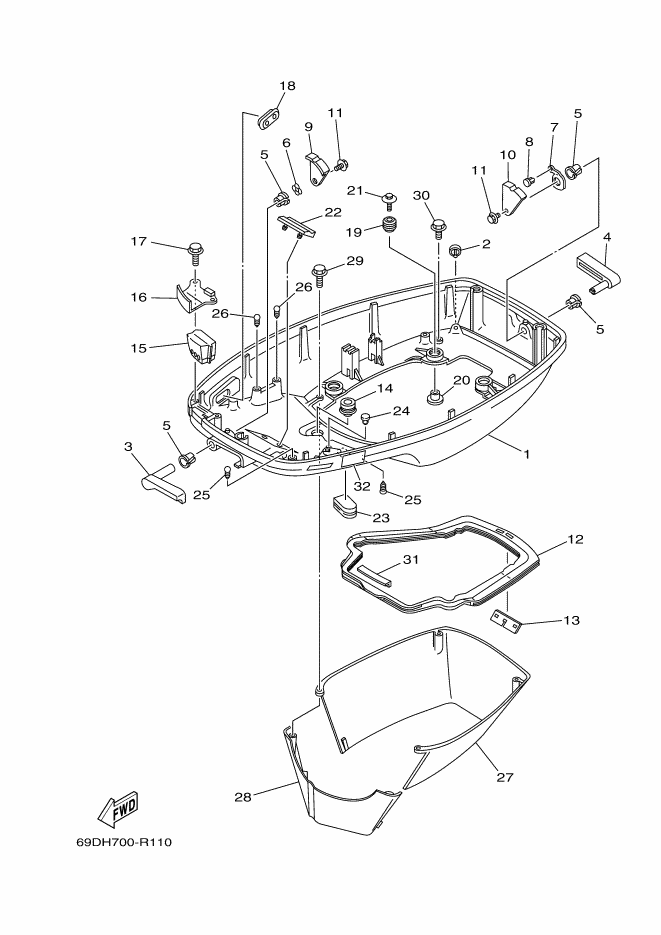

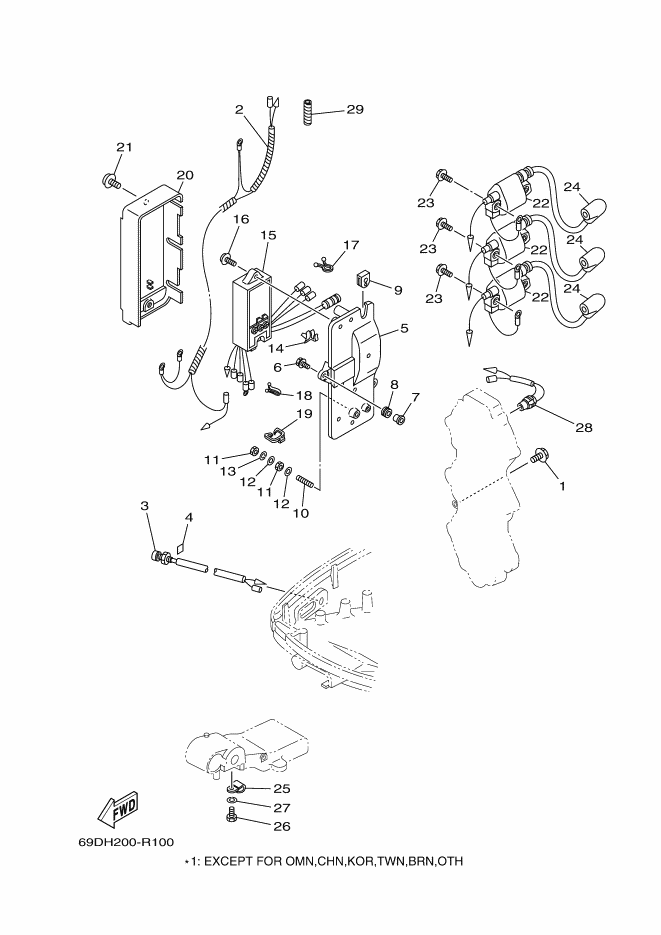

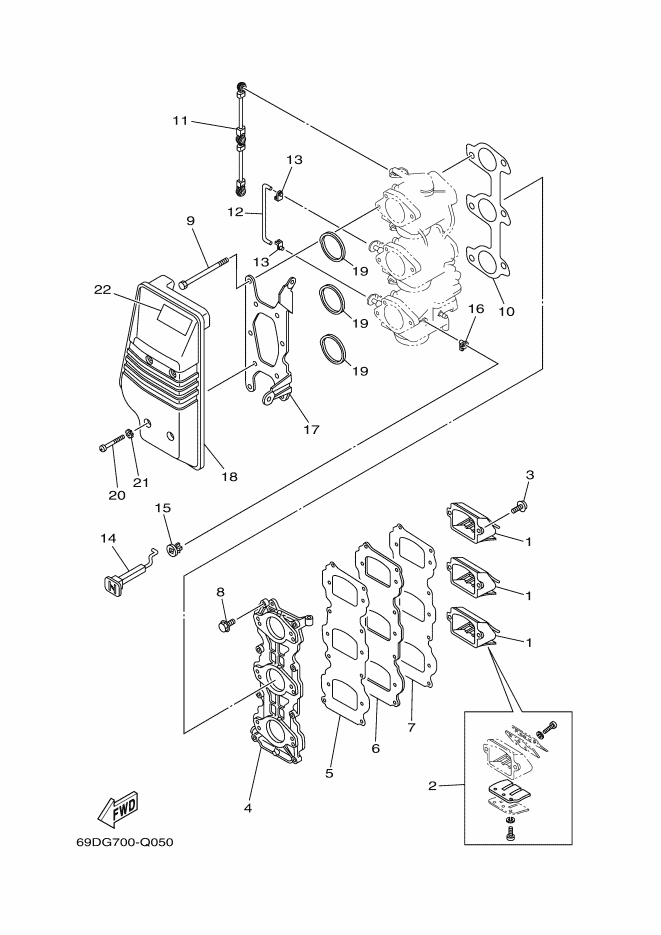

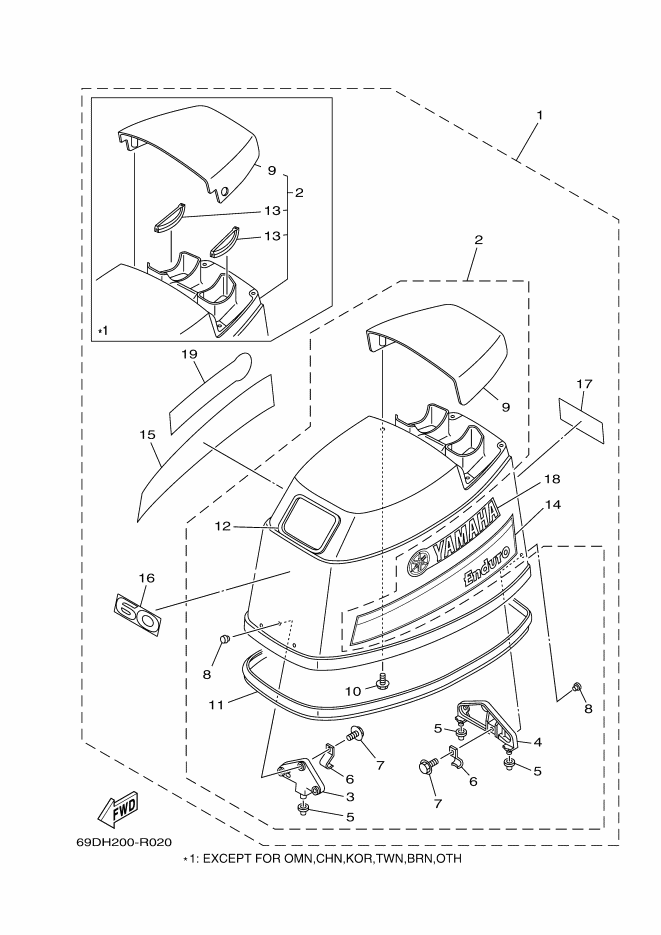

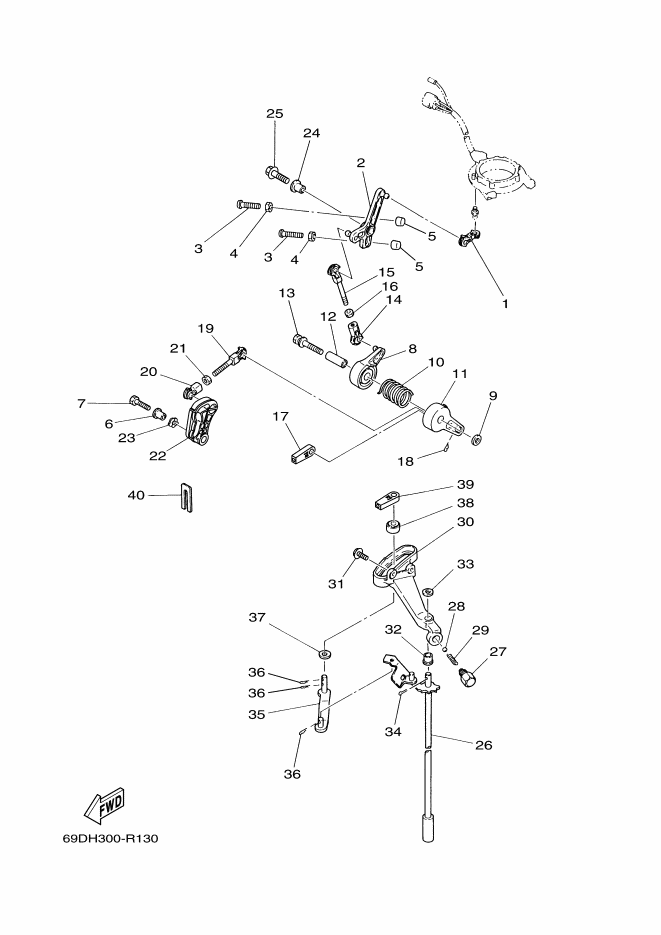

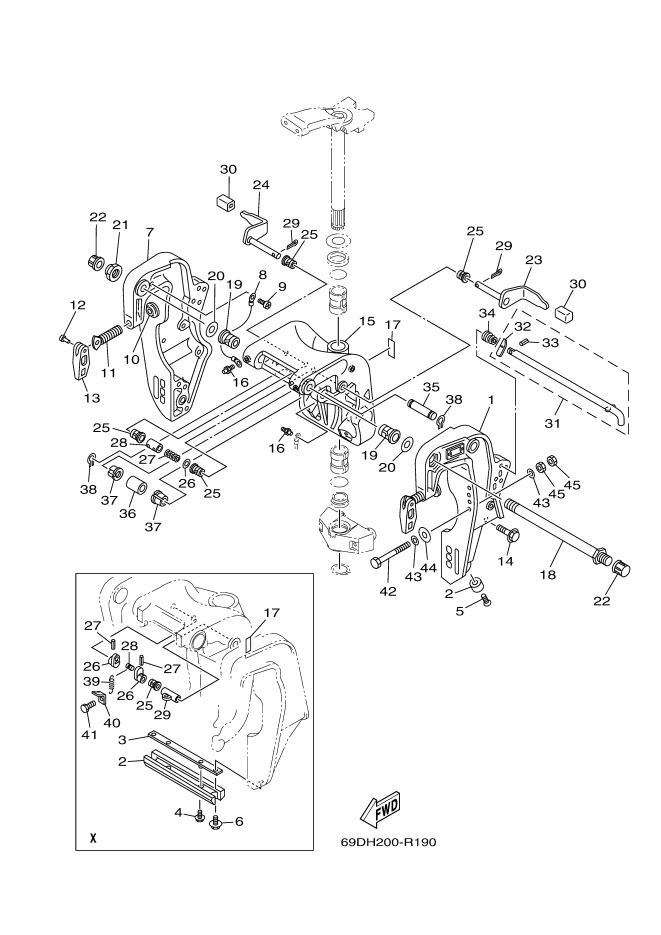

Select an exploded diagram for your Yamaha e60hmhdl - 2019 2-stroke engine
Yamaha e60hmhdl - 2019
The Yamaha e60hmhdl - 2019 is a 60 HP 2-stroke outboard that reaches its rated output at 5,000 rpm. Its engine is built around 3 in-line cylinders and a total displacement of 849 cm³, with a 72.0 × 69.5 mm bore and stroke. Fuel delivery is handled by a carburettor system.
Depending on the model equipment, the engine may use manual starting or a combined manual and electric starting arrangement. It can be steered through a tiller handle or remote control. The Hydro Tilt device assists when raising the outboard, while the lubrication system requires the oil and fuel to be mixed in advance.
By separating the engine into its individual assemblies, the exploded diagrams make its construction easier to understand and each component easier to locate. They help identify the references assigned to the Yamaha e60hmhdl - 2019 and support the accurate selection of compatible parts for maintenance, replacement and repair.
Yamaha e60hmhdl - 2019 engine features- 60 HP at 5,000 rpm for this 2-stroke outboard engine configuration
- 849 cm³ engine block using 3 cylinders arranged in line
- 72.0 × 69.5 mm bore and stroke defining the engine’s internal dimensions
- Remote control or tiller handle available according to the steering configuration
- Hydro Tilt system assisting with lifting and adjusting the outboard angle
View exploded diagrams Yamaha e60hmhdl - 2019
