This page allows you to view the exploded diagrams for the Yamaha e60hm - 1997 2-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a well-established brand in the outboard engine sector. It offers engines designed to meet the needs of both recreational boaters and professionals, with ranges suited to maintenance, repair and marine use.

Un doute?  > contact us

Select an exploded diagram for your Yamaha e60hm - 1997 2-stroke engine

Yamaha e60hm - 1997 60 HP 2-stroke engine

Yamaha e60hm - 1997

The Yamaha e60hm - 1997 is a 60 HP 2-stroke outboard based on an in-line three-cylinder engine assembly. Its 849 cm³ displacement is combined with carburettor fuel induction, producing a maximum propeller shaft output of 44.1 kW at 5,000 rpm.

Depending on its specification, the engine may use manual starting or a system combining manual and electric starting. It can be operated with a tiller handle or remote controls. The Hydro Tilt device assists with raising and tilting the outboard, while operation requires a pre-mixed blend of fuel and oil.

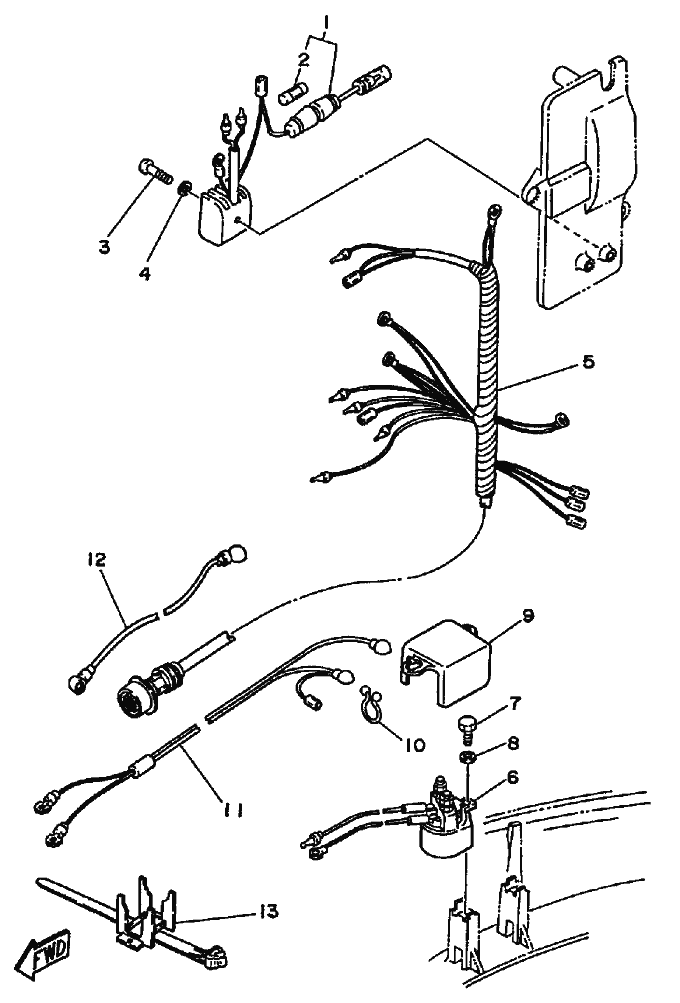

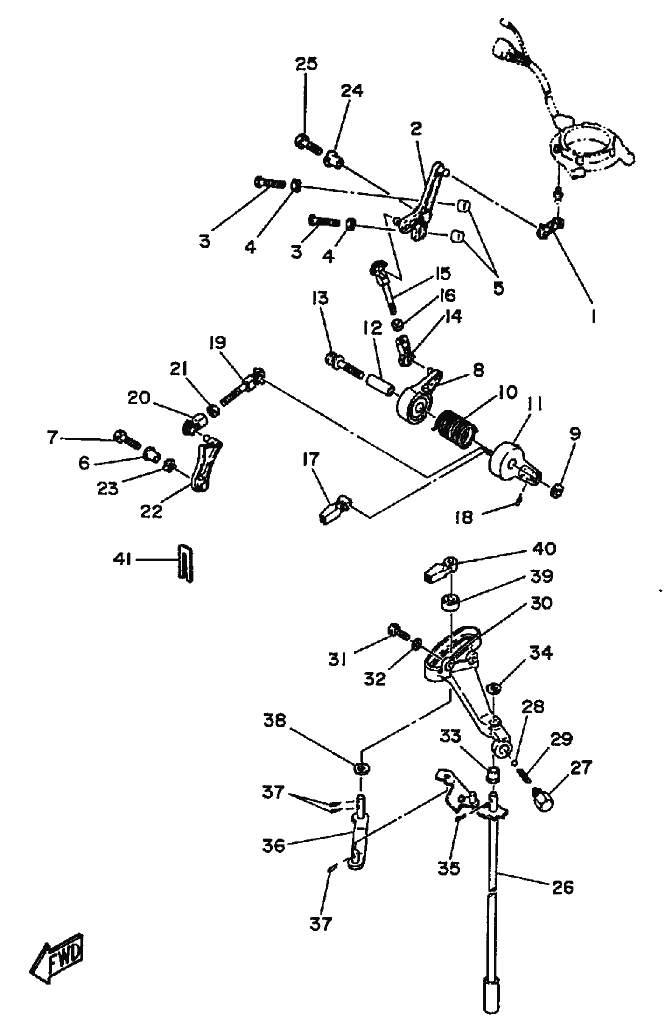

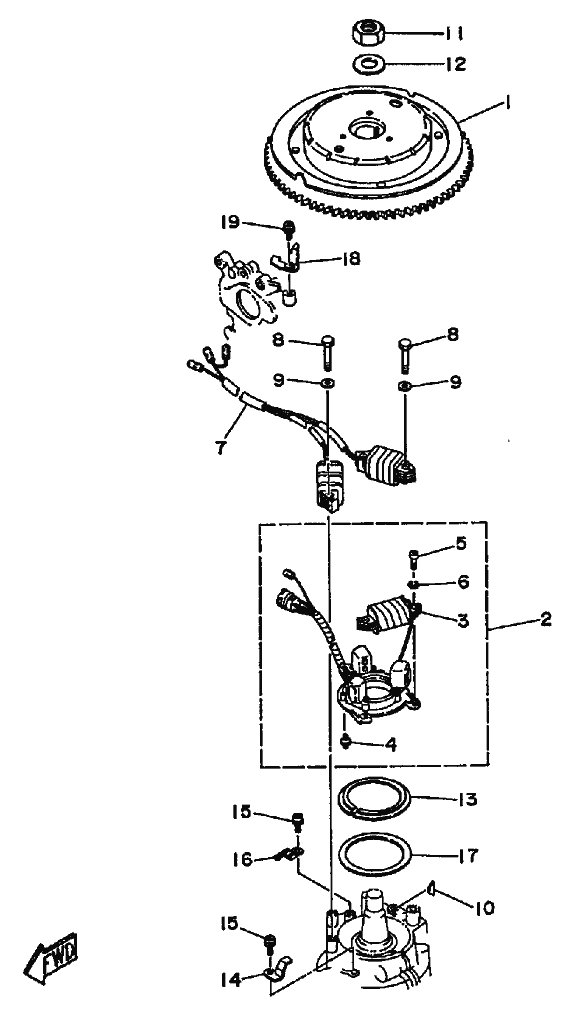

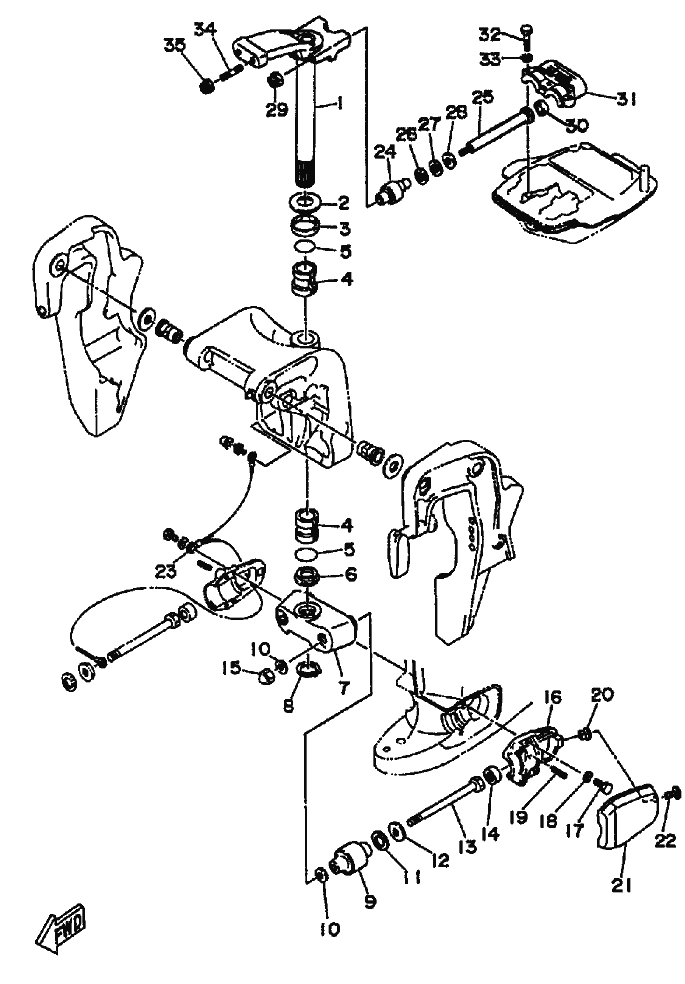

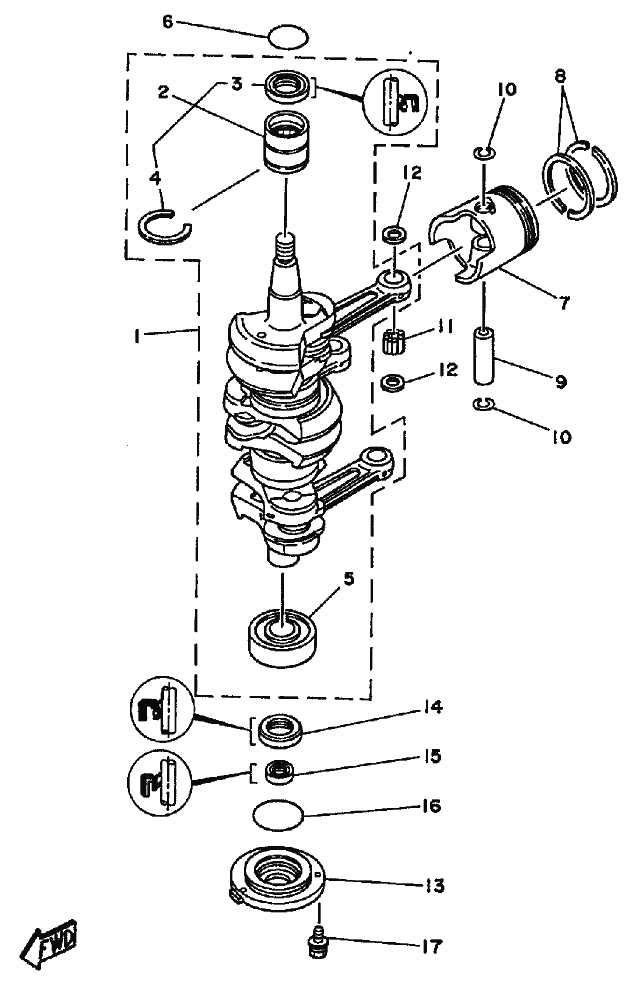

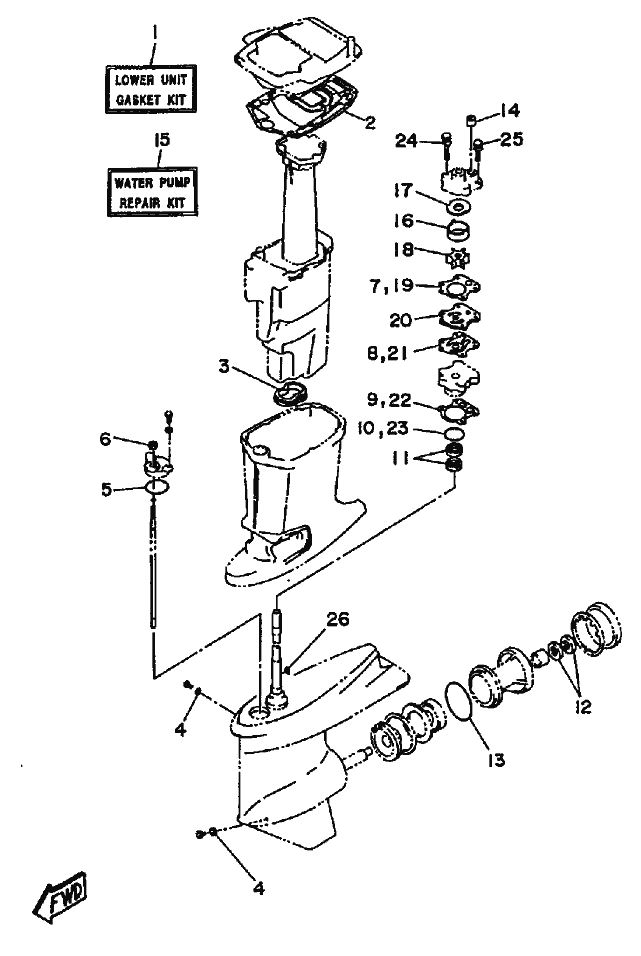

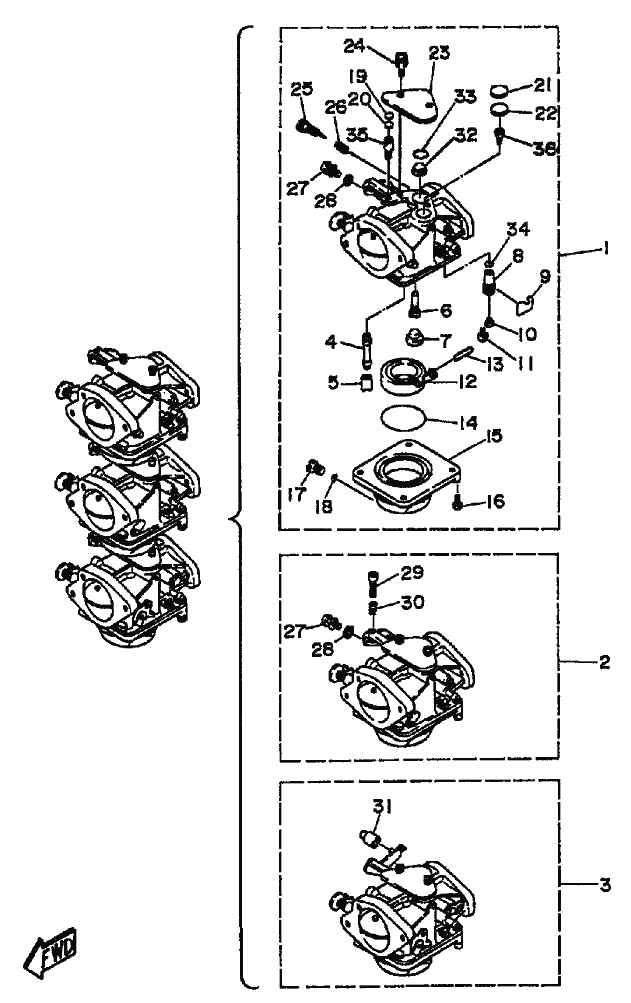

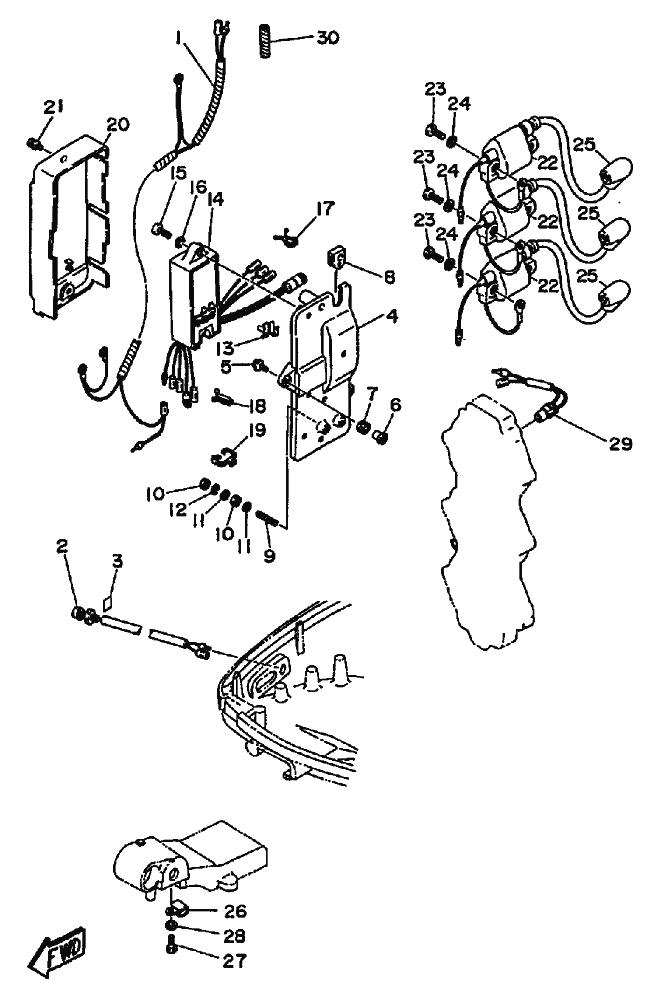

The exploded diagrams for the Yamaha e60hm - 1997 make it easier to inspect each mechanical assembly before carrying out maintenance or repairs. They help locate the relevant components, understand how they fit together and select compatible part references for the different engine systems.

Yamaha e60hm - 1997 engine features
  • In-line three-cylinder design combined with a 2-stroke engine and an 849 cm³ displacement
  • 60 HP output with a maximum propeller shaft power of 44.1 kW at 5,000 rpm
  • Carburettor fuel induction supplying the mixture required for the engine unit to operate
  • Several starting arrangements with manual or combined manual and electric starting depending on the version
  • Hydro Tilt device designed to assist with raising and tilting the outboard engine

View exploded diagrams Yamaha e60hm - 1997

View all compatible parts
