This page allows you to view the exploded diagrams for the Yamaha e40xmhl - 2015 2-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a recognised brand in the outboard engine industry. It offers engines designed to meet the needs of recreational boaters and professionals, with ranges suited to maintenance, repairs and use in marine environments.

Un doute?  > contact us

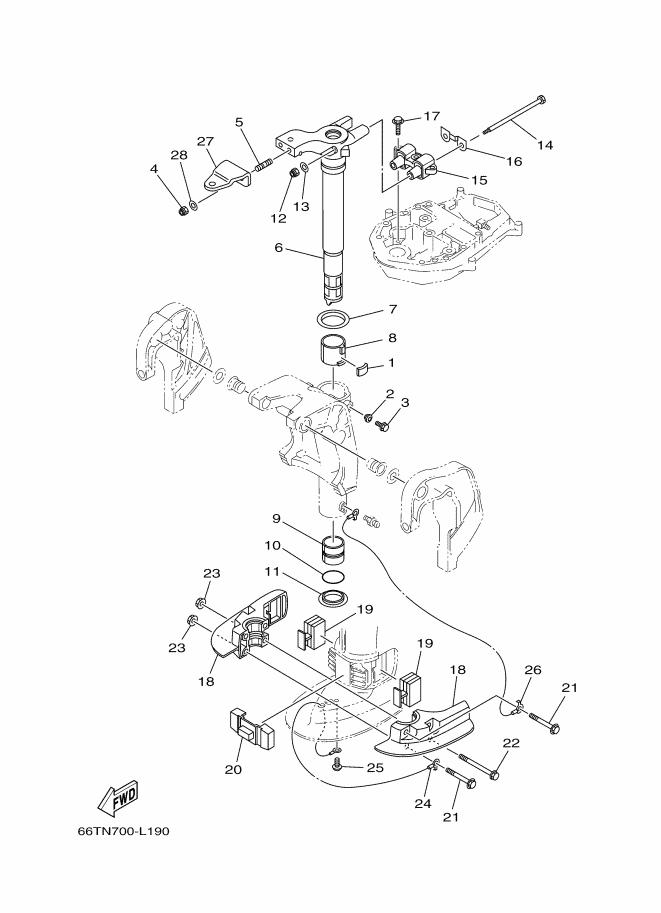

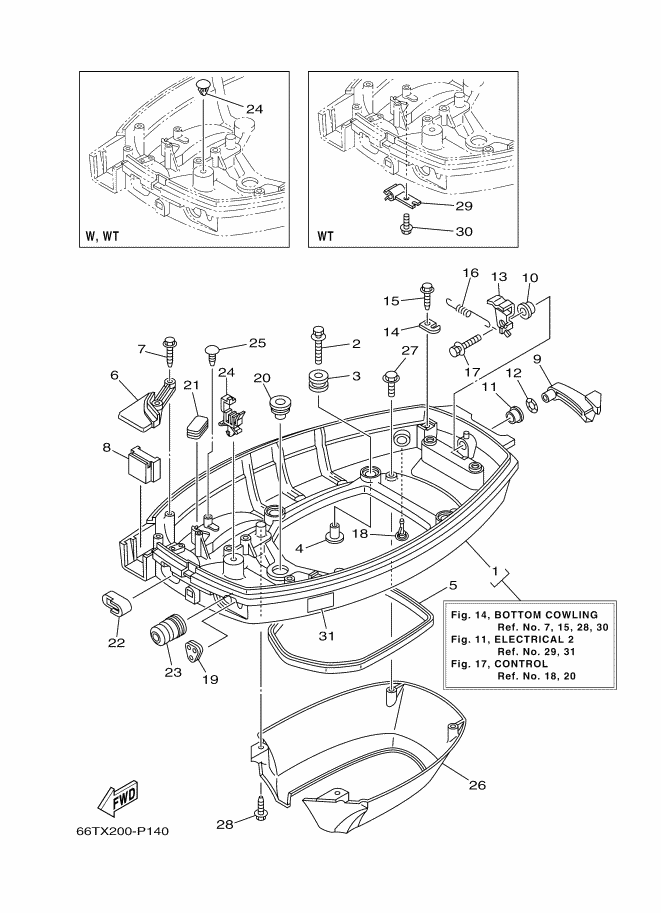

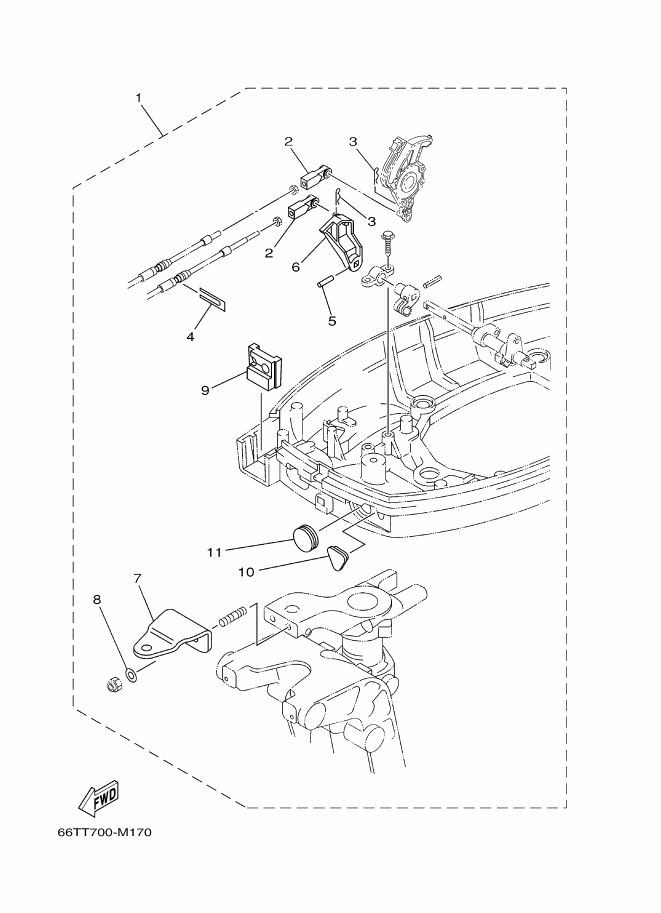

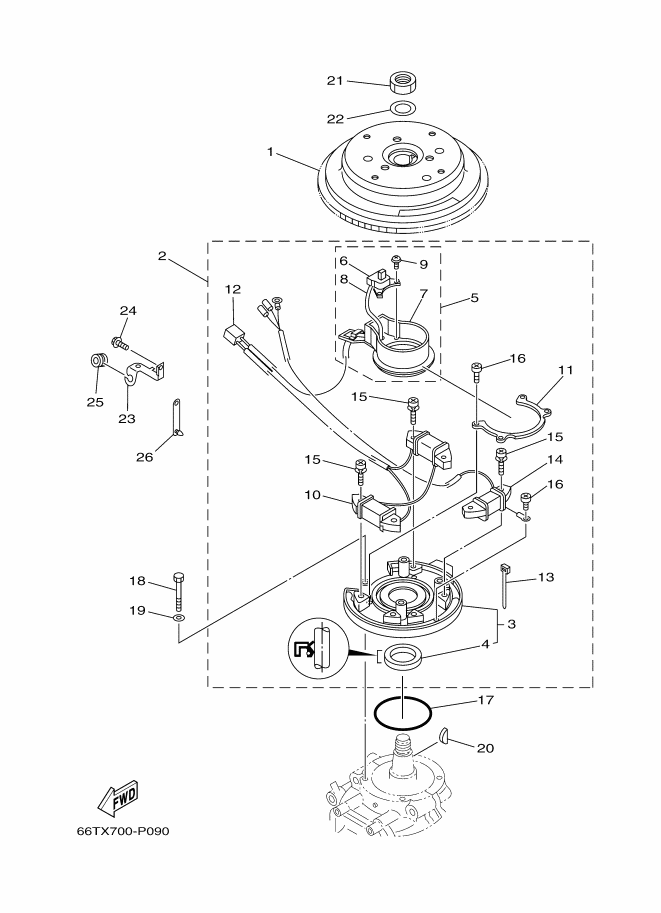

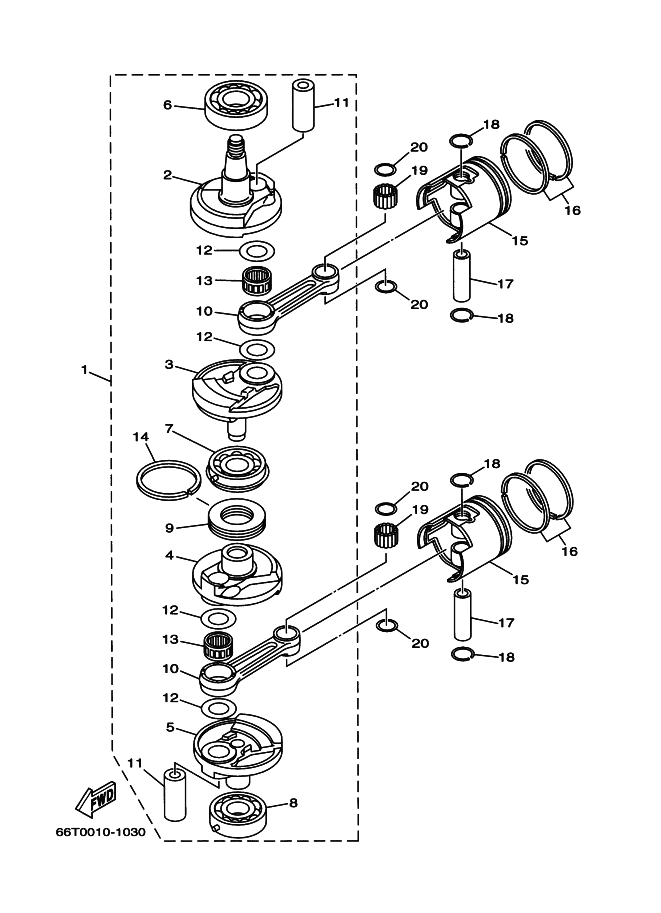

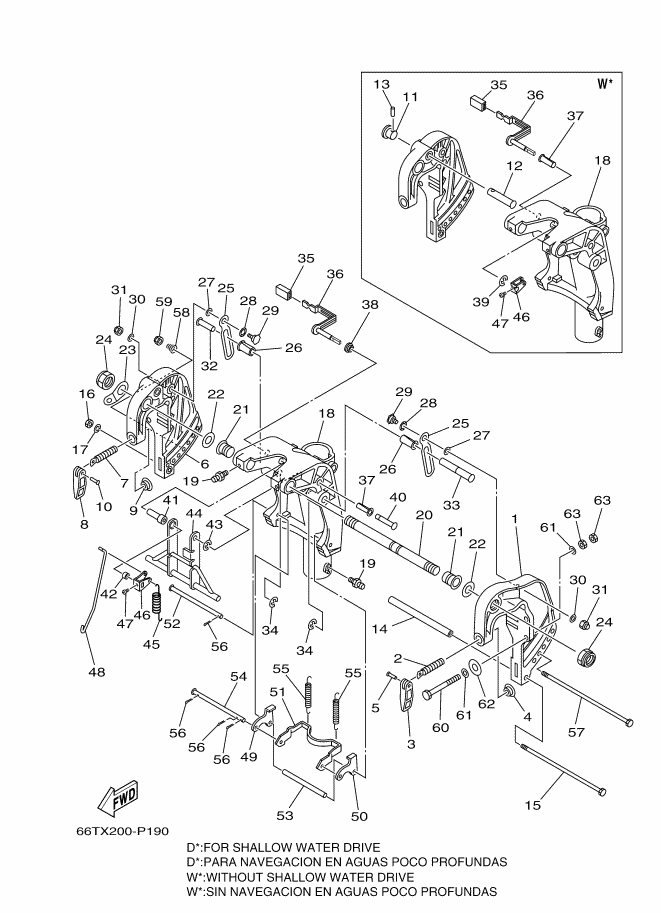

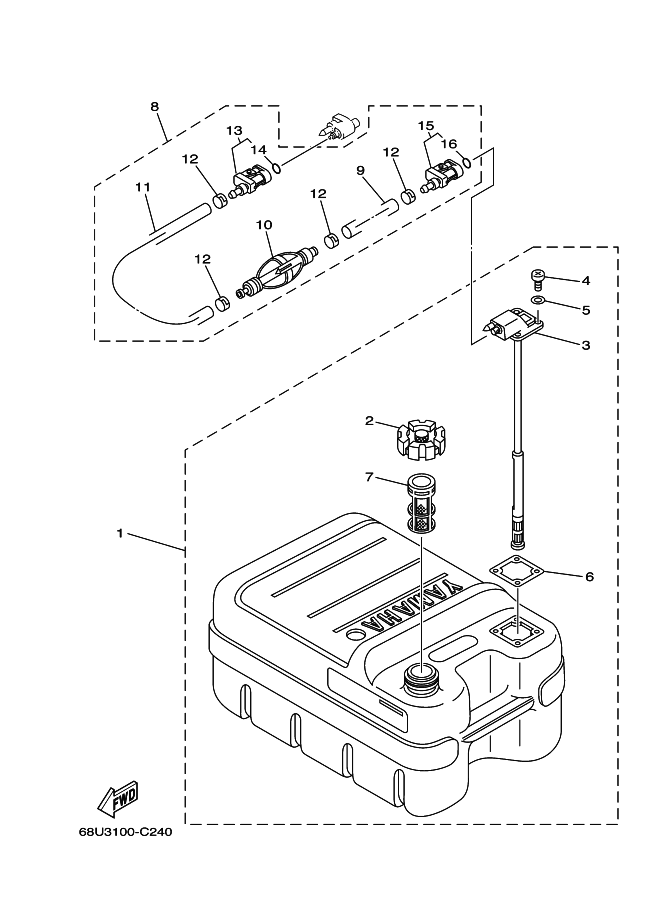

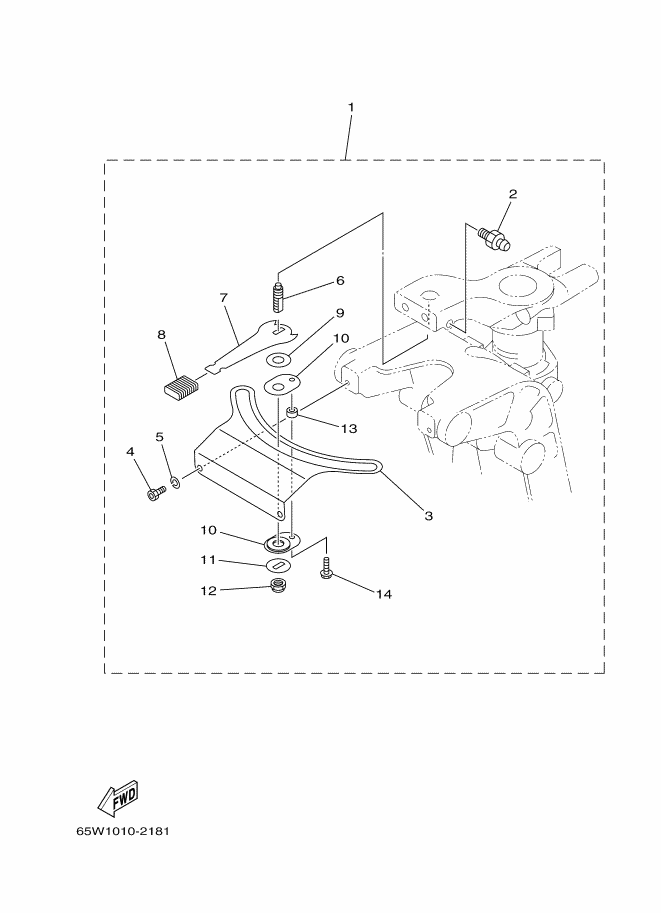

Select an exploded diagram for your Yamaha e40xmhl - 2015 2-stroke engine

Yamaha e40xmhl - 2015 engine 40 HP 2-stroke

Yamaha e40xmhl - 2015

Designed for outboard propulsion, the Yamaha e40xmhl - 2015 combines a 40 HP output with an in-line two-cylinder 2-stroke design. Its displacement is 703 cm³, and the maximum output delivered through the propeller shaft is 29.4 kW at 5,000 rpm.

The mechanical layout uses an 80.0 mm bore and a 70.0 mm stroke. Fuel is supplied through a carburettor, while lubrication requires oil and fuel to be mixed before use. Starting, control and tilt systems may differ according to the equipment fitted to the model.

During servicing or component replacement, the exploded diagrams show how the engine parts are arranged. They provide an accurate way to locate a reference and choose the correct compatible parts for each maintenance or repair operation on the Yamaha e40xmhl - 2015.

Yamaha e40xmhl - 2015 engine specifications
  • 40 HP output produced by an outboard engine operating on a 2-stroke cycle
  • Two cylinders arranged in line forming a compact 703 cm³ engine layout
  • Maximum output of 29.4 kW transferred through the propeller shaft at 5,000 rpm
  • 80.0 mm bore and 70.0 mm stroke defining the engine’s internal dimensions
  • Carburettor fuel supply with lubrication provided by pre-mixed oil and fuel

View exploded diagrams Yamaha e40xmhl - 2015

View all compatible parts
