This page allows you to view the exploded diagrams for the Yamaha e40xmhl - 2003 2-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a well-known brand in the outboard engine industry. It offers engines designed to meet the needs of recreational and professional users, with ranges suited to maintenance, repairs and operation in marine environments.

Un doute?  > contact us

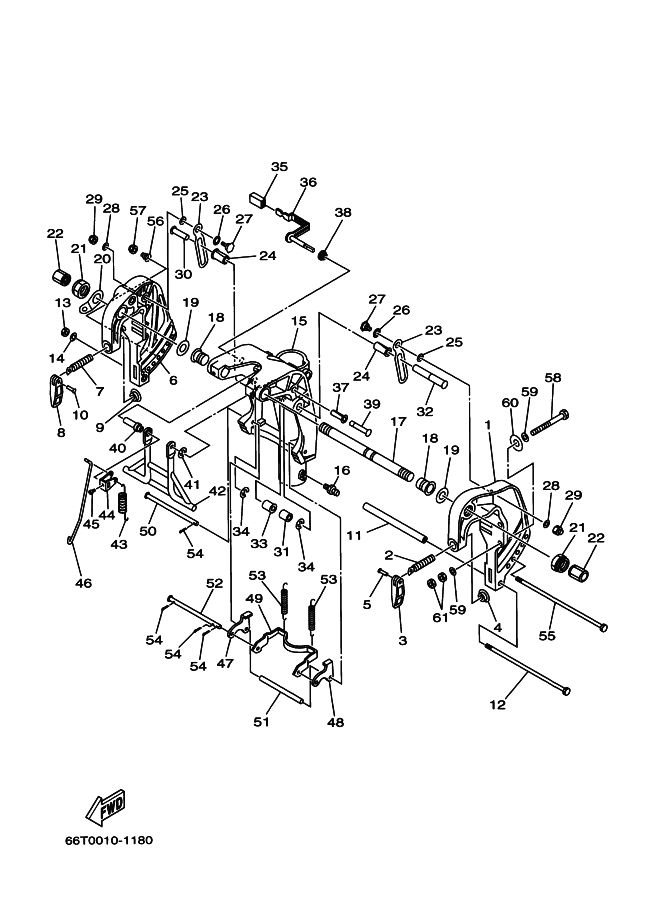

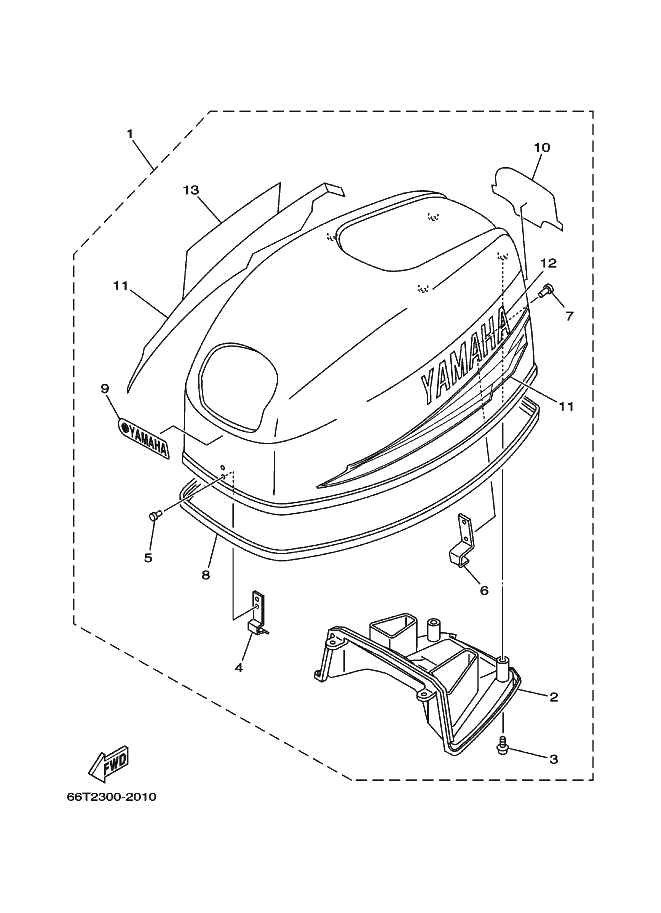

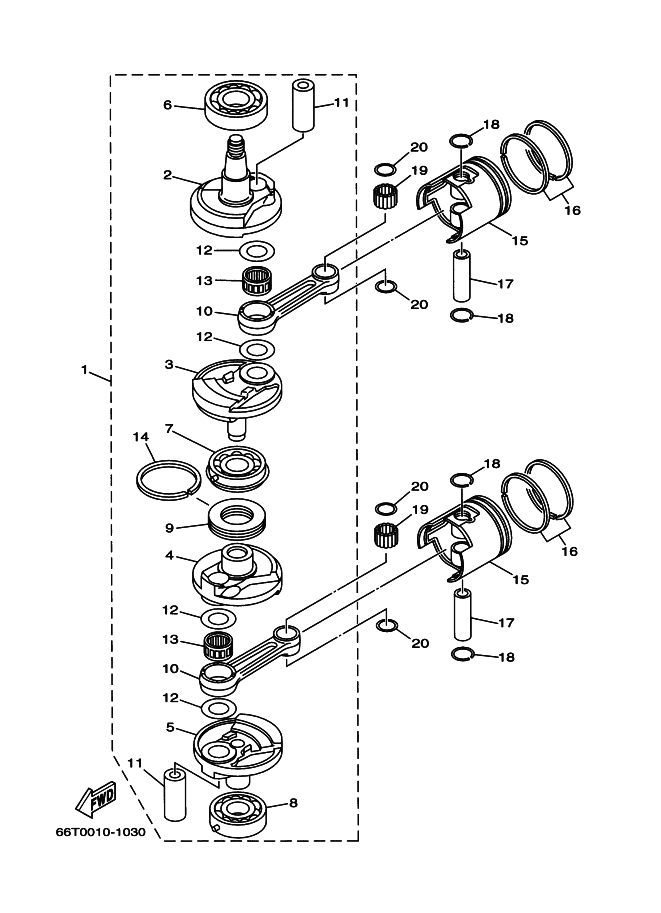

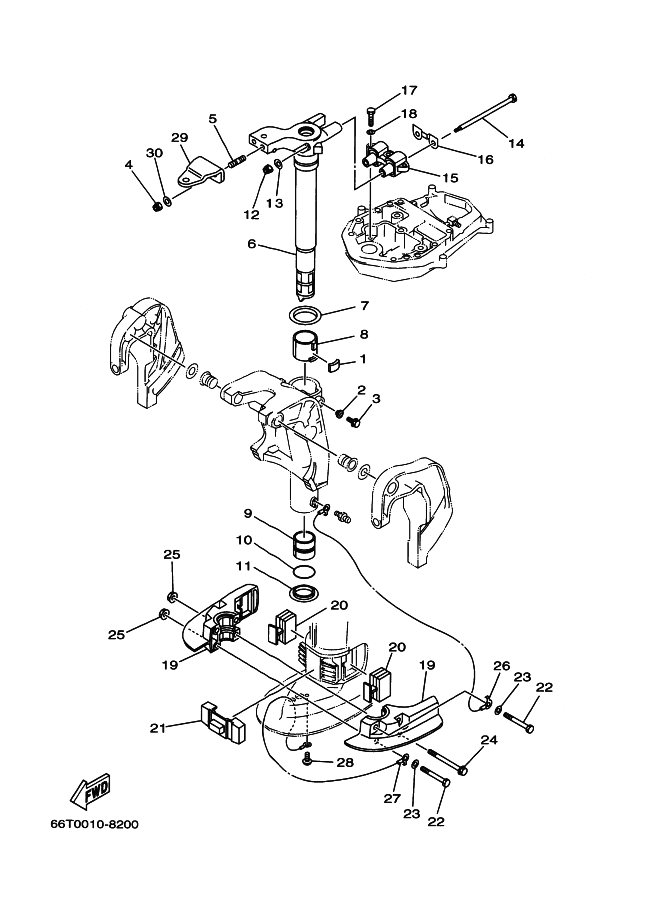

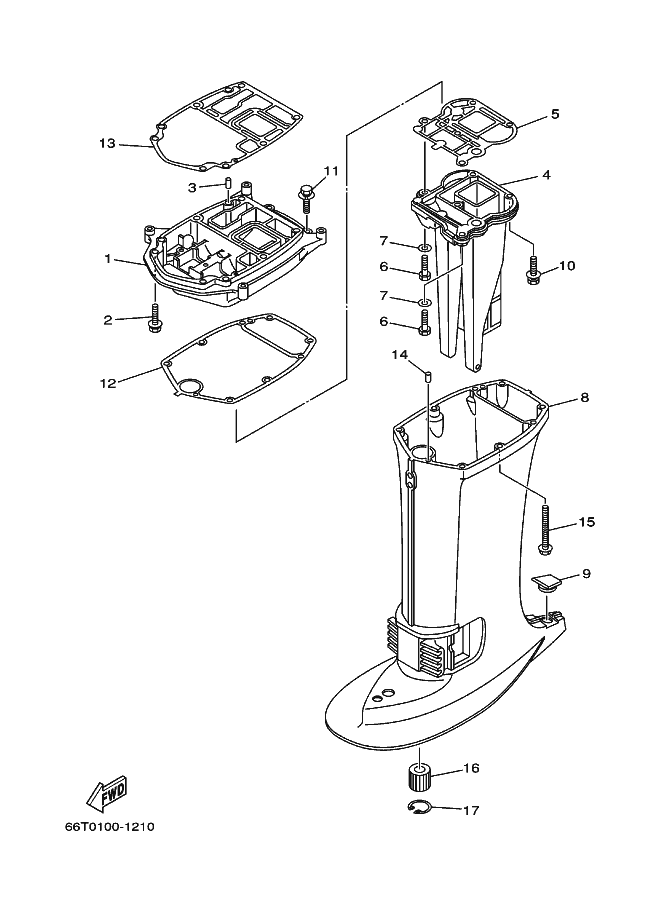

Select an exploded diagram for your Yamaha e40xmhl - 2003 2-stroke engine

Yamaha e40xmhl - 2003 engine 40 HP 2-stroke

Yamaha e40xmhl - 2003

The Yamaha e40xmhl - 2003 is a 40 HP 2-stroke outboard engine featuring an in-line two-cylinder layout and a displacement of 703 cm³. Its maximum output of 29.4 kW, equivalent to 40 HP, is reached at 5,000 rpm, with a full-throttle operating range of 4,500 to 5,500 rpm.

This carburettor-equipped model combines a tiller handle, manual starting and a manual tilt system. Its CDI ignition, 2.00 (26/13) reduction ratio and pre-mixed fuel and oil lubrication system reflect the mechanical configuration of this Yamaha 2-stroke engine.

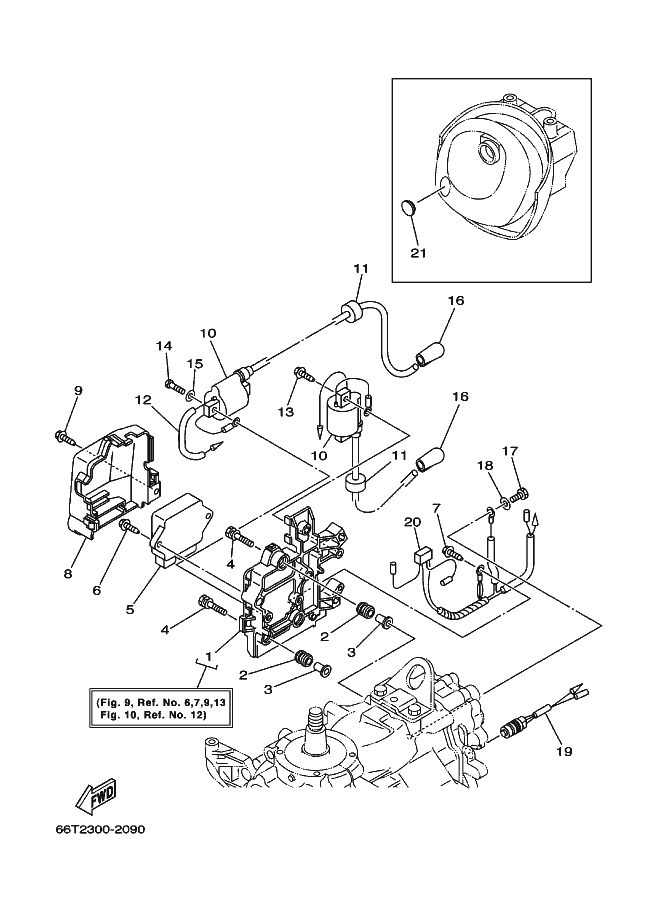

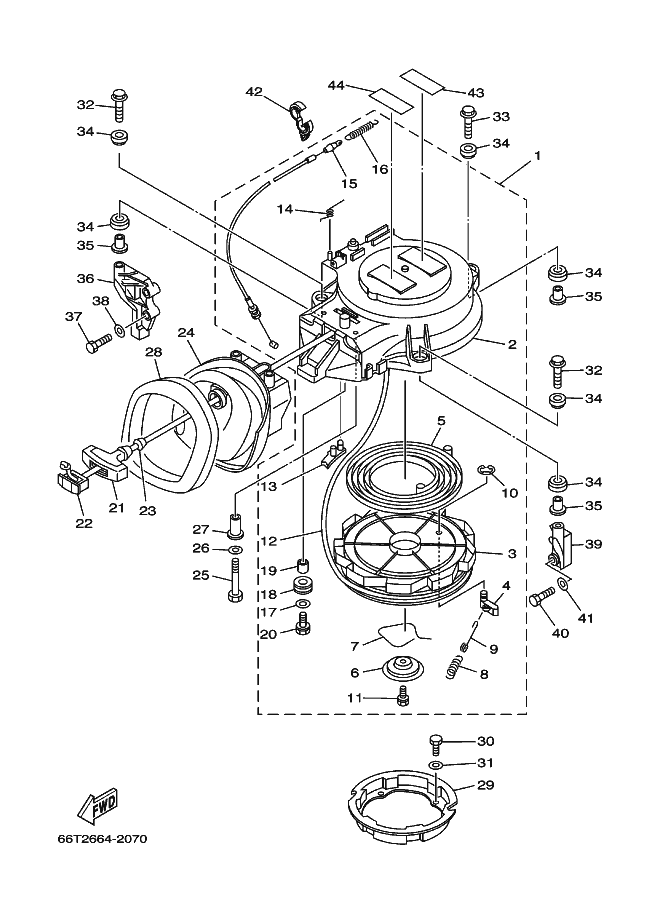

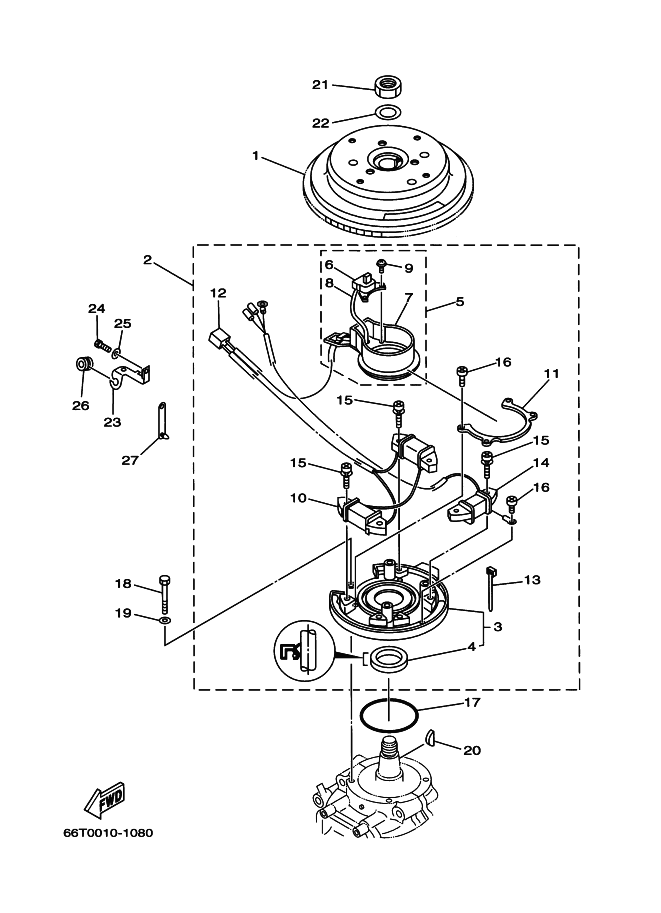

When planning maintenance or replacing a component, the exploded diagrams help locate the different parts within the engine assembly. They make it easier to identify compatible references for the Yamaha e40xmhl - 2003, particularly when working on the fuel system, ignition, starting system or drive unit.

Yamaha e40xmhl - 2003 engine specifications
  • 40 HP output delivered at an engine speed of 5,000 rpm
  • In-line two-cylinder engine with a total displacement of 703 cm³
  • Carburettor fuel system suited to this 2-stroke engine configuration
  • Manual starting and tilt combined with tiller-handle controls
  • Pre-mixed lubrication using a fuel-to-oil ratio of 100:1

View exploded diagrams Yamaha e40xmhl - 2003

View all compatible parts
