Parts and exploded diagrams for Yamaha e25bmhl - 2016 2-stroke engine

Parts and exploded diagrams for Yamaha e25bmhl - 2016 2-stroke engine

Yamaha logo

This page allows you to view the exploded diagrams for the Yamaha e25bmhl - 2016 2-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a recognised brand in the outboard engine industry. It offers engines designed to meet the needs of recreational boaters and professionals, with ranges suited to maintenance, repair and marine use.

Un doute?  > contact us

Select an exploded diagram for your Yamaha e25bmhl - 2016 2-stroke engine

Yamaha e25bmhl - 2016 engine 25 HP 2-stroke

Yamaha e25bmhl - 2016

The Yamaha e25bmhl - 2016 is a 25 HP 2-stroke outboard engine with two cylinders arranged in line. Its 496 cm³ displacement is combined with a 72.0 mm bore and a 61.0 mm stroke. Maximum output delivered at the propeller shaft is 18.4 kW at 5,000 rpm.

Its fuel induction system uses a carburettor, while lubrication relies on fuel and oil being premixed. Equipment may vary according to the version, with manual or manual and electric starting, together with tiller-handle or remote-control operation. Engine positioning is managed through a manual tilt system.

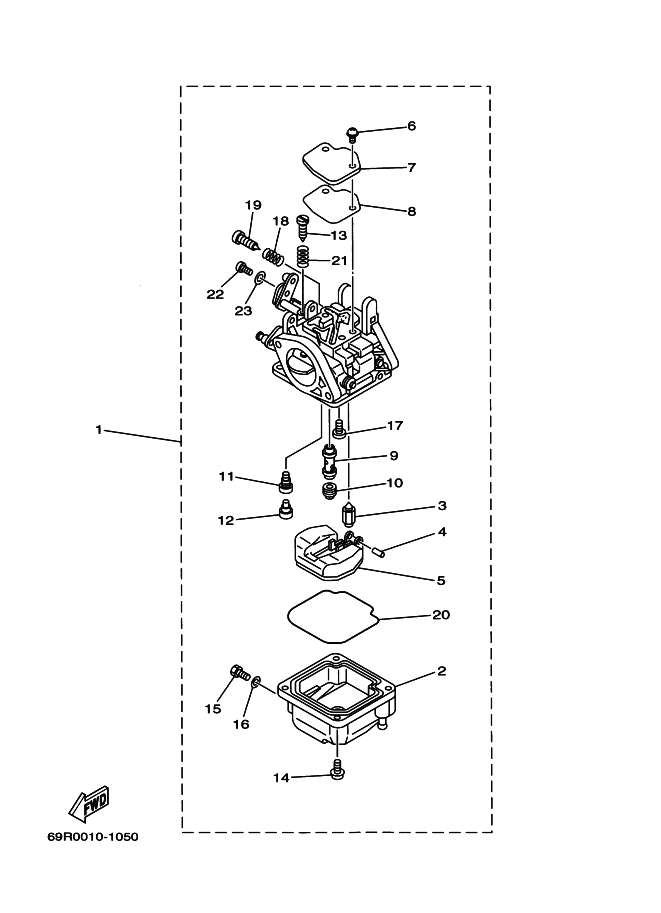

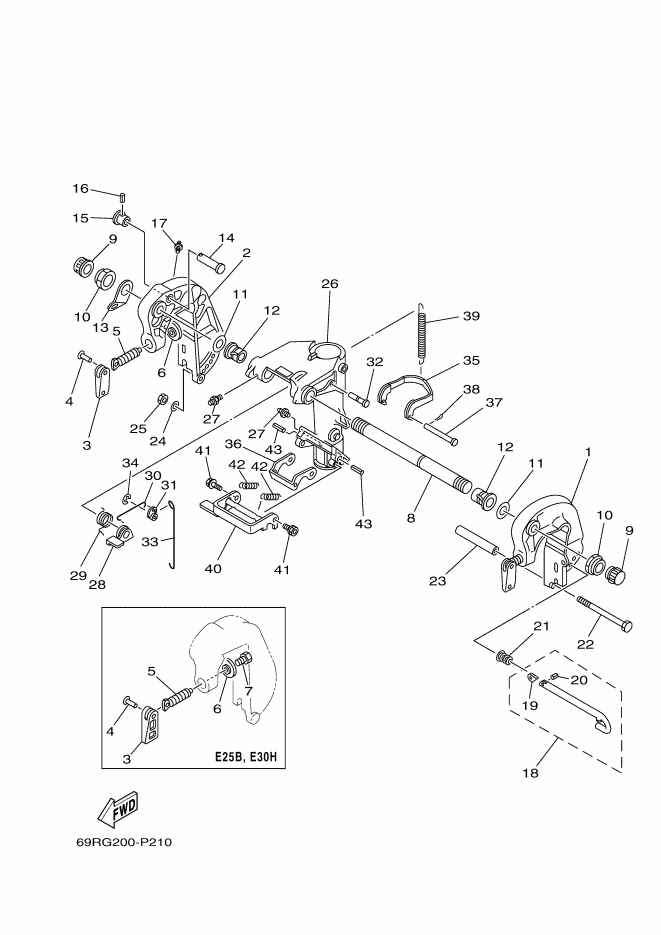

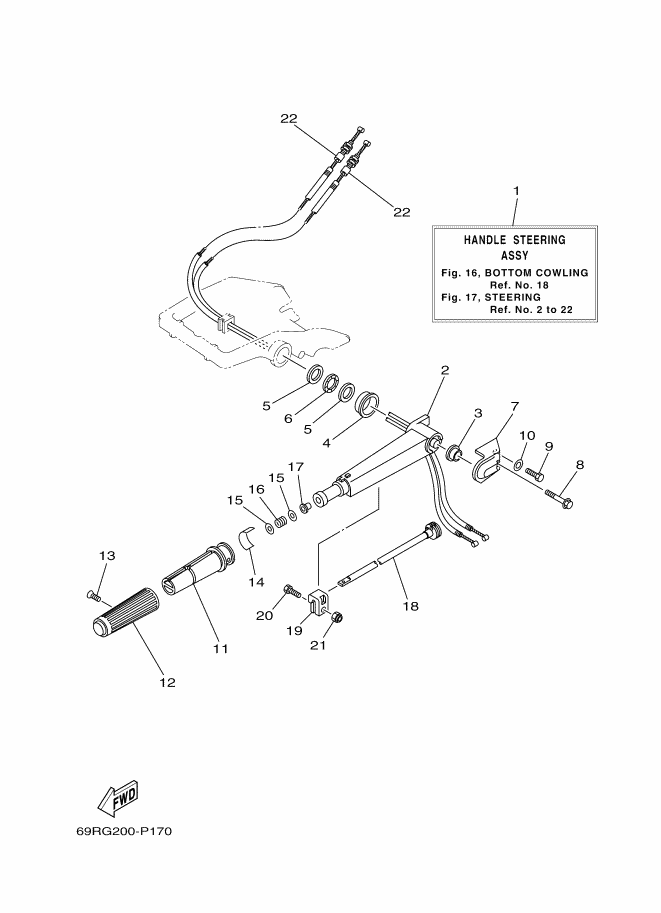

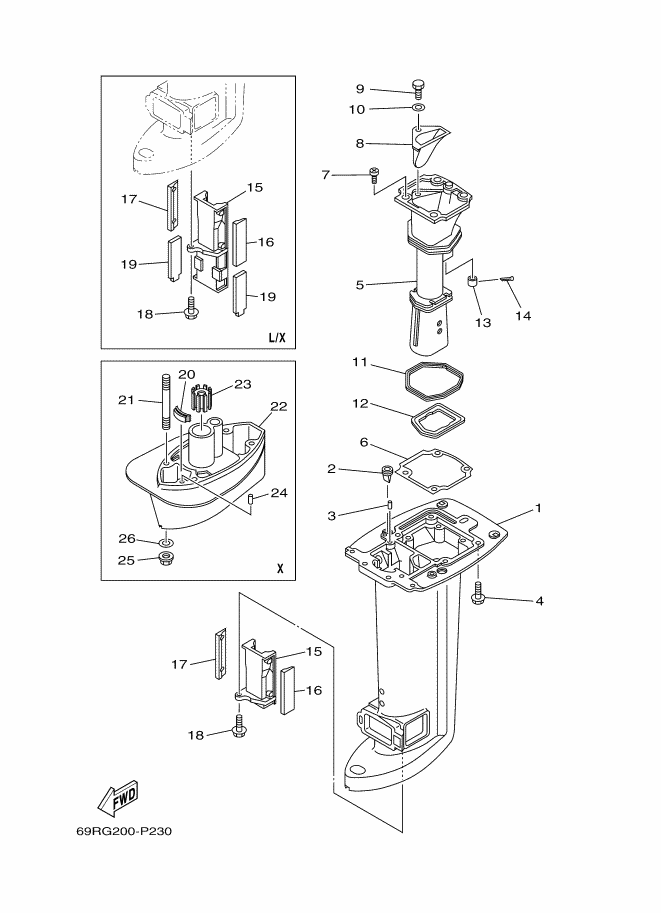

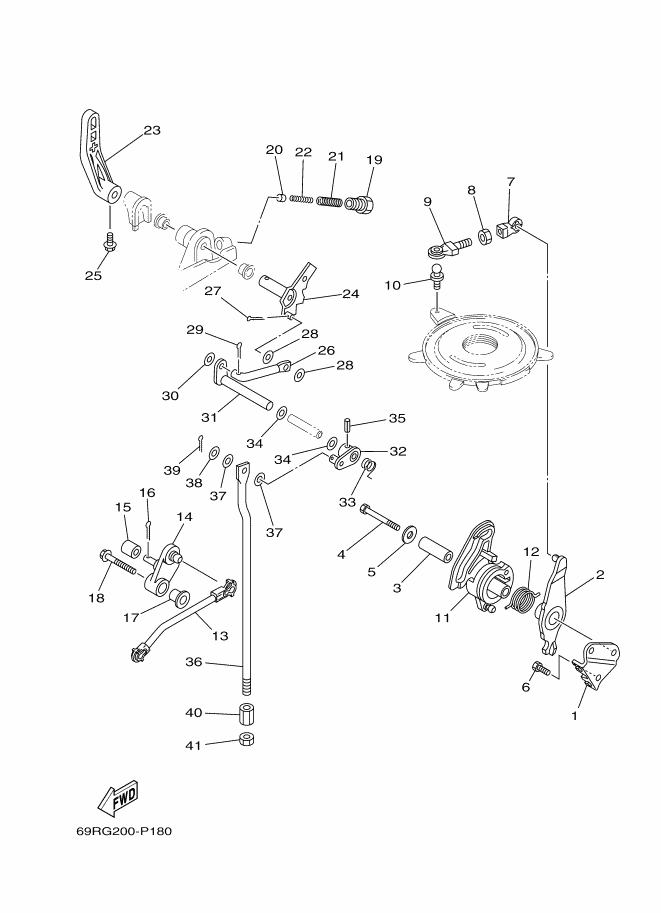

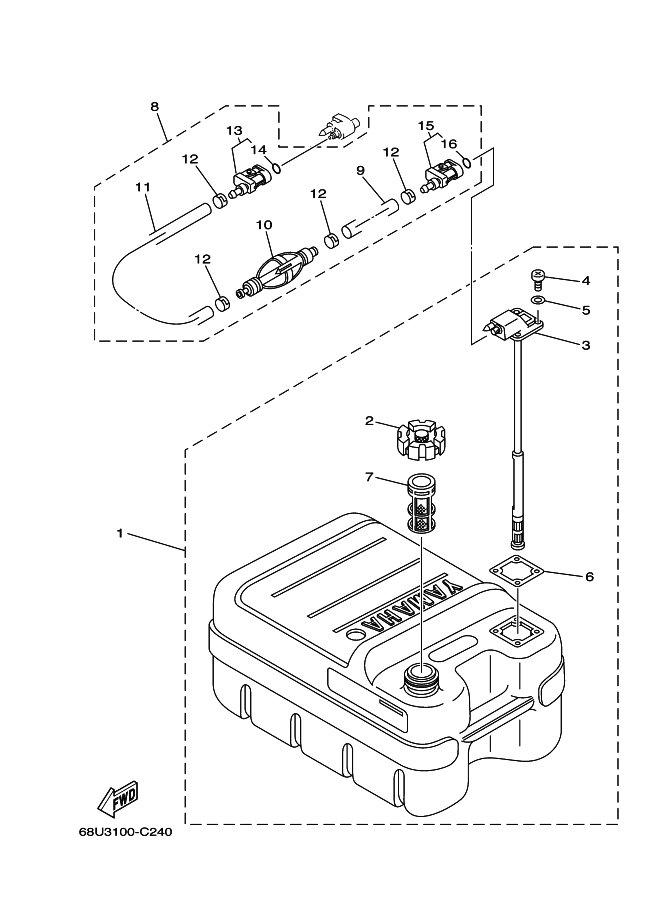

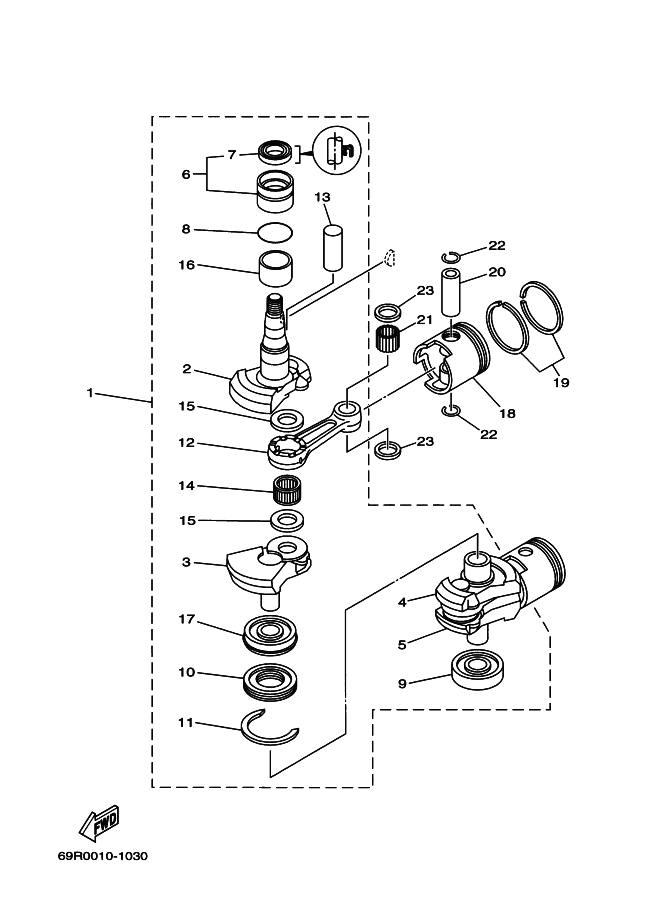

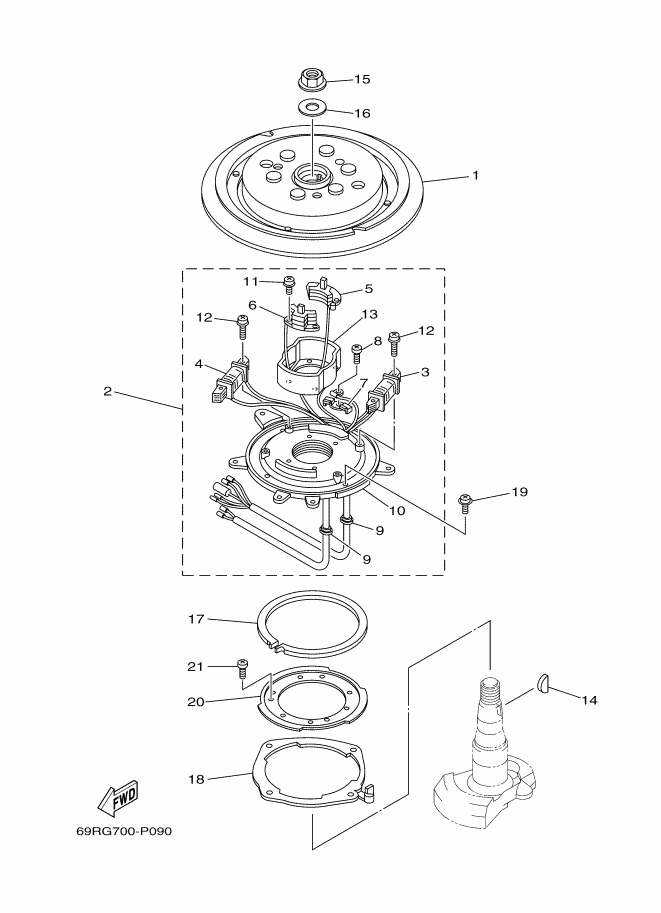

When working on the engine assemblies, the exploded diagrams show the installation order and position of each part. They simplify the search for compatible parts, reference checking and the preparation of maintenance or repair operations.

Yamaha e25bmhl - 2016 engine features
  • 25 HP output corresponding to 18.4 kW at 5,000 rpm
  • In-line two-cylinder block with a total displacement of 496 cm³
  • 72.0 x 61.0 mm dimensions for the bore and stroke
  • Carburettor fuel induction supplying the engine with its air-fuel mixture
  • Premixed lubrication system requiring fuel and oil to be combined beforehand

View exploded diagrams Yamaha e25bmhl - 2016
