This page allows you to view the exploded diagrams for the Yamaha e15dmhl - 2020 2-stroke engine and easily identify the compatible parts for your engine.

Yamaha is a recognised brand in the outboard engine industry. It offers engines designed to meet the needs of recreational and professional users, with ranges suited to maintenance, repairs and use in marine environments.

Un doute?  > contact us

Select an exploded diagram for your Yamaha e15dmhl - 2020 2-stroke engine

Yamaha e15dmhl - 2020 15 HP 2-stroke engine

Yamaha e15dmhl - 2020

The Yamaha e15dmhl - 2020 delivers 15 HP at 5,000 rpm through a 246 cm³ inline twin-cylinder 2-stroke engine. Its full-throttle operating range extends from 4,500 to 5,500 rpm, with a 56.0 mm bore and a 50.0 mm stroke.

This mechanical configuration combines a carburettor fuel system with CDI ignition and lubrication through a pre-mixed blend of fuel and oil. Tiller-handle control is complemented by manual starting and a manual tilt system.

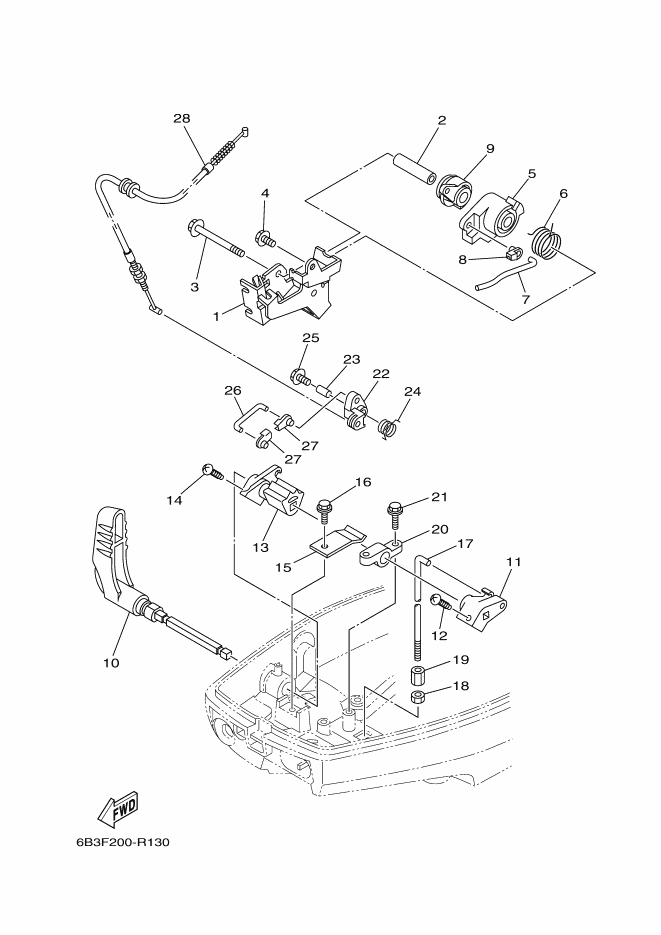

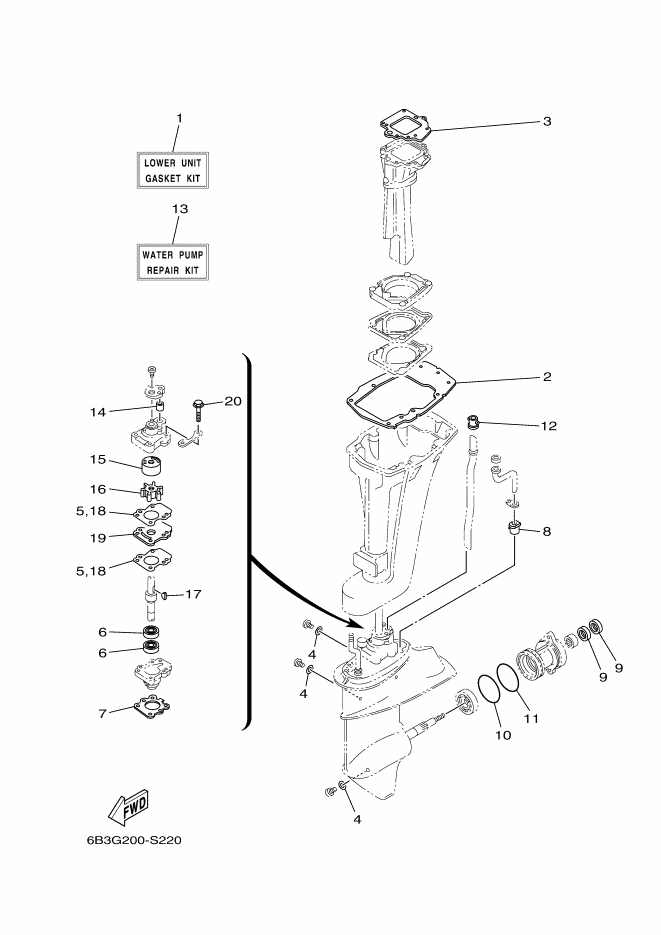

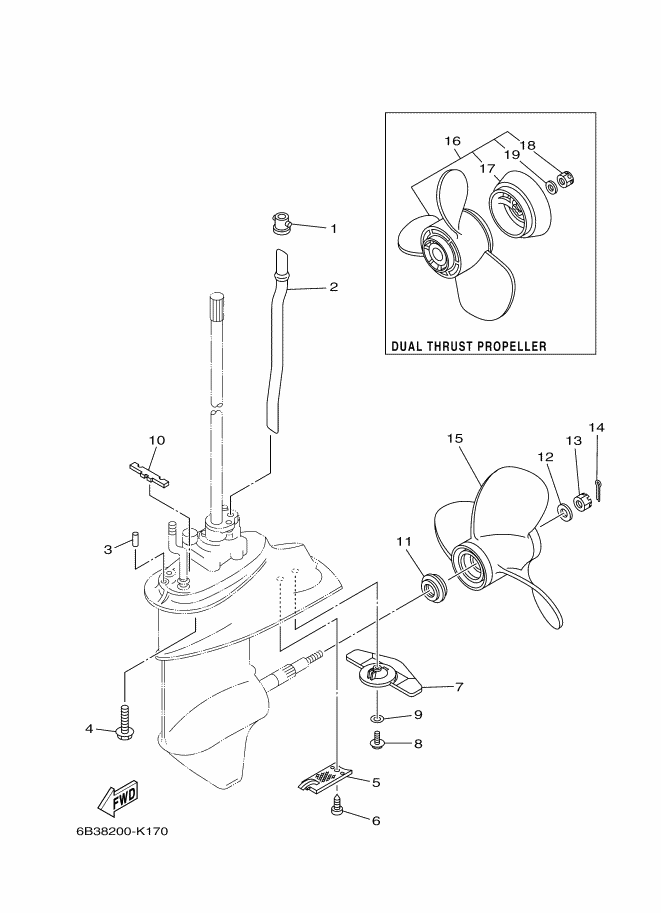

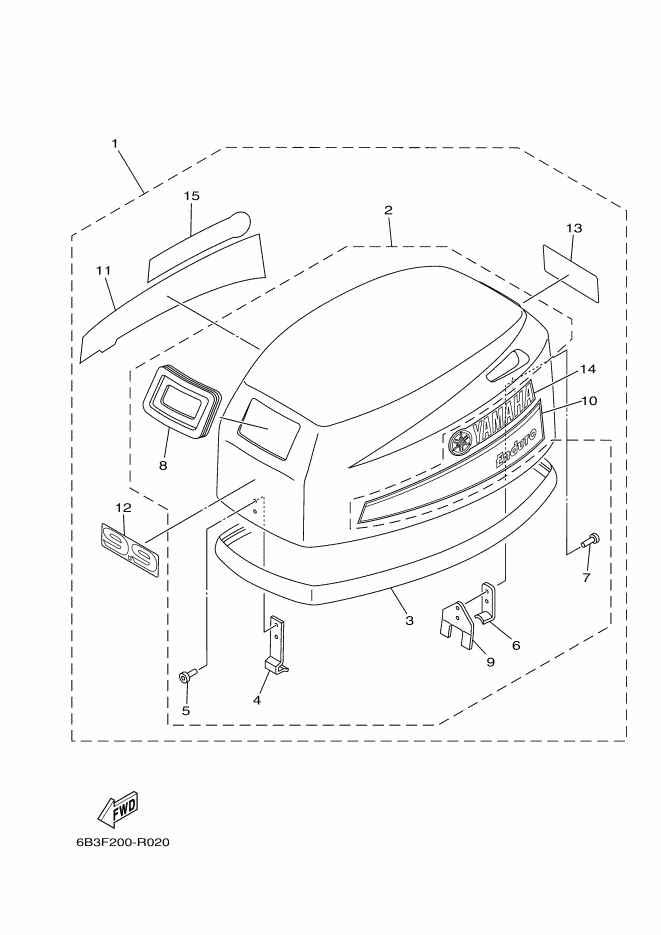

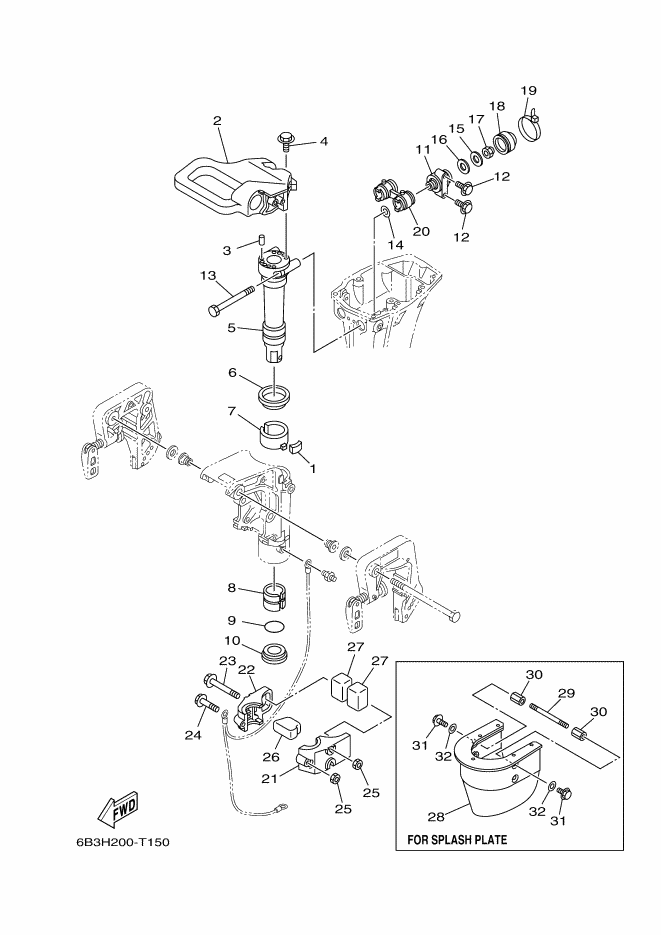

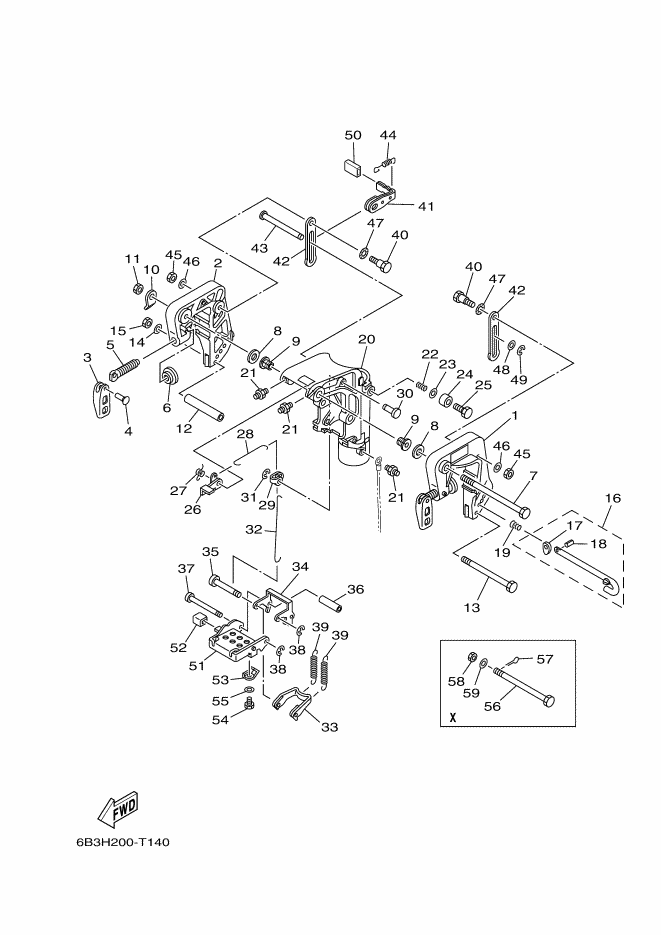

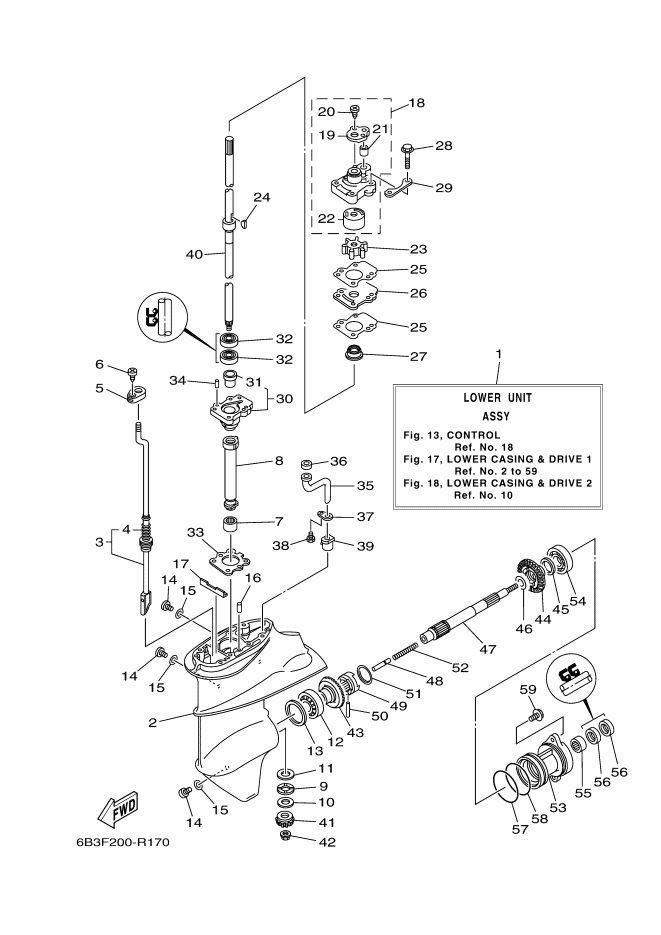

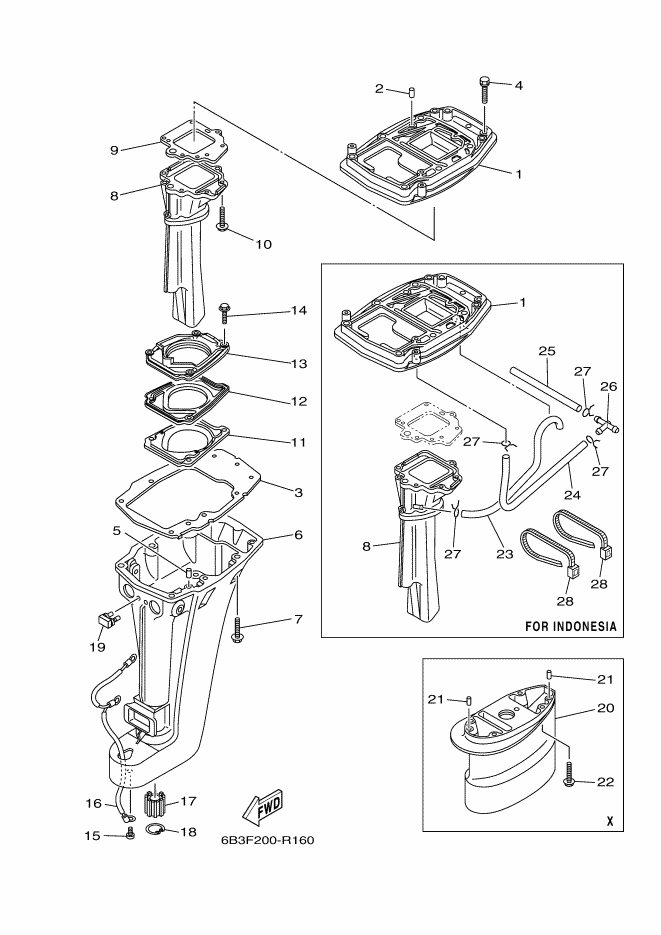

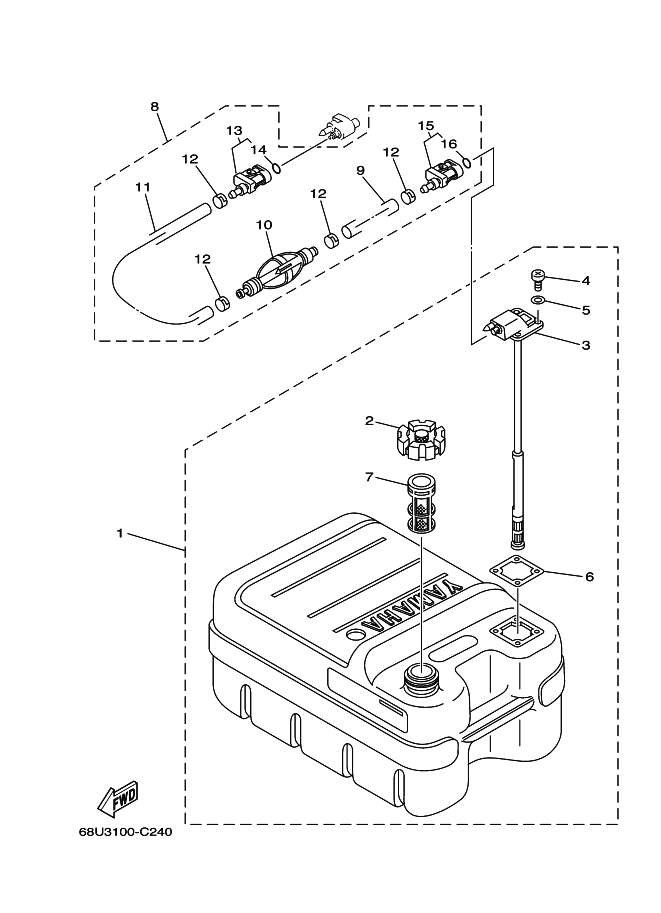

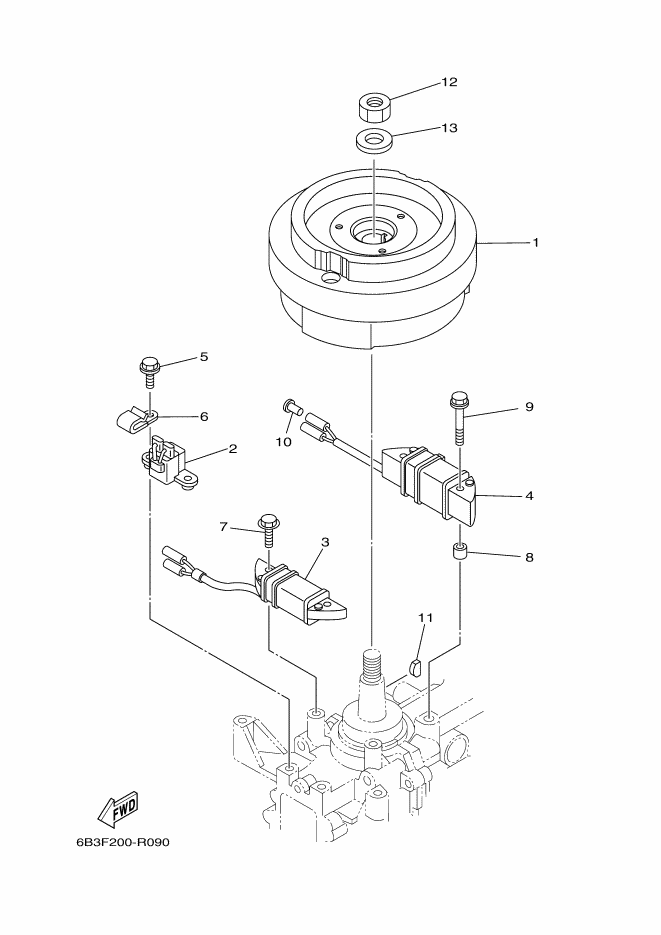

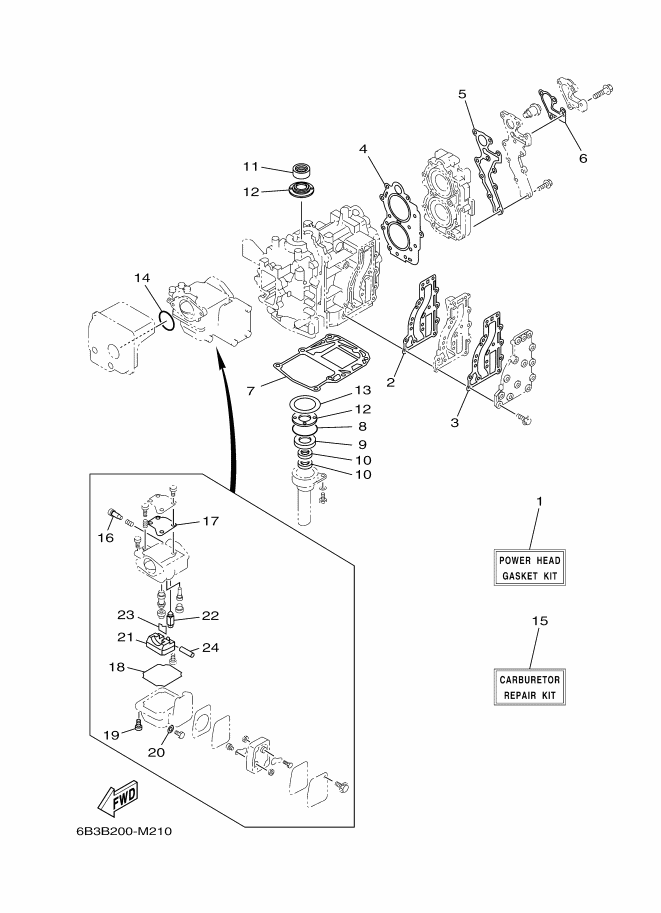

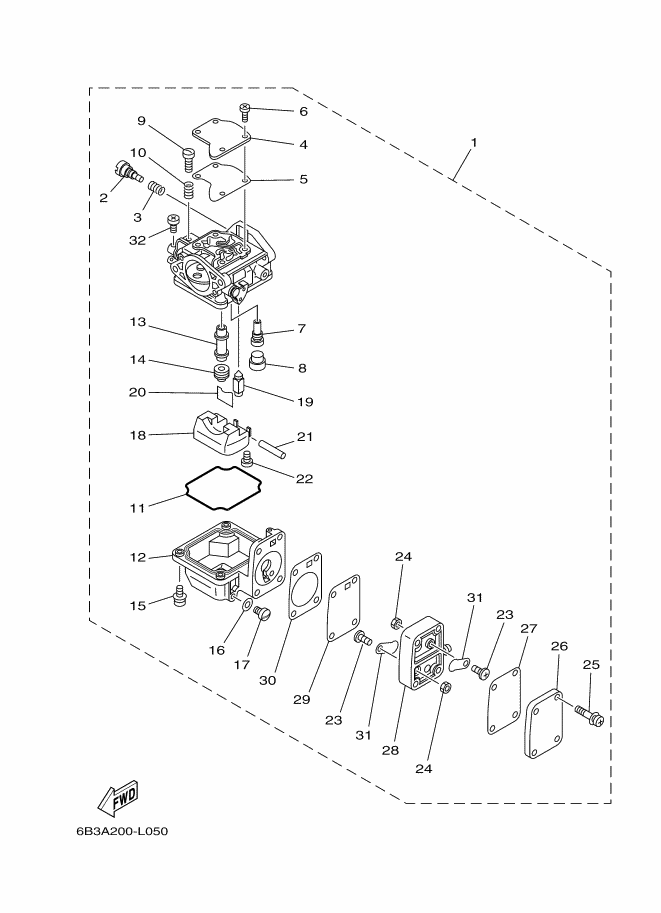

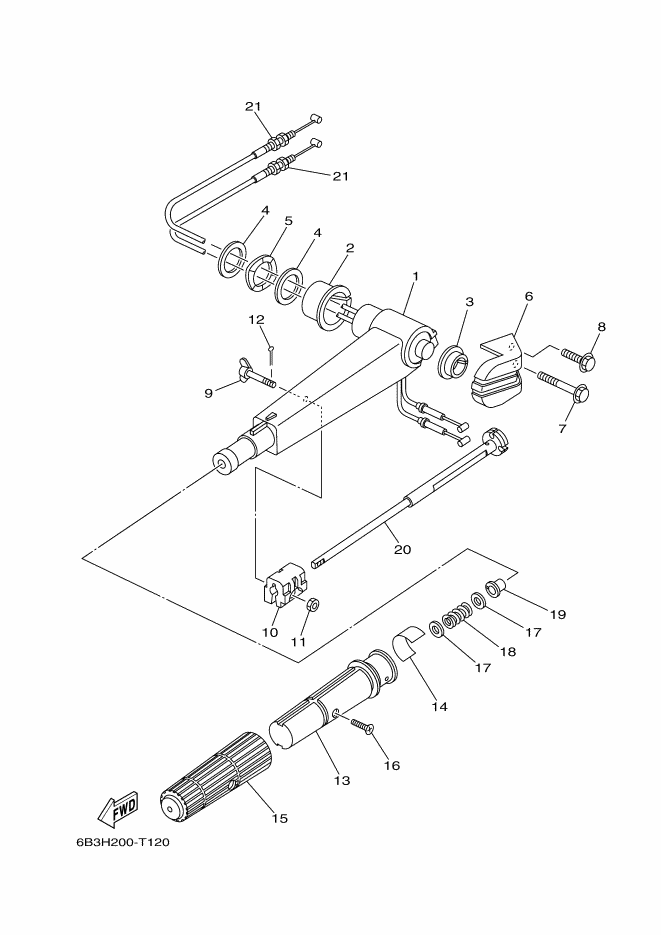

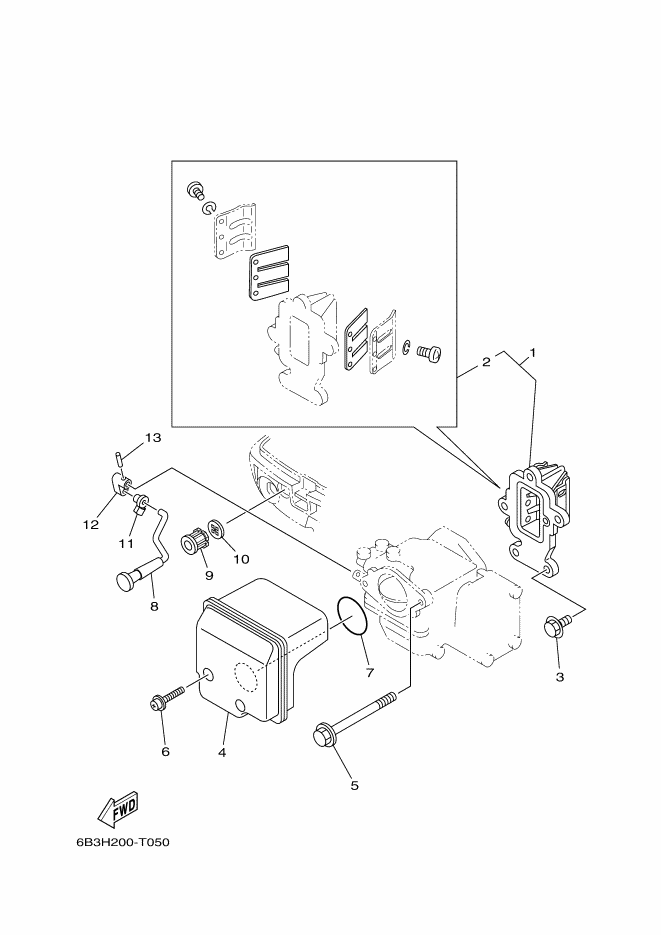

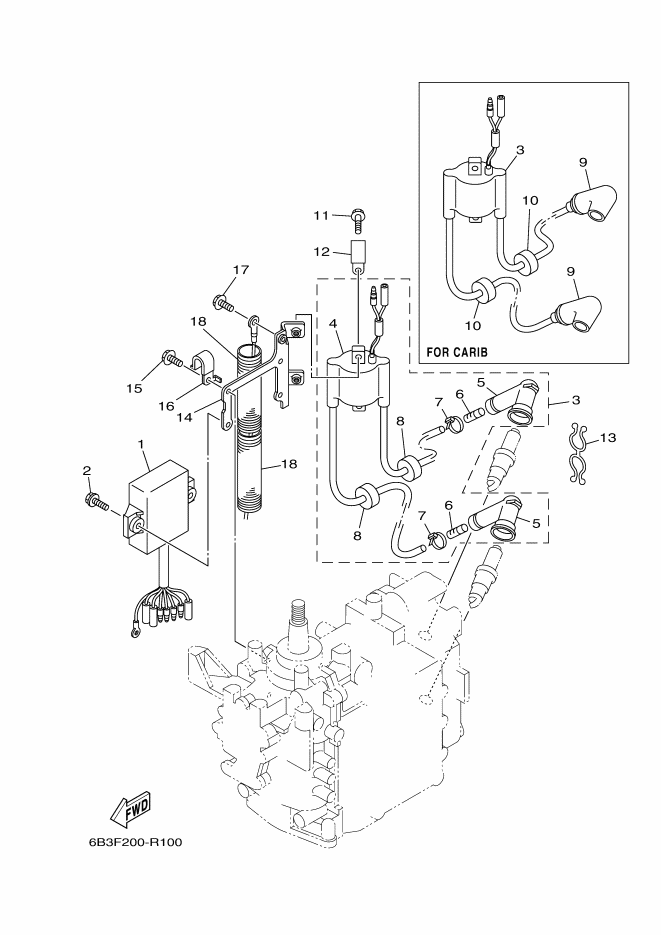

The exploded diagrams display the components of the Yamaha e15dmhl - 2020 within their respective mechanical assemblies. They simplify part identification, reference checking and the selection of the correct compatible parts before maintenance or repair work.

Yamaha e15dmhl - 2020 engine specifications
  • 15 HP output at 5,000 rpm corresponding to a maximum propeller-shaft output of 11.0 kW
  • 246 cm³ inline twin-cylinder engine operating through a 2-stroke cycle
  • Full-throttle range of 4,500 to 5,500 rpm with a 56.0 mm bore and a 50.0 mm stroke
  • Carburettor fuel system and CDI ignition combined with an NGK BR7HS-10 spark plug
  • 2.08 reduction ratio with forward, neutral and reverse gear positions
