Parts and exploded diagrams for Yamaha 9.9fmhs - 2018 2-stroke engine
This page allows you to view the exploded diagrams for the Yamaha 9.9fmhs - 2018 2-stroke engine and easily identify the compatible parts for your engine.
Yamaha is a well-known brand in the outboard engine industry. It offers engines designed to meet the needs of recreational boaters and professionals, with ranges suited to maintenance, repair and use in marine environments.

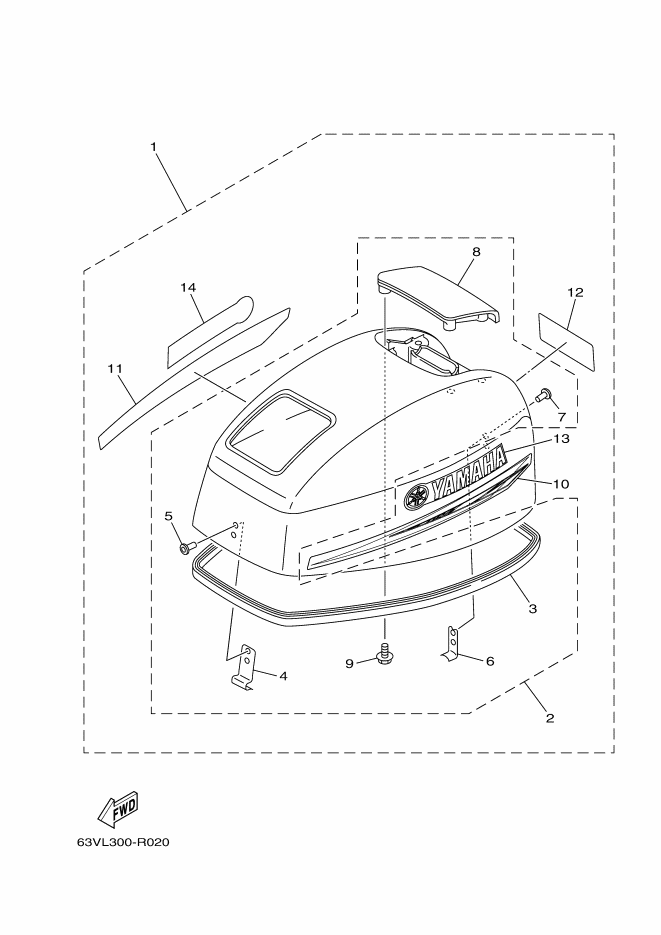

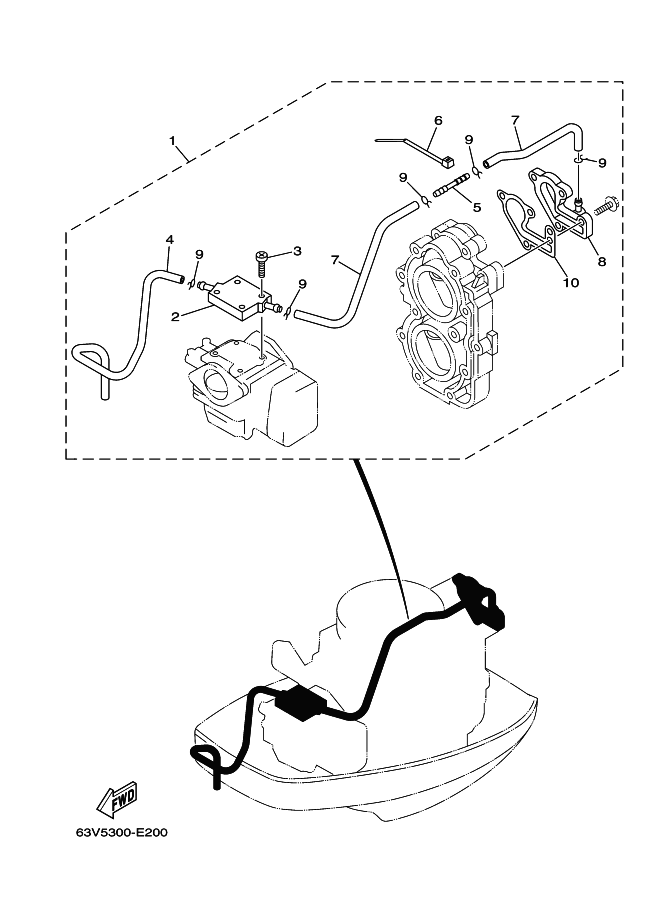

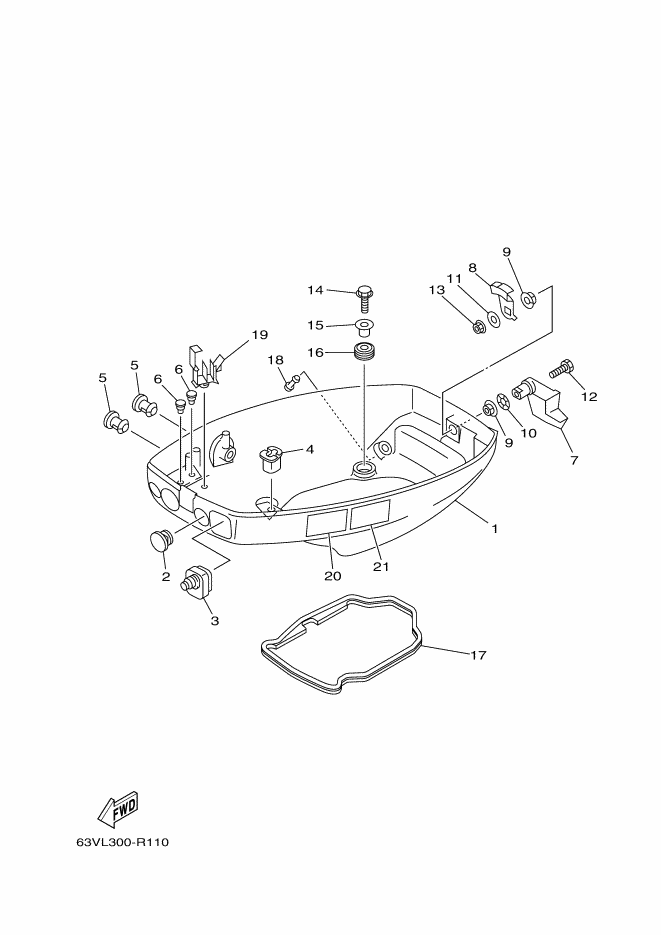

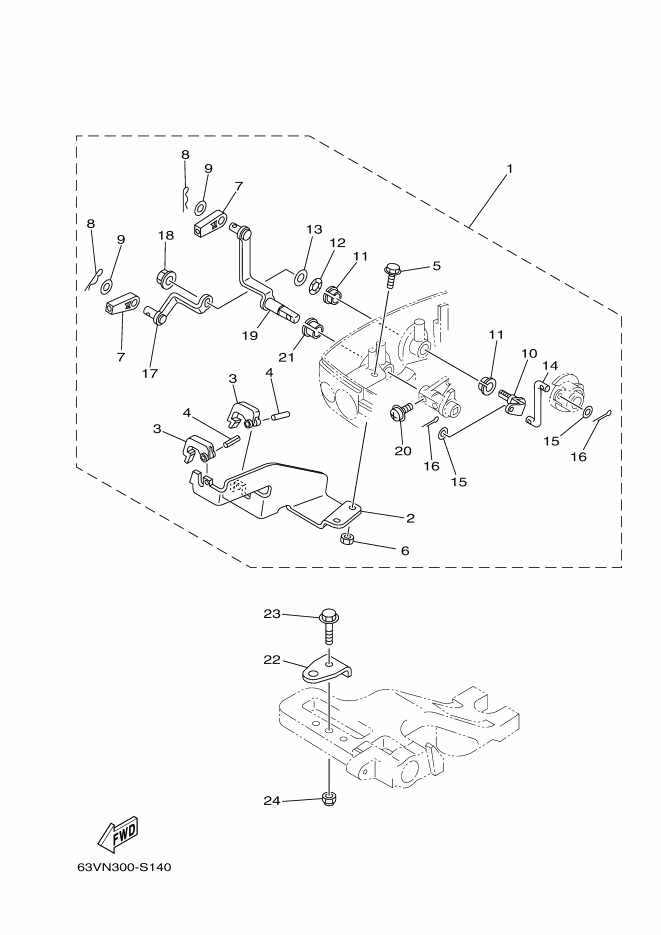

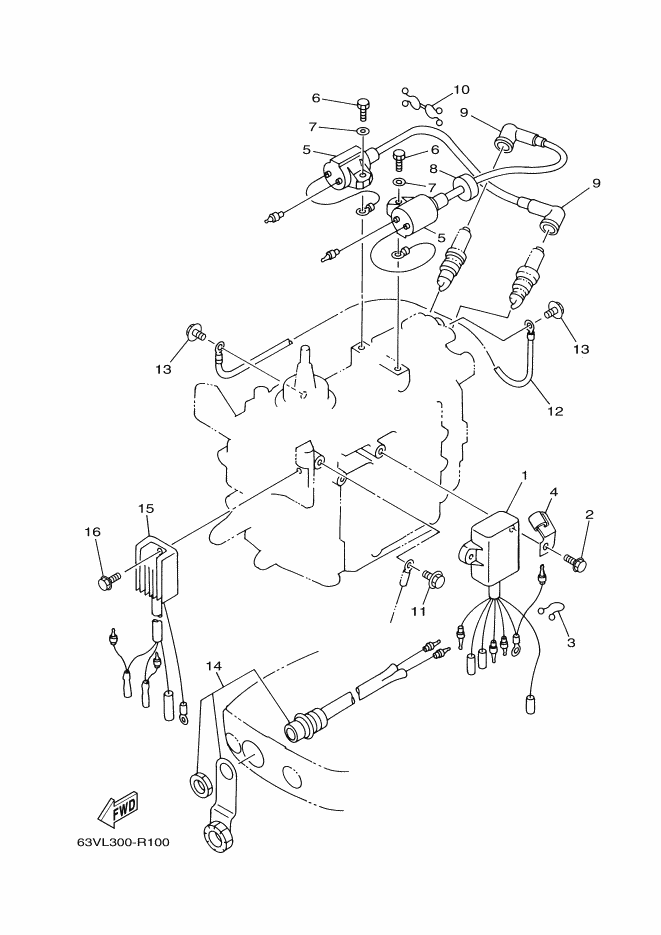

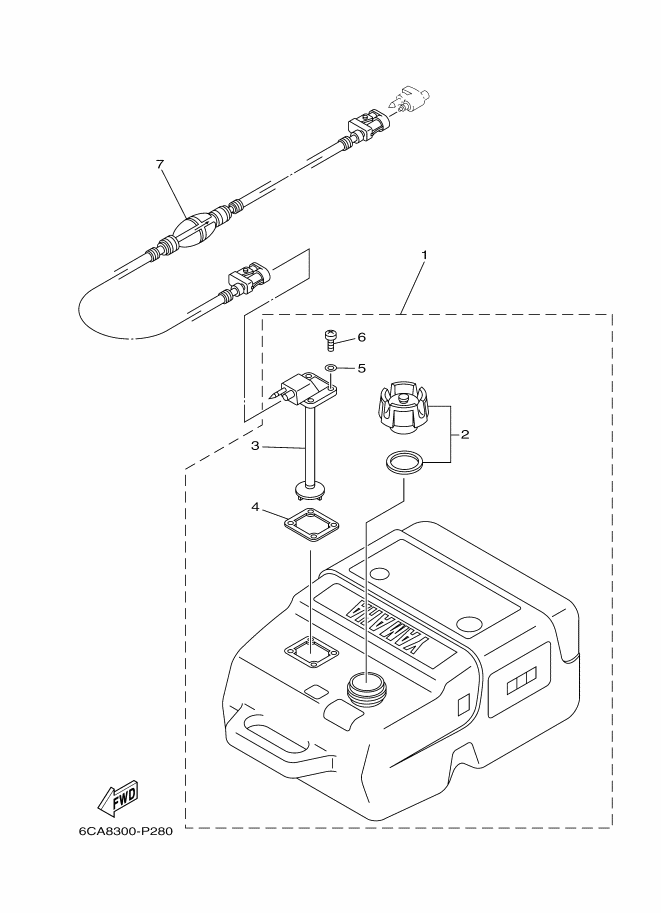

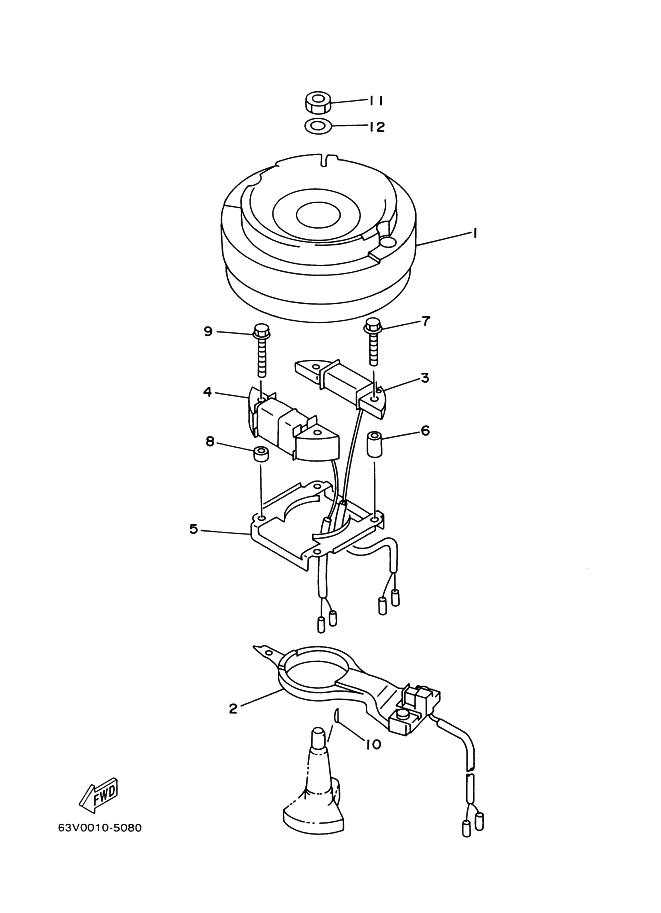

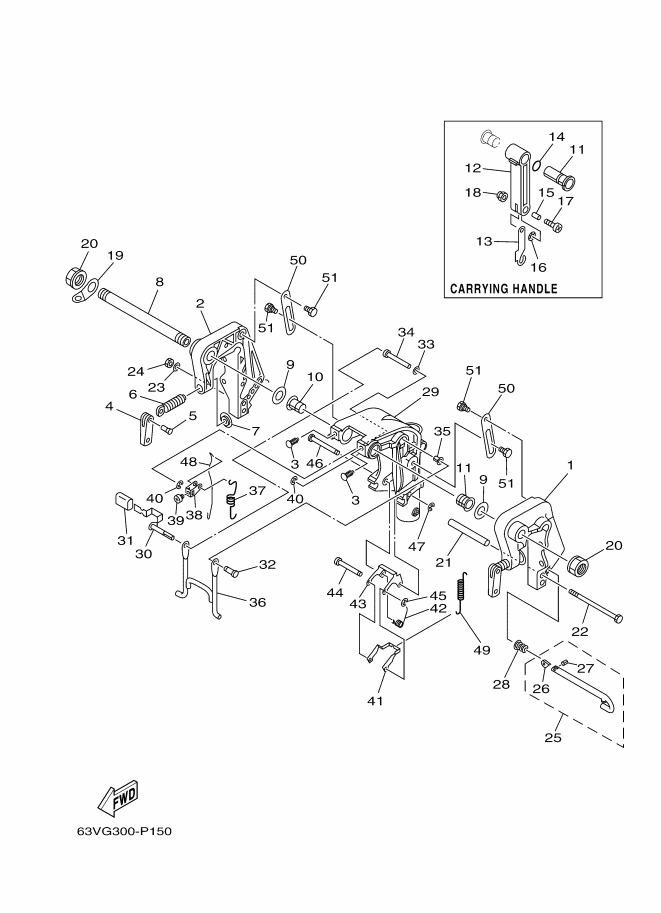

Select an exploded diagram for your Yamaha 9.9fmhs - 2018 2-stroke engine
Yamaha 9.9fmhs - 2018
The Yamaha 9.9fmhs - 2018 is a 9.9 HP 2-stroke outboard engine equipped with two cylinders arranged in line. Its displacement is 246 cm³, with bore and stroke dimensions of 56.0 x 50.0 mm. Maximum power transmitted to the propeller shaft reaches 7.3 kW at 5,000 rpm.
This engine uses a carburettor fuel-induction system and is steered with a tiller handle. Starting the engine and adjusting its tilt are both carried out manually. It can be installed with a 441 mm S or 568 mm L transom height. Dry weight ranges from 38 to 40 kg, while lubrication relies on fuel and oil being mixed beforehand.

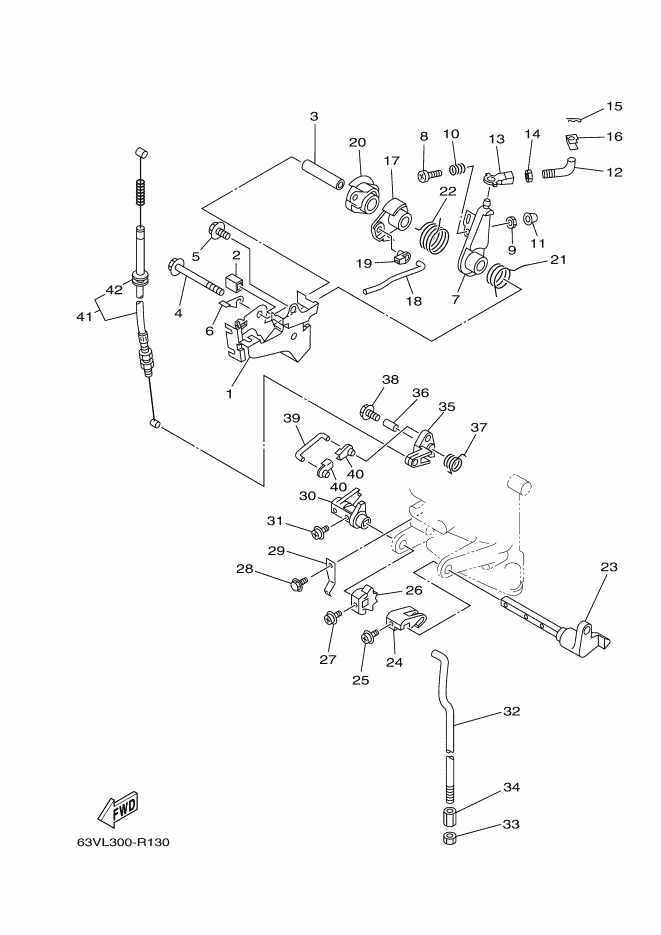

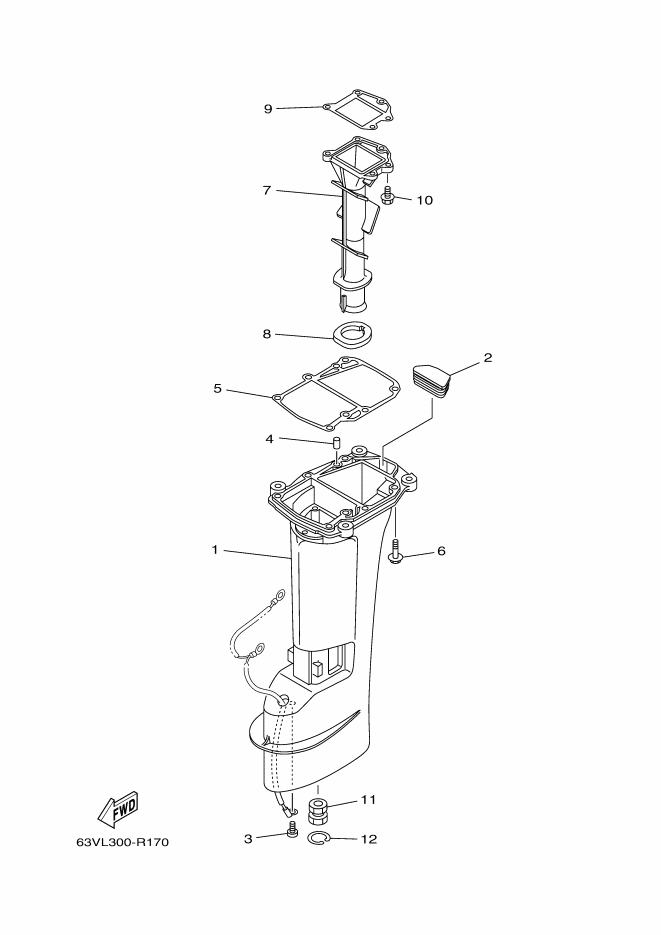

The exploded diagrams for the Yamaha 9.9fmhs - 2018 make it possible to examine the composition of each engine section before servicing. They simplify component location, help clarify how parts are assembled and support the identification of compatible references required for repair or replacement.
Yamaha 9.9fmhs - 2018 engine features- In-line two-cylinder engine providing a displacement of 246 cm³
- 9.9 HP power output achieved at an engine speed of 5,000 rpm
- Carburettor fuel system controlling induction of the mixture
- Tiller-handle operation combined with manual starting and tilt
- Pre-mixed lubrication using fuel combined with oil before operation
View exploded diagrams Yamaha 9.9fmhs - 2018
