Parts and exploded diagrams for Yamaha 9.9fmhl - 2011 2-stroke engine
This page allows you to view the exploded diagrams for the Yamaha 9.9fmhl - 2011 2-stroke engine and easily identify the compatible parts for your engine.
Yamaha is a well-known brand in the outboard engine industry. It offers engines designed to meet the needs of recreational boaters and professionals, with ranges suited to maintenance, repair and use in marine environments.

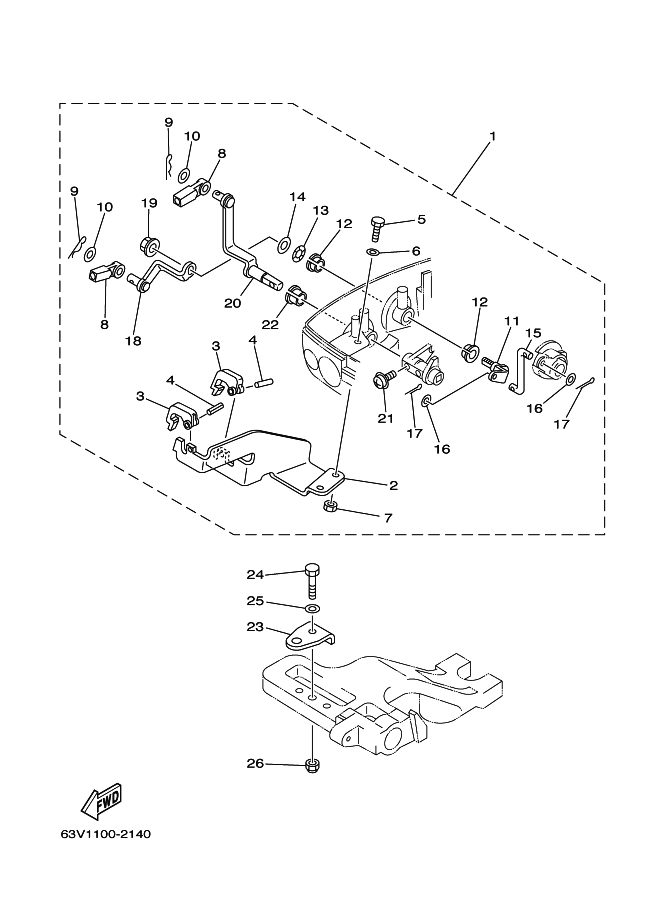

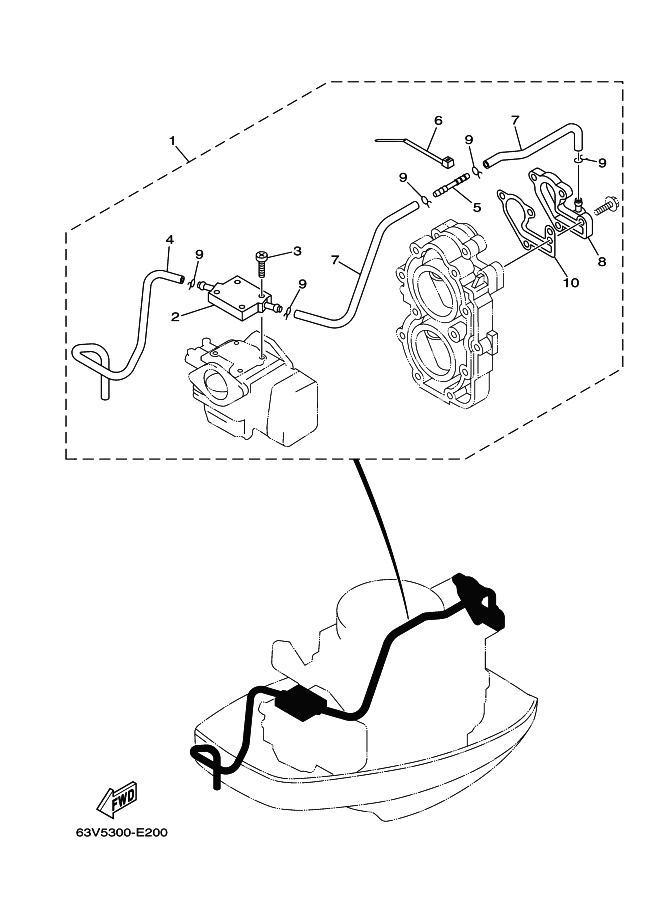

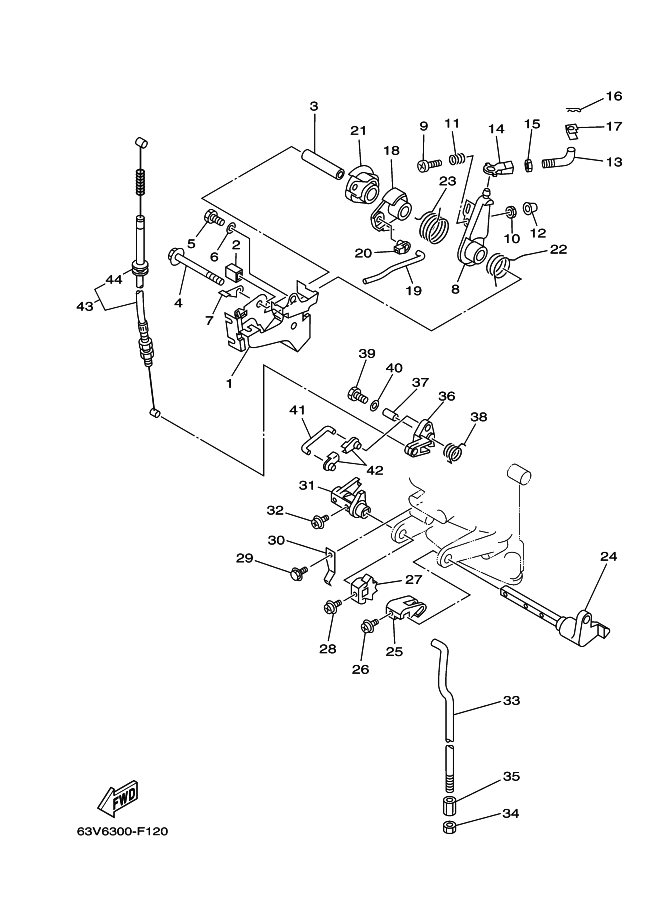

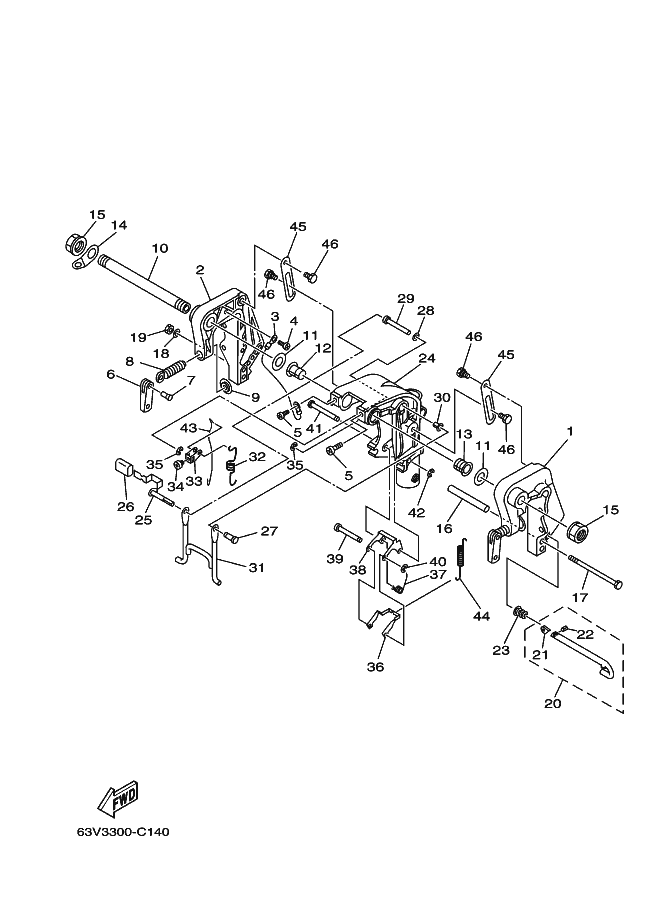

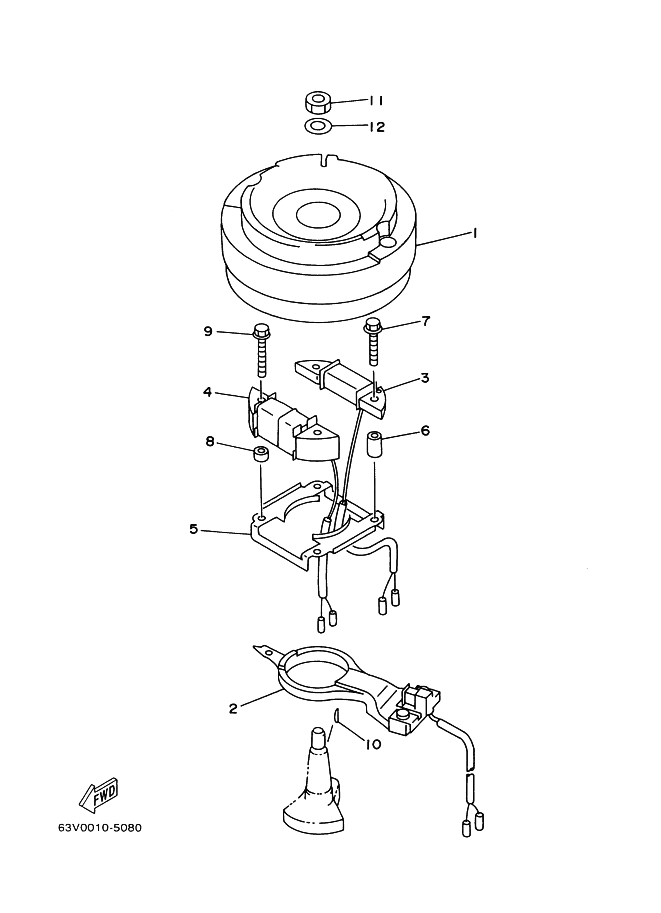

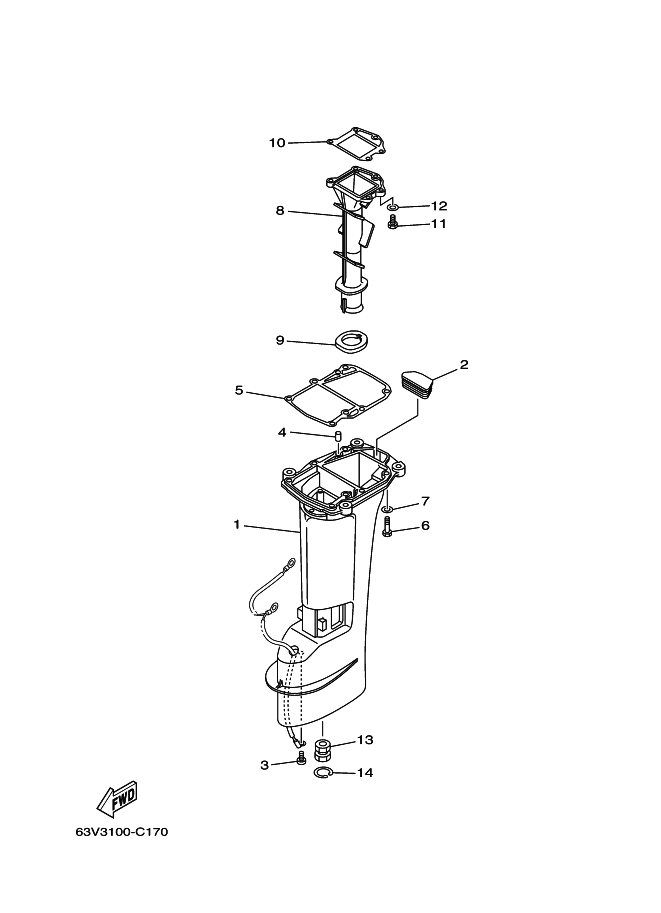

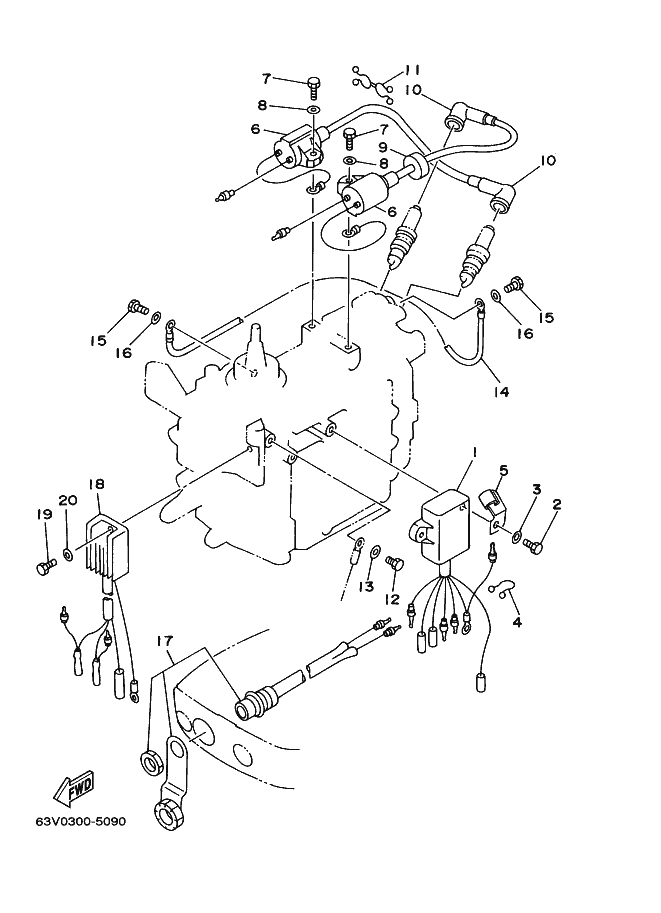

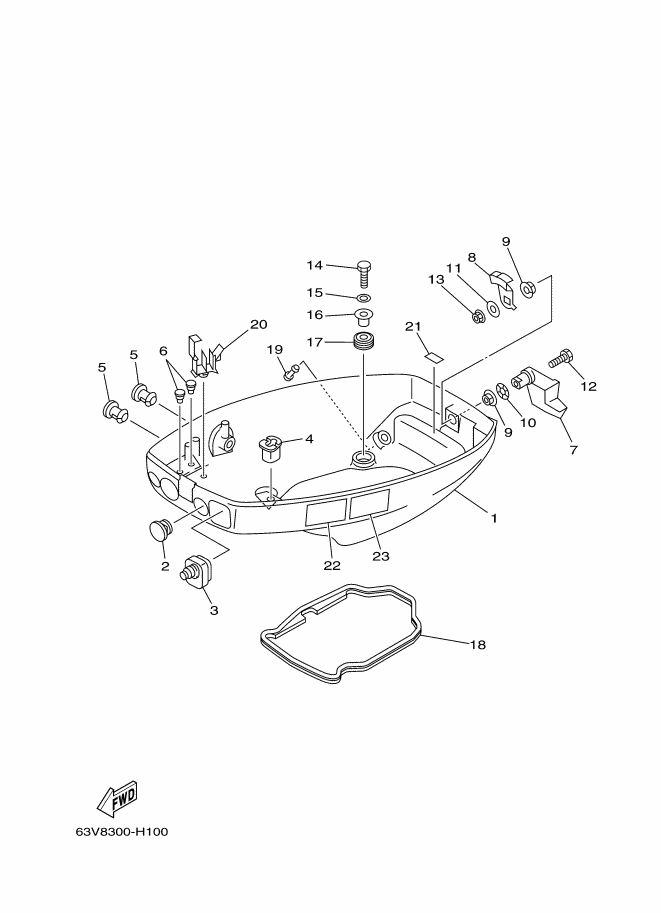

Select an exploded diagram for your Yamaha 9.9fmhl - 2011 2-stroke engine
Yamaha 9.9fmhl - 2011
The Yamaha 9.9fmhl - 2011 is a 9.9 HP 2-stroke outboard engine designed with two cylinders arranged in line. Its displacement is 246 cm³, while bore and stroke measure 56.0 x 50.0 mm. Maximum output transmitted to the propeller shaft is 7.3 kW at 5,000 rpm.
Fuel induction is handled by a carburettor, and the engine is operated through a tiller handle. Both engine starting and tilt adjustment are manual. For installation, it is available with a 441 mm S or 568 mm L transom height. Dry weight ranges from 38 to 40 kg, and lubrication requires fuel and oil to be pre-mixed.

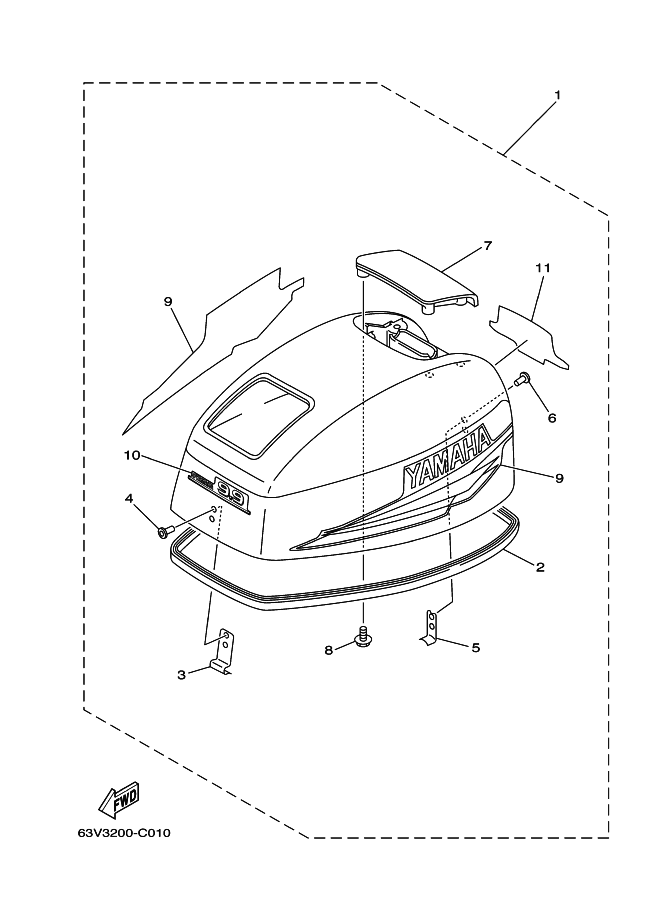

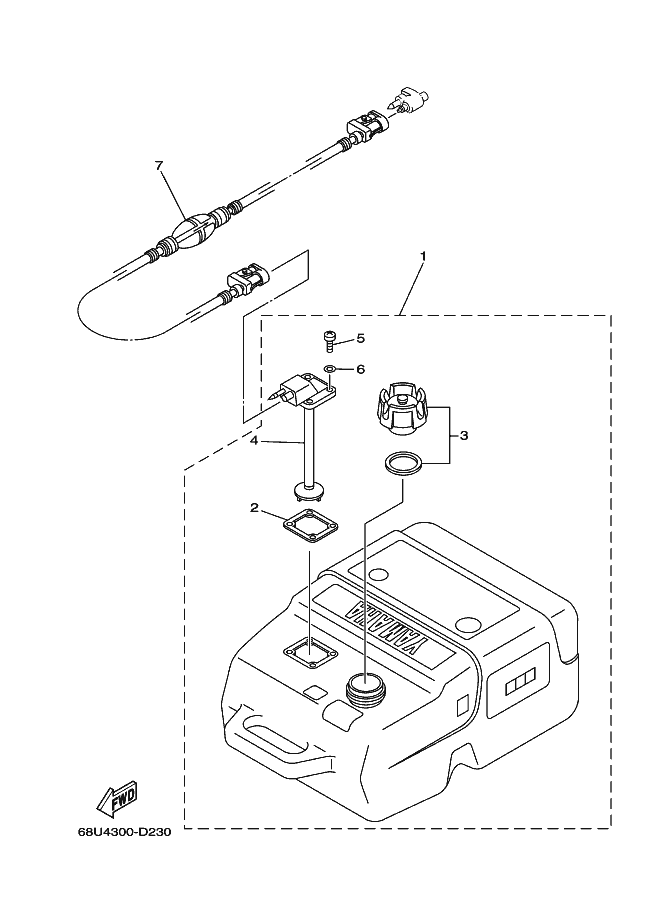

The exploded diagrams for the Yamaha 9.9fmhl - 2011 show the position and assembly of the engine’s various components. They make it easier to prepare servicing work, locate the parts that need checking and identify the compatible references required for repair or replacement.
Yamaha 9.9fmhl - 2011 engine features- In-line two-cylinder block providing a total displacement of 246 cm³
- 9.9 HP power output available at an engine speed of 5,000 rpm
- Carburettor fuel induction supplying the mixture to the engine
- Tiller-handle control combined with manual starting and manual tilt
- Pre-mixed lubrication requiring fuel and oil to be prepared together before use
View exploded diagrams Yamaha 9.9fmhl - 2011
